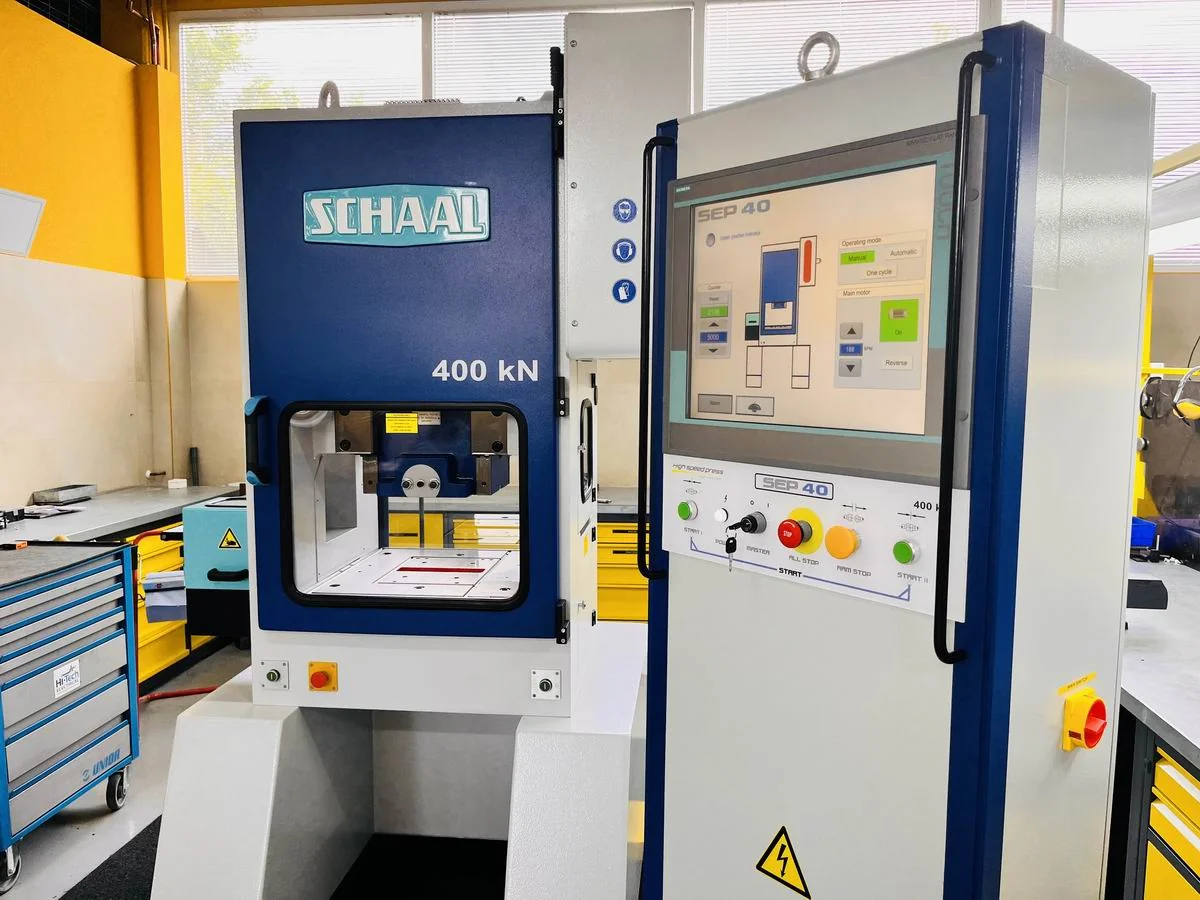

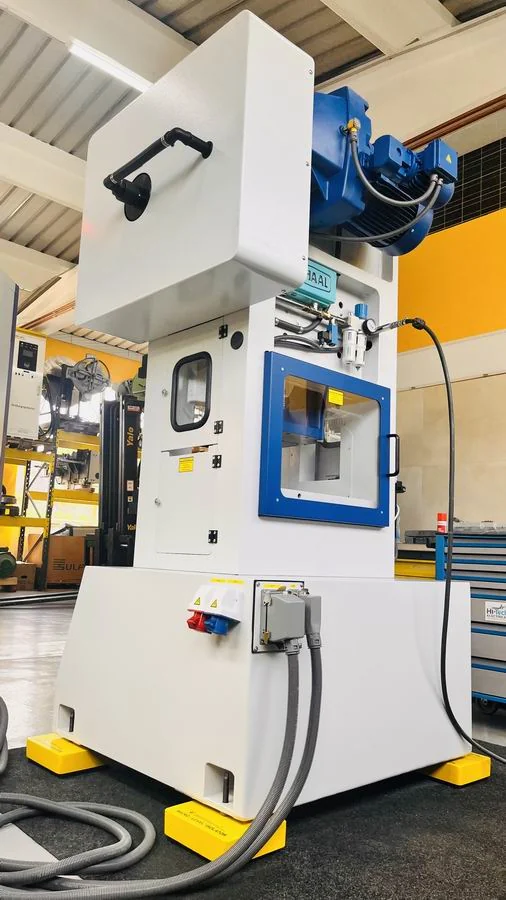

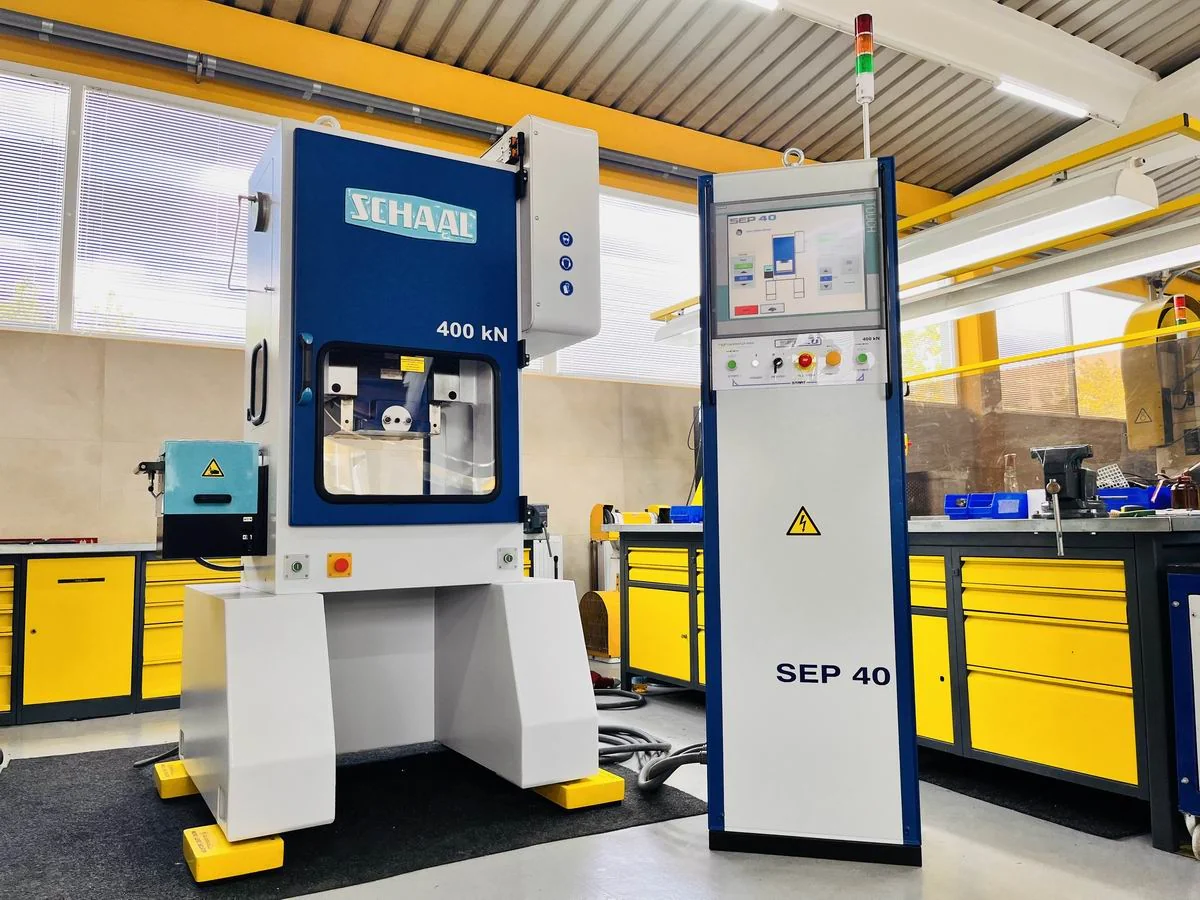

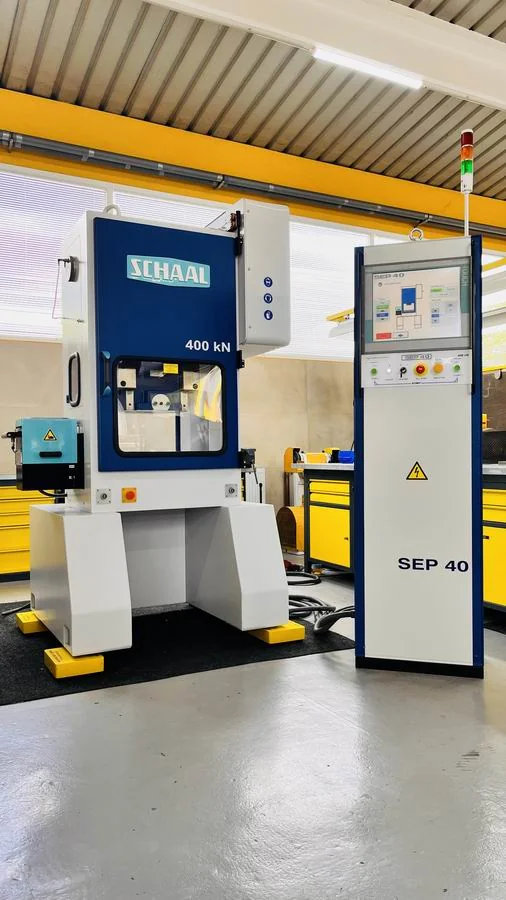

Schaal SEP 40
Automatic Punching Press • 1990
Tehničke specifikacije
Make and Model:Schaal SEP 40
Machine to be overhauled upon order.

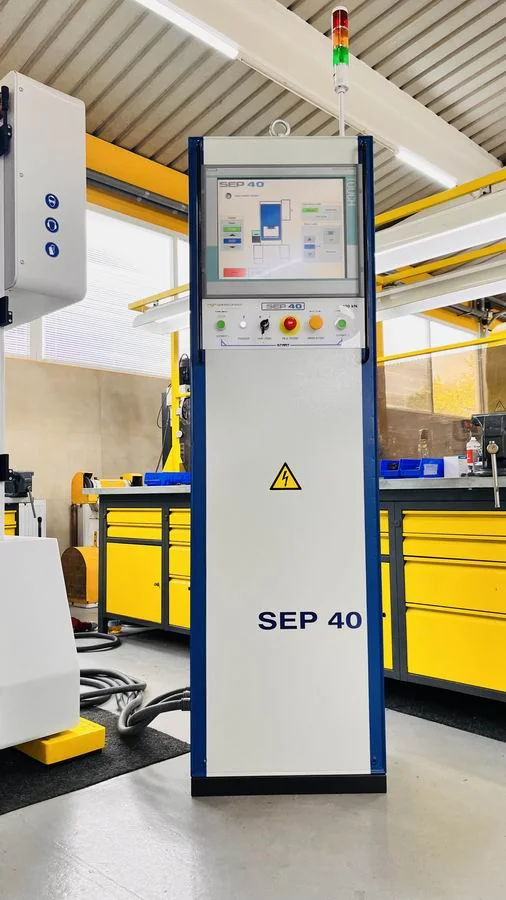

Completely new control with Siemens PLC and touch screen
Nominal capacity:400 kN (40 t)
Min./Max. number of strokes:80 - 400
Table dimensions:550 x 580 mm
Ram surface area:340 – 300 mm
Variable stroke:8 – 70 mm
Stroke range:8, 10, 15, 20, 25, 31, 36, 41, 46, 50, 54, 58, 61, 64, 66, 68, 69, 70 mm
Ram adjustment:70 mm
Fitted with gripper feeding device SZV 2
Width of strip:8 – 120 mm
Feed length:2 – 80 mm
Feeding thickness:0.1 – 2 mm
Feeding:180°
Feed accuracy:±0.01 mm
Drive power:5,5 kW
Dimensions (H x W x L):2300 x 1600 x 1400 mm
Weight:3800 [kg]
Operating instructions in German and English and schematics included
New CE certificate
