    BRUDERER BSTA 50HL Ref. 37426

    Brza automatska presa za štancanje • 1990 • ID: 37426

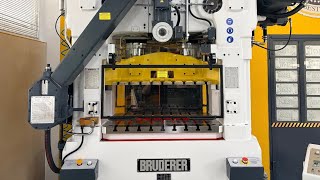

    BRUDERER BSTA 50 HL brzohodna automatska presa za štancovanje, godina proizvodnje 1990. Sila presovanja 500 kN, širina ugradnje alata 950 mm, radna ploča 940 × 650 mm, podesivi hod 16–51 mm, do 1.000 hodova/min. Opremljena valjkastim dodavačem BBV 195-85 (maks. traka 160 mm × 4 mm), Unidor upravljanjem i EFD podmazivanjem trake. Ukupna težina oko 8.700 kg.

    Pozovi

    Tehničke specifikacije

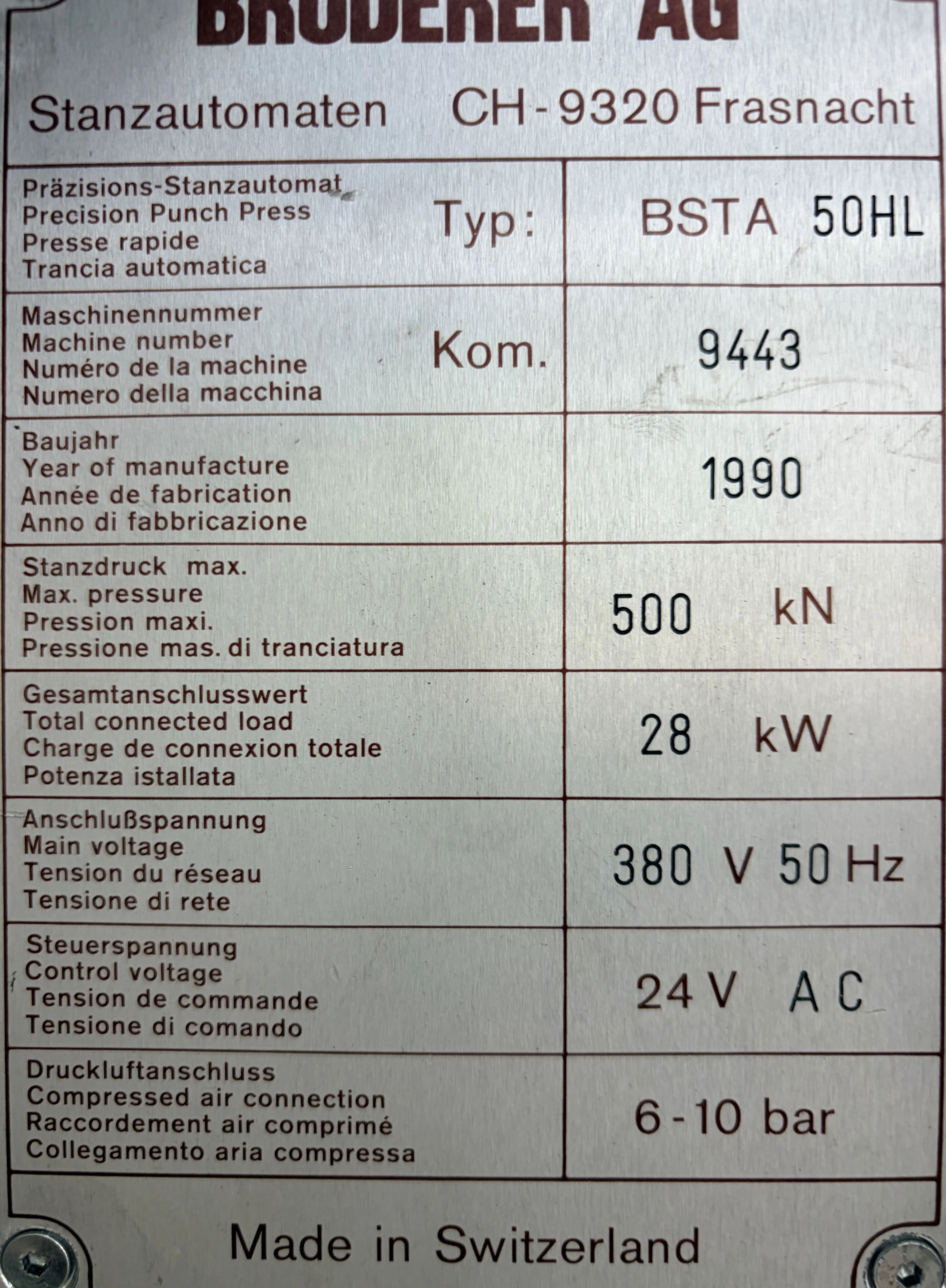

    Press ManufacturerBRUDERER AG, Frasnacht, Switzerland
    Machine ModelBSTA 50 HL
    Serial no.9443
    Year of Manufacture1990
    Max. press force500 kN
    Total Weight approx.8,700 kg
    Stroke range (adjustable)16 / 19 / 25 / 32 / 38 / 44 / 51 mm
    Ram adjustment range64 mm
    Tool opening width (max.)950 mm
    Bolster plate — Width × Depth940 × 650 mm
    Baseplate opening W × D900 × 200 mm
    Strip feed height (adjustable)60 – 140 mm
    Max. strip pass-through width250 mm
    Feeding deviceBBV 195 - 85
    Feeding angle90 degrees
    Max. strip thickness4 mm
    Max. strip width160 mm
    Feed length0 – 85 mm
    Supply voltage3 × 400 V / 50 Hz
    Main motor power28 kW
    Control voltage (DC)24 V DC
    Pneumatic supply6 – 10 bar (R ½" connection)
    Press width (with feeder) approx.2,471 mm
    Press depth approx.1,302 mm
    Press height approx.3,165 mm
    OptionalSound-insulating safety cabin / enclosure
    DocumentationOriginal technical documentation and schematics
