    Bruderer BSTA 25 Ref. 35926

    Brza automatska presa za štancanje • 1980 • ID: 35926

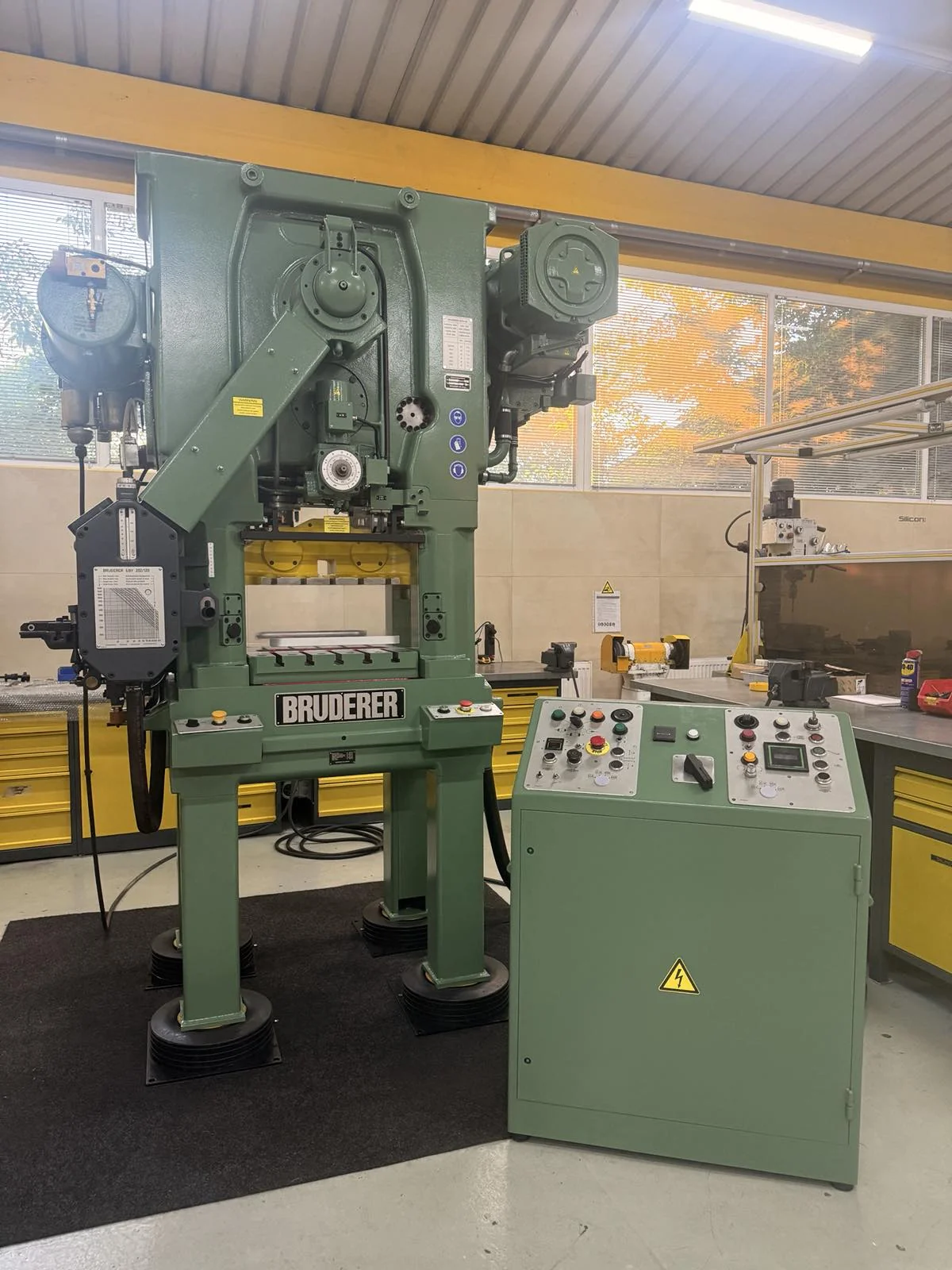

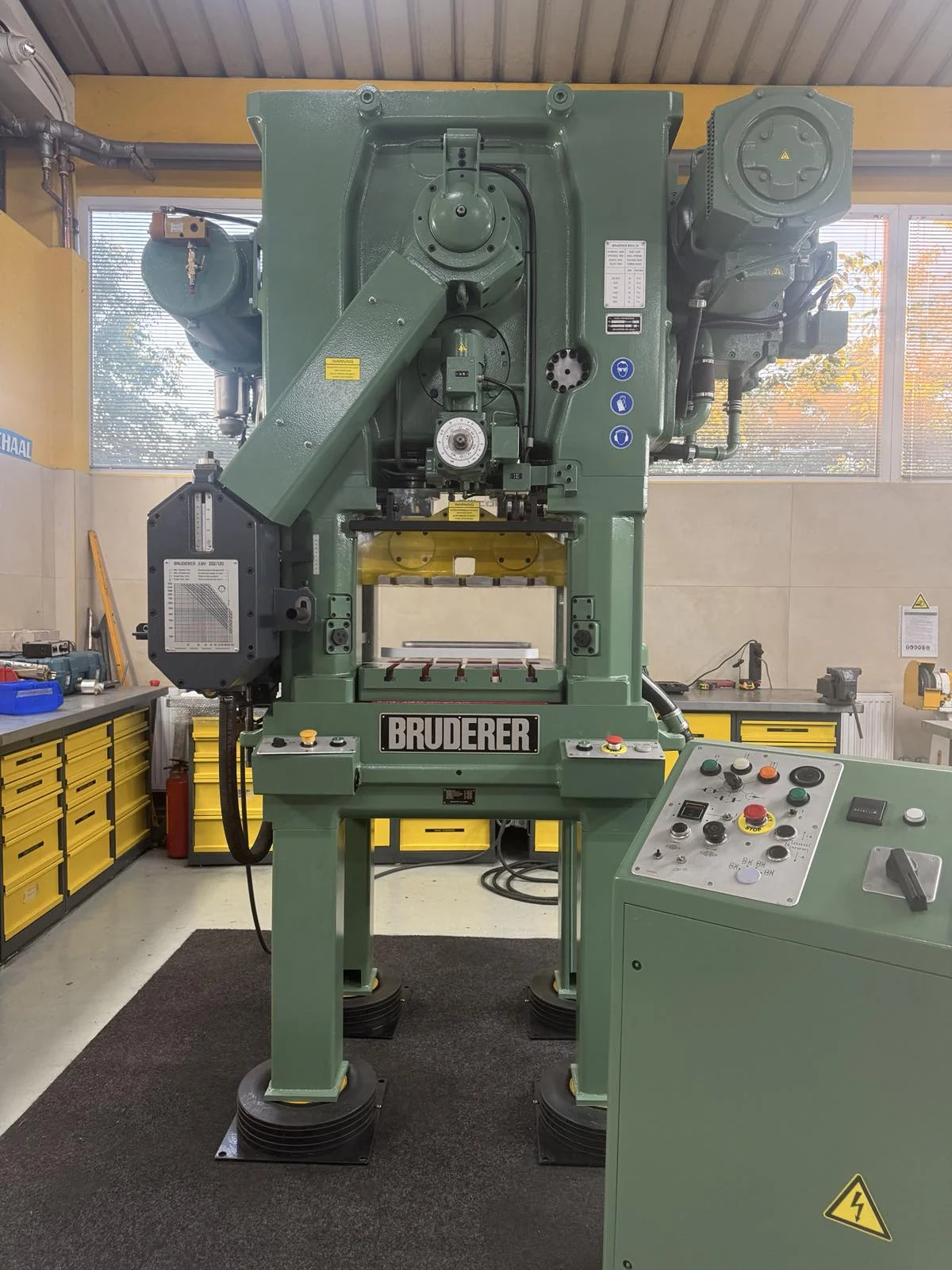

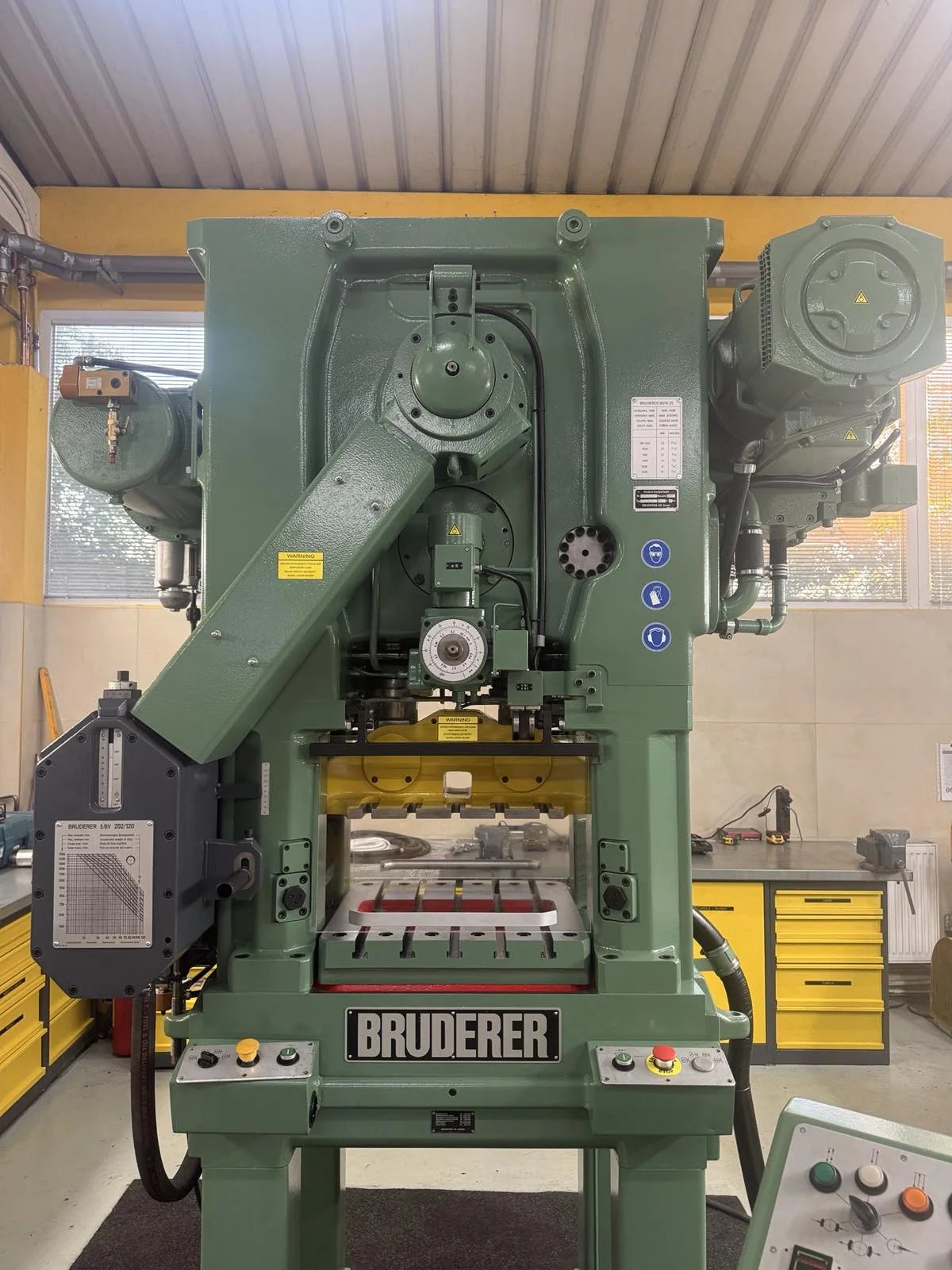

    BRUDERER BSTA 25 je švajcarska brza precizna presa za štancanje nominalne sile 250 kN (25 tona) i opsega od 100 do 1.500 hodova u minuti. Opremljena sinhronizovanim BBV 202/120 valjkastim dodavačem (maks. širina trake 200 mm, korak dodavanja 120 mm), ima podesivi hod od 13 do 38 mm i radnu površinu 530 × 530 mm. Kompaktan, pouzdan radni konj za velikoserijsku proizvodnju preciznih štancanih delova – konektora, kontakata i fino sečenih delova.

    Pozovi

    Tehničke specifikacije

    Make and Model:Bruderer BSTA 25
    Nominal press force:250 kN (25 tons)
    Stroke rate:100 – 1,500 SPM
    Adjustable stroke:13 / 16 / 19 / 25 / 32 / 38 mm

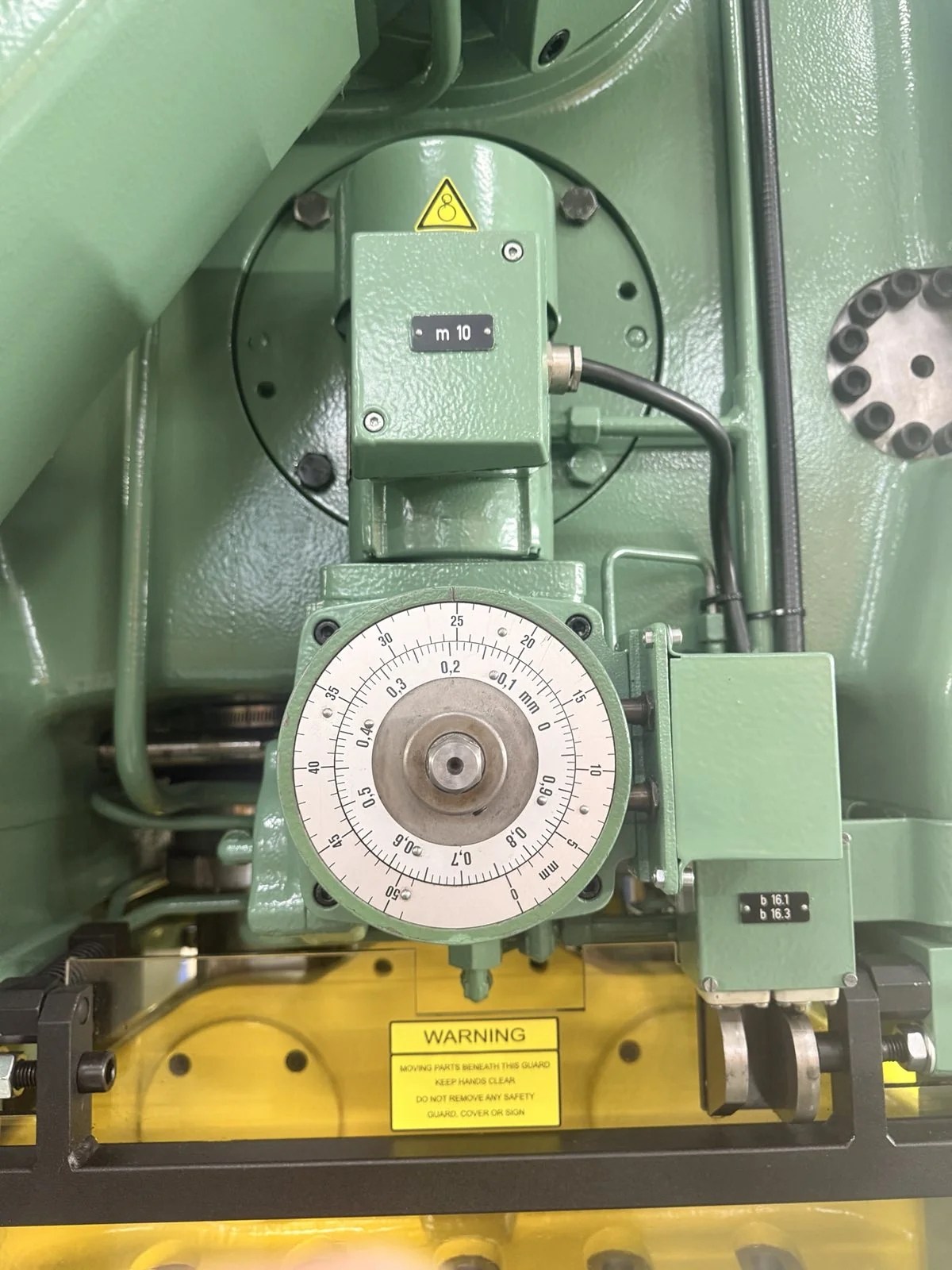

    Ram/slide adjustment:51 mm
    Shut height range:230 – 281 mm

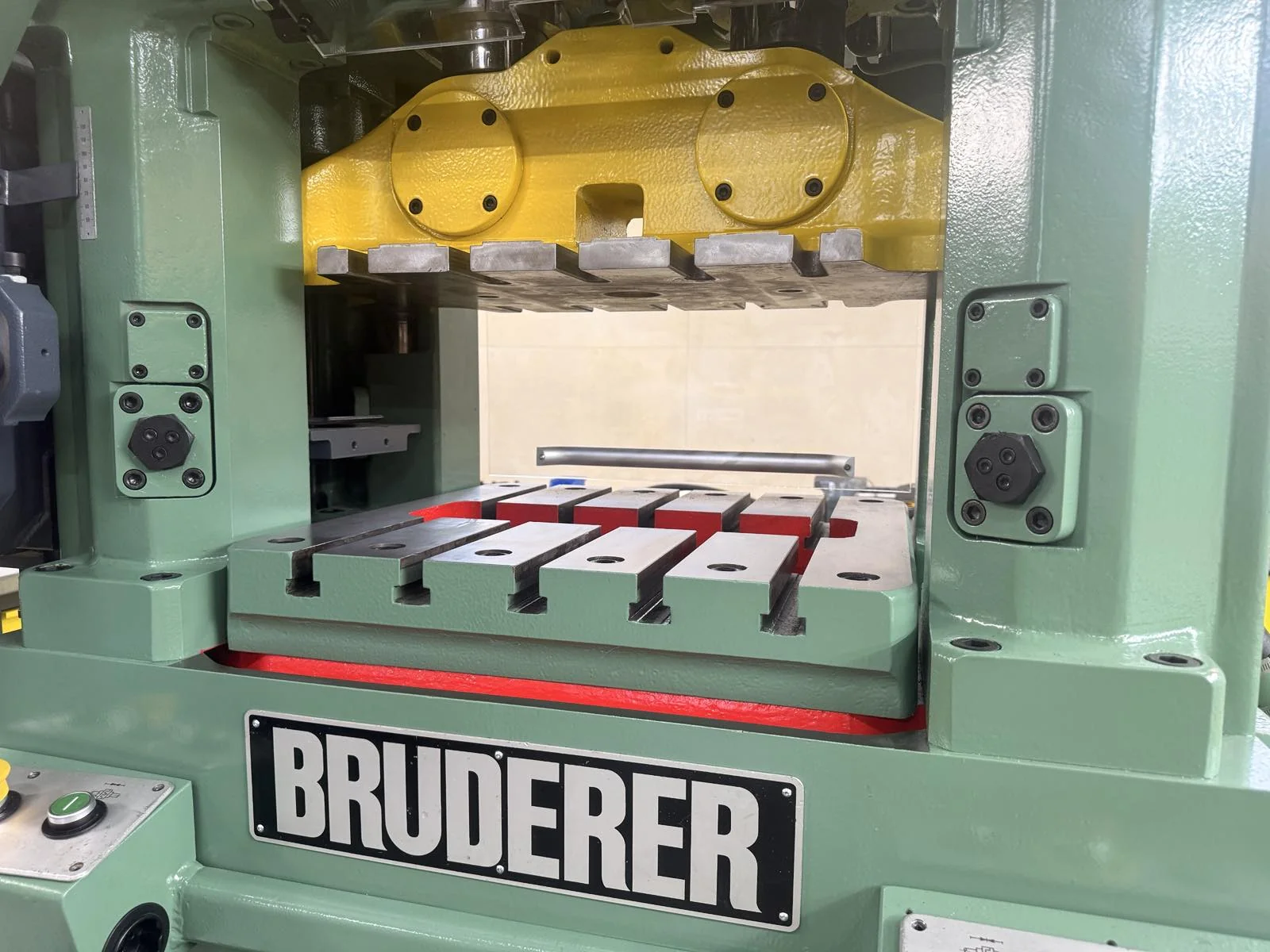

    Bolster/table area:530 × 530 mm
    Longitudinal passage between uprights:540 mm
    Lateral strip passage:200 mm
    Machine weight: approx.4,800 kg
    Machine dimensions (L × W × H):2,055 × 1,355 × 2,620 mm
    FeederBruderer BBV 202/120
    Type:Synchronized mechanical roll feeder
    Max. strip width:200 mm
    Max. feed pitch:120 mm
    Feed angle:180°
    4-column monoblock frame design
    Hydrostatic variable-speed drive
    Pneumatic clutch and brake
    Circulating oil lubrication system with oil pump and oil cooler
    Front and rear safety guards
    Anti-vibration rubber feet (4 supports)
    Electrical control cabinet
    Documentation available in German / English / Italian
