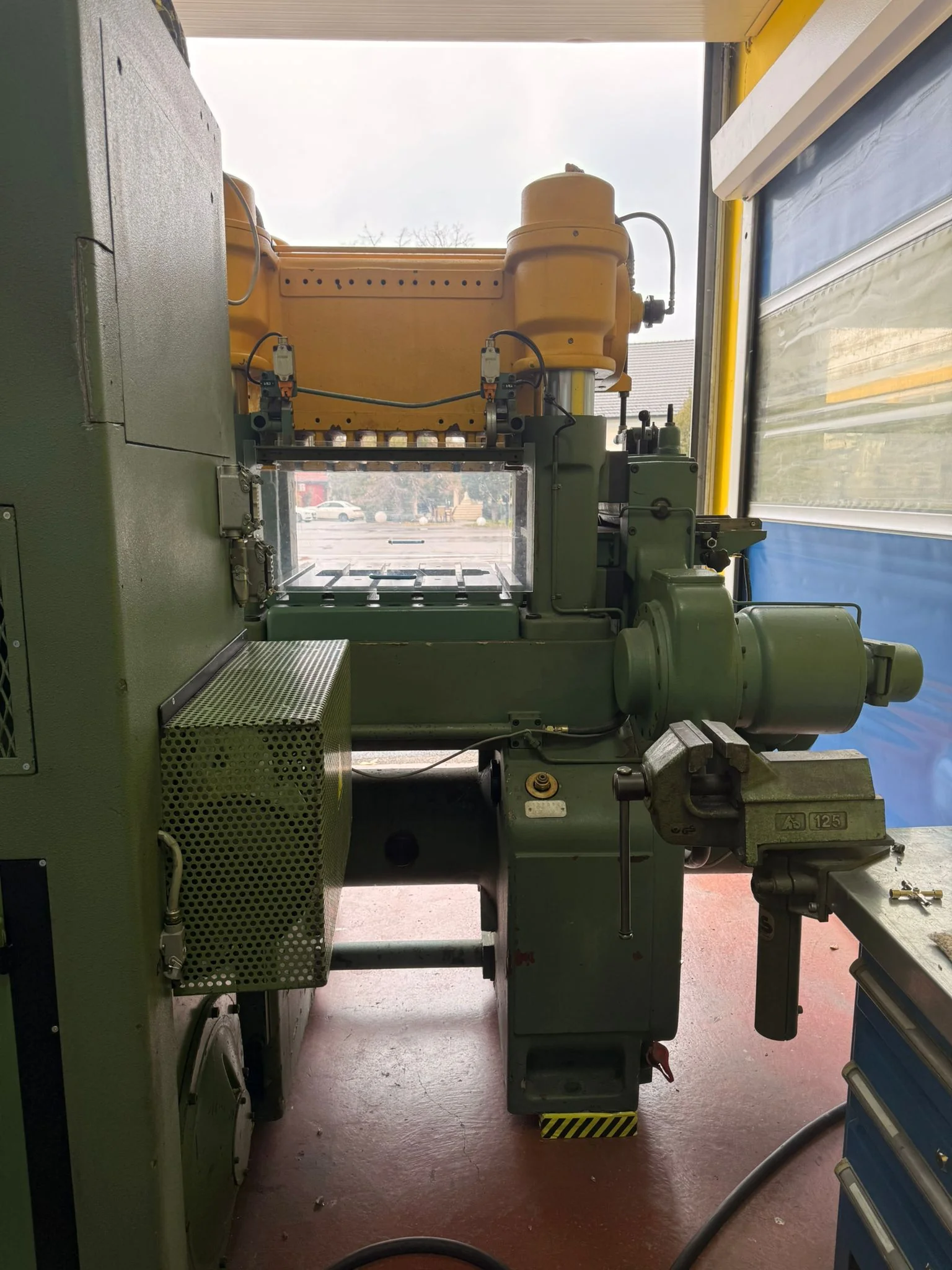

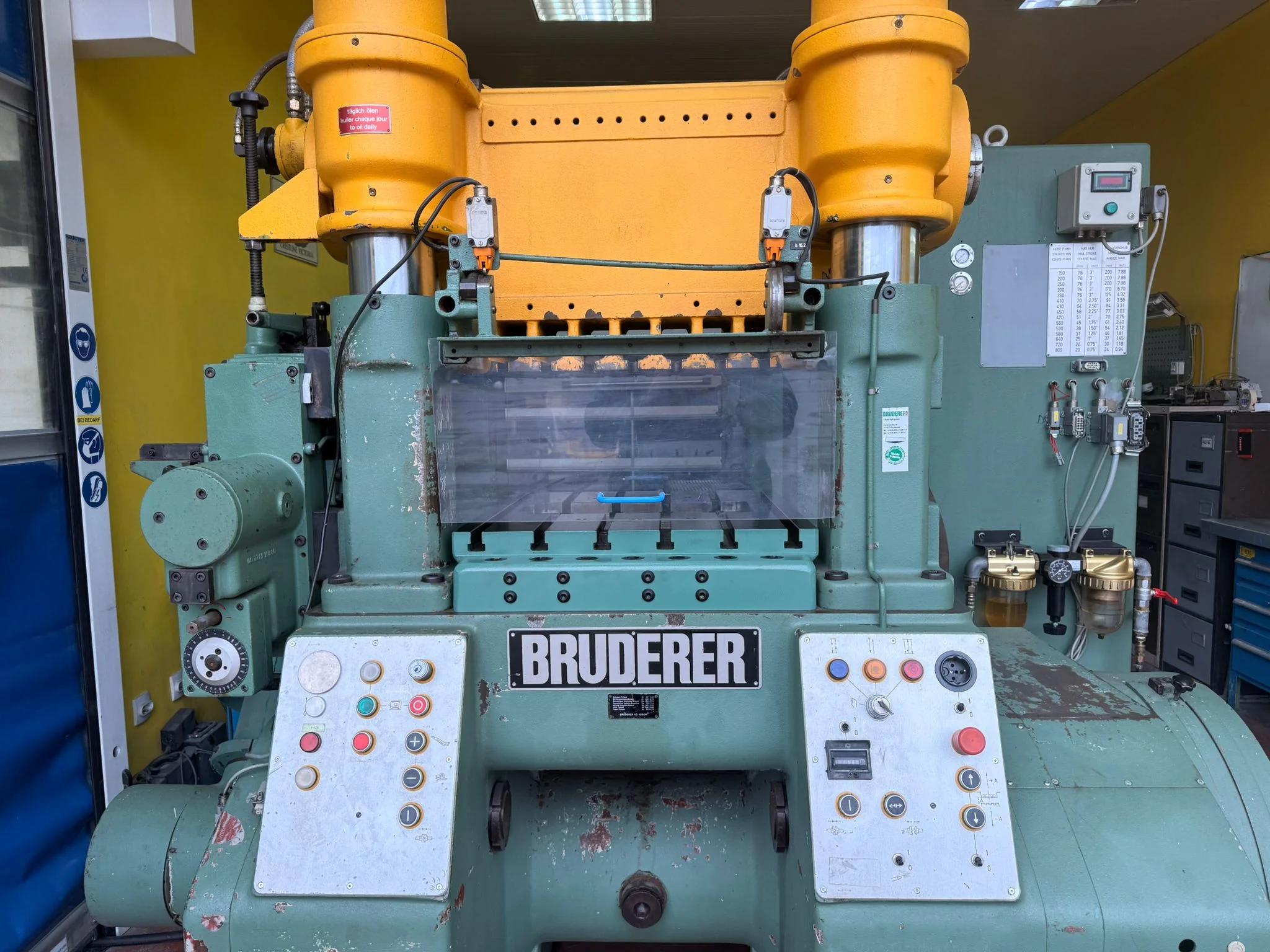

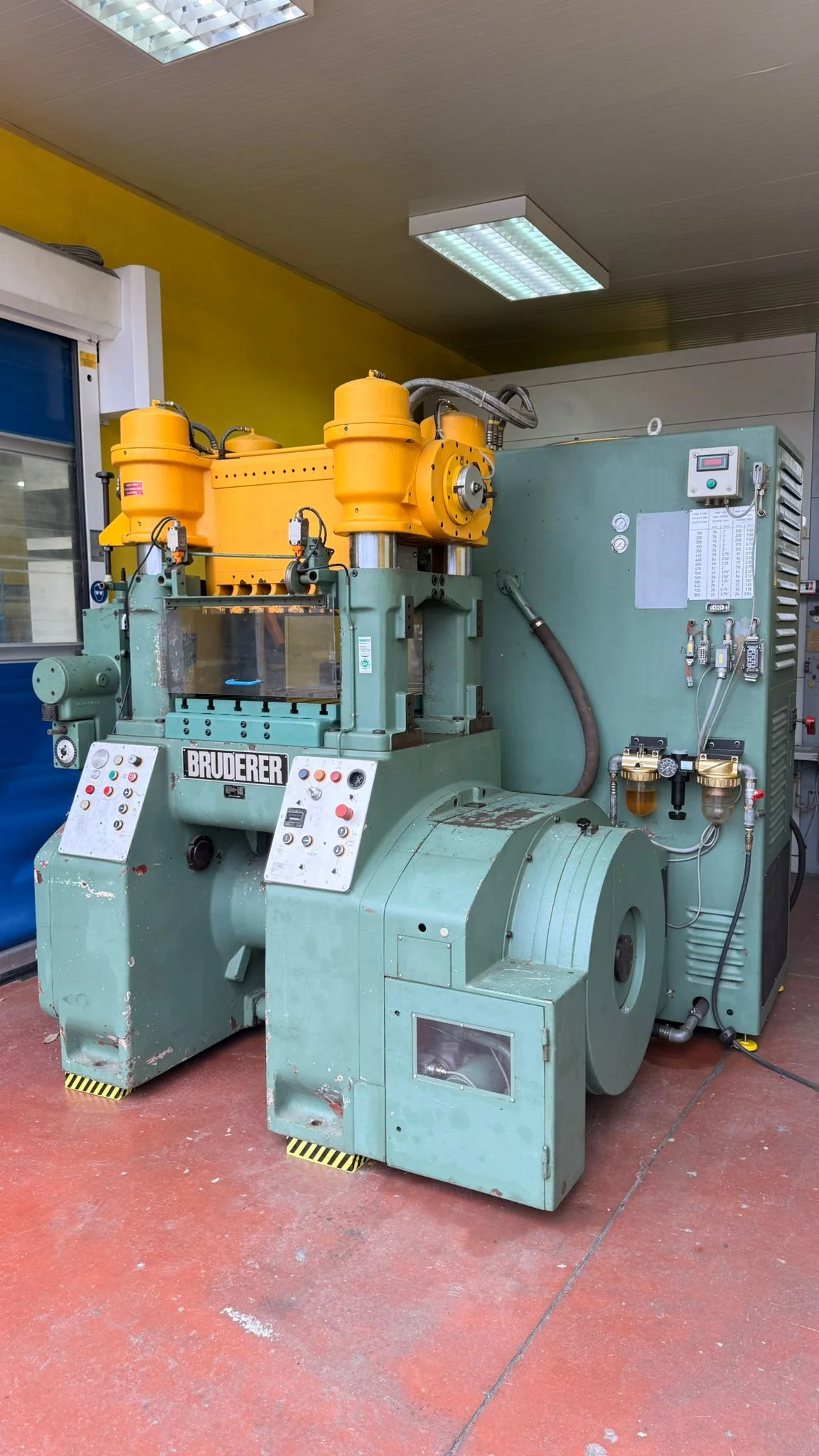

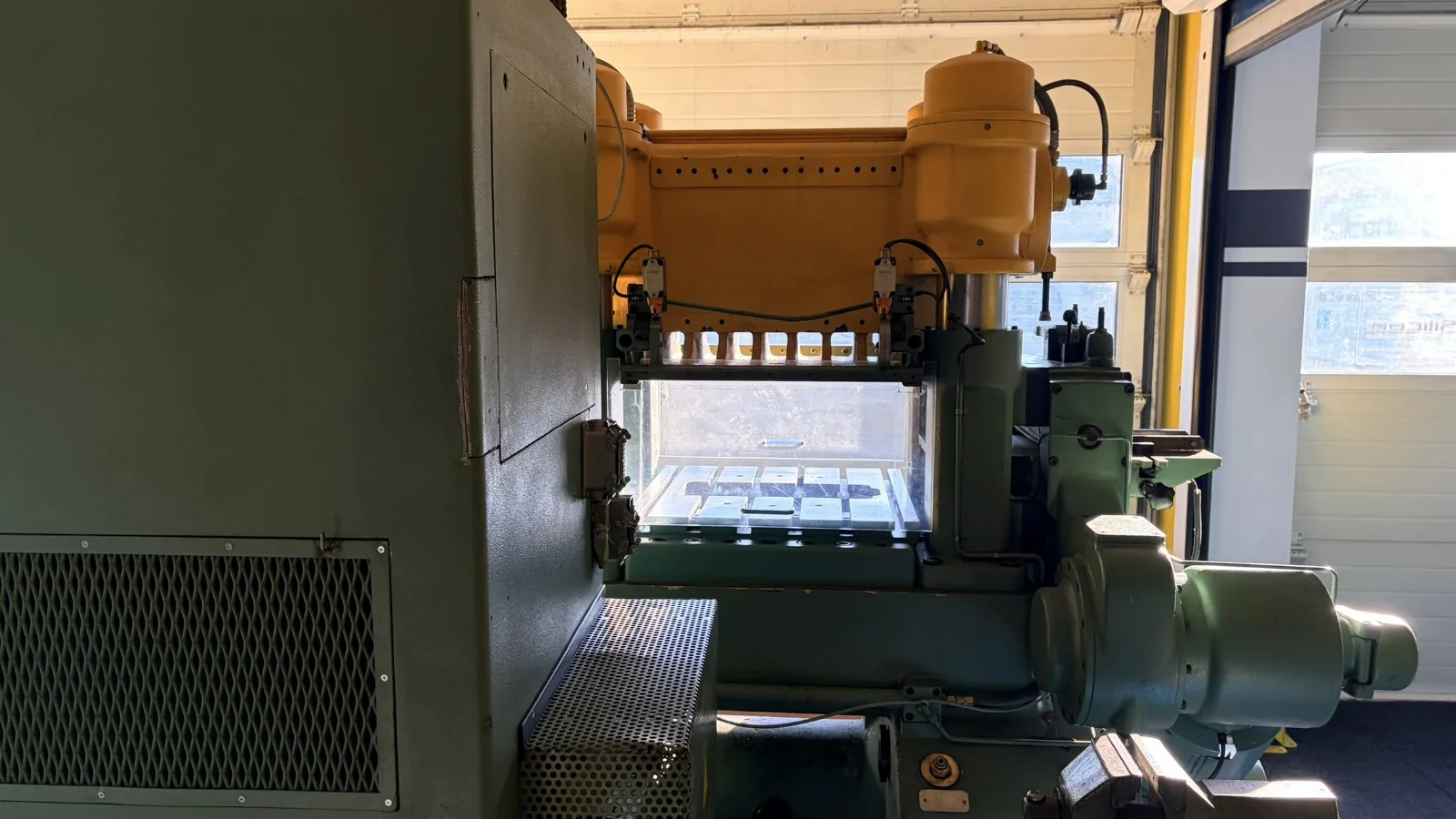

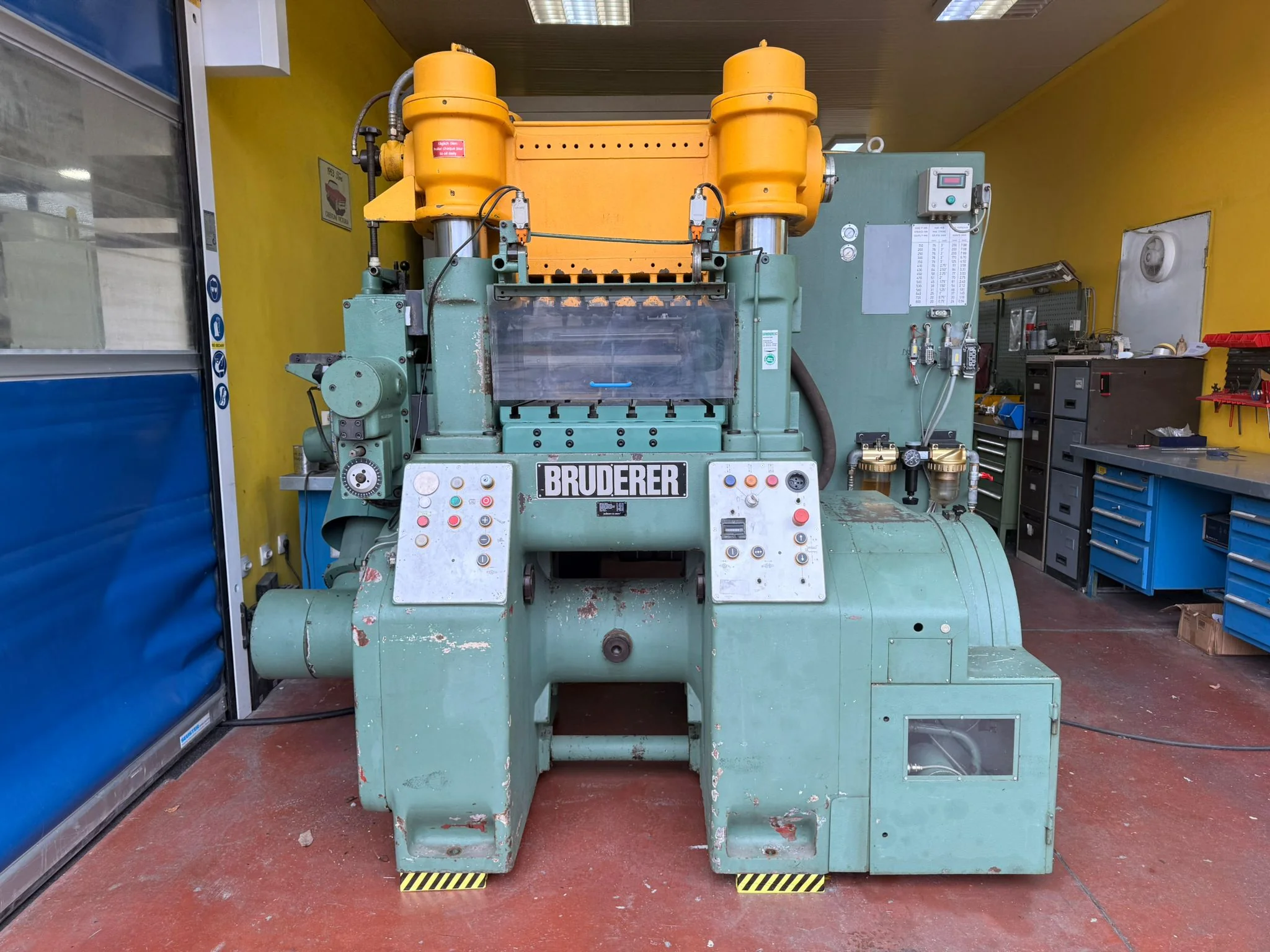

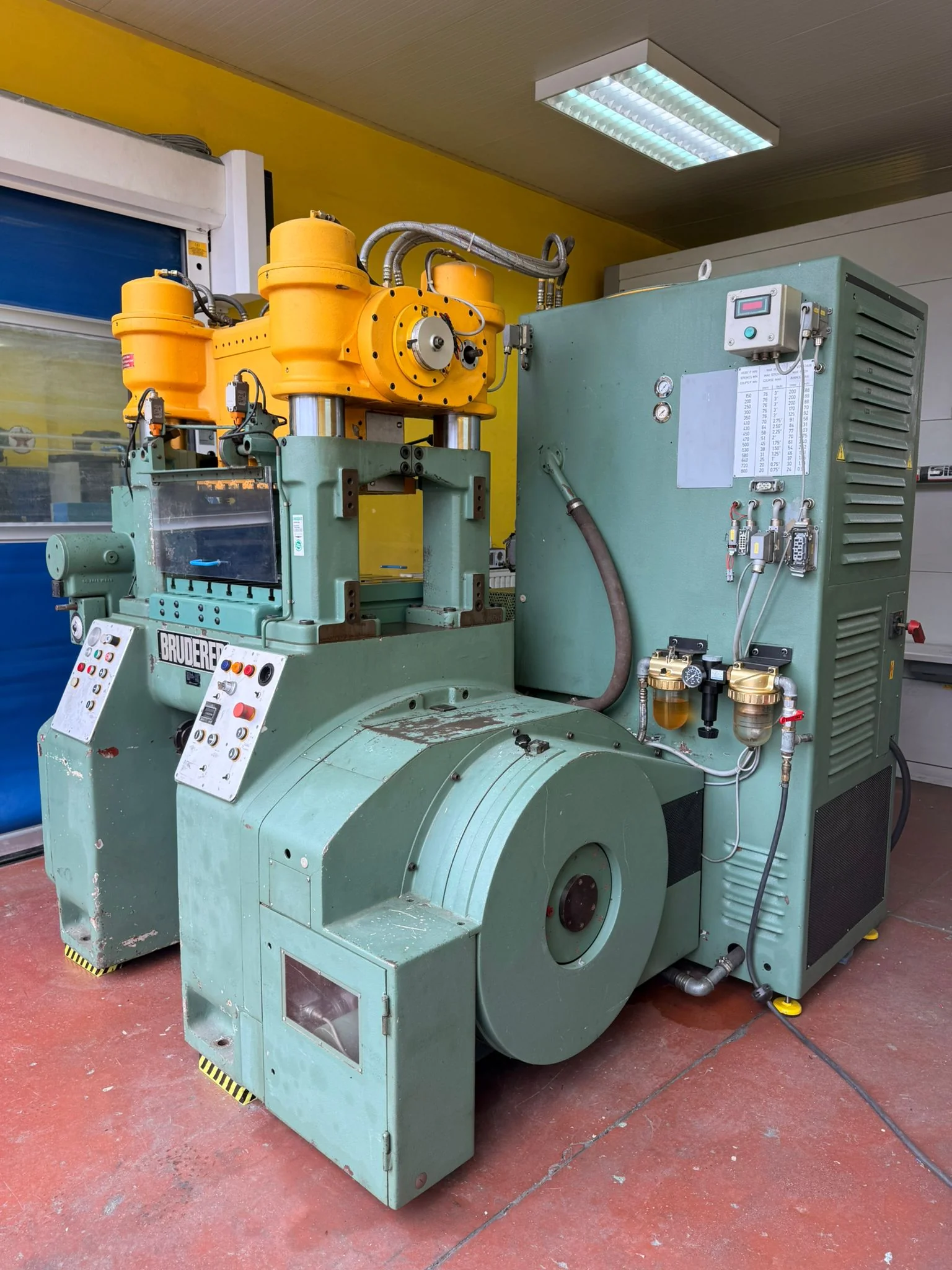

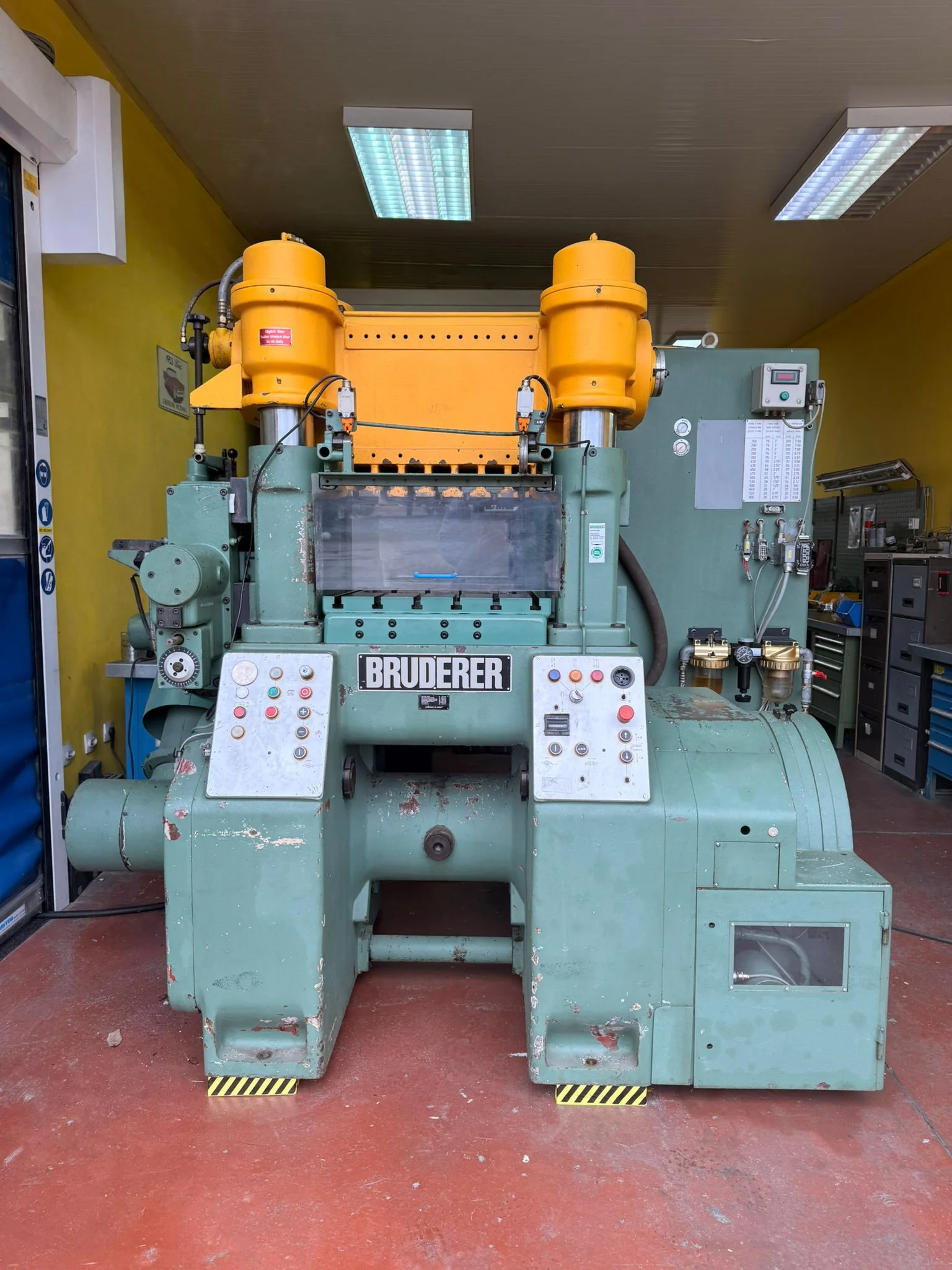

Bruderer BSTA 60 Ref. 32925
Prensa de estampado de alta velocidad • ID: 32925
Especificaciones técnicas
Nominal force:600 kN
Stroke rate:100–800 strokes per minute
Max. feed length:200 mm.
Year:Unknown (No ID Plate)
Tested under power:2025
Drive power:30 Hp
Control voltage:24V AC
Power connection:440VAC / 50Hz

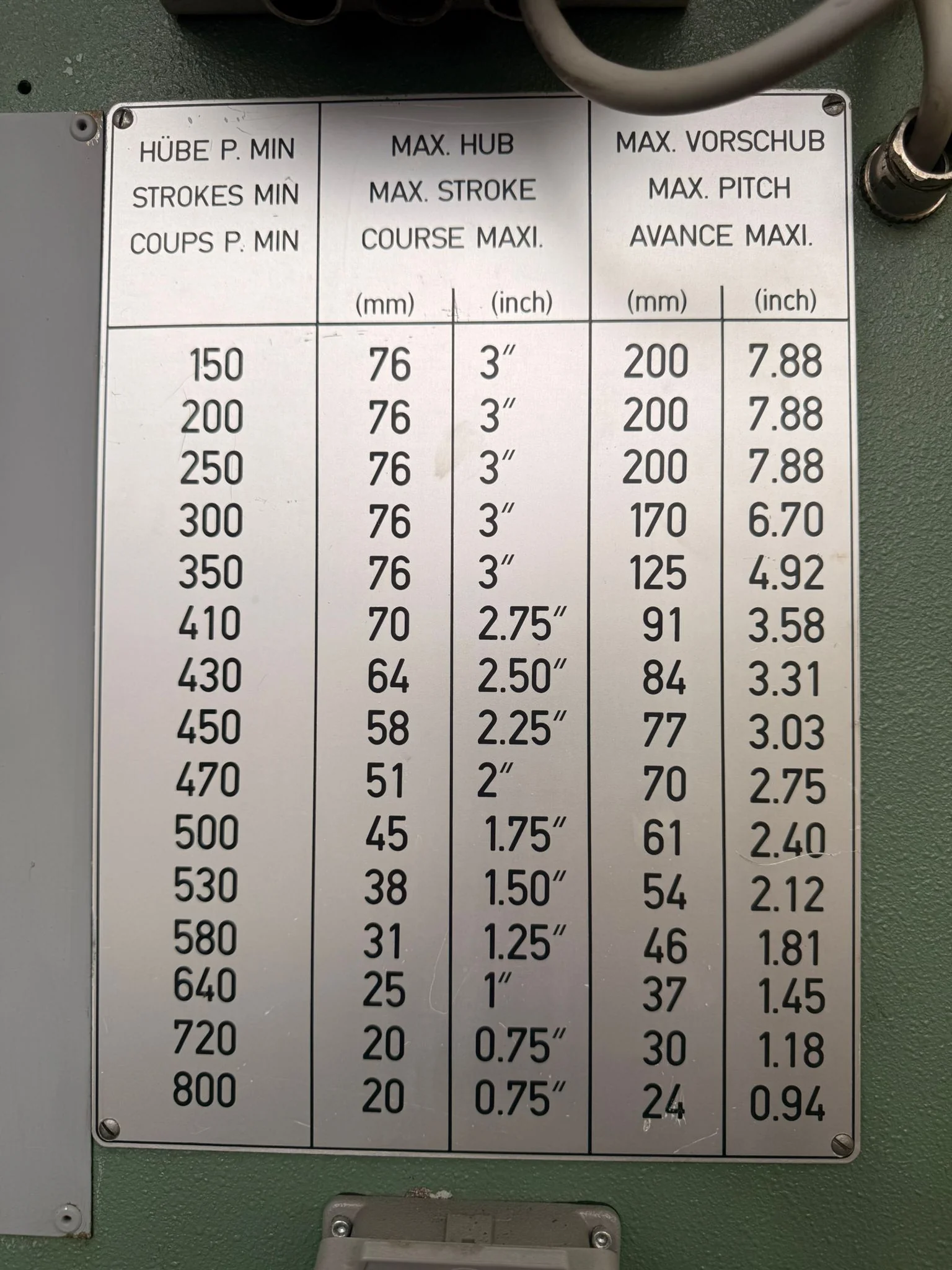

Adjustable stroke:20 / 25 / 31 / 38 / 45 /51 / 58 / 64 / 70 / 76 mm
Shut/Ram height adjustment:80 mm

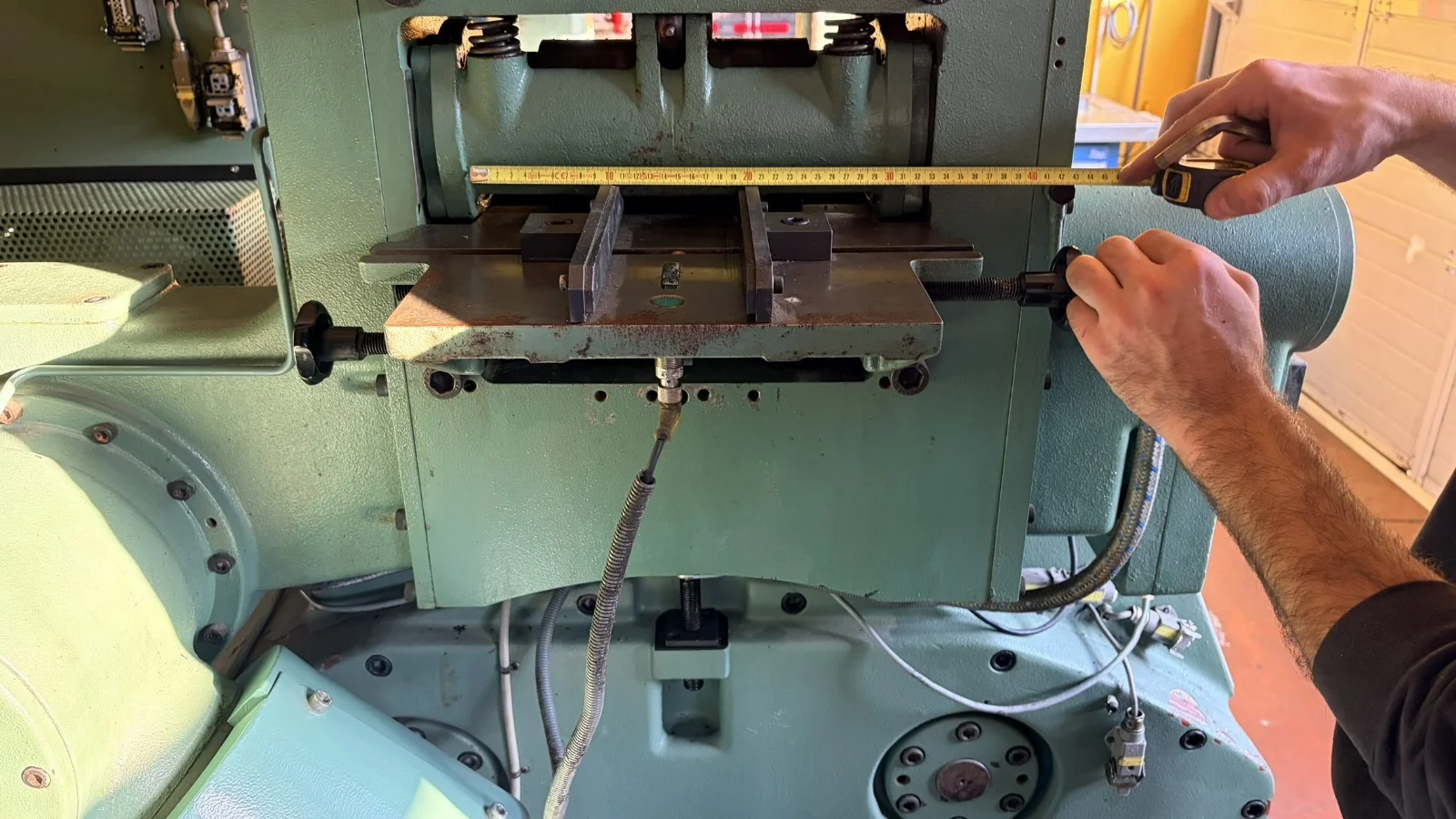

Max tool installation width:620 mm
Strip pass width:up to 320 mm
Ram area:800 × 500 mm

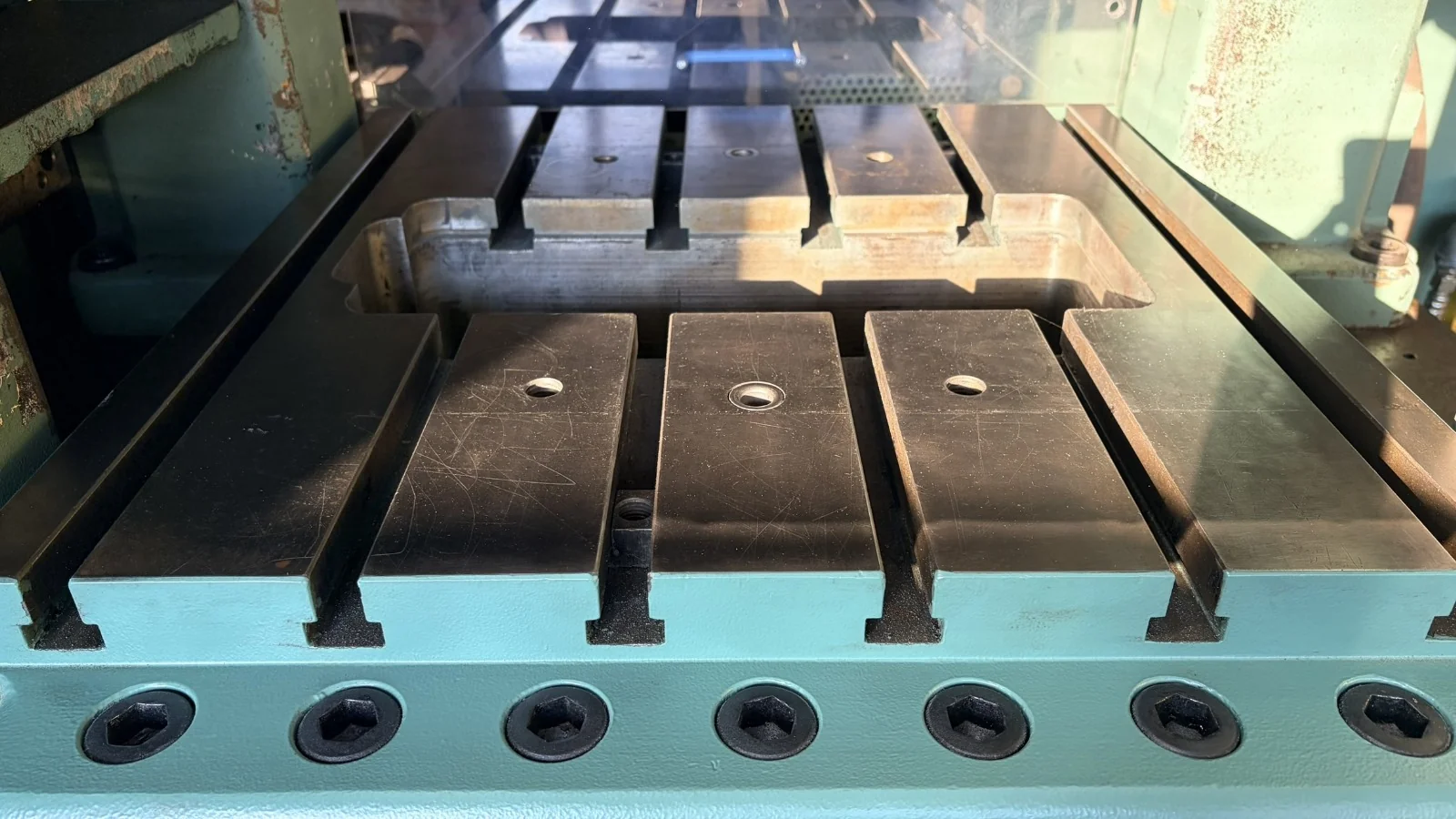

Table area:620 × 680 mm
Max strip width:300 mm
Max feeding pitch:200 mm
Max material thickness:6 mm
Feeding angle:180 Deg
Machine footprint (L × W × H):2210 × 2075 × 2190 mm
Weight (approx.):8,000 kg

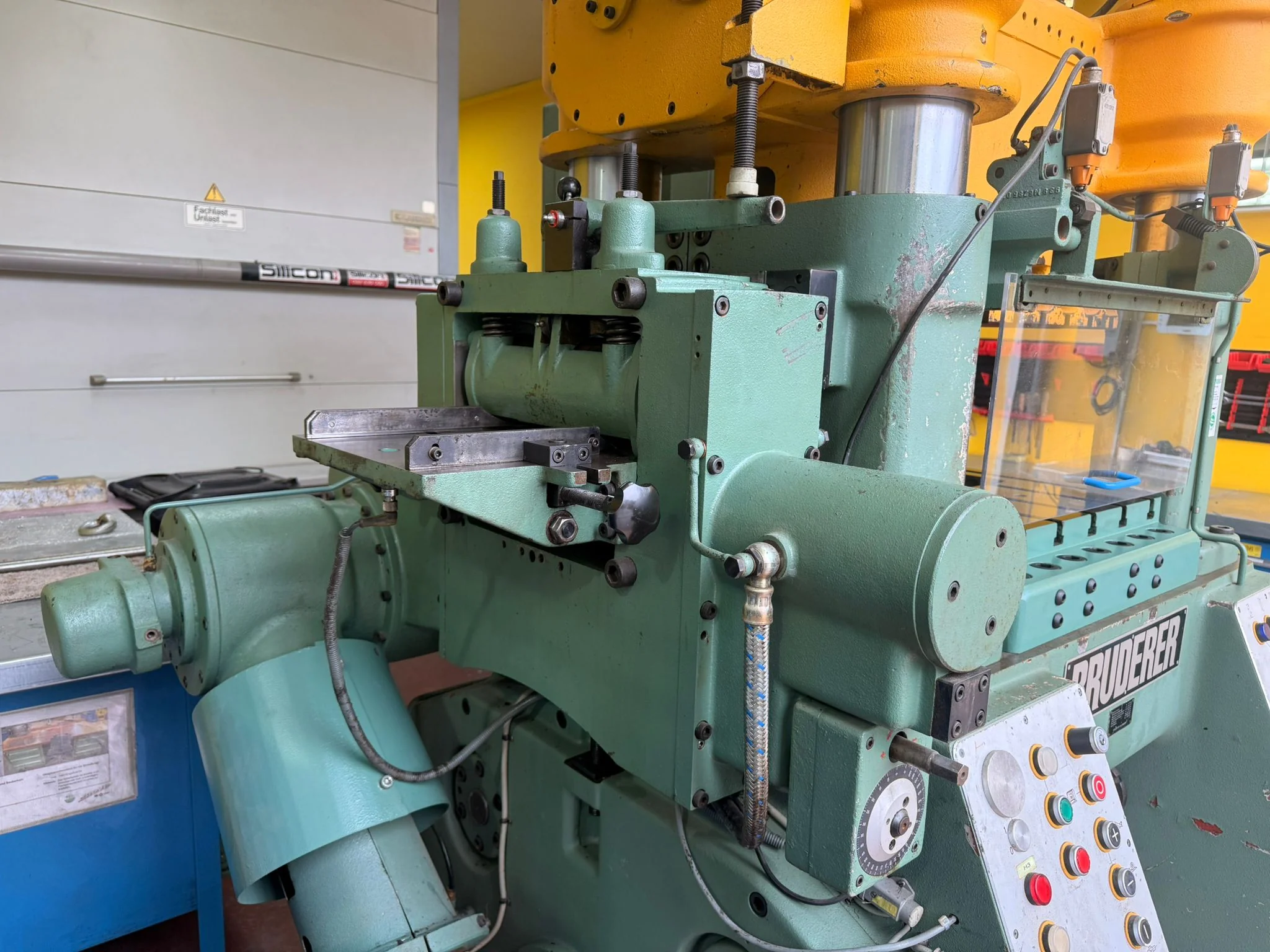

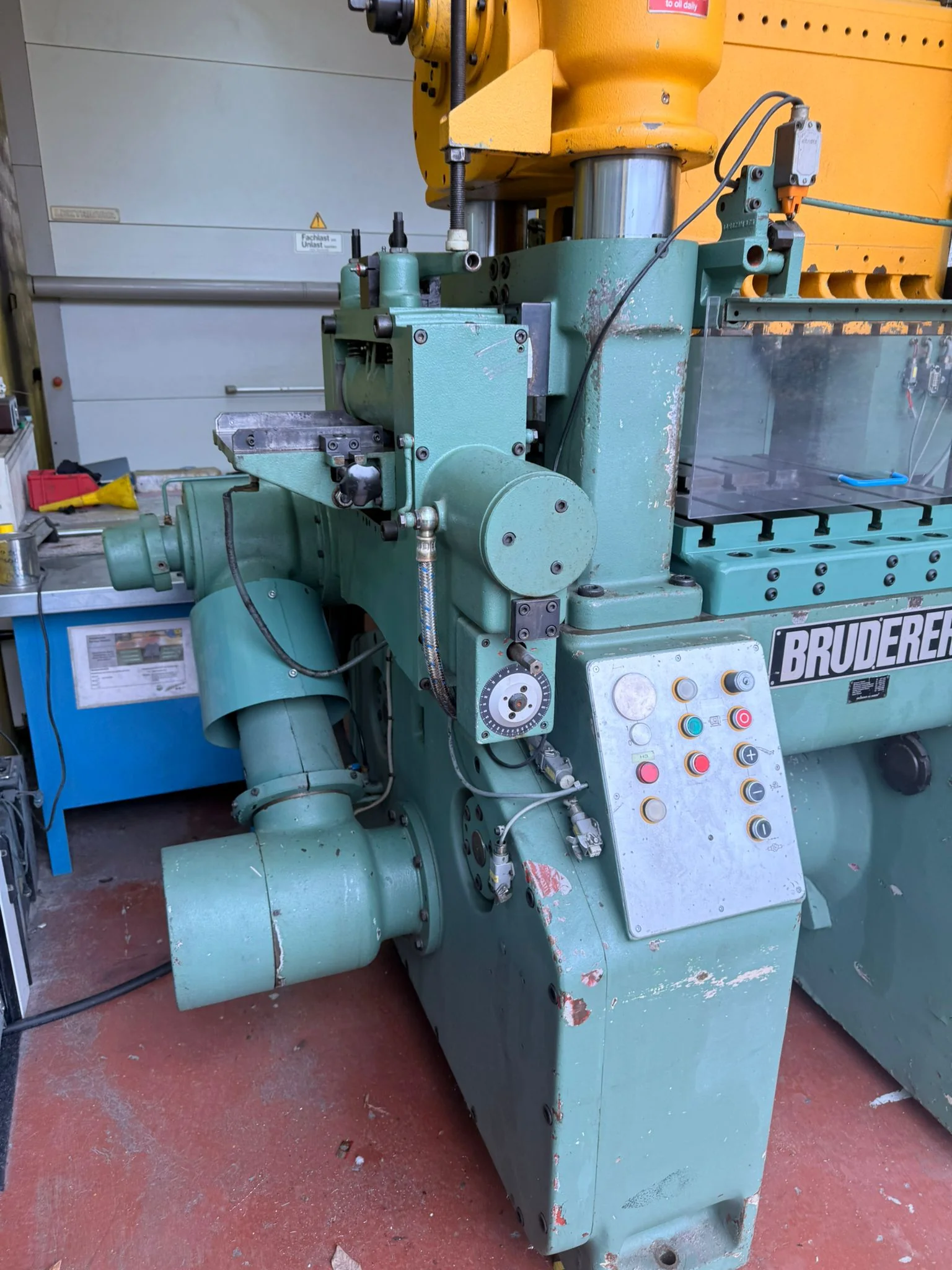

Feeder BBV 300 – fully synchronized mechanical strip feeder system

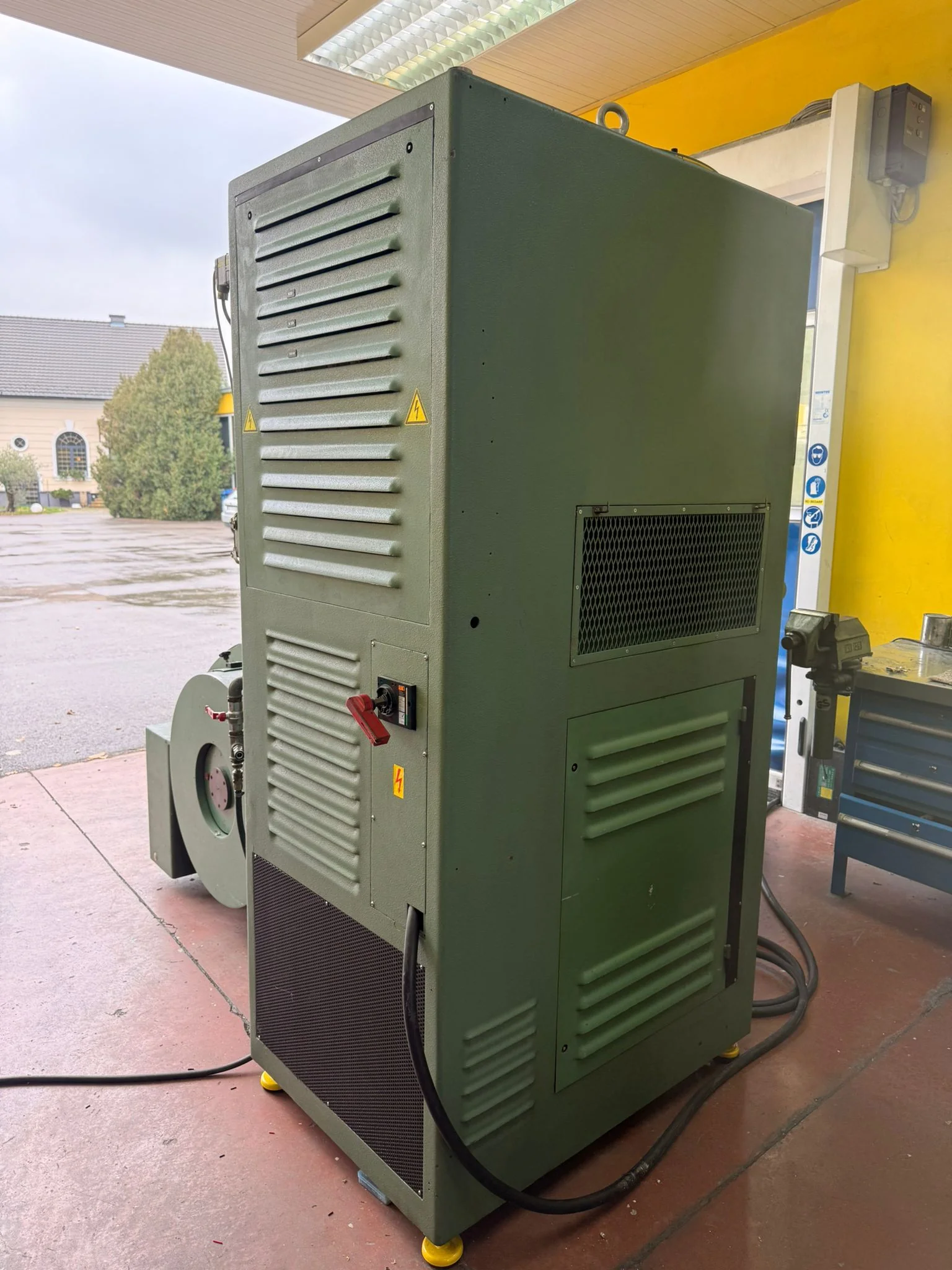

Integrated control cabinet
Pneumatic clutch and brake
Adjustable stroke and shut height
Compressed air connection:6–10 bar
Oil cooling unit included
Ready for integration with peripheral systems
Machine in excellent technical and visual condition
Fully tested
Immediate availability from Europe
Worldwide shipping available
Contact us today for pricing and further technical details.
