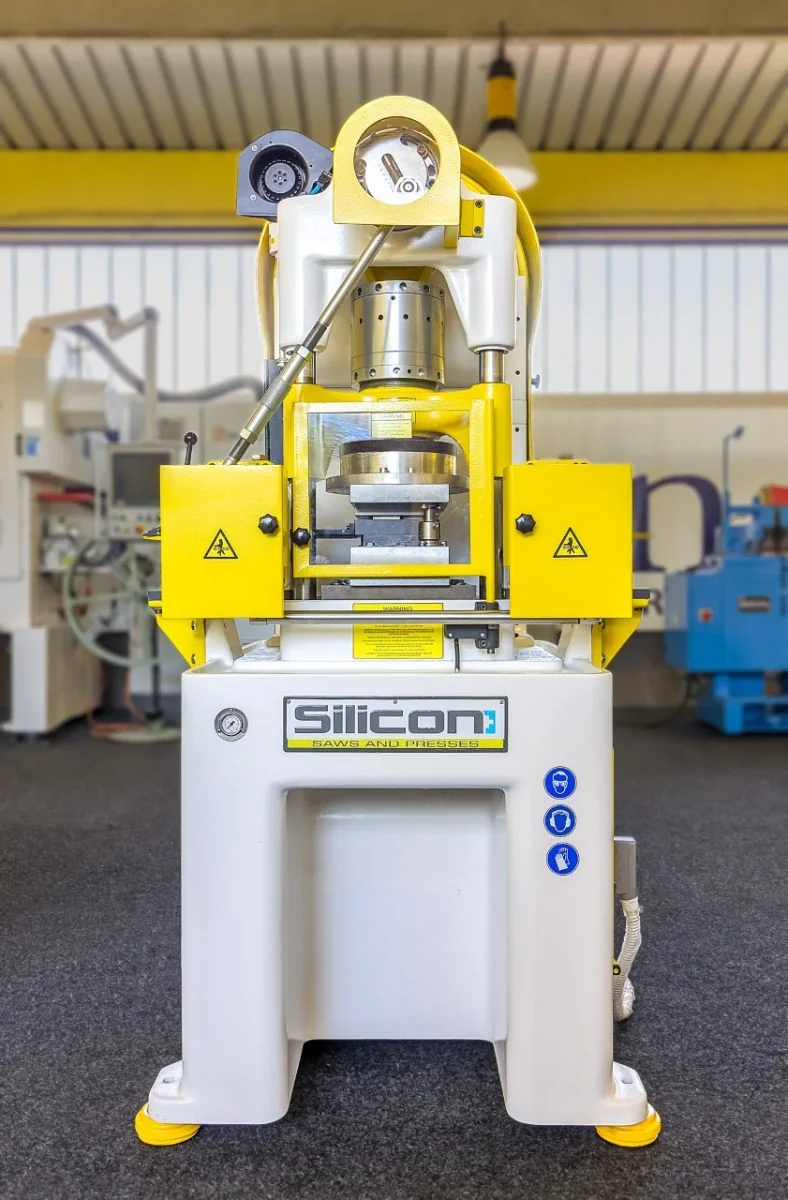

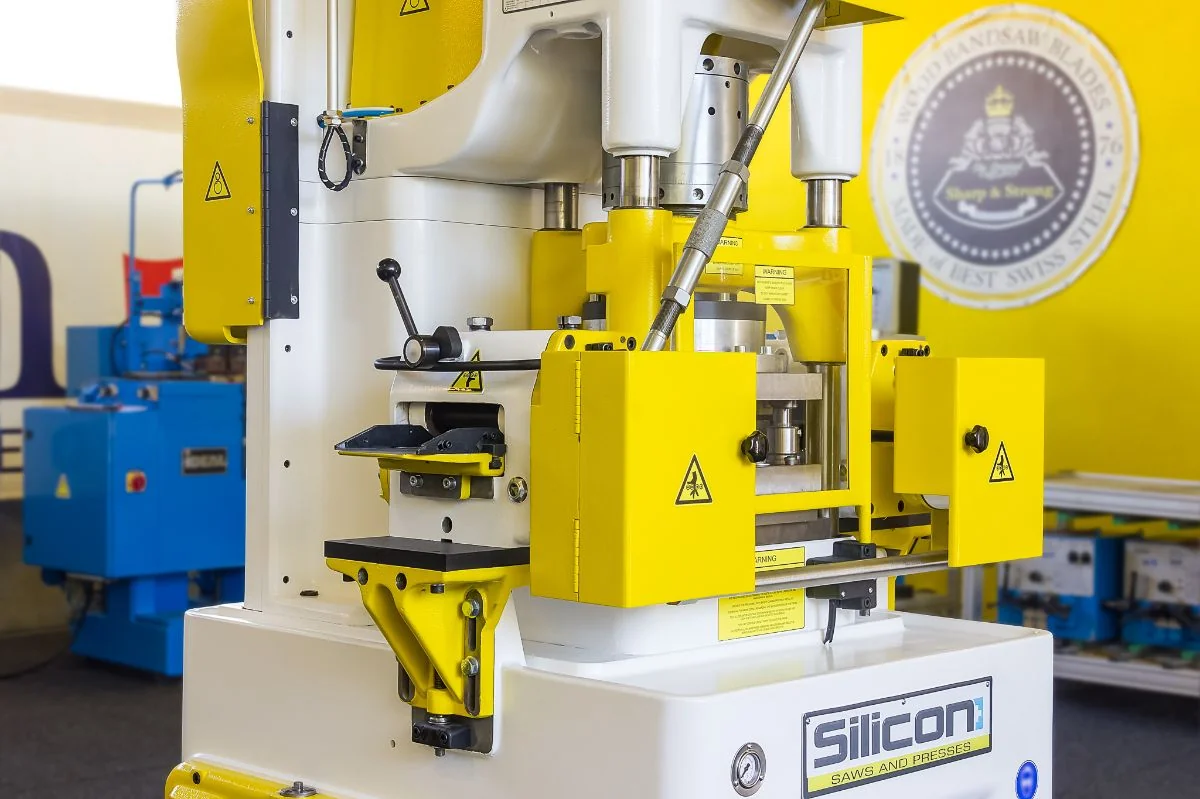

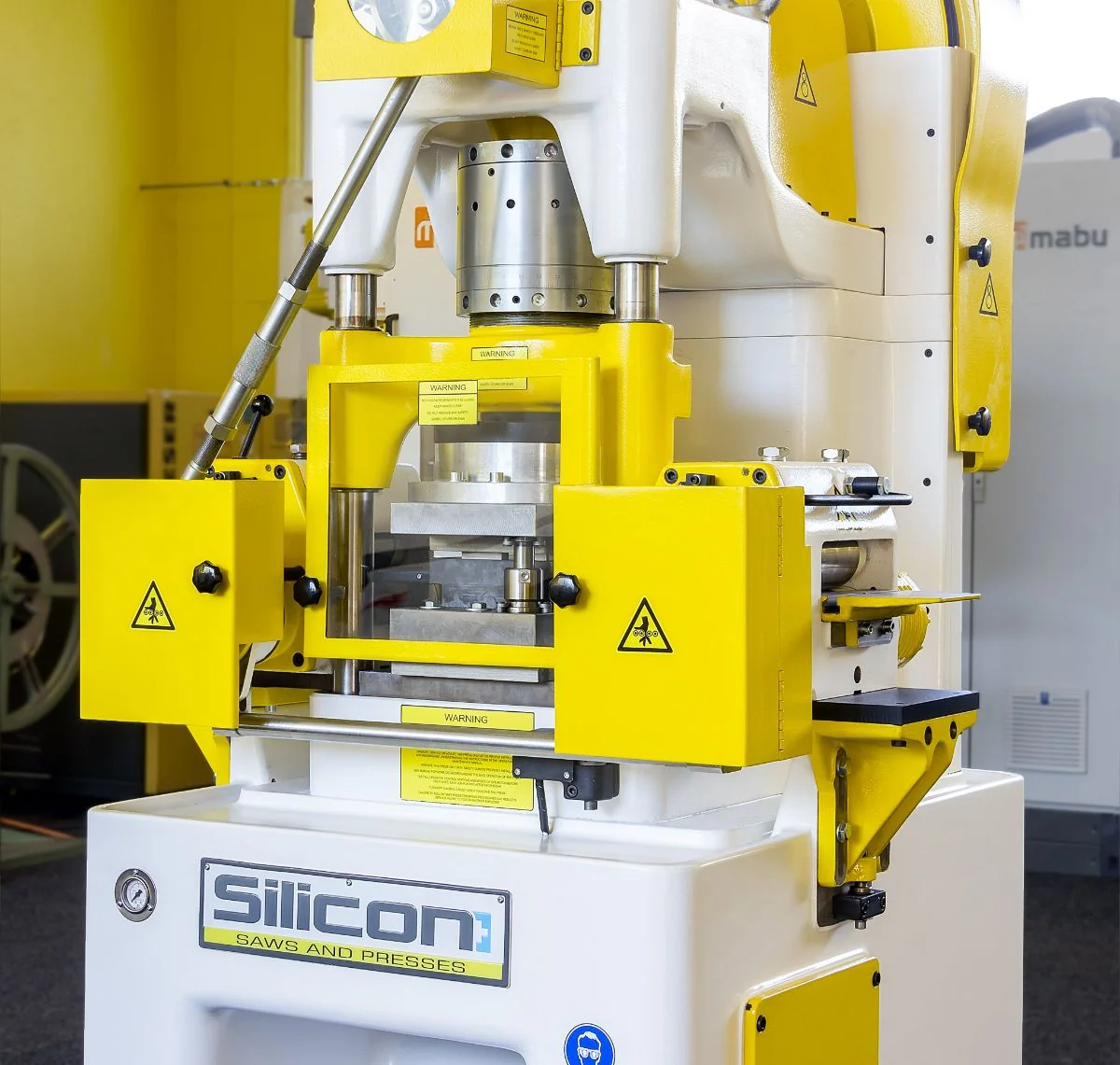

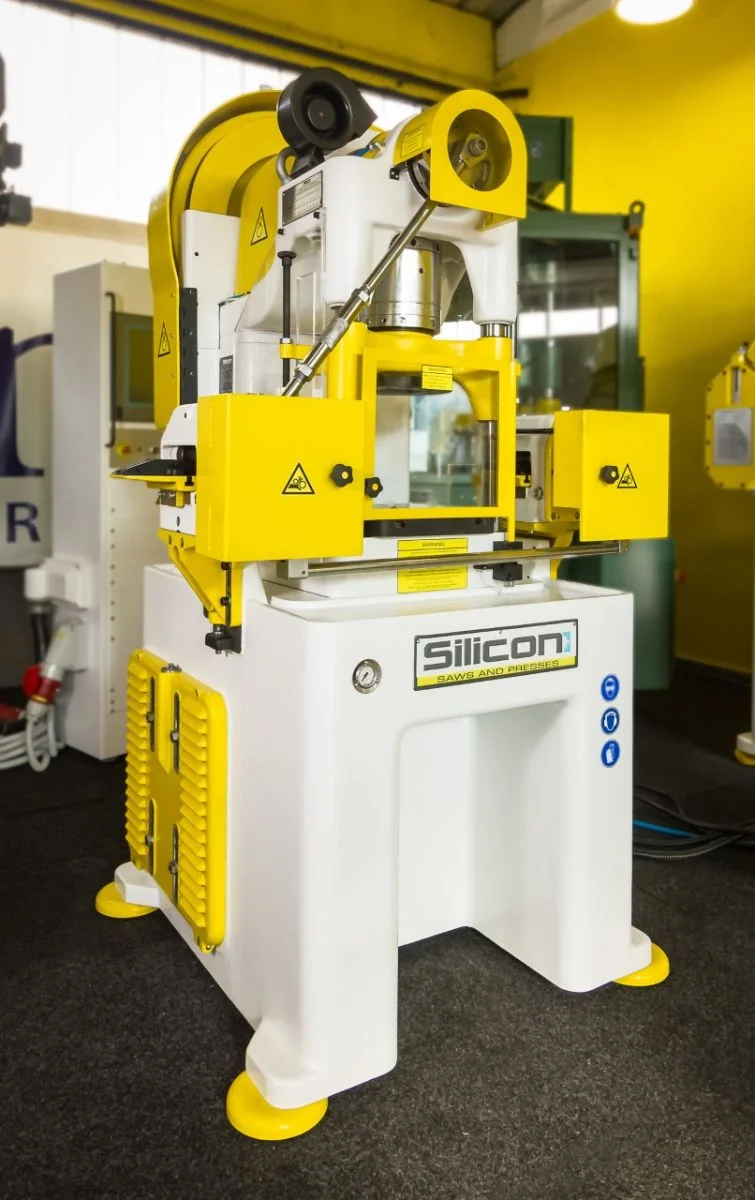

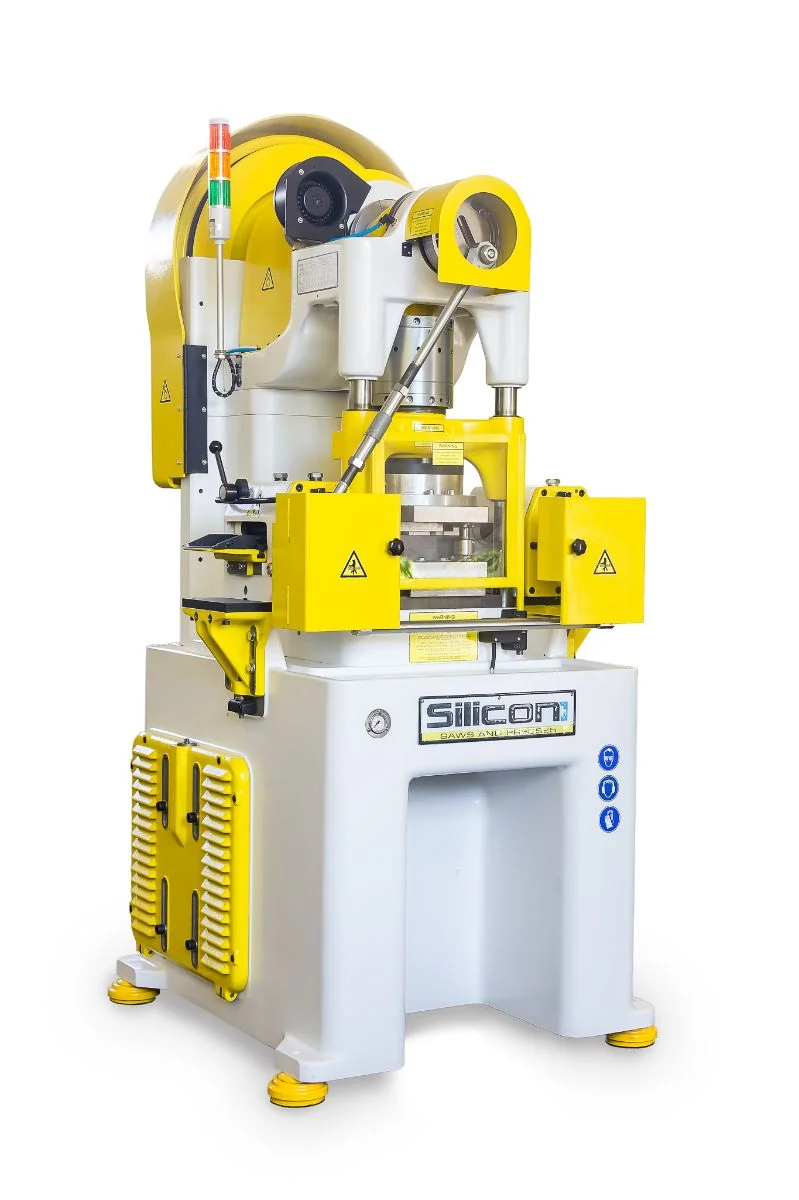

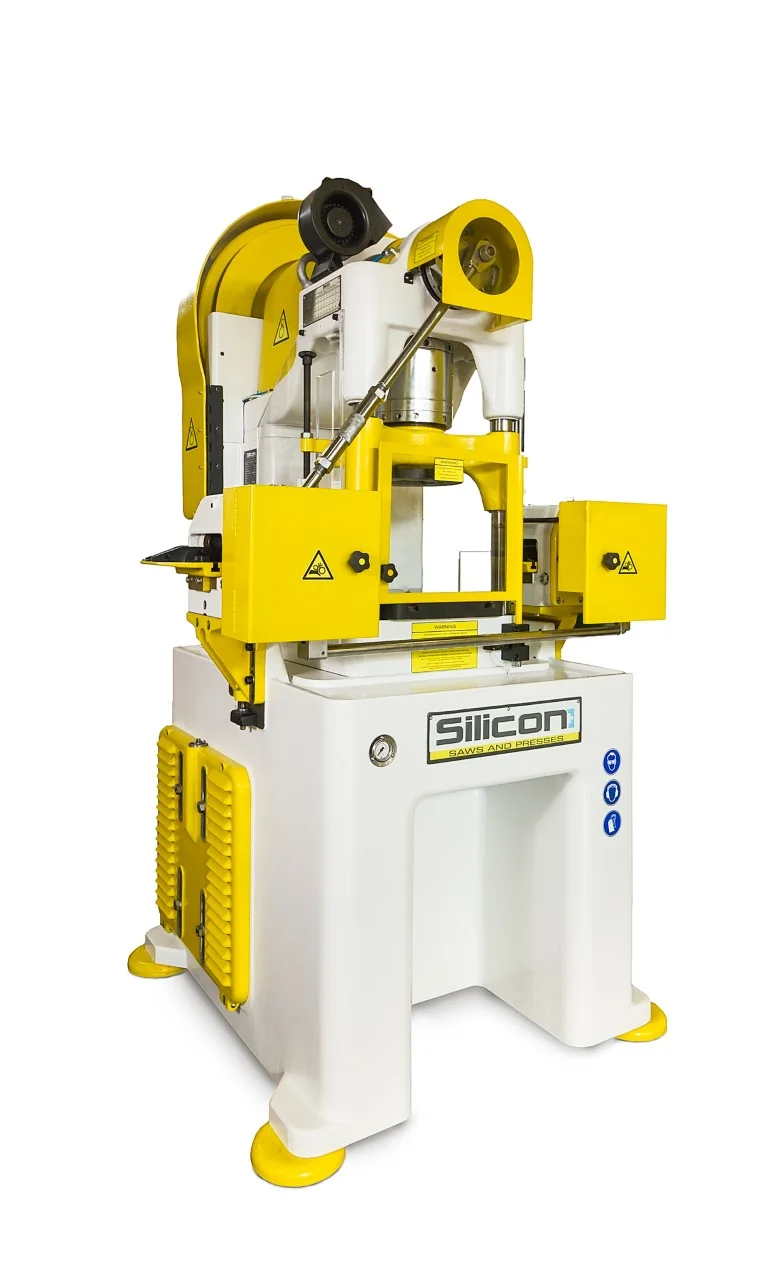

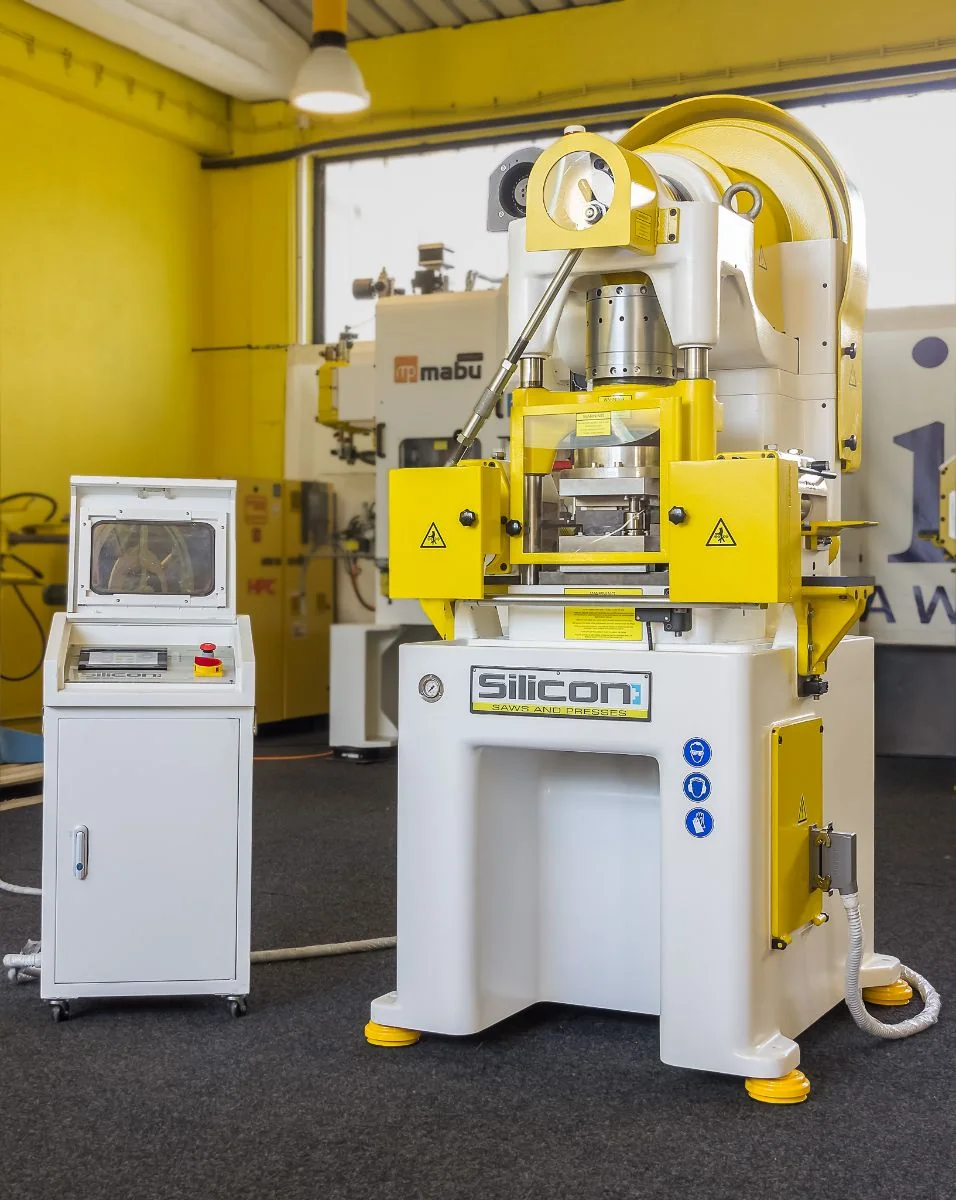

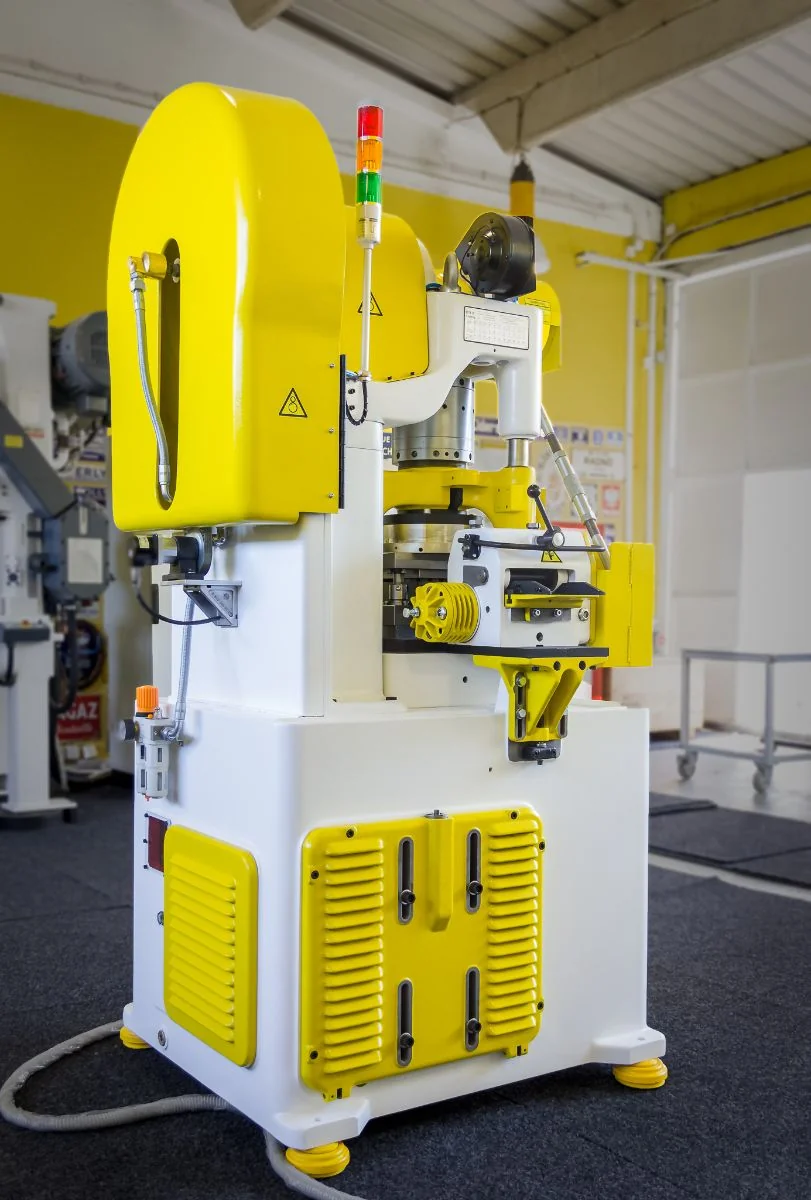

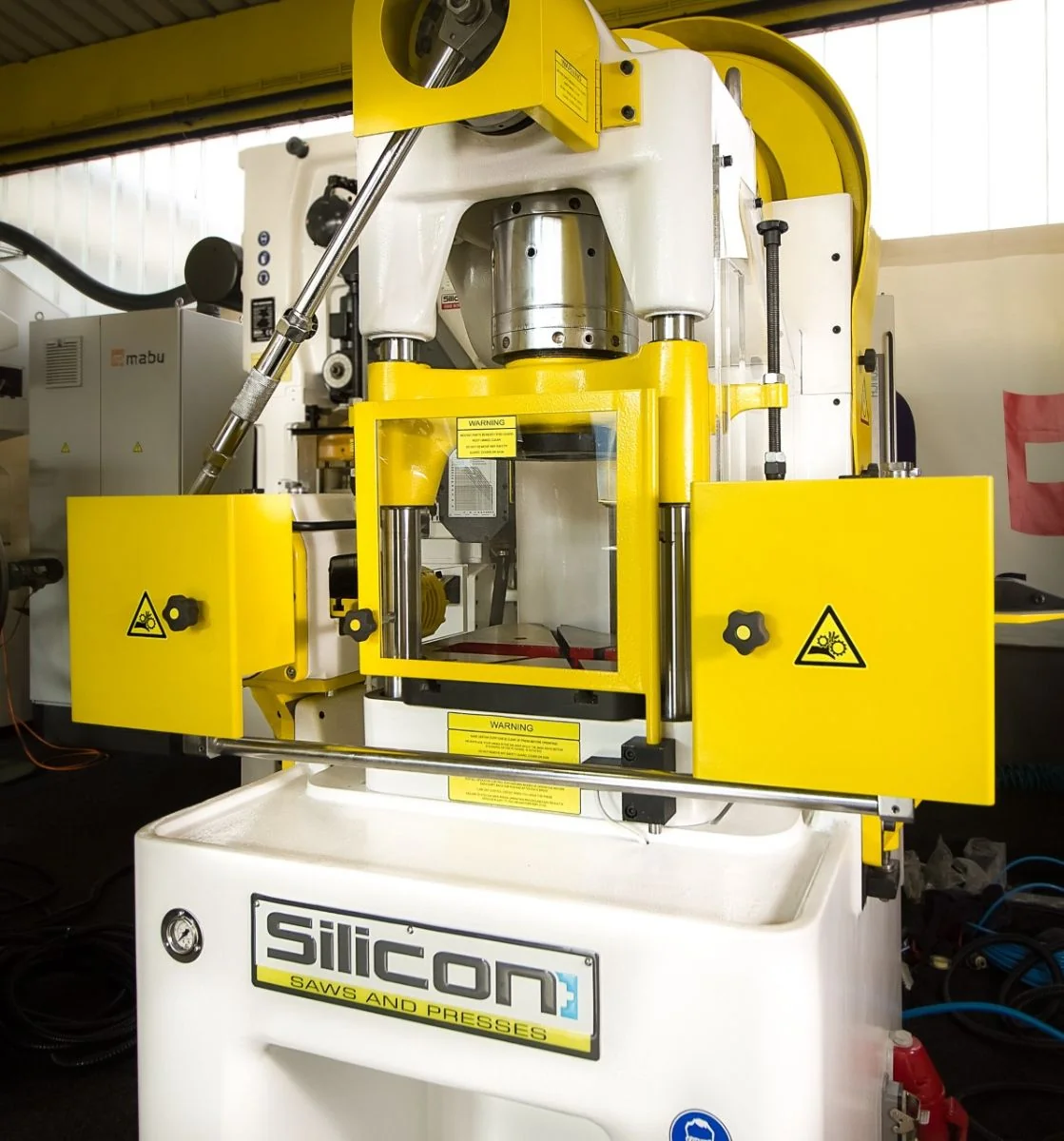

Silicon+ STA 30 with Twin Feeders Ref. 13926
2026 • ID: 13926
Tehničke specifikacije
High Speed Automatic Punching Press.
Machine with CE certificate and EUR1 certificate of European origin.

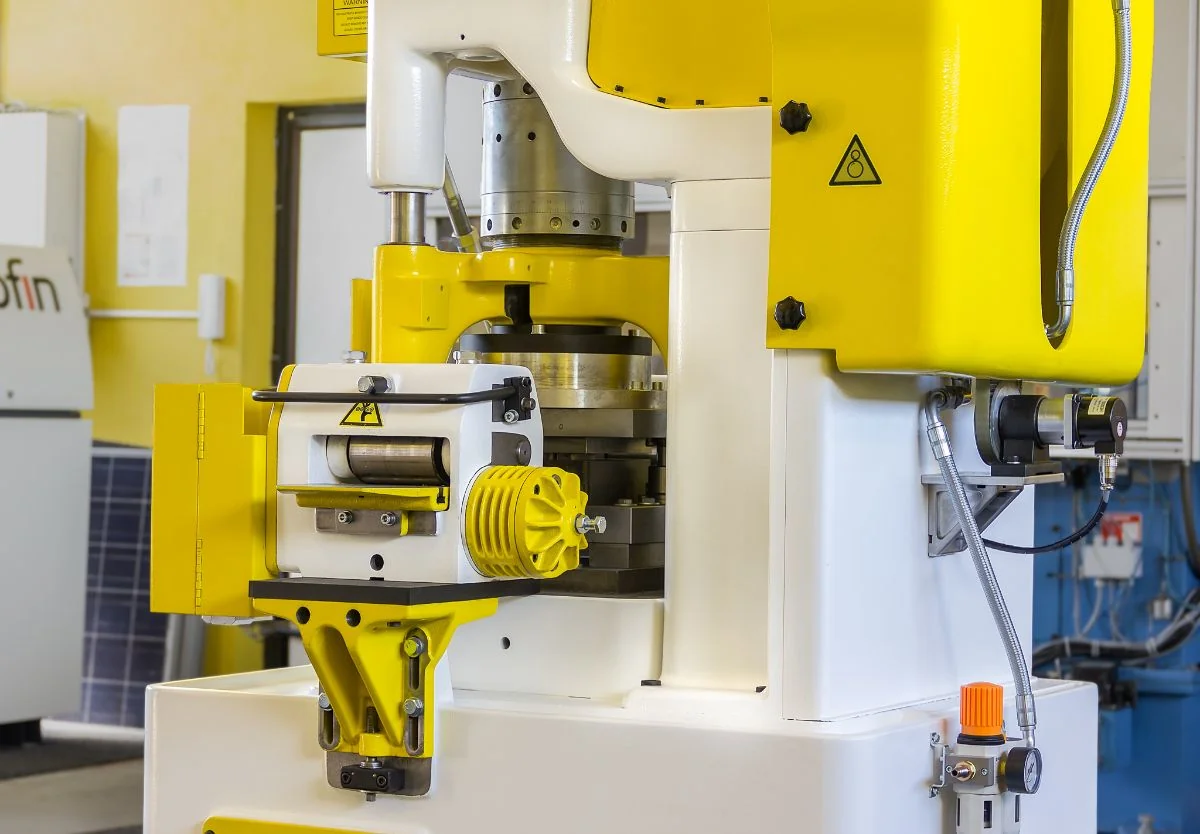

Equipped with twin synchronized double rolls feeds for strips widths from 5 mm – 150 mm.

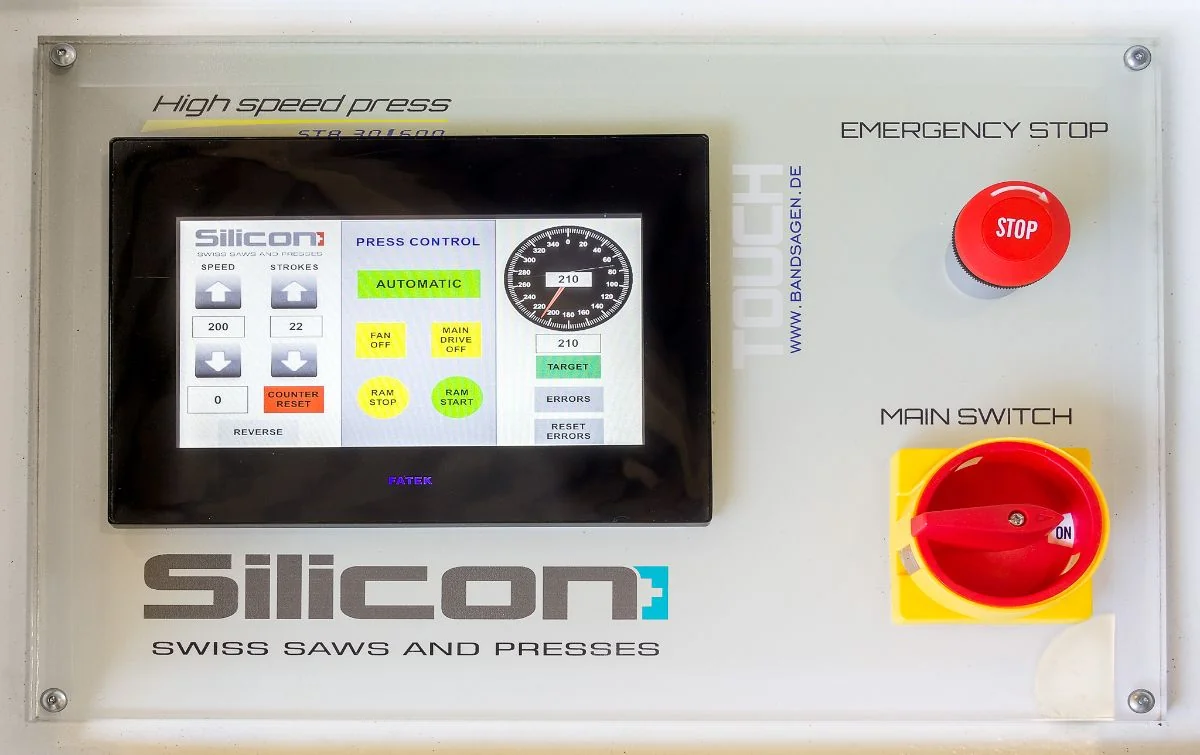

PLC touch screen logical interface control.
Numerically controlled stamping process (NC).
With stroke and speed counter, programmable length, auto stop.
Three working modes: Manual, One stroke and Automatic.
Pneumatic clutch and brake.
Operator’s instruction manual in English.
Stroke power: 300 [KN] (30 [tons]).

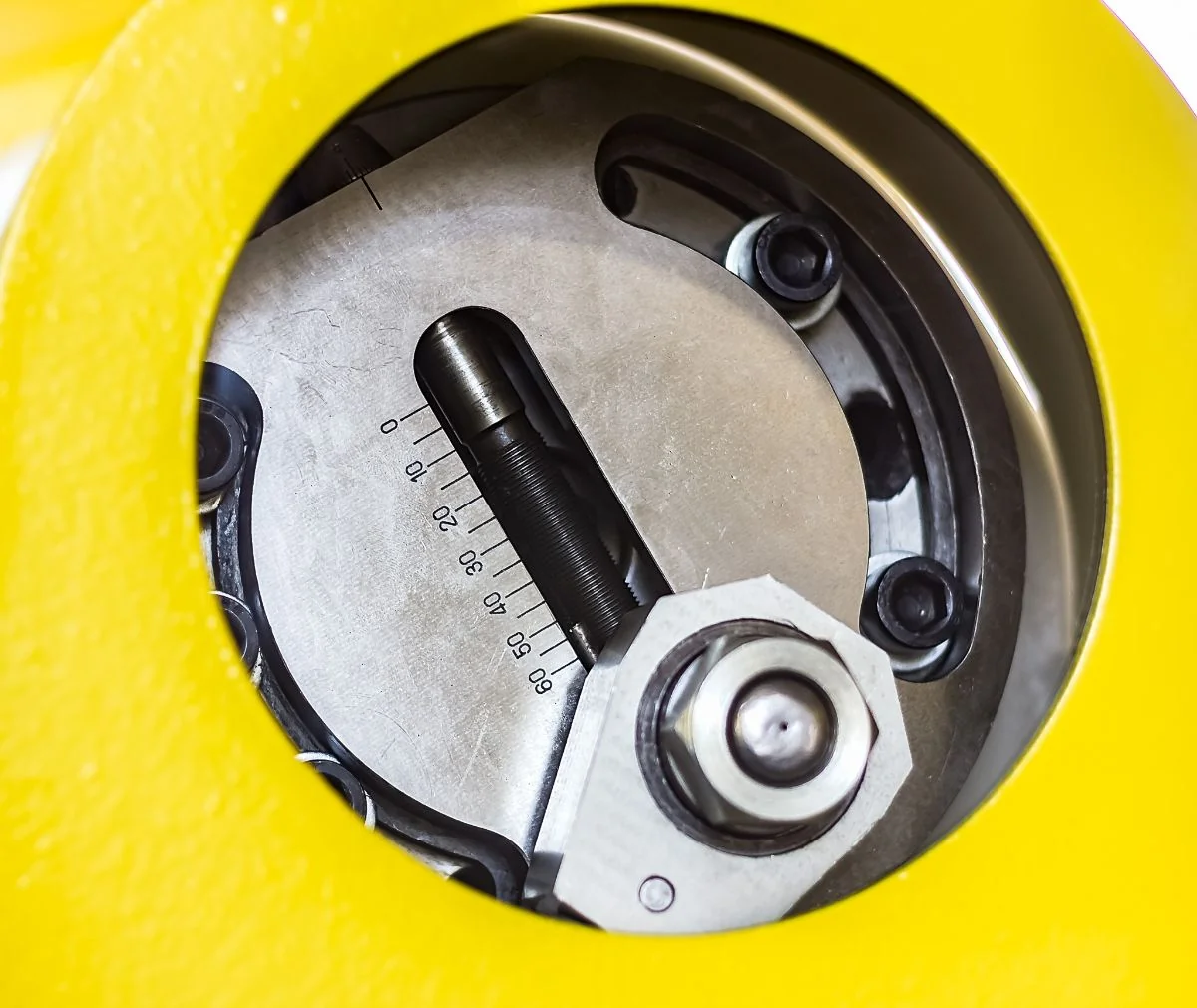

Adjustable stroke: 8-40 [mm].
Table: 540 x 300 [mm].
Adjustable speed 100 – 600 strokes per minute up to 10 in one second.
Maximum strip thickness 2.5 [mm].
Central lubrication.
Power consumption 5.5 [kW]
Technical Air 5-10 [bar].
Warranty: 1 year.
Two feeders are used when you need to stamp very thin, soft strip or very heavy strip, to secure precise feeding.
All specifications non-binding , subject to change without notice.
