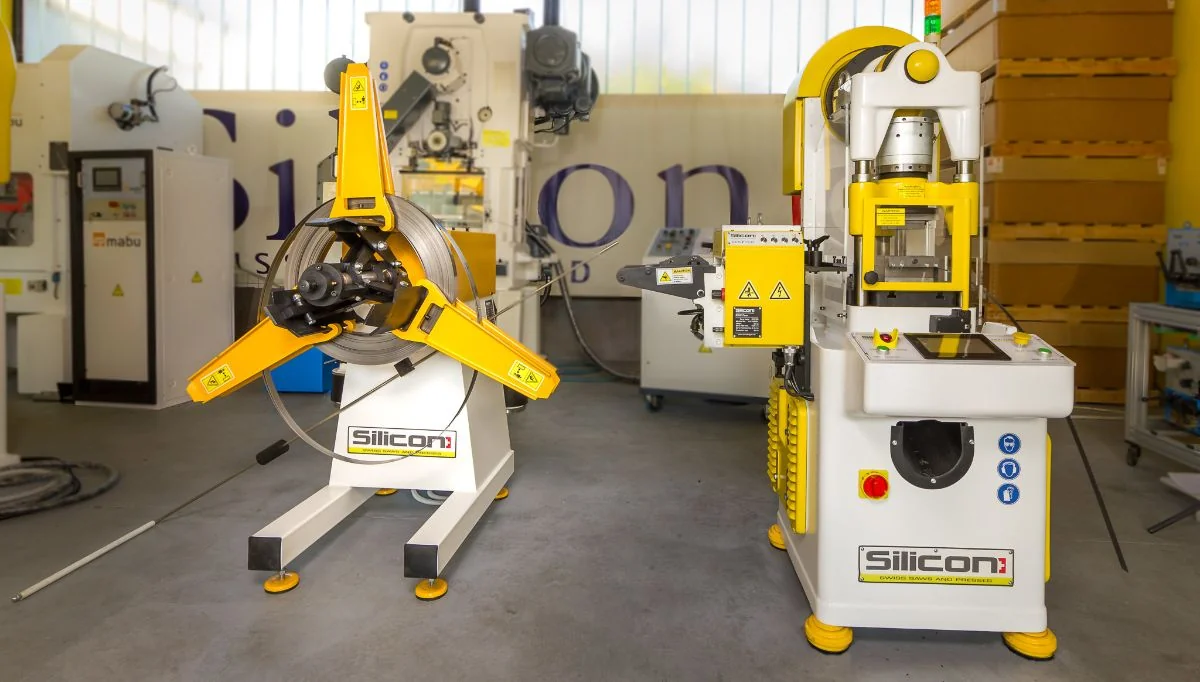

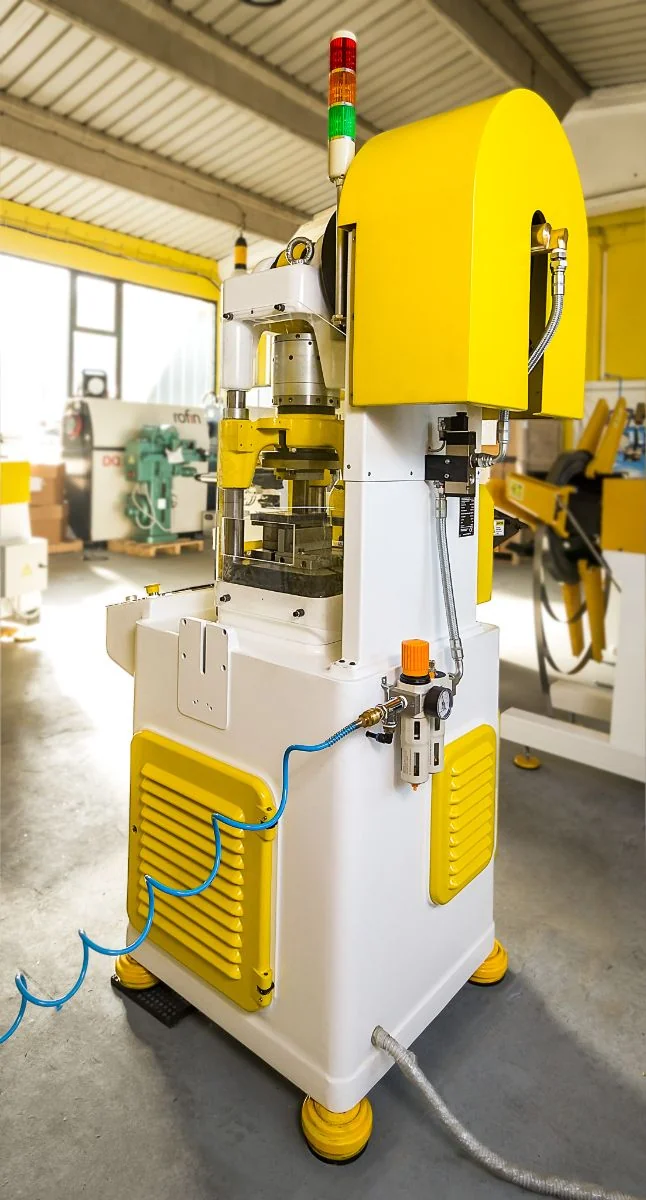

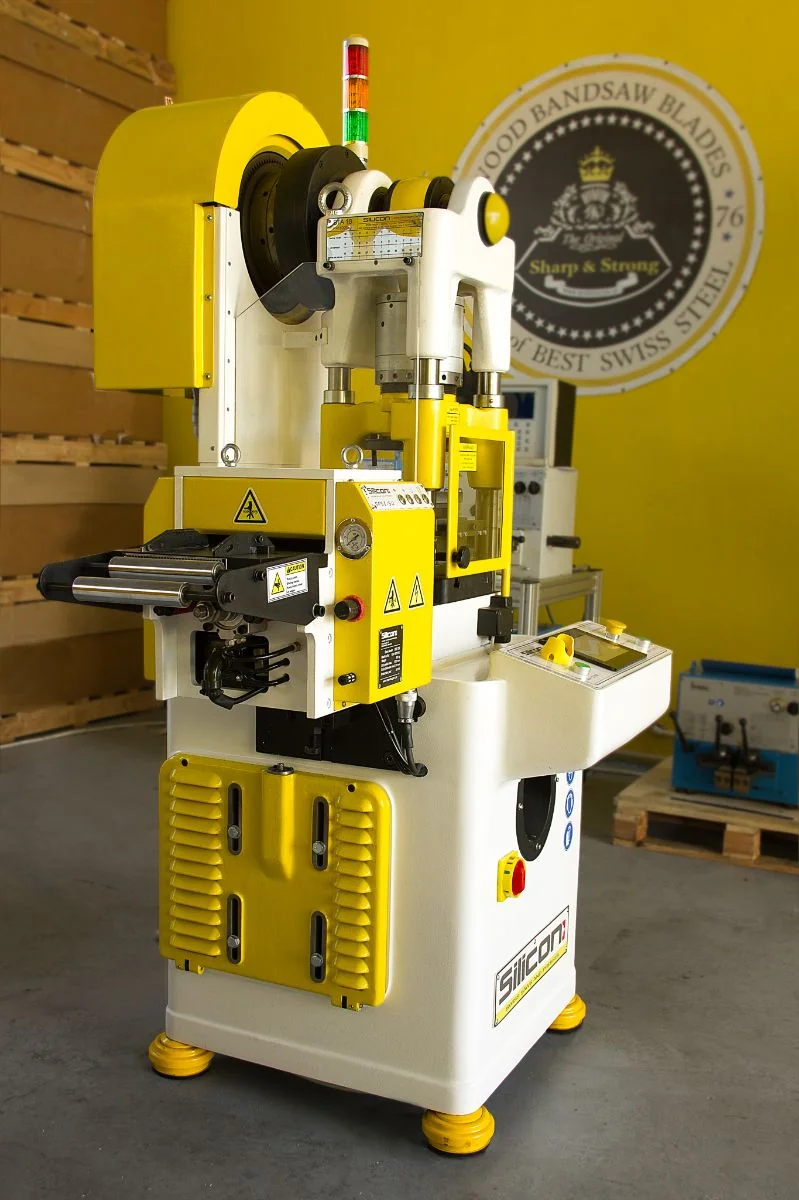

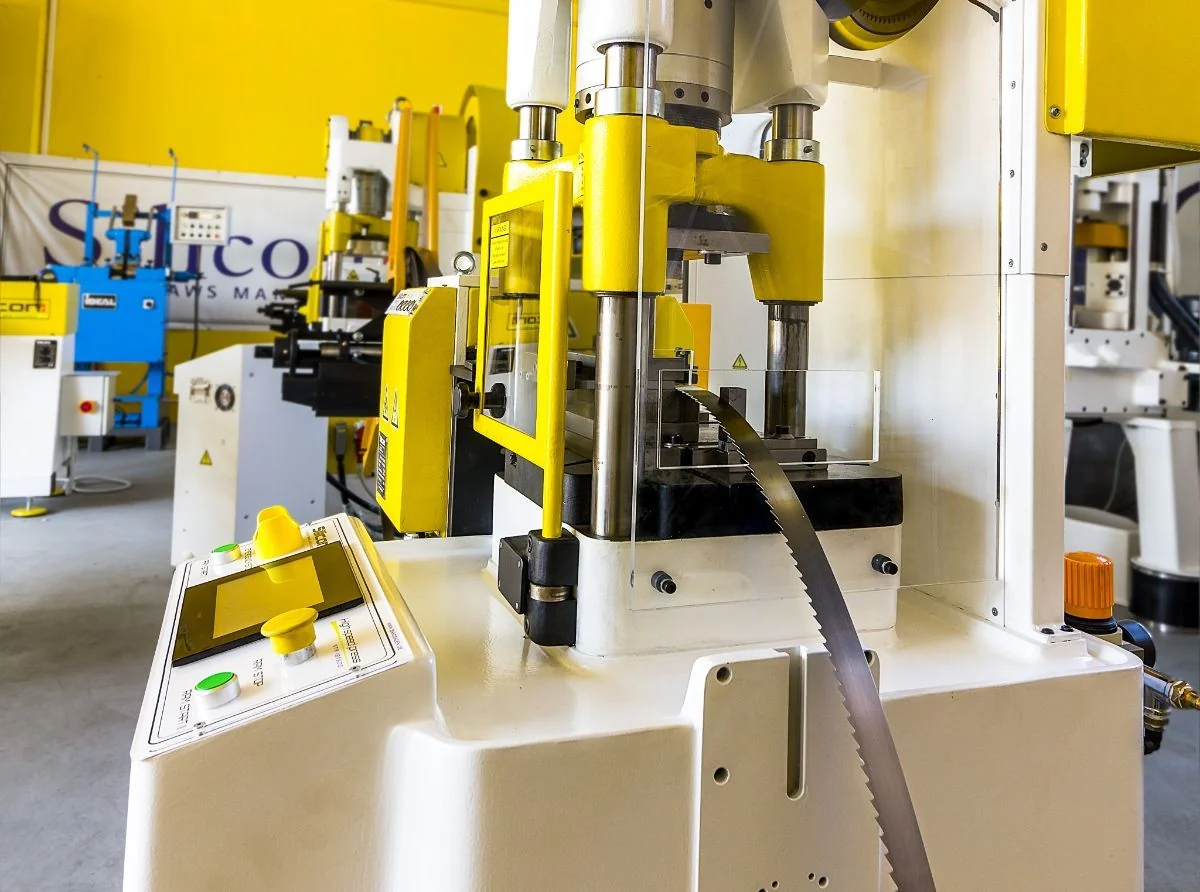

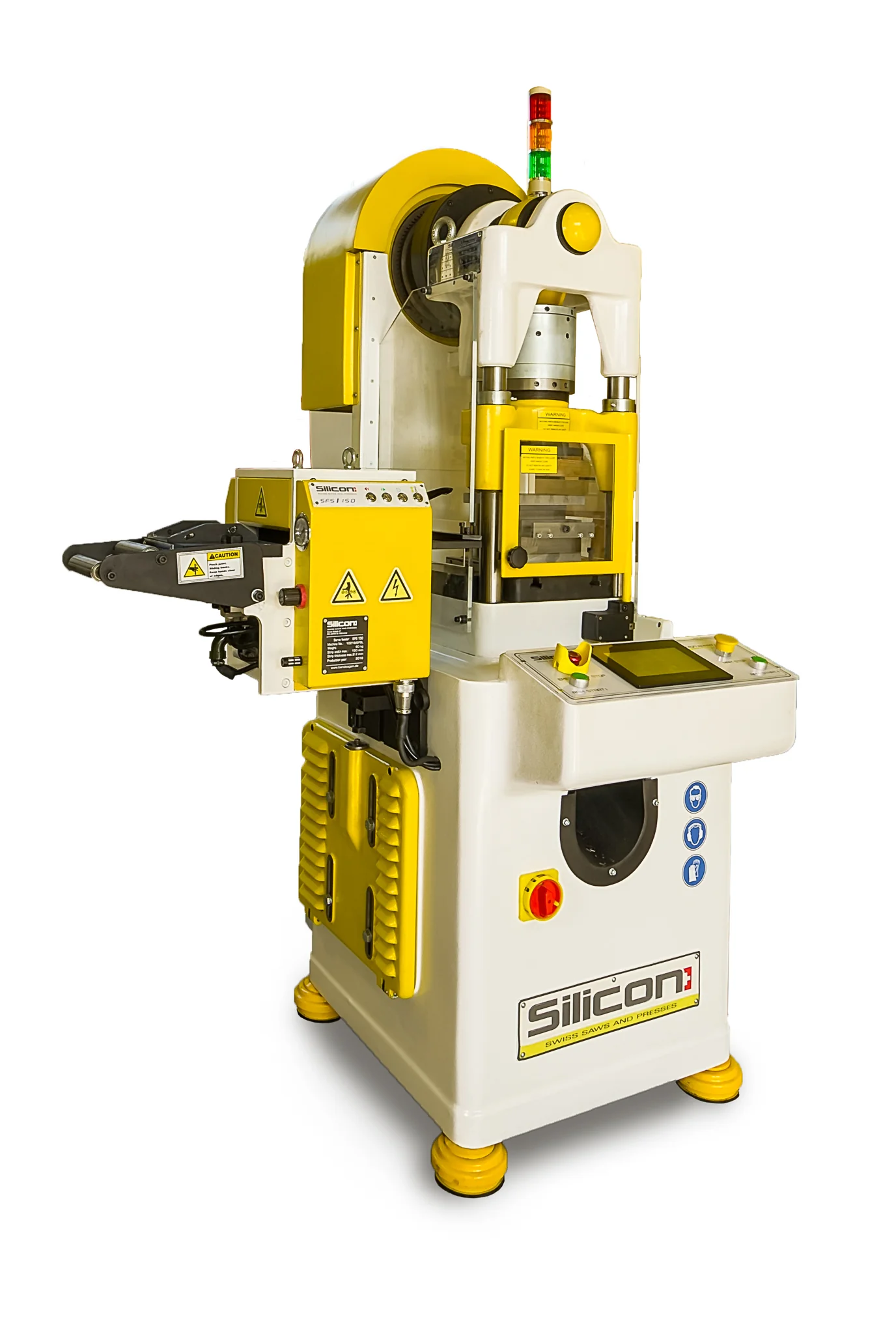

Silicon+ STA 18 Servo
High Speed Automatic Press • 2026 • ID: 33926
Tehničke specifikacije
High Speed Automatic Press
With high speed SFS220 Servo feeder onboard.
Adjustable stroke 4-36
Table 350 x 310 mm
Adjustable speed 100 – 600 strokes per minute up to 10 in one second
Nominal capacity: 180 kN (18 tons)
Max. strip width: 200 mm
Weight 1.100 KG
Machine dimensions: footprint 600 mm x 600 mm height 1850 mm
Power consumption 2.2 KW + 1.5 KW servo
Technical Air 6-10 bar
All specifications non-binding , subject to change without notice
Feeder can be on left or right side
With digital teeth counter
Programmable length auto stop
Three working mode: single punch, complete stroke and full automatic
Two hands safety start and emergency stop
Automatic in feed, fully synchronized with punching moment
Operator’s instruction manual in English
