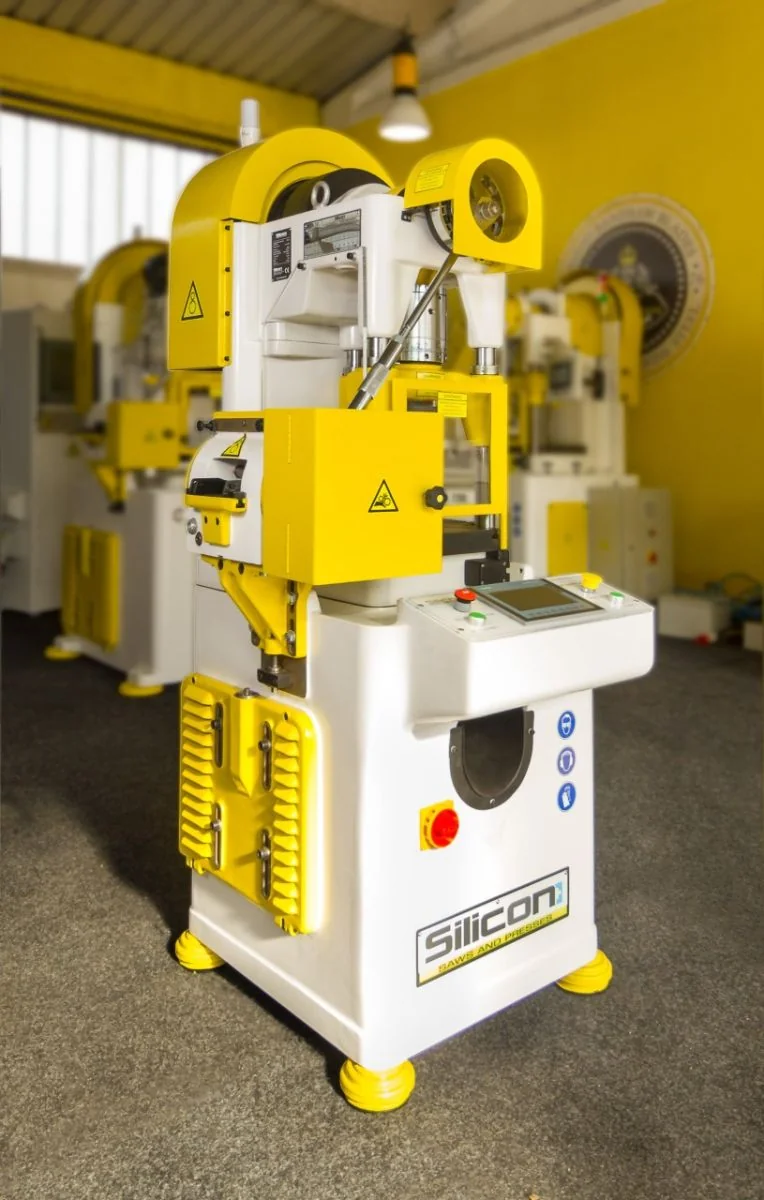

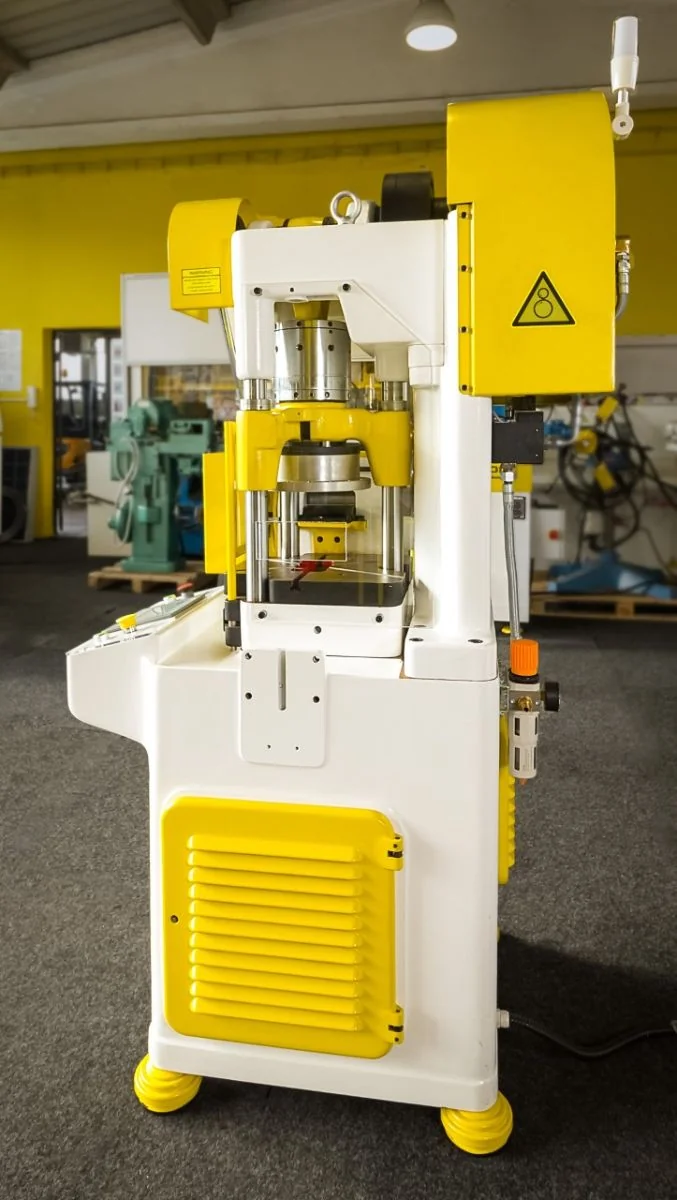

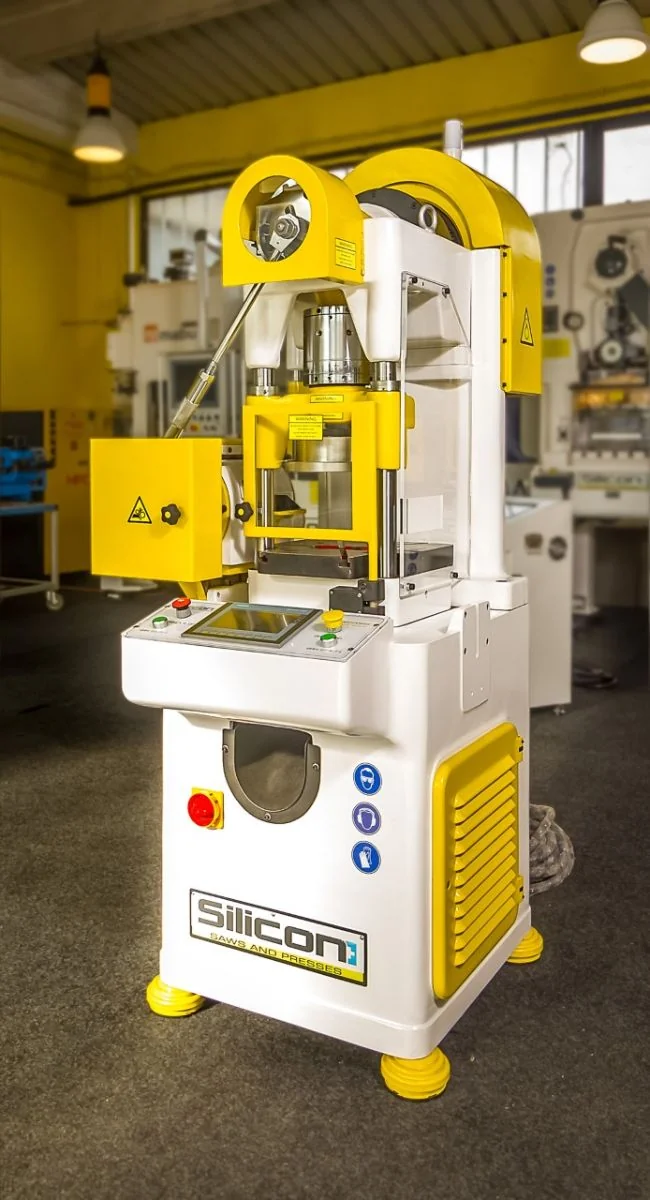

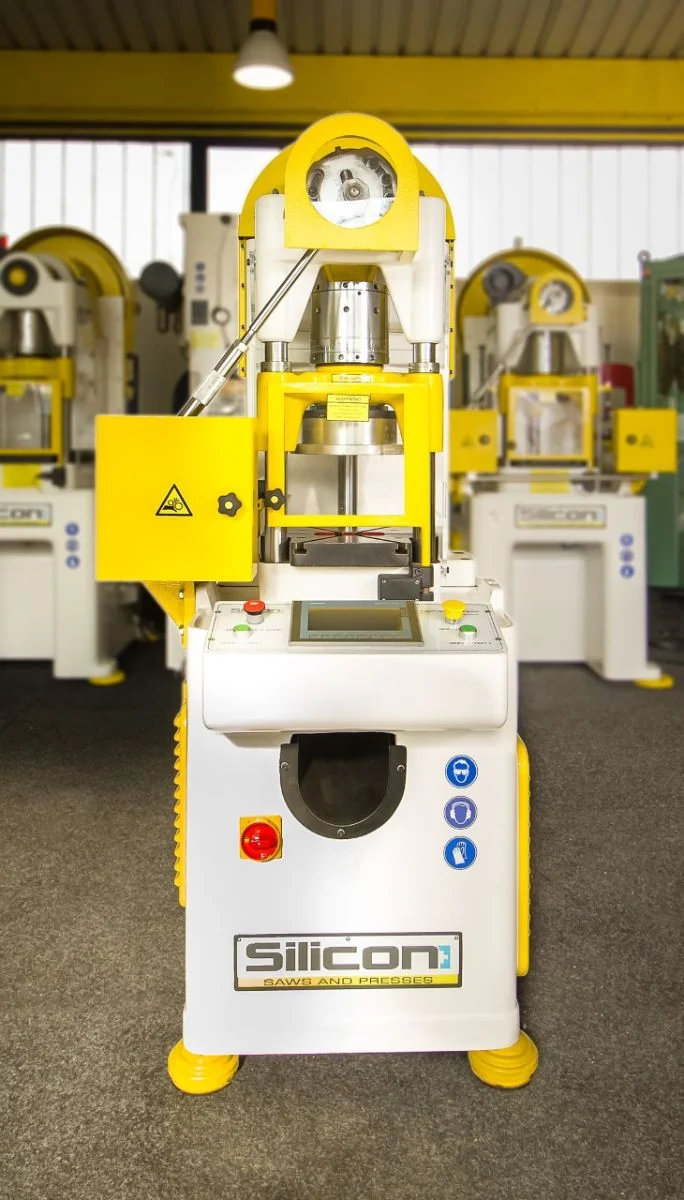

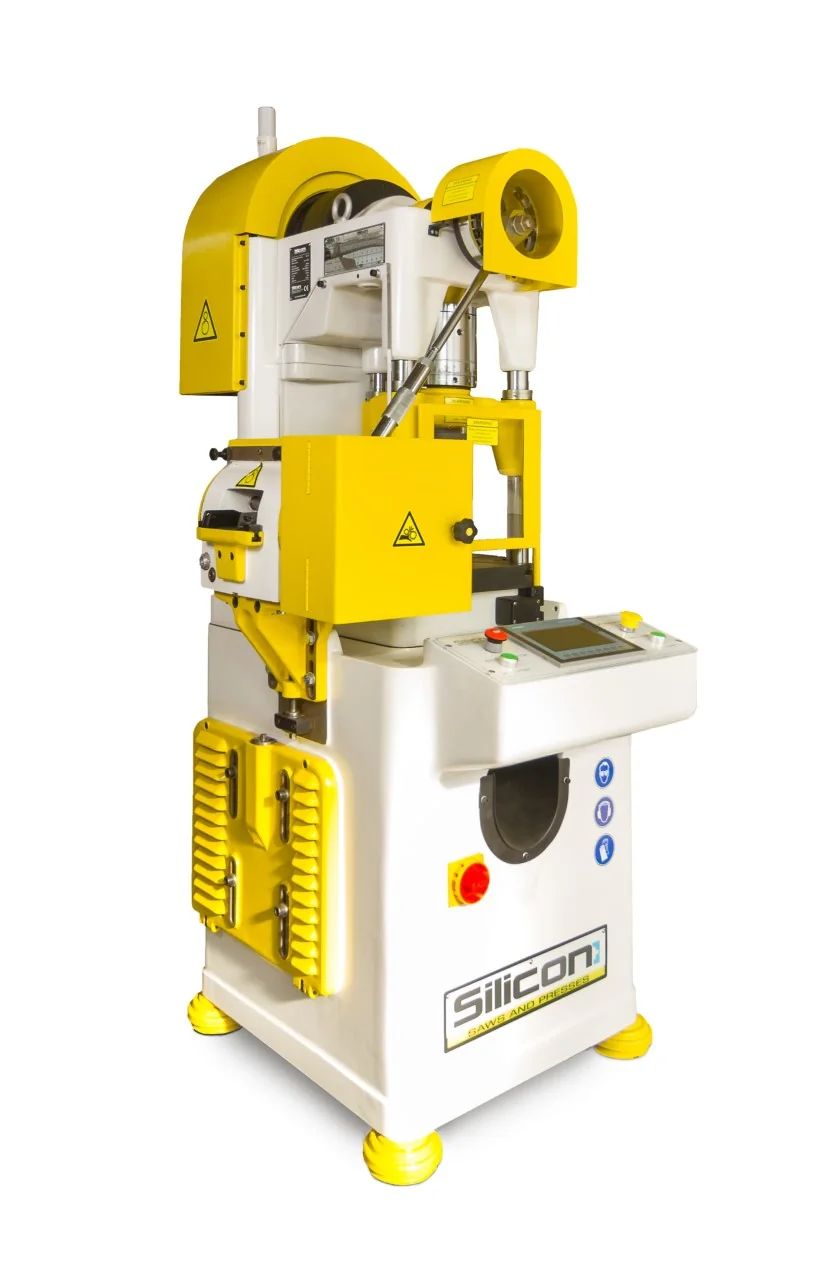

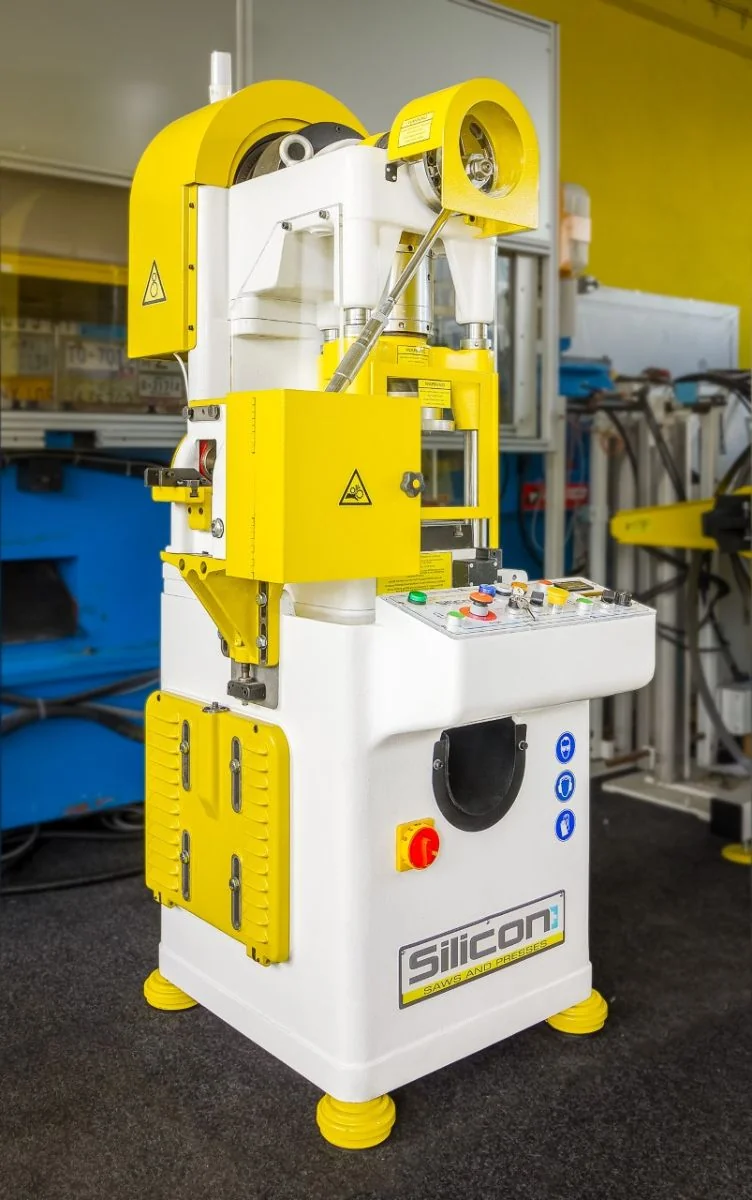

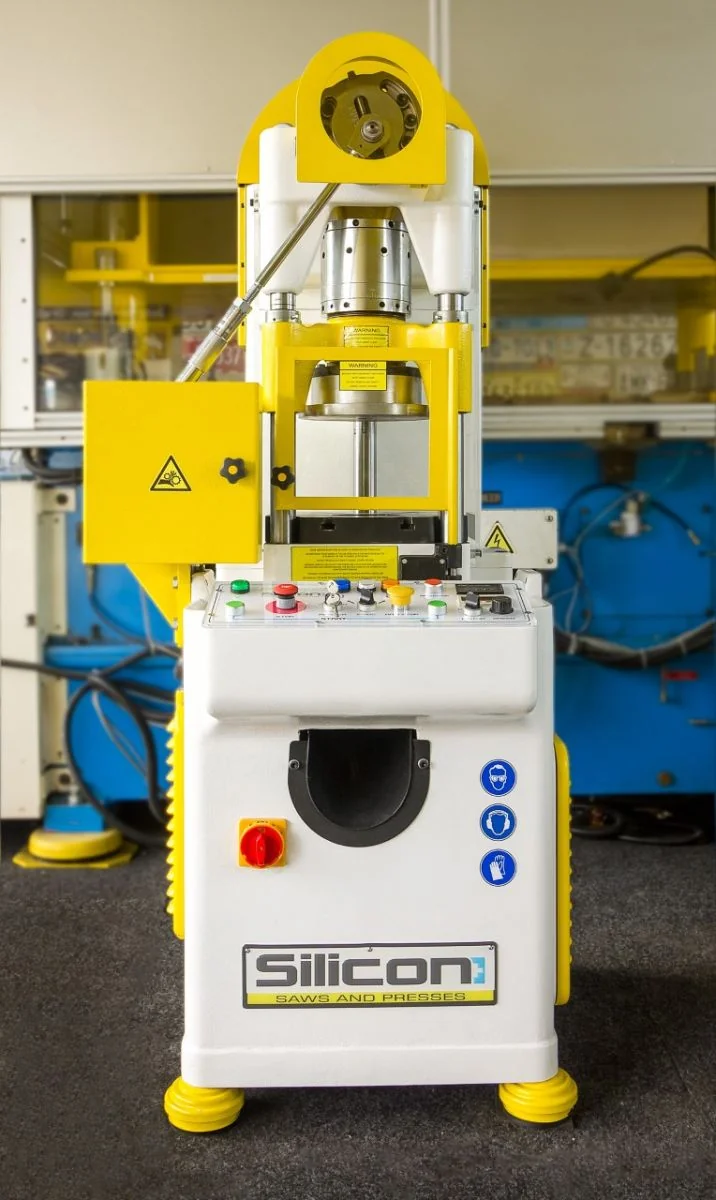

Silicon+ STA 18 Ref. 33626
Brza automatska presa za štancanje • 2026 • ID: 33626
Tehničke specifikacije
High Speed Automatic Punching Press.
Machine with CE certificate and EUR1 certificate of European origin.

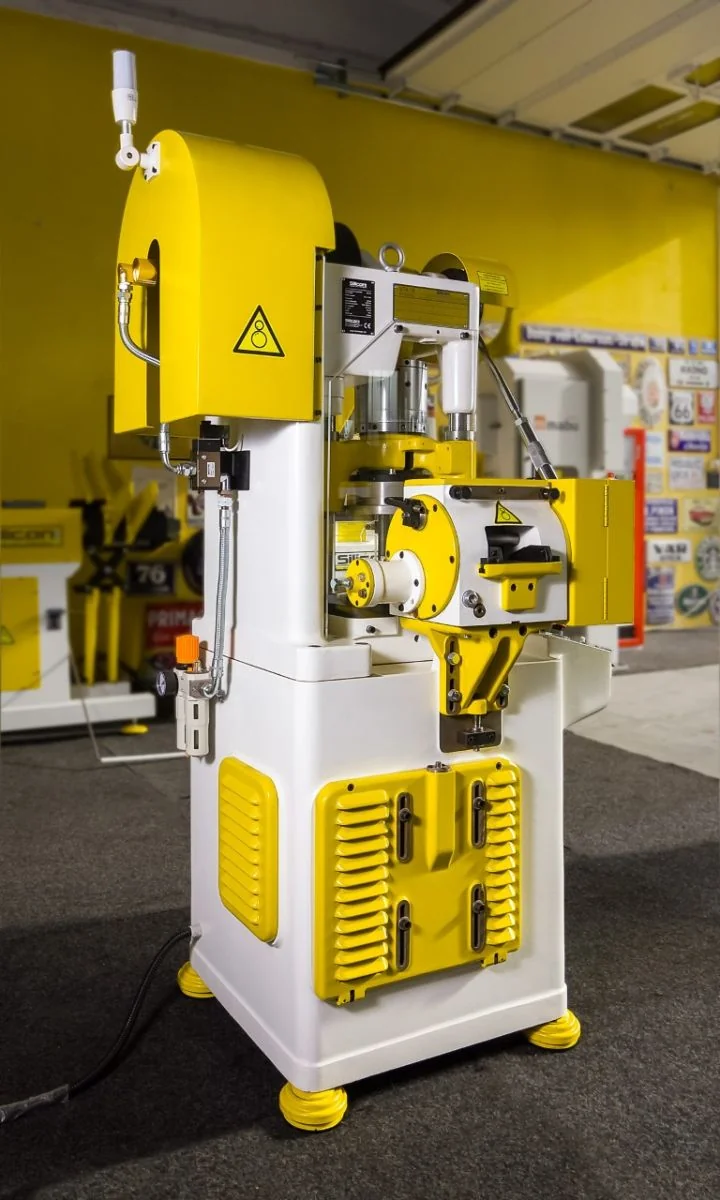

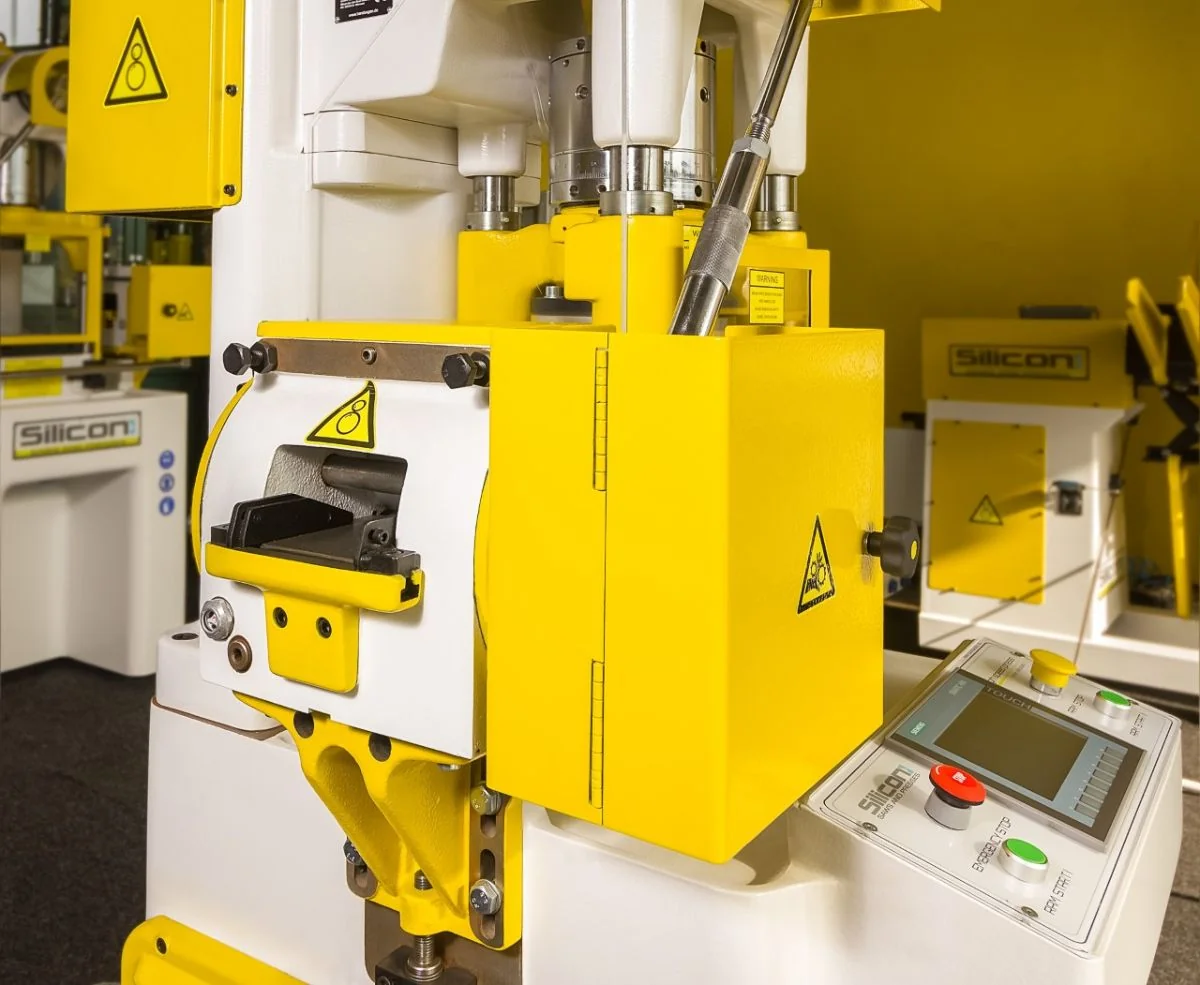

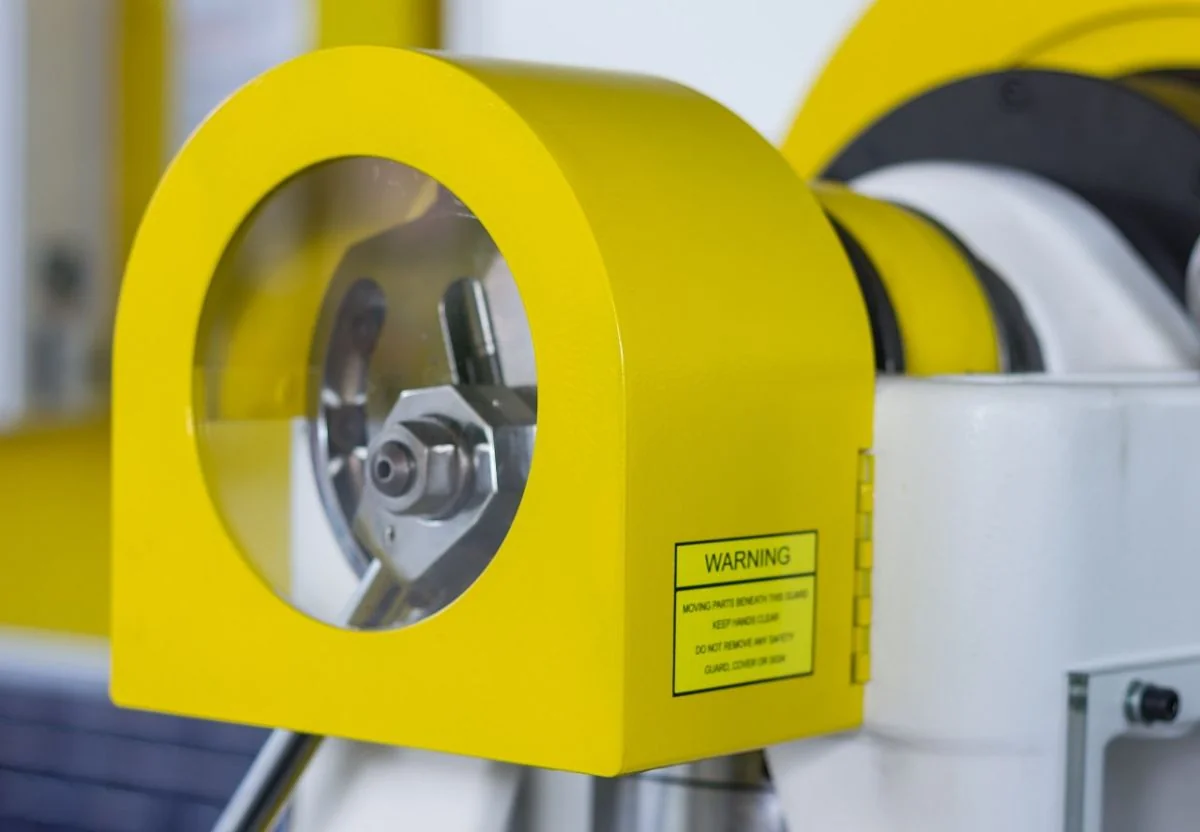

Equipped with high speed mechanical feeding device.
Automatic in feed, synchronized with punching moment.
Siemens PLC touch screen logical interface control (optional).
Numerically controlled stamping process (CNC).
With stroke and speed counter.

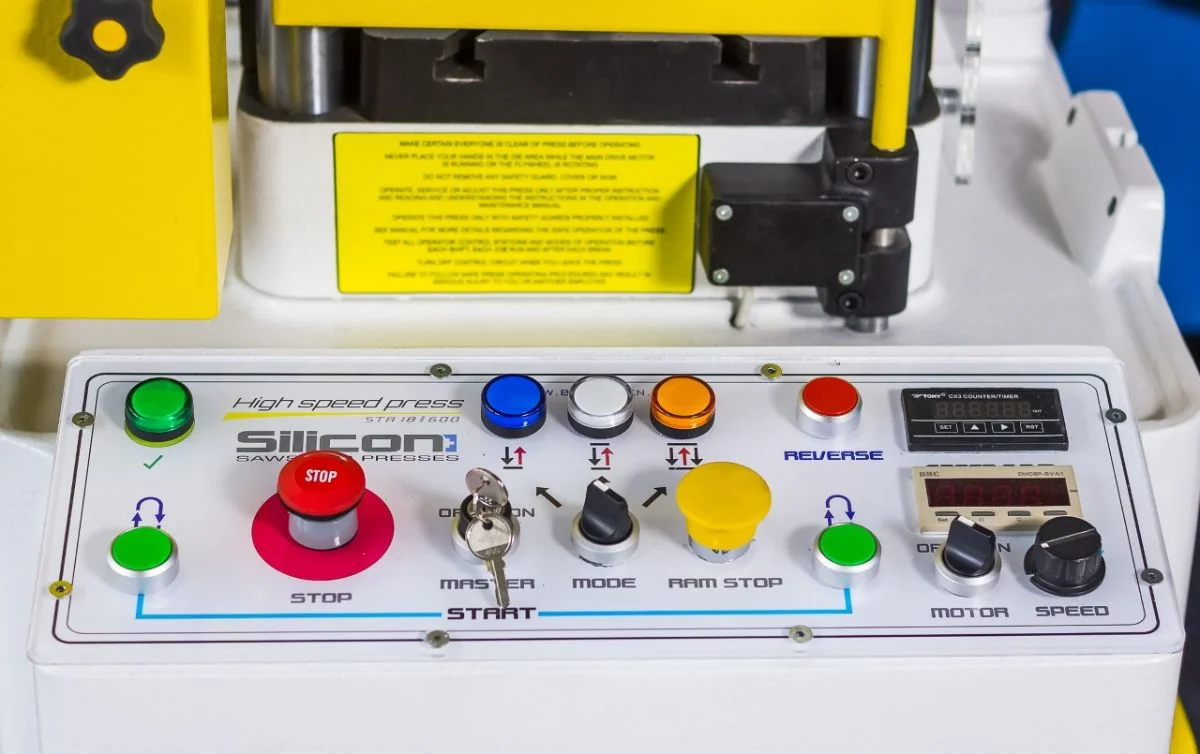

Two hands safety start and emergency stop.
Three working modes: Manual, One stroke and Automatic.
Pneumatic clutch and brake.
Operator’s instruction manual in English.
Stroke power: 180 [KN] (18 [tons]).
Adjustable stroke: 6-36 [mm].
Table: 540 x 300 [mm].
Adjustable speed 100 – 600 strokes per minute up to 10 in one second.
Feeder strip width: 20, 40, 60 or 100 [mm] (optional).
Maximum strip thickness 3 [mm].
Teeth pitch up to max. 60 mm adjustable, highly accurate.
Power consumption 2.2 [kW].
Technical Air 5-10 [bar].
Weight 1.100 [kg].
Machine dimensions: footprint 600 [mm] x 600 [mm] height 1850 [mm].
Warranty: 1 year.
All specifications non-binding , subject to change without notice.
