    Schaal SEP 80 Ref. 34626

    Automatska presa za štancanje • 2000 • ID: 34626

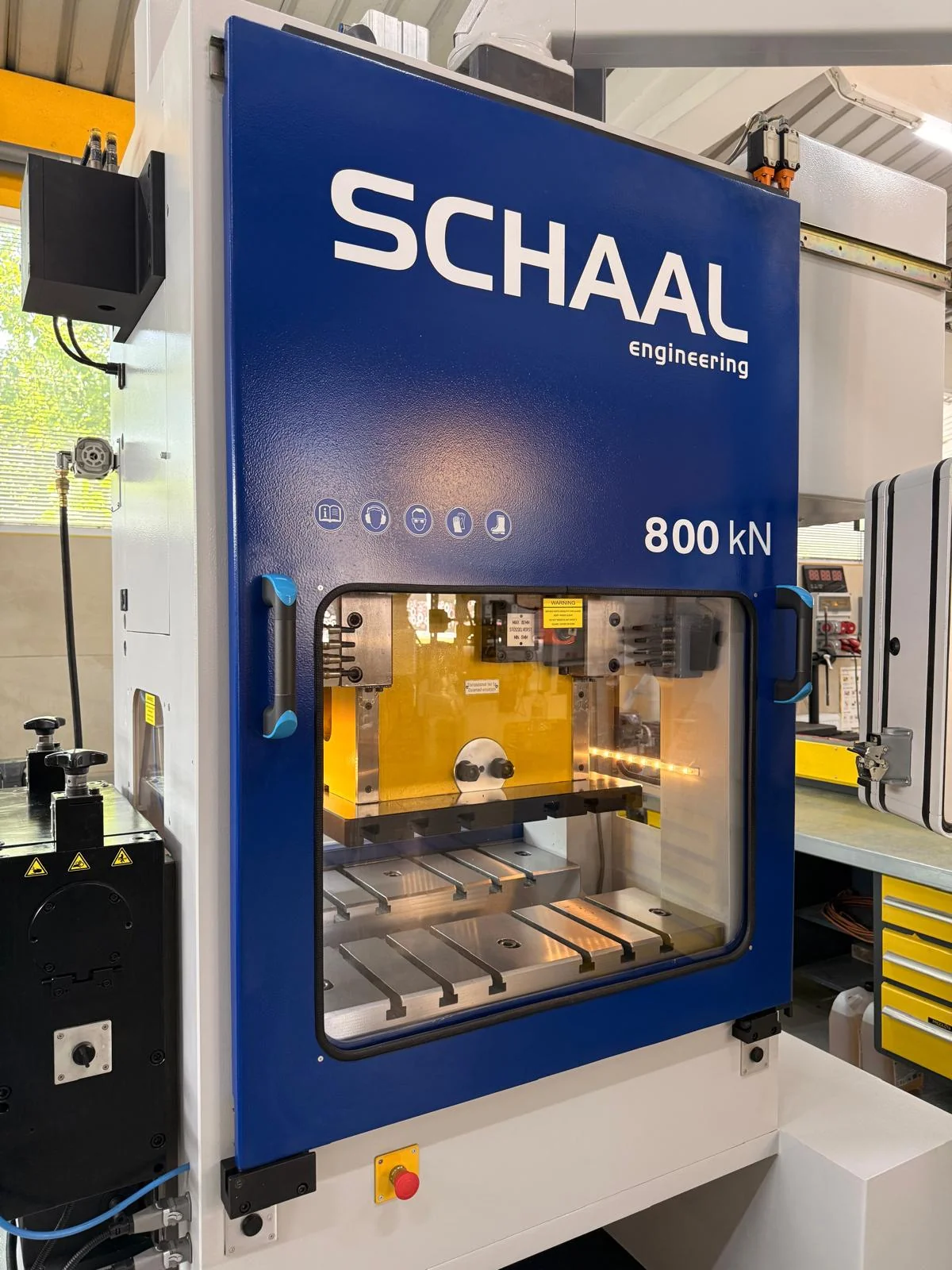

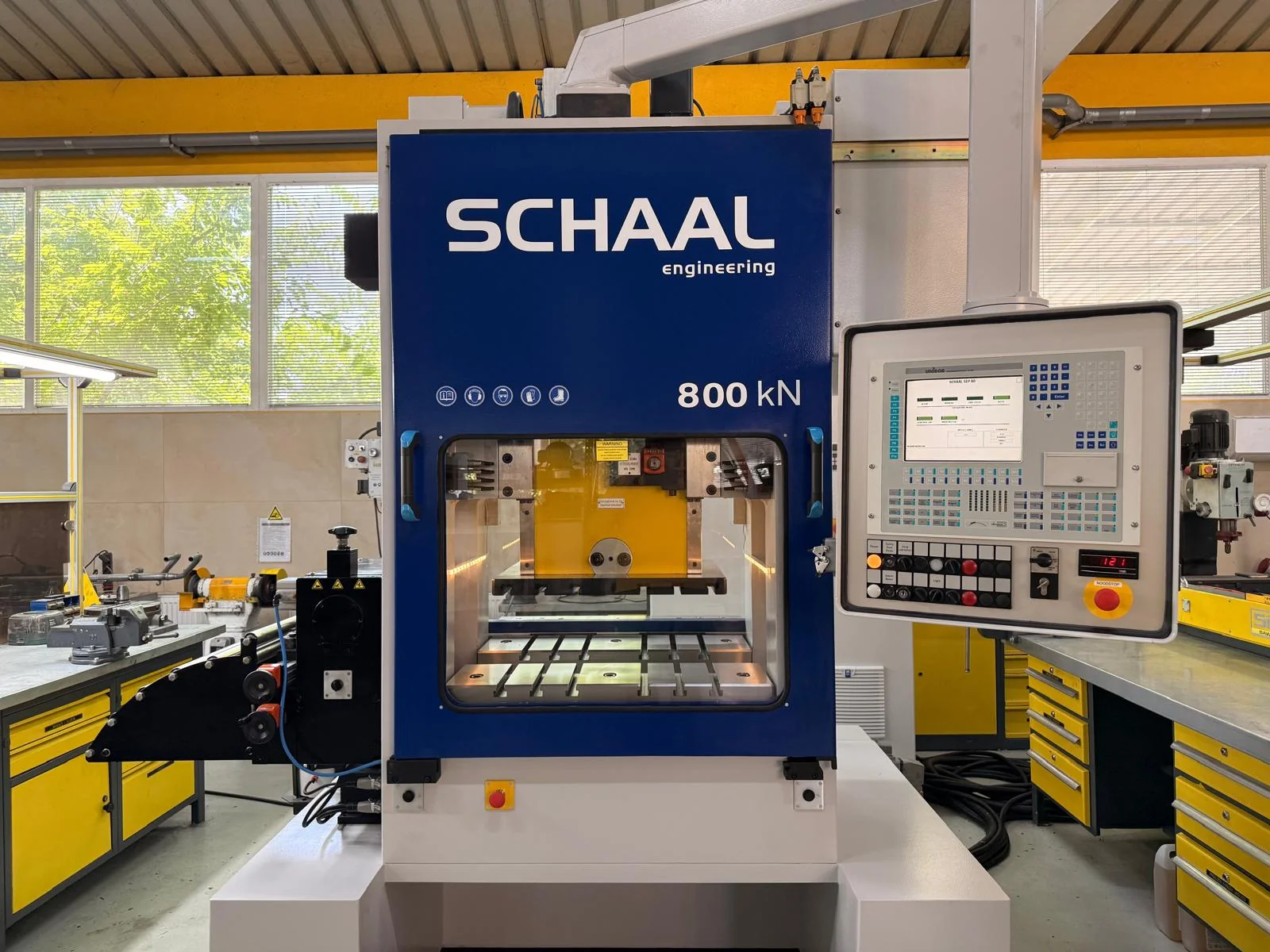

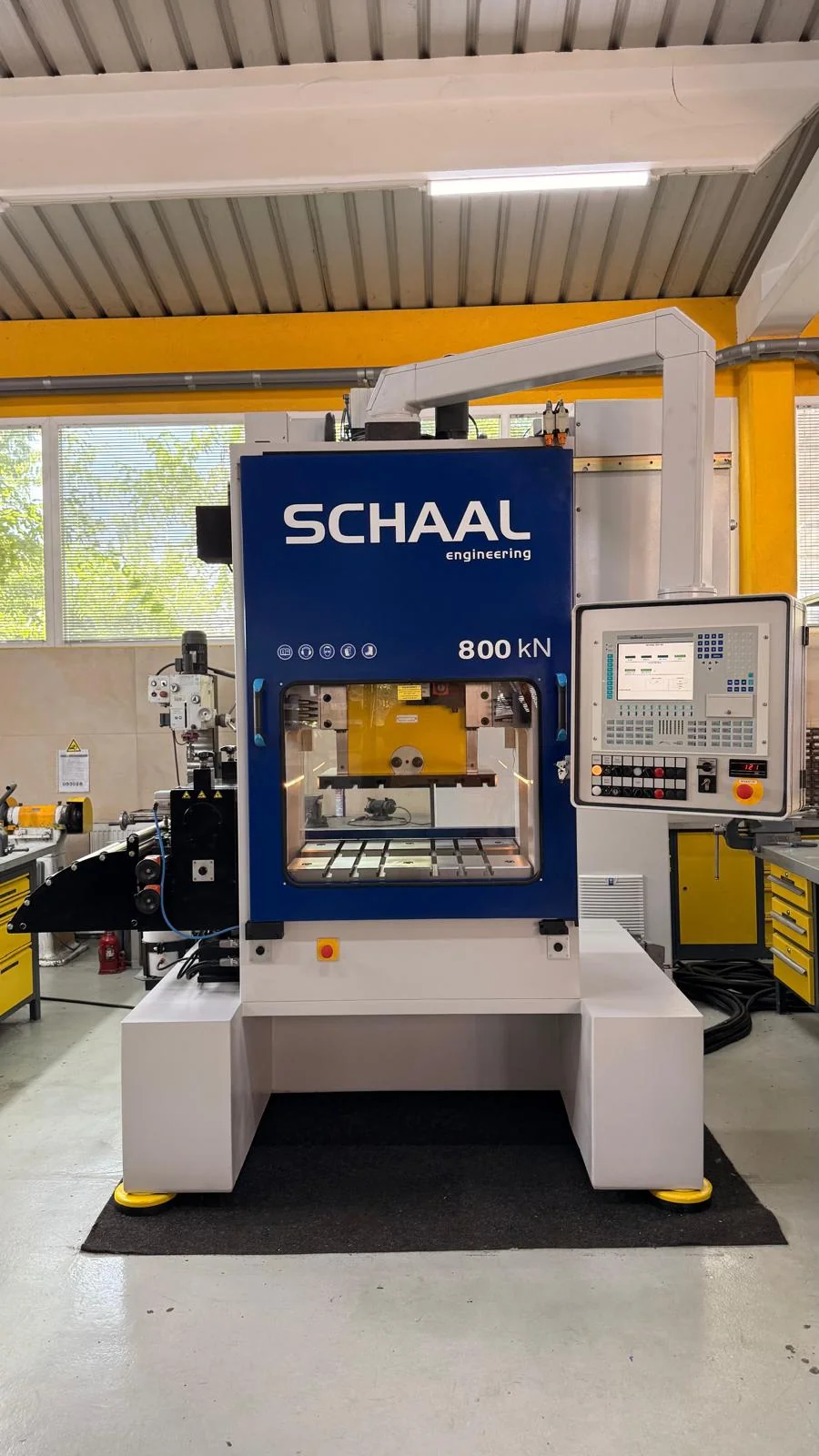

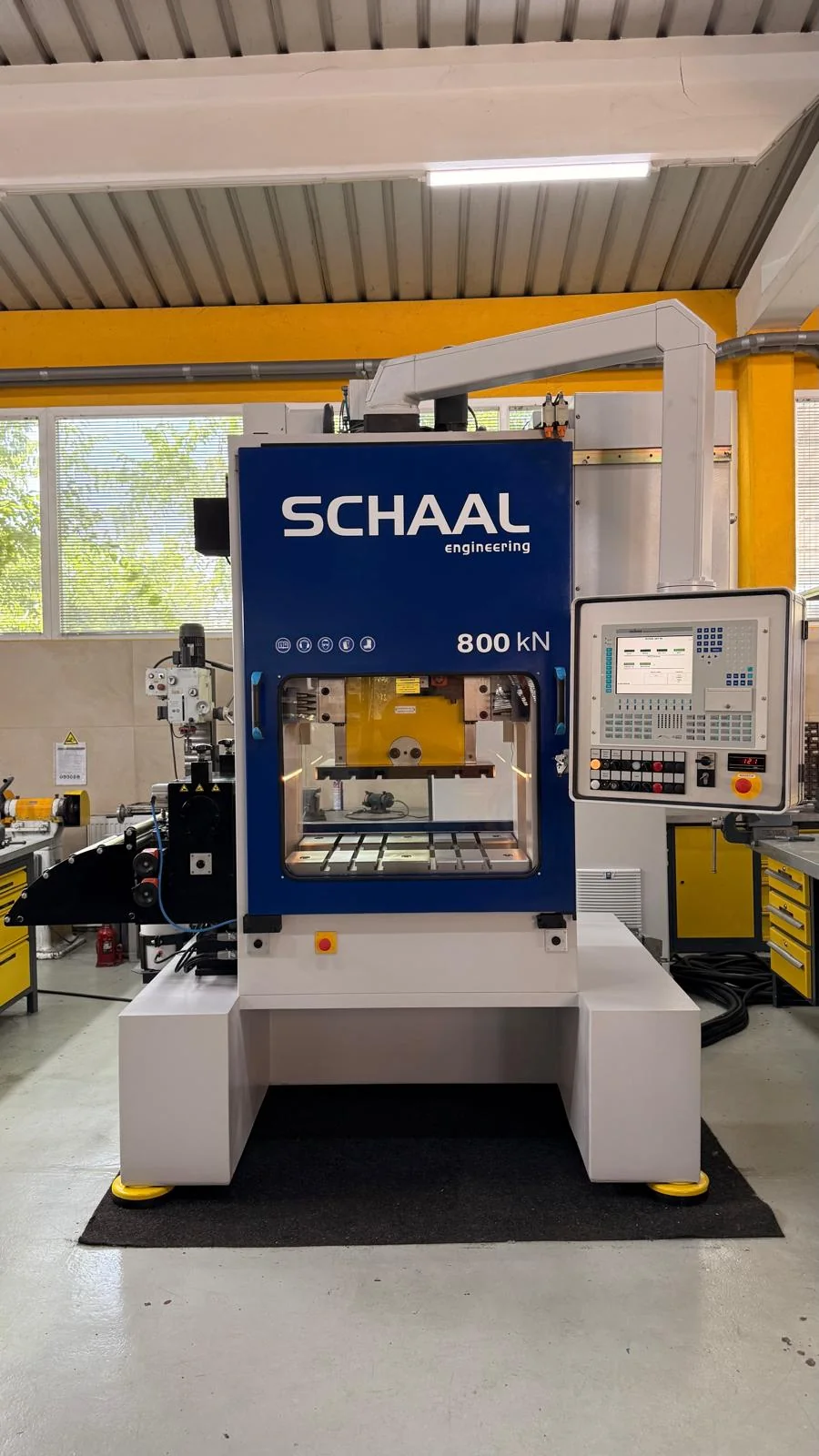

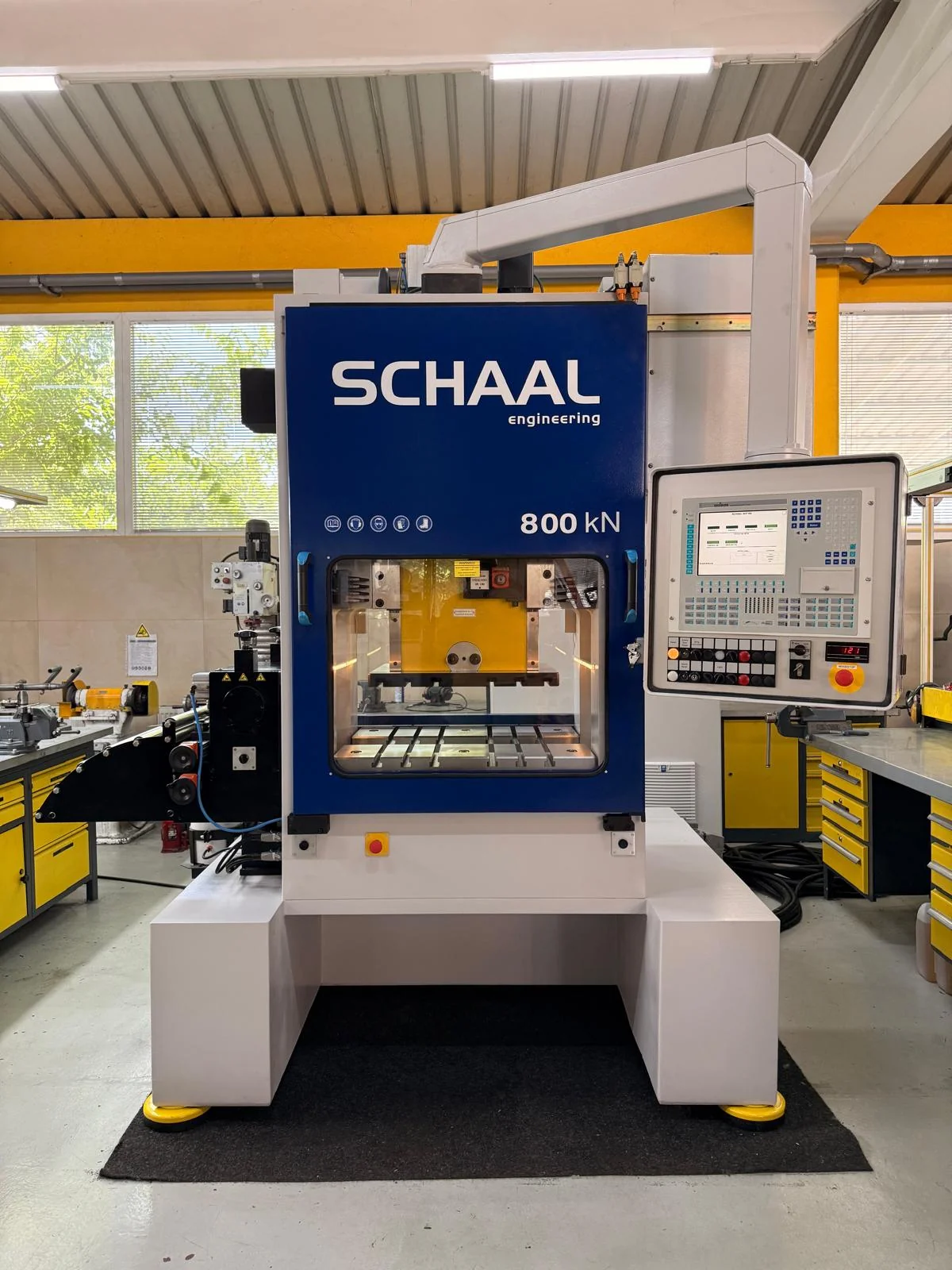

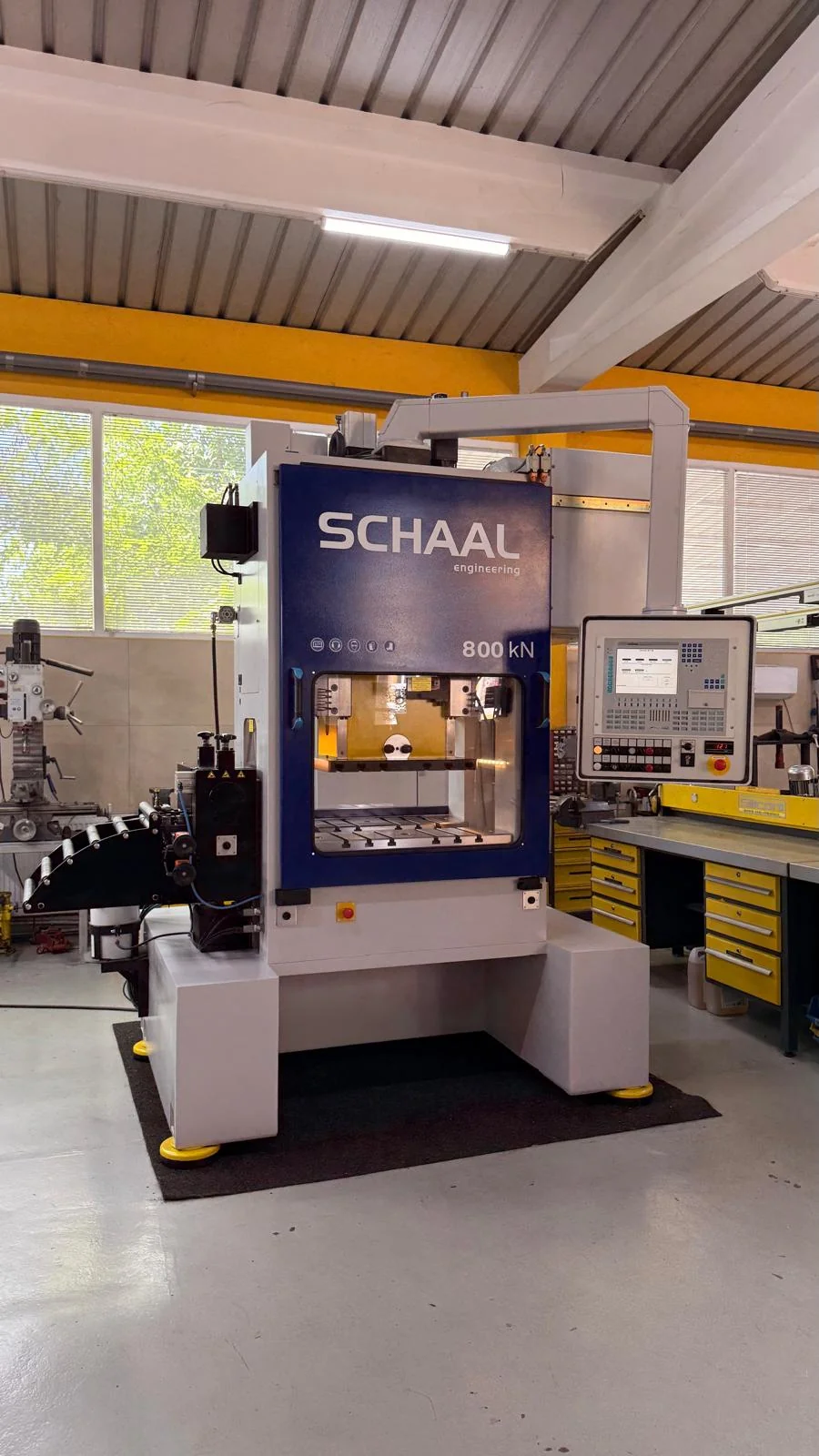

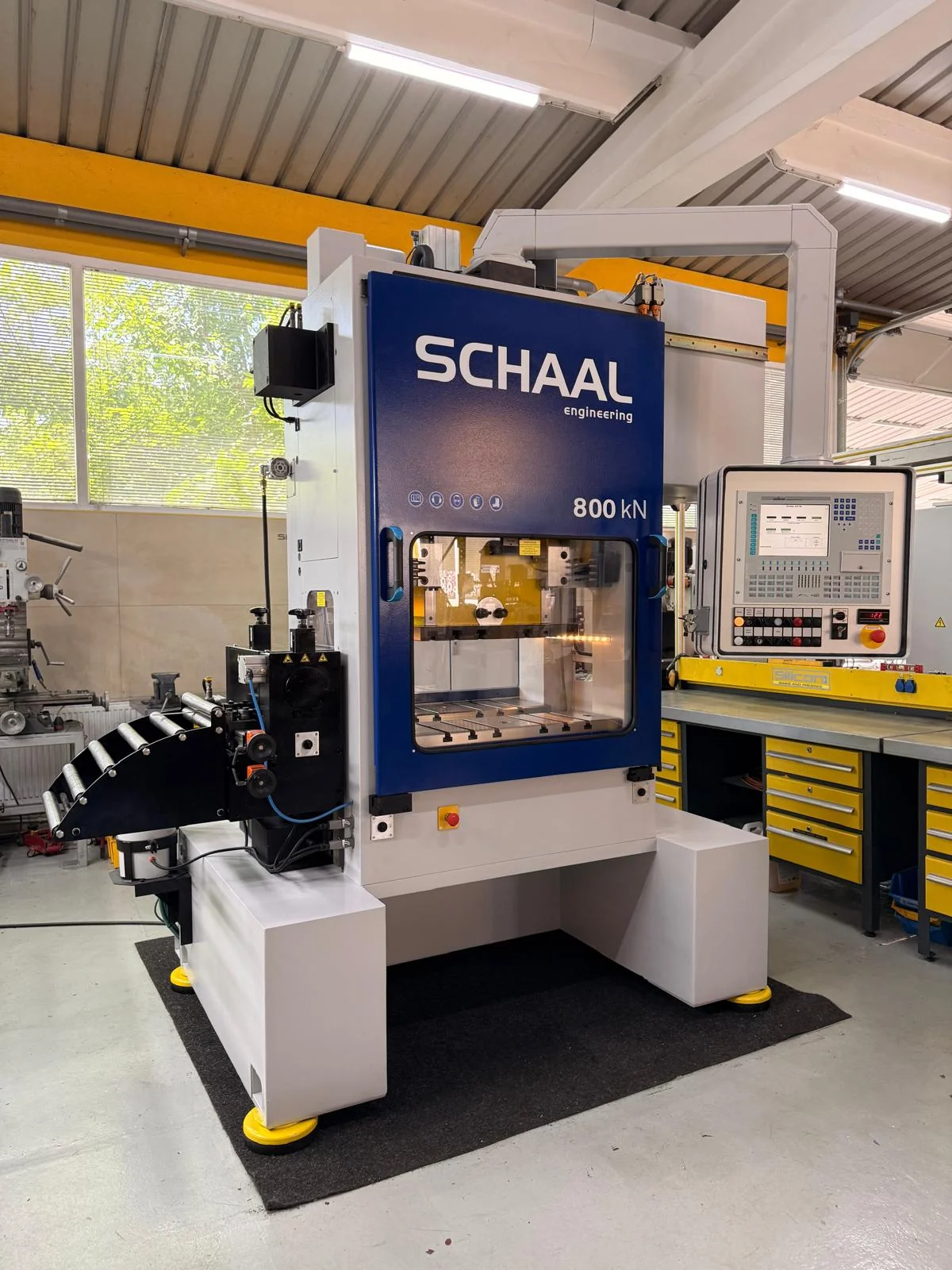

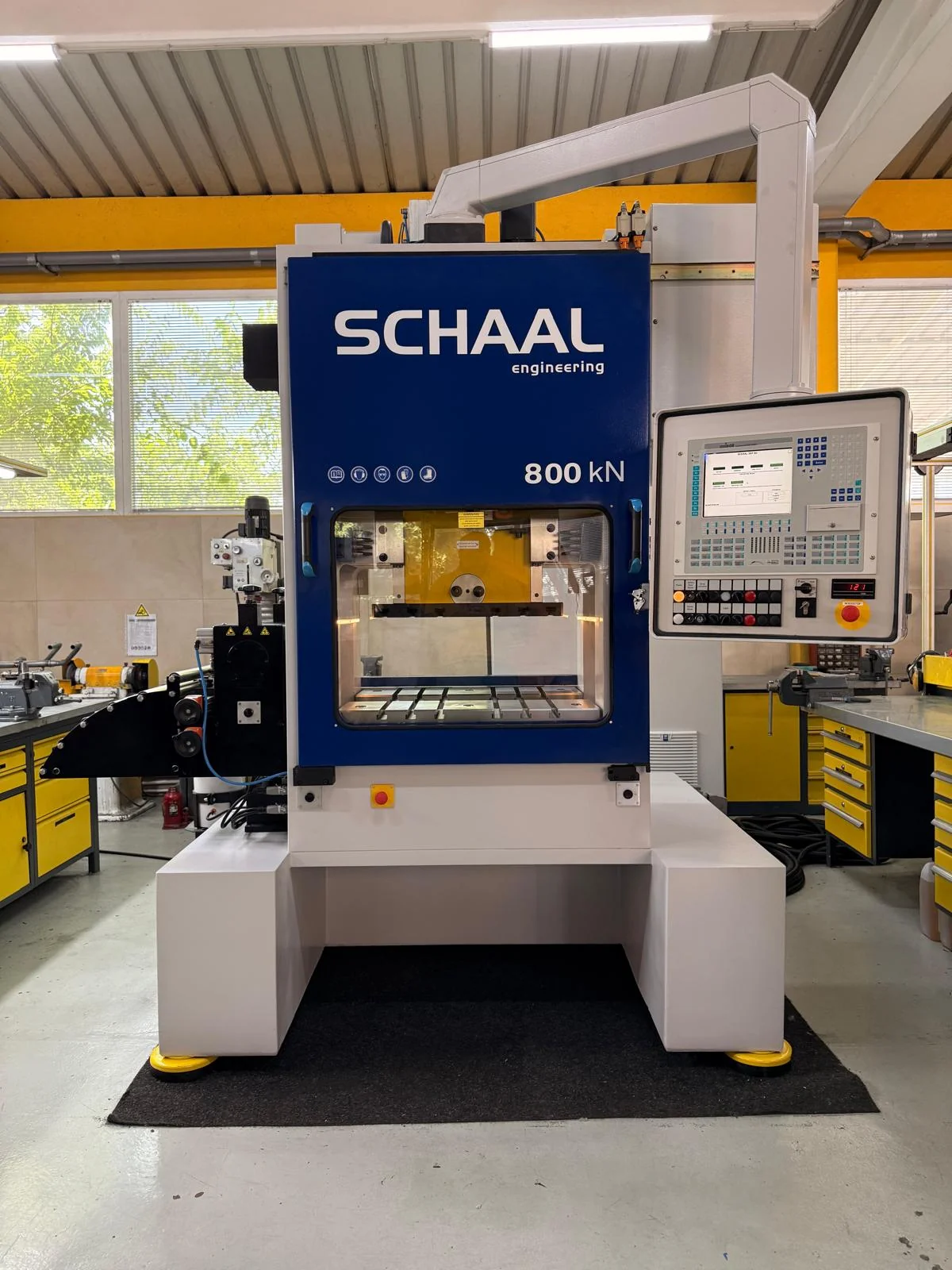

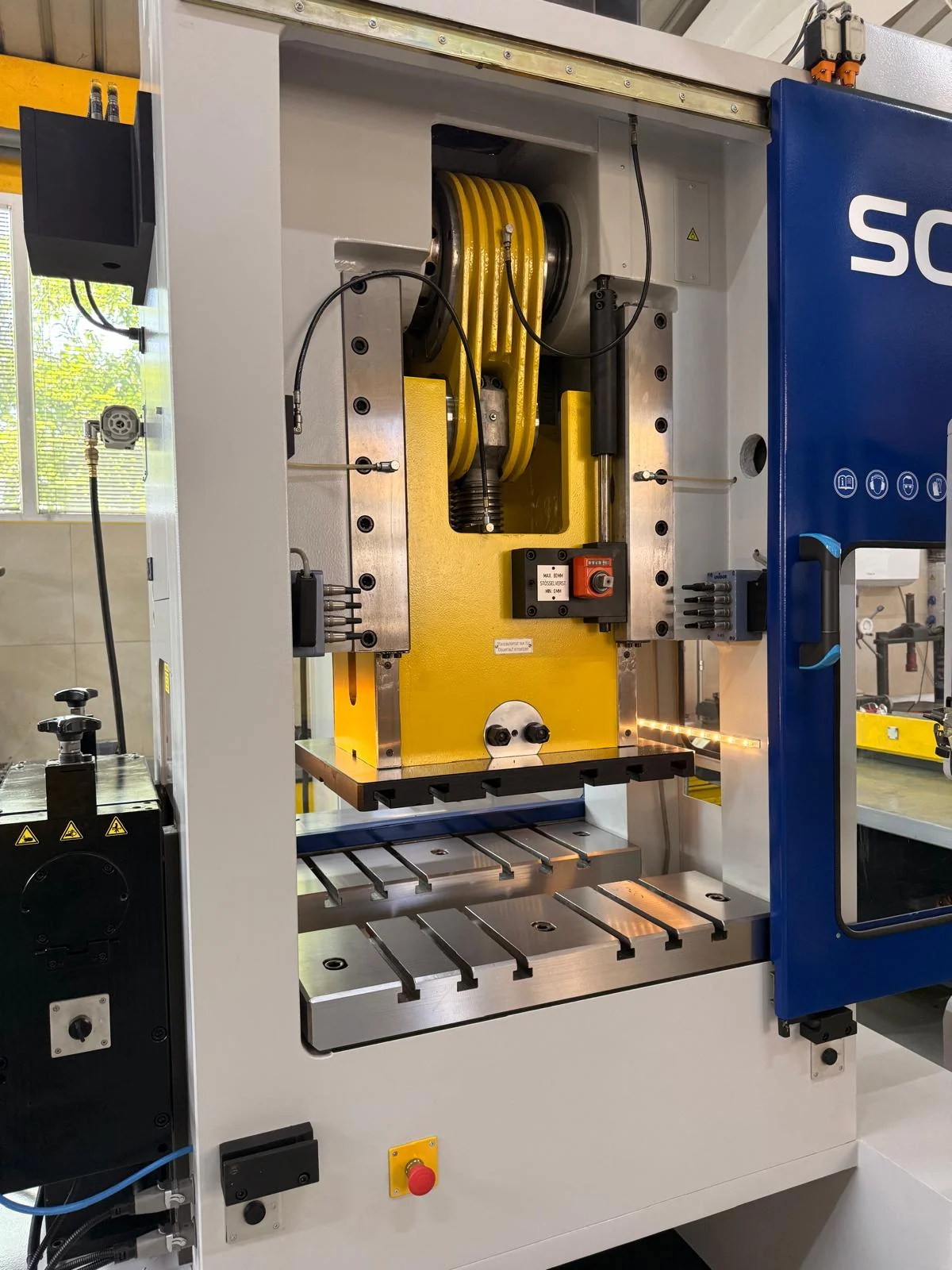

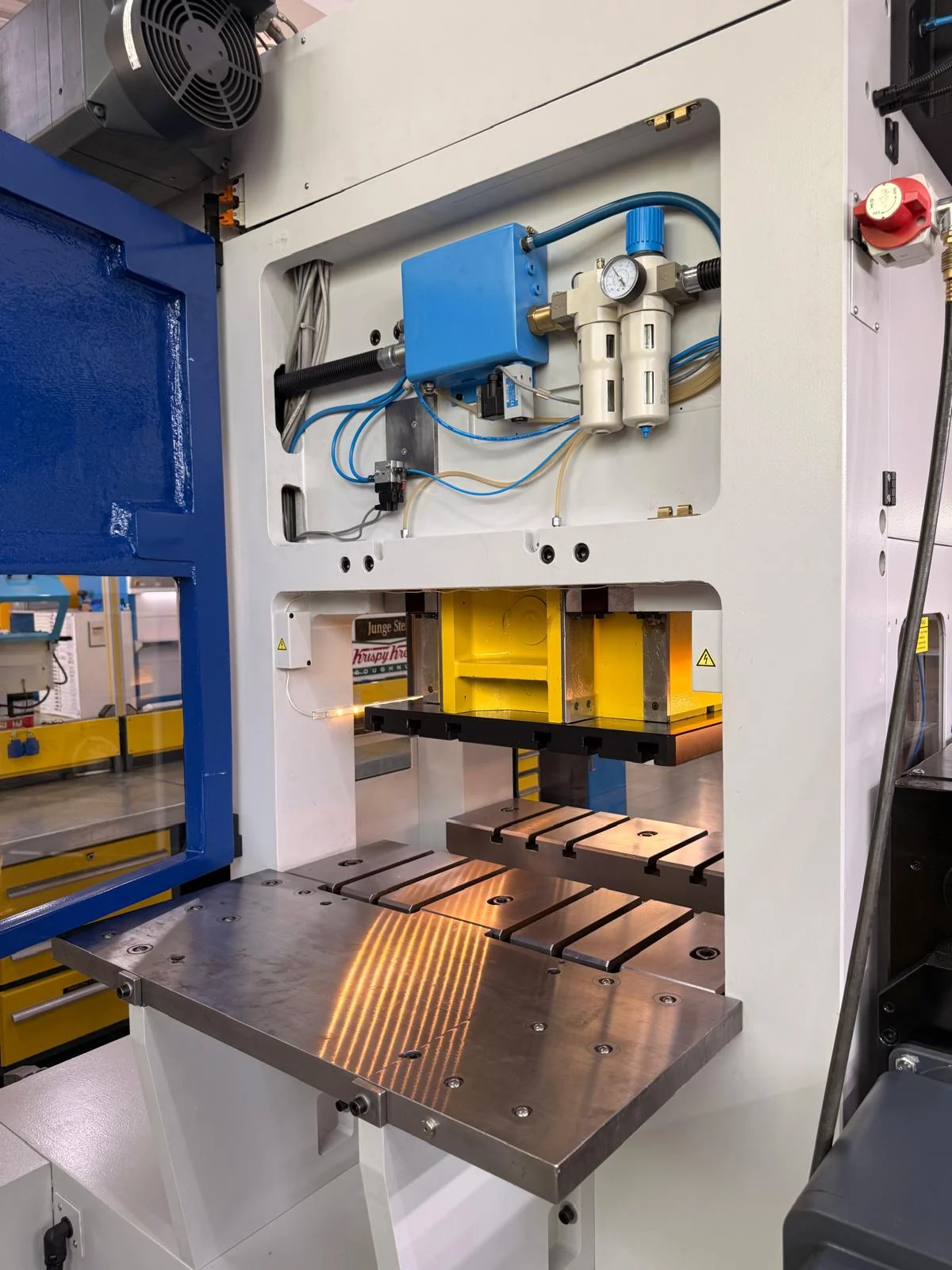

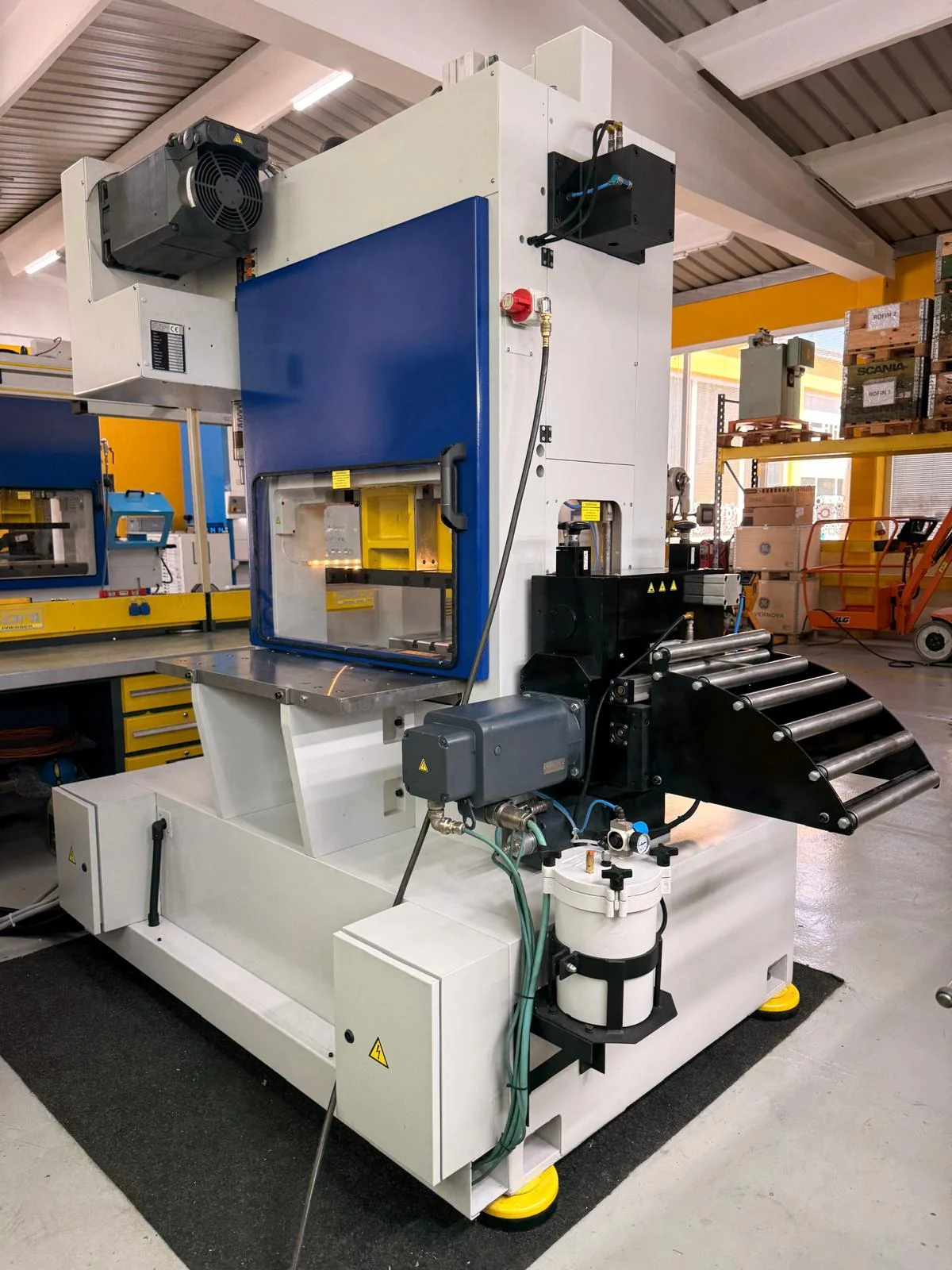

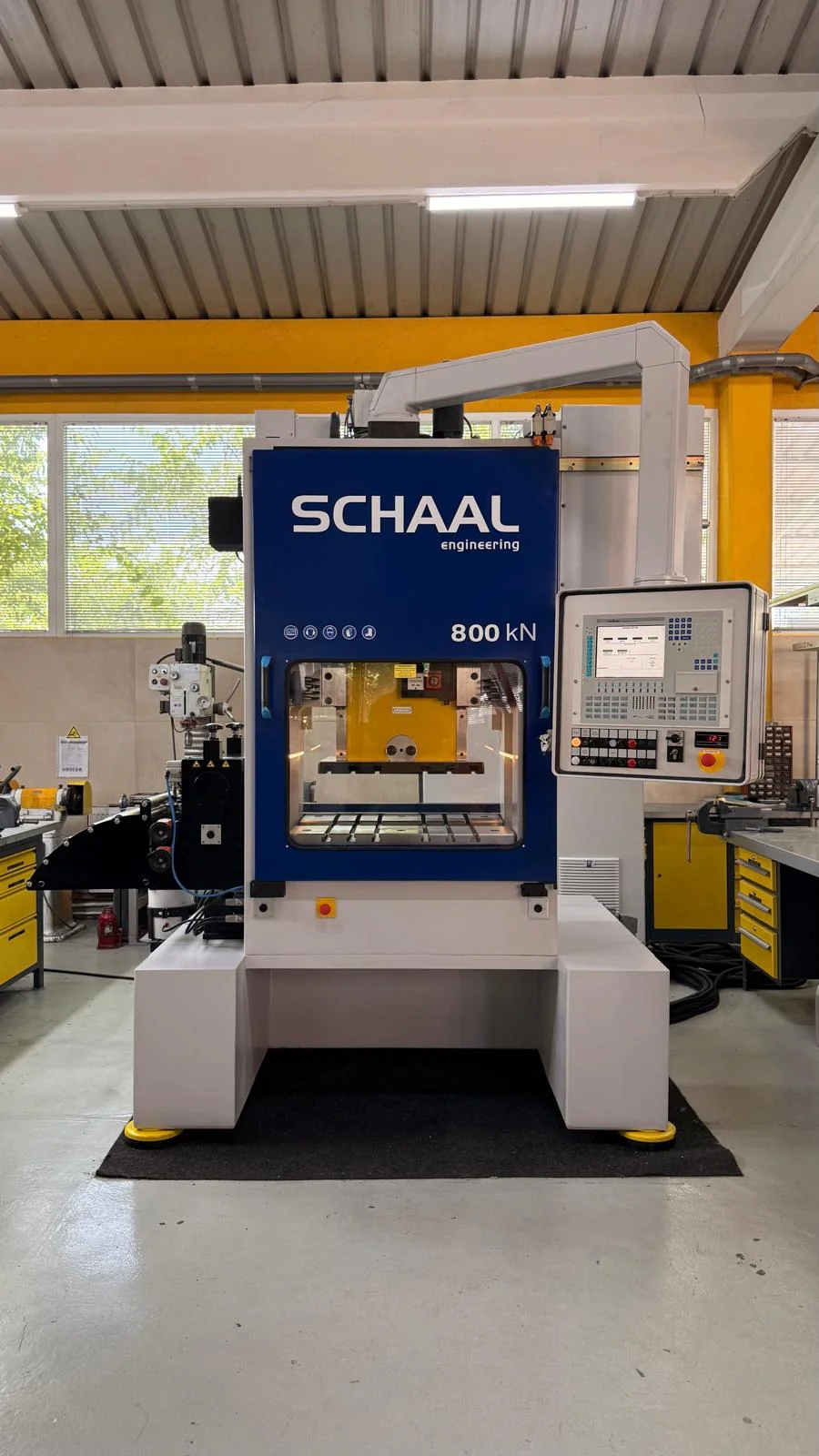

    Ova SCHAAL SEP 80 (mašina br. 00-1564, proizvedena 2000. kod A. Schaal GmbH & Co., Salah/Virtemberg, Nemačka) je precizna ekscentar presa za zahtevno velikoserijsko štancanje. Građena oko livenog dvostubnog postolja O-oblika sa prigušenjem vibracija, daje krutost i dimenzionu stabilnost potrebnu za fino sečenje, štancanje progresivnim alatima i serije uskih tolerancija – gde kvalitet delova ne sme da 'otpliva' tokom smene. Presa dolazi sa usklađenim SCHAAL SWV 3E valjkastim dodavačem, pa je odmah spremna kao kompletna linija za štancanje sa kotura: Dužina dodavanja: 0–9.999,9 mm (potpuno programabilno) Širina trake: do 320 mm Debljina trake: 0–4 mm

    Pozovi

    Tehničke specifikacije

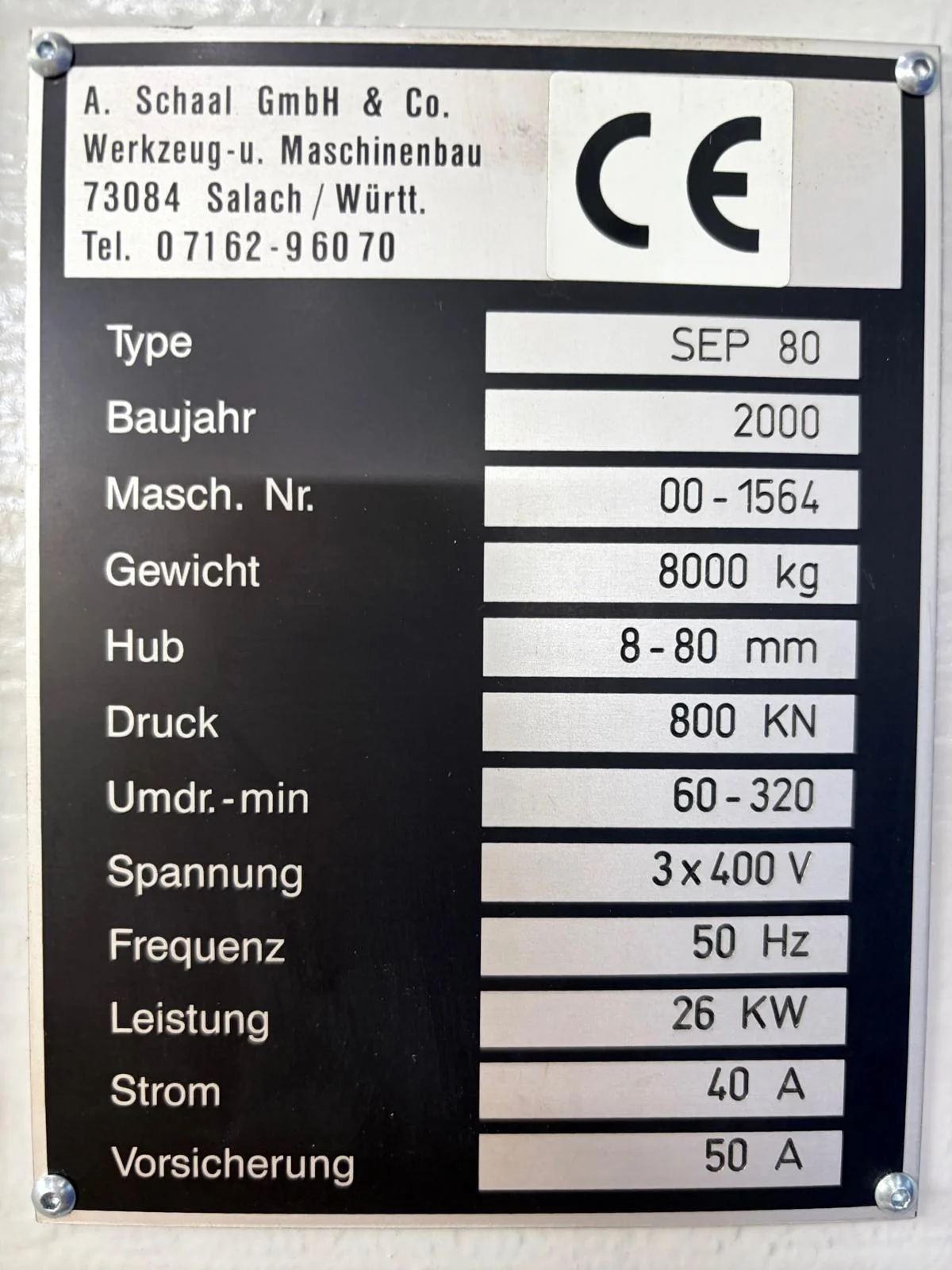

    ManufacturerA. Schaal GmbH & Co. Werkzeug- u. Maschinenbau
    TypeSEP 80
    Year of manufacture2000
    Machine number00-1564
    CE markingYes
    Press force800 kN
    Speed:60 - 320 SPM
    Adjustable stroke8–80 mm
    Distance table-to-ram (max, ram down, with bolster)310 / 355 mm
    Ram adjustment80 mm
    Ram dimensions500 × 400 mm
    Ram boreØ 50 × 90 mm
    Ram keyway30 H7 mm

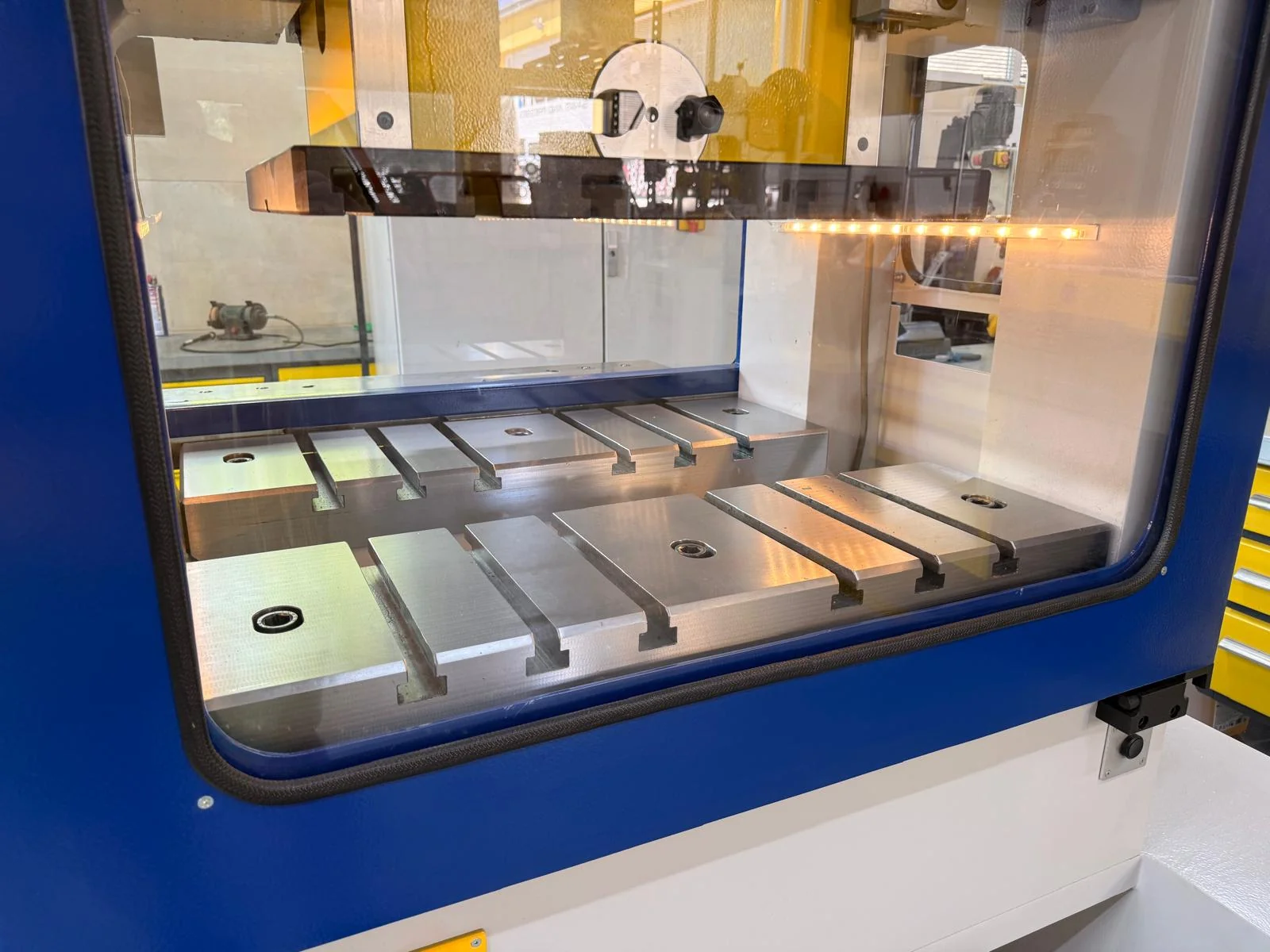

    Table size830 × 700 mm
    Bolster plate thickness80 mm
    Strip pass line over table (with bolster)120 mm ± 40 mm
    Total installed power26 kW
    Supply voltage3 × 400 V, 50 Hz
    Rated current40 A
    Pre-fuse50 A
    Weight8,000 kg

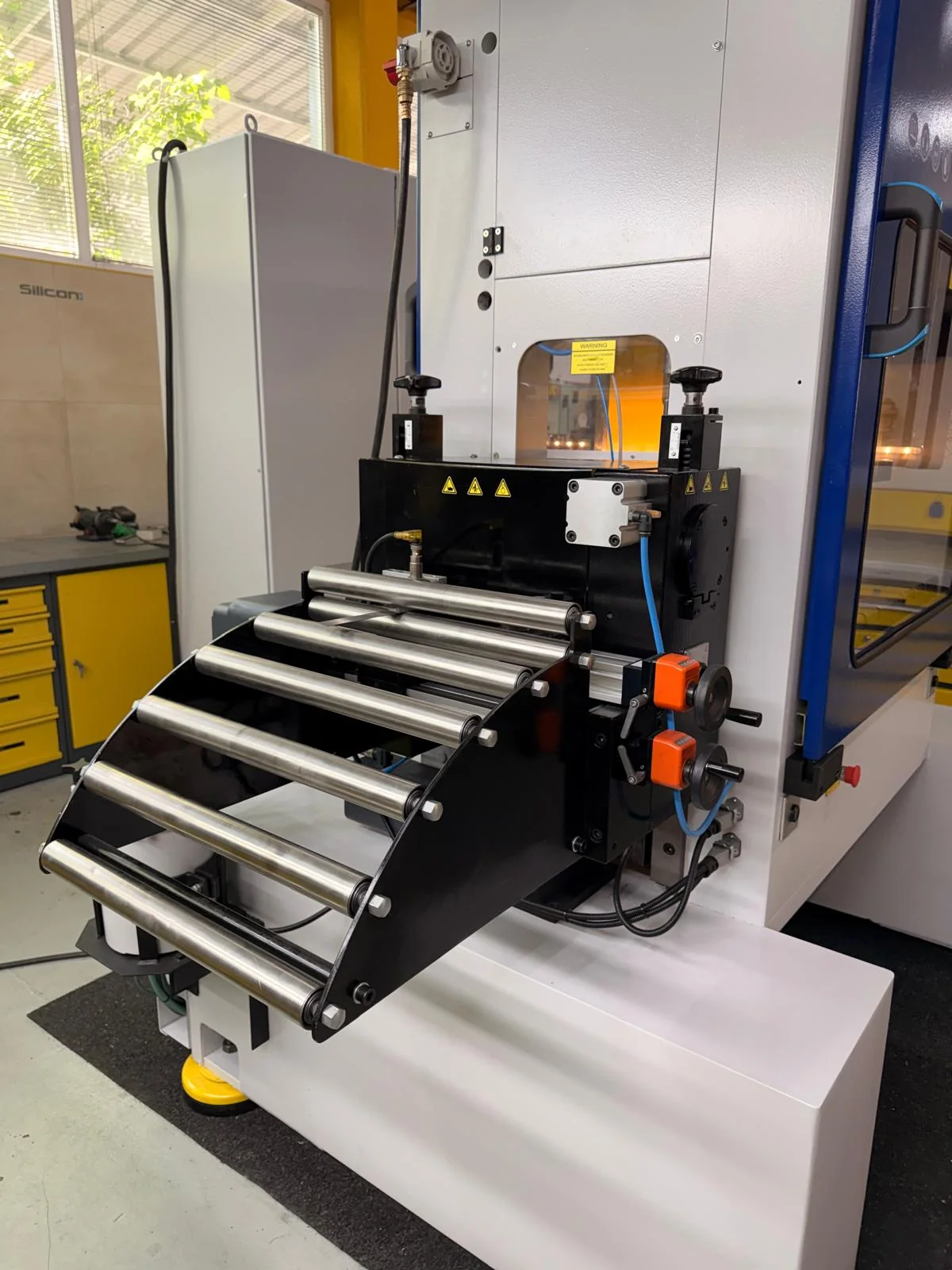

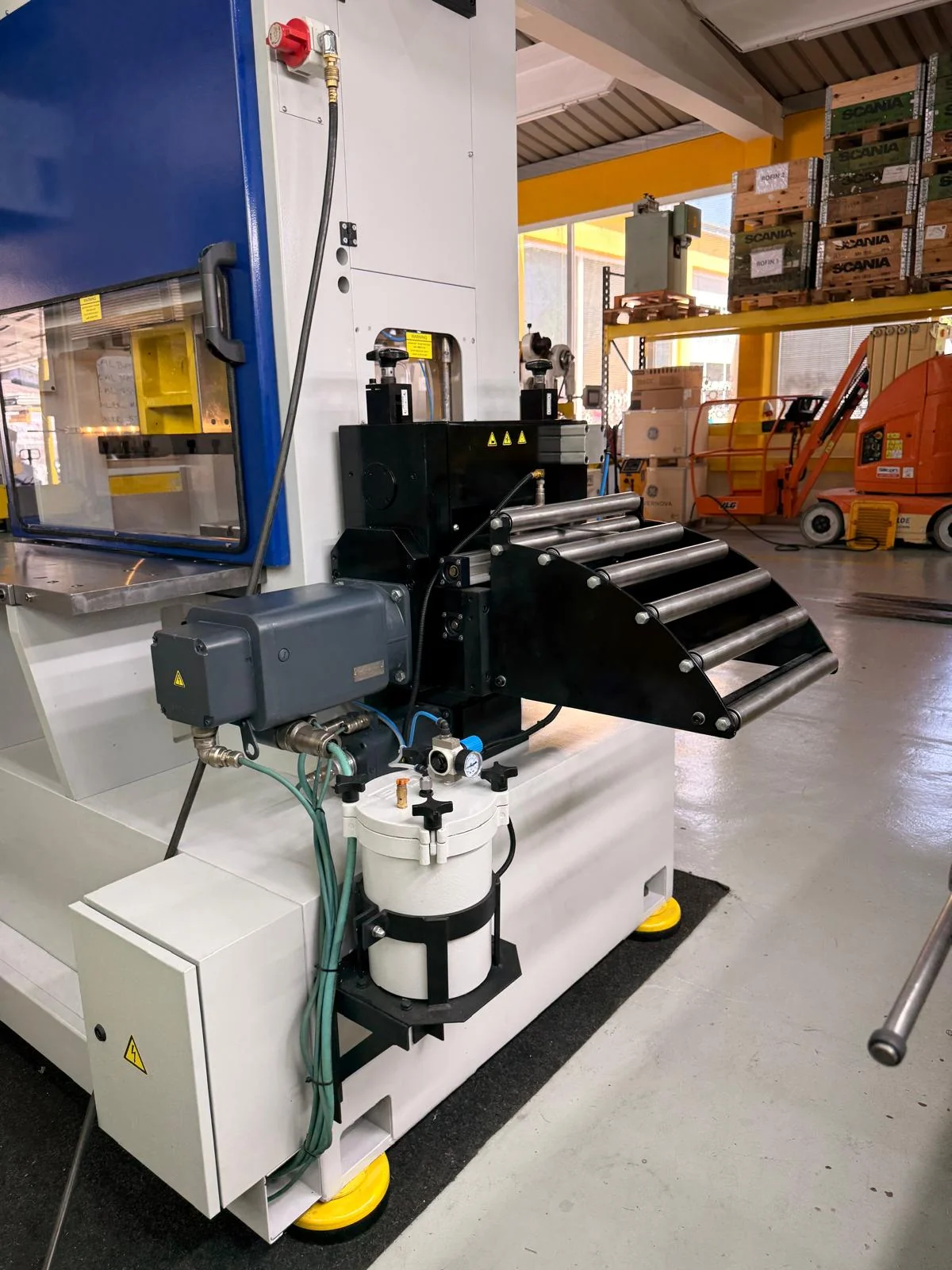

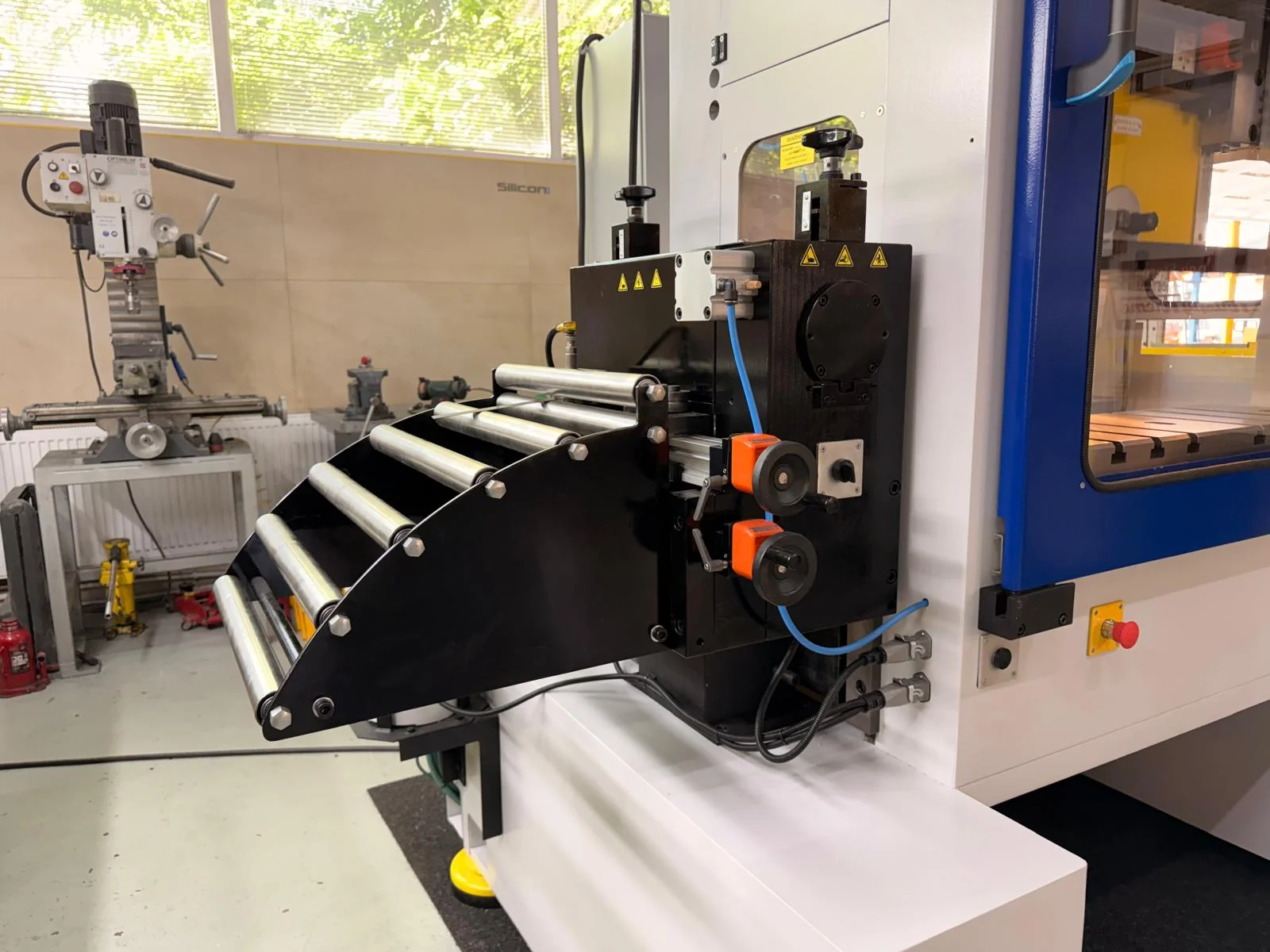

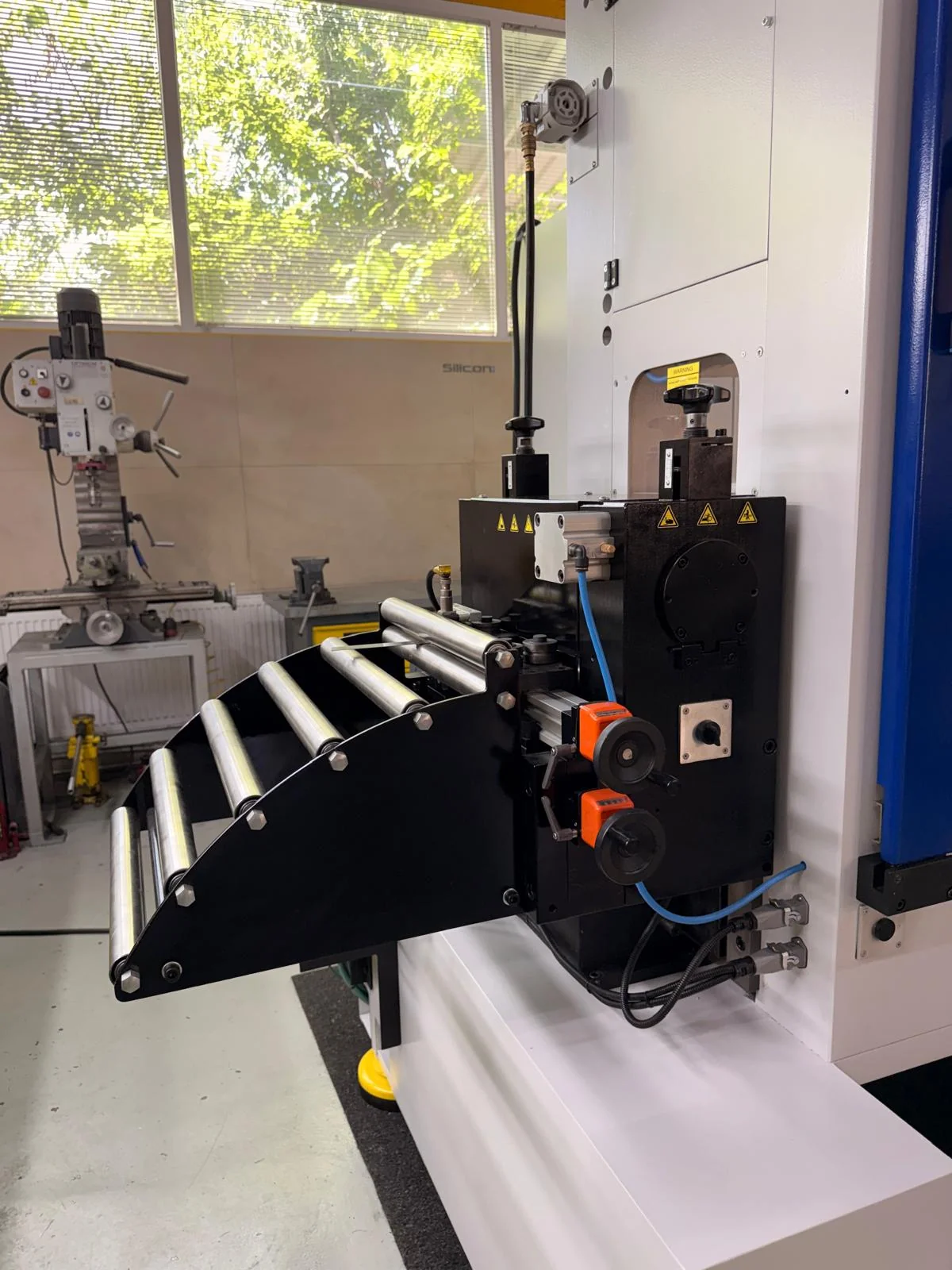

    FeederSCHAAL SWV 3E roll feeder
    Feed length:0–9,999.9 mm (fully programmable)
    Strip width: up to 320 mmup to 320 mm
    Strip thickness:0–4 mm
