    Mechanical Roll Feeder 1

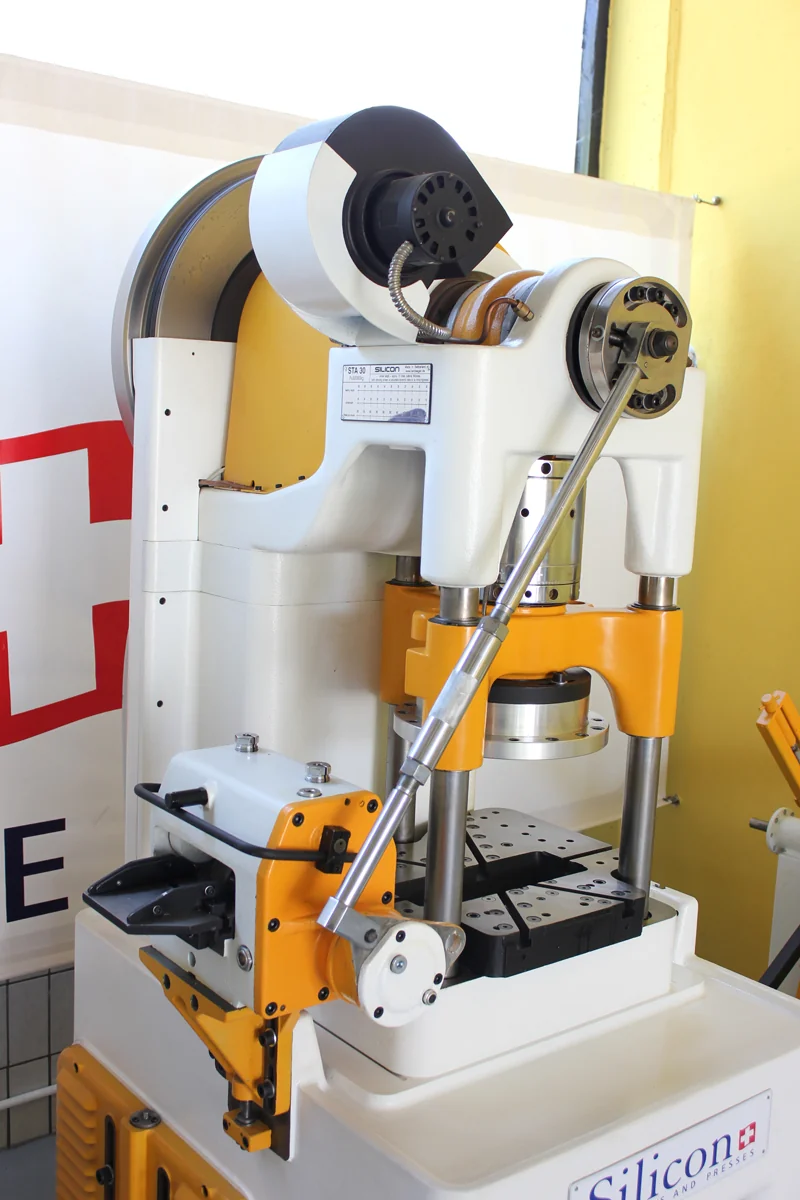

    Mechanical Roll Feeder 2

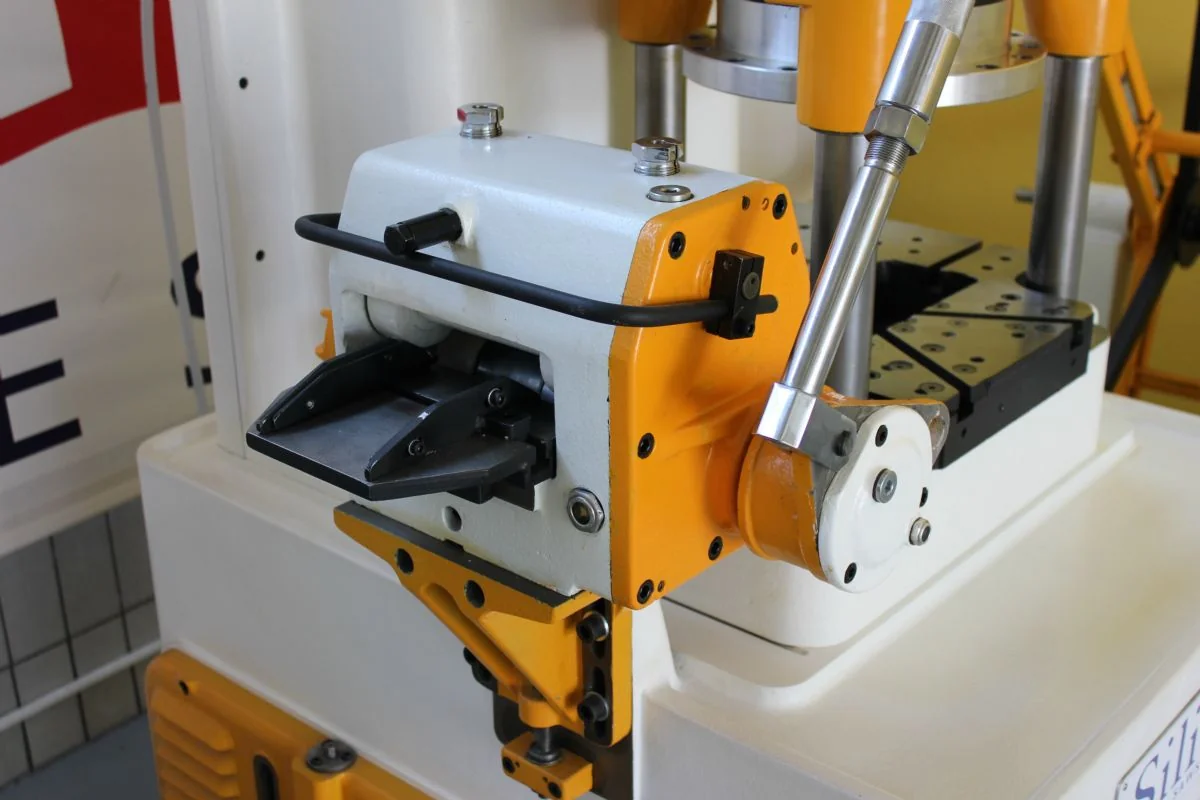

    Mechanical Roll Feeder 3

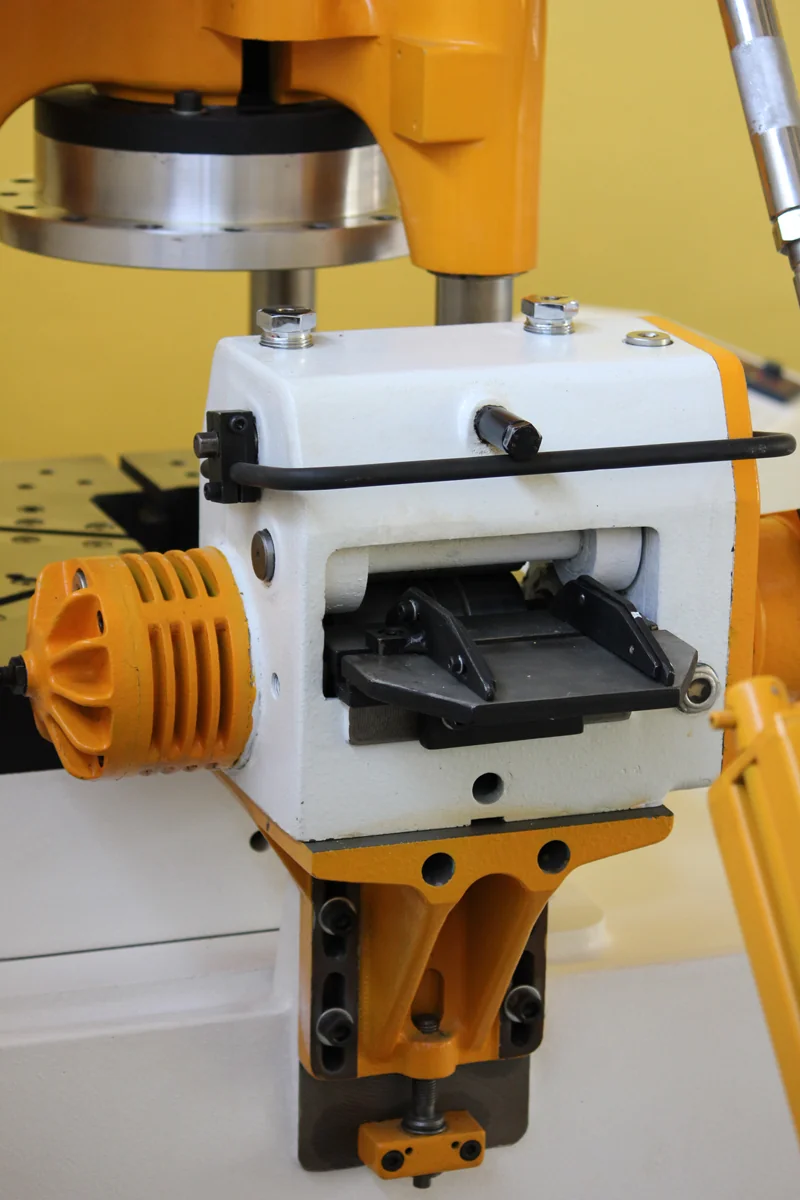

    Mechanical Roll Feeder 4
    Na stanju
    Uvlakači
    Renovirana

    Bruderer Mechanical Roll Feeder BBV120 Ref. 34226

    Mehanički valjkasti dodavač • 2026 • ID: 34226

    Pozovi

    Tehničke specifikacije

    Synchronized easily with punching machine and existing feeder
    Powered with main machine eccentric shaft through first feeder
    Run both directions, forward and reverse
    Can pull or push strip
    Highly accurate even at highest speed
    Strip width max. 150 mm
    Strip thickness max. 3,00 mm
    Double roll heavy grip feeding
    Rolls made of tool steel with cemented surface
    Enormous lifetime with no maintenance
    Weight cca 90 kg
    Long lifetime with no maintenance
