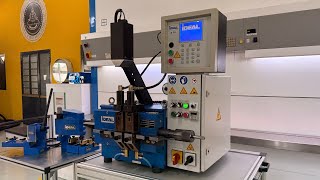

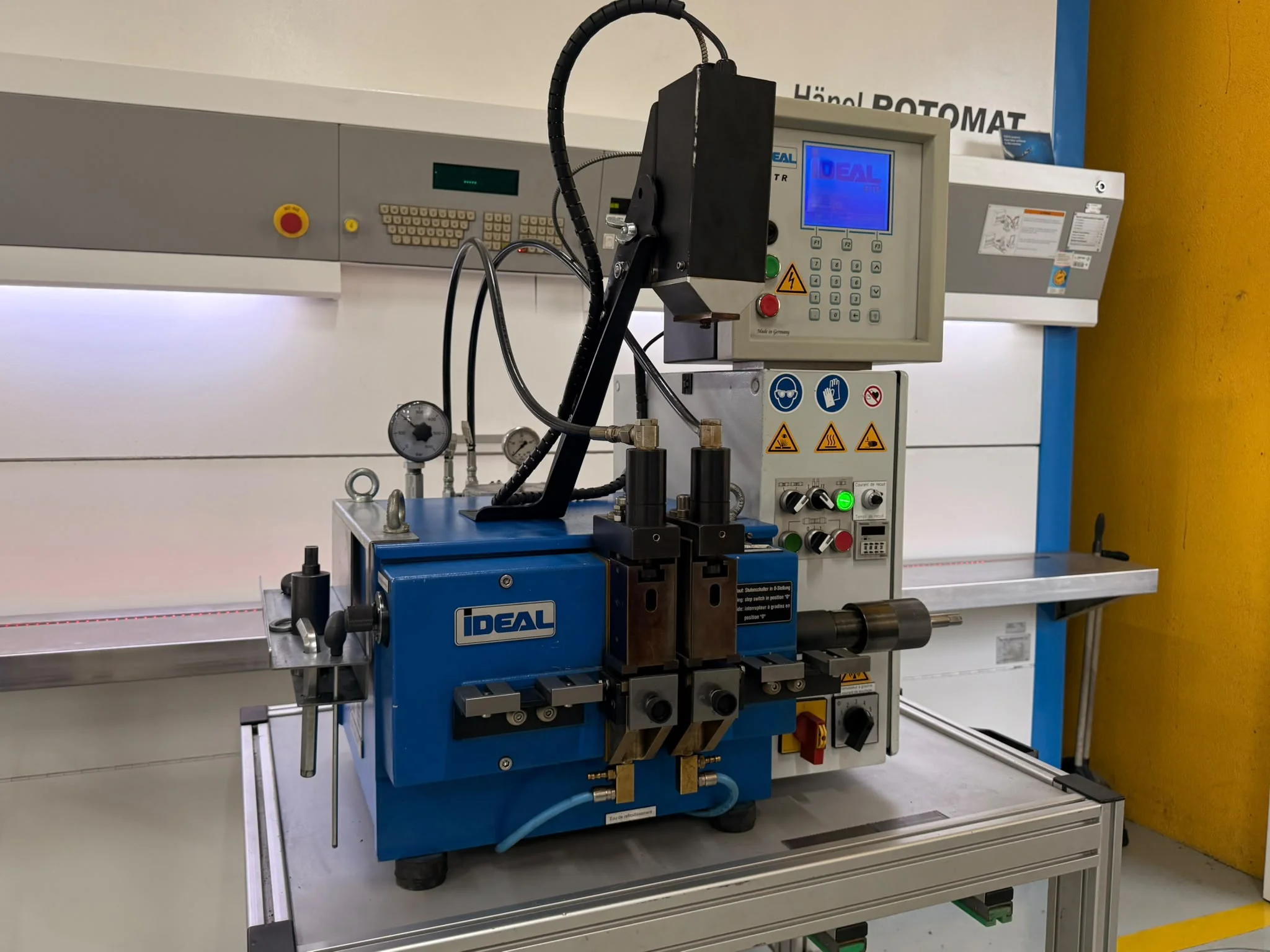

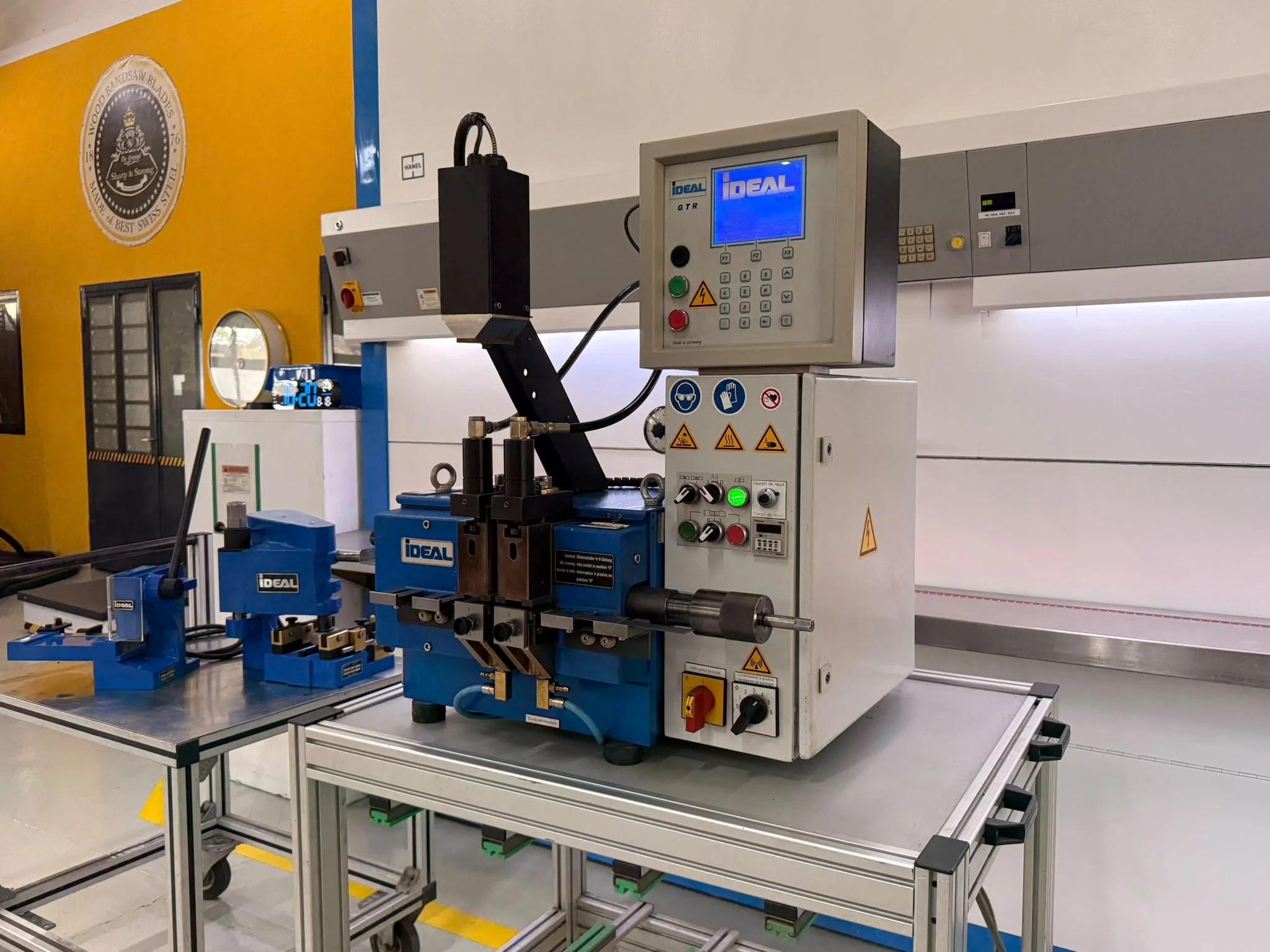

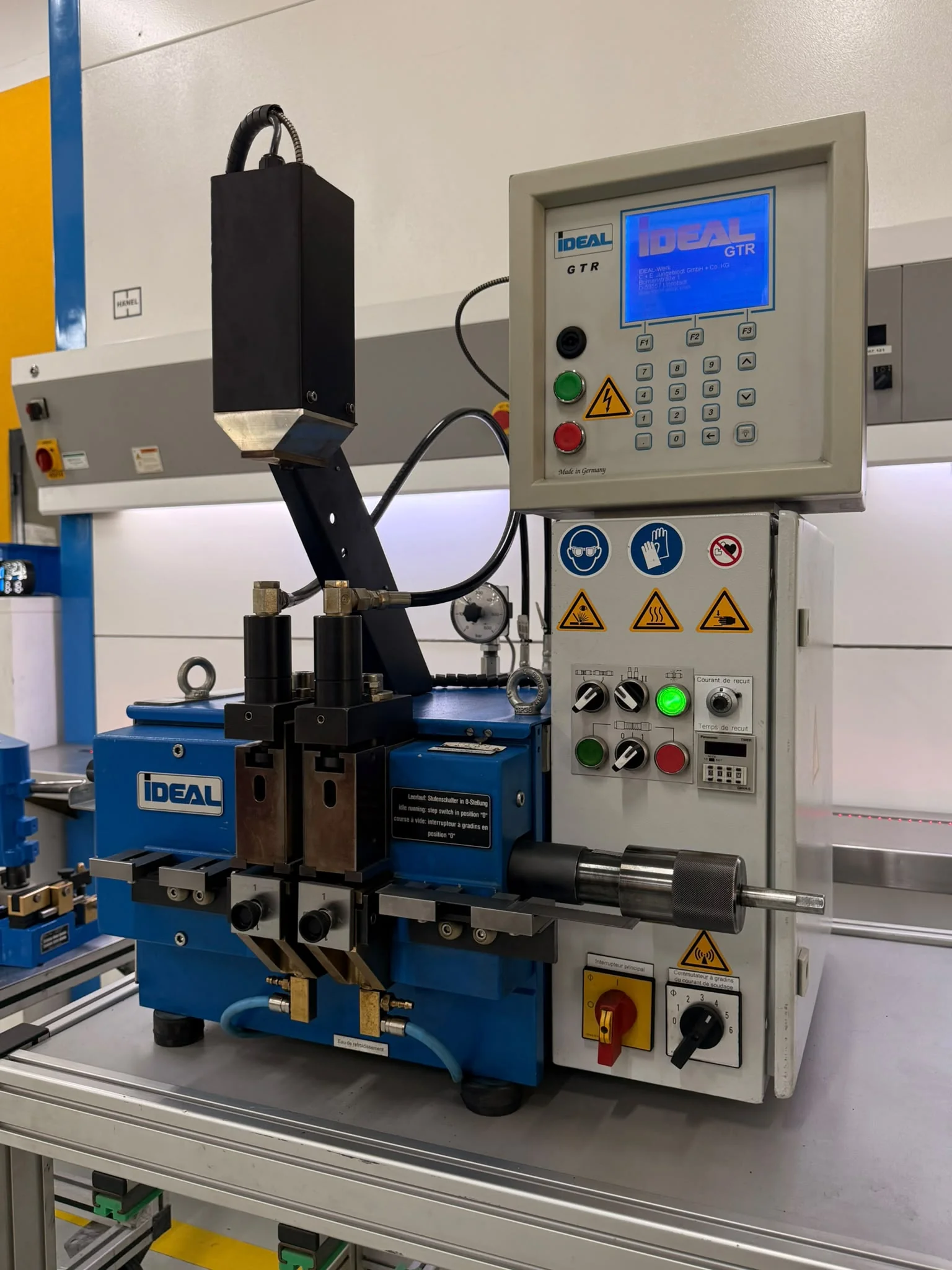

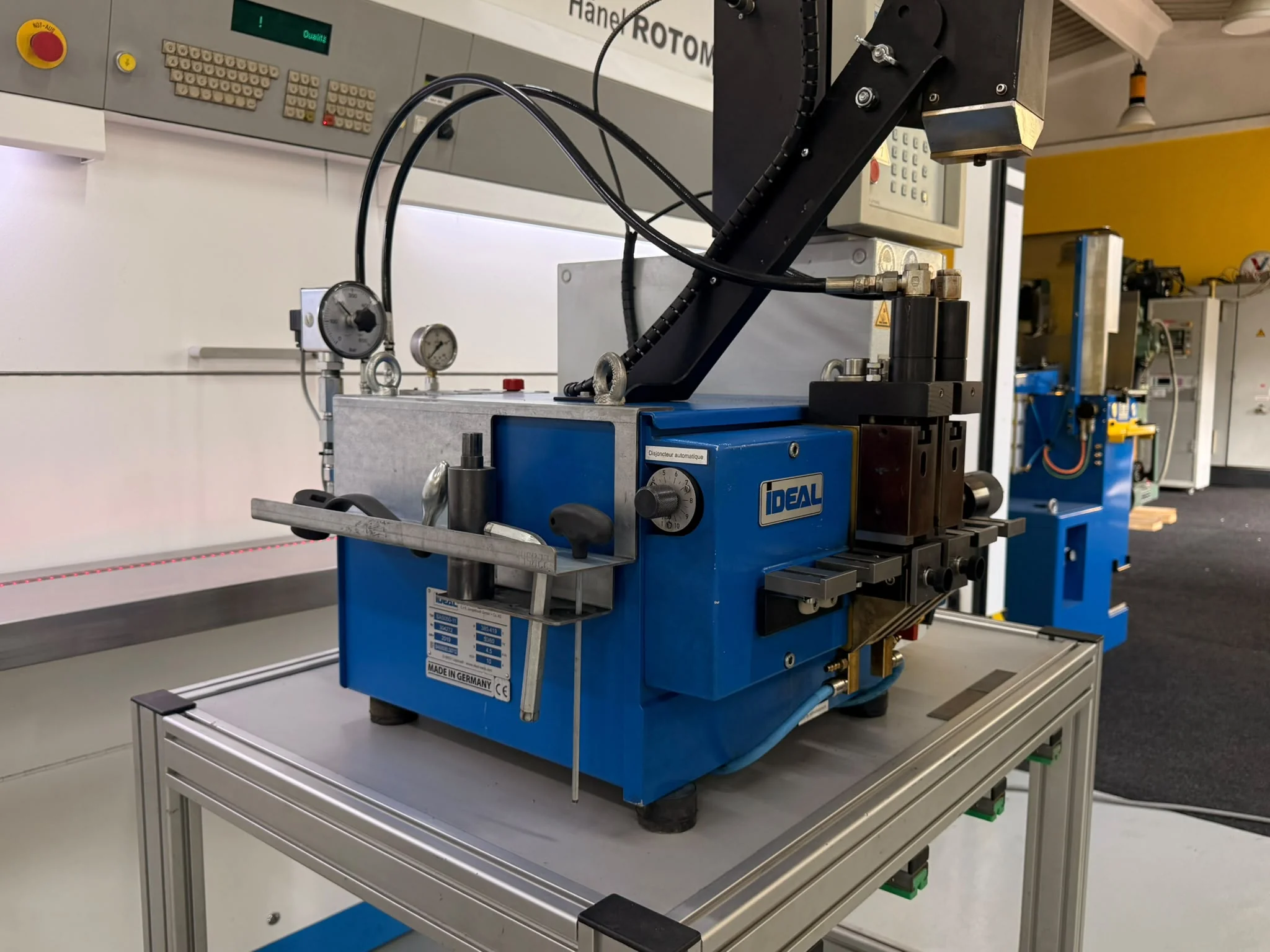

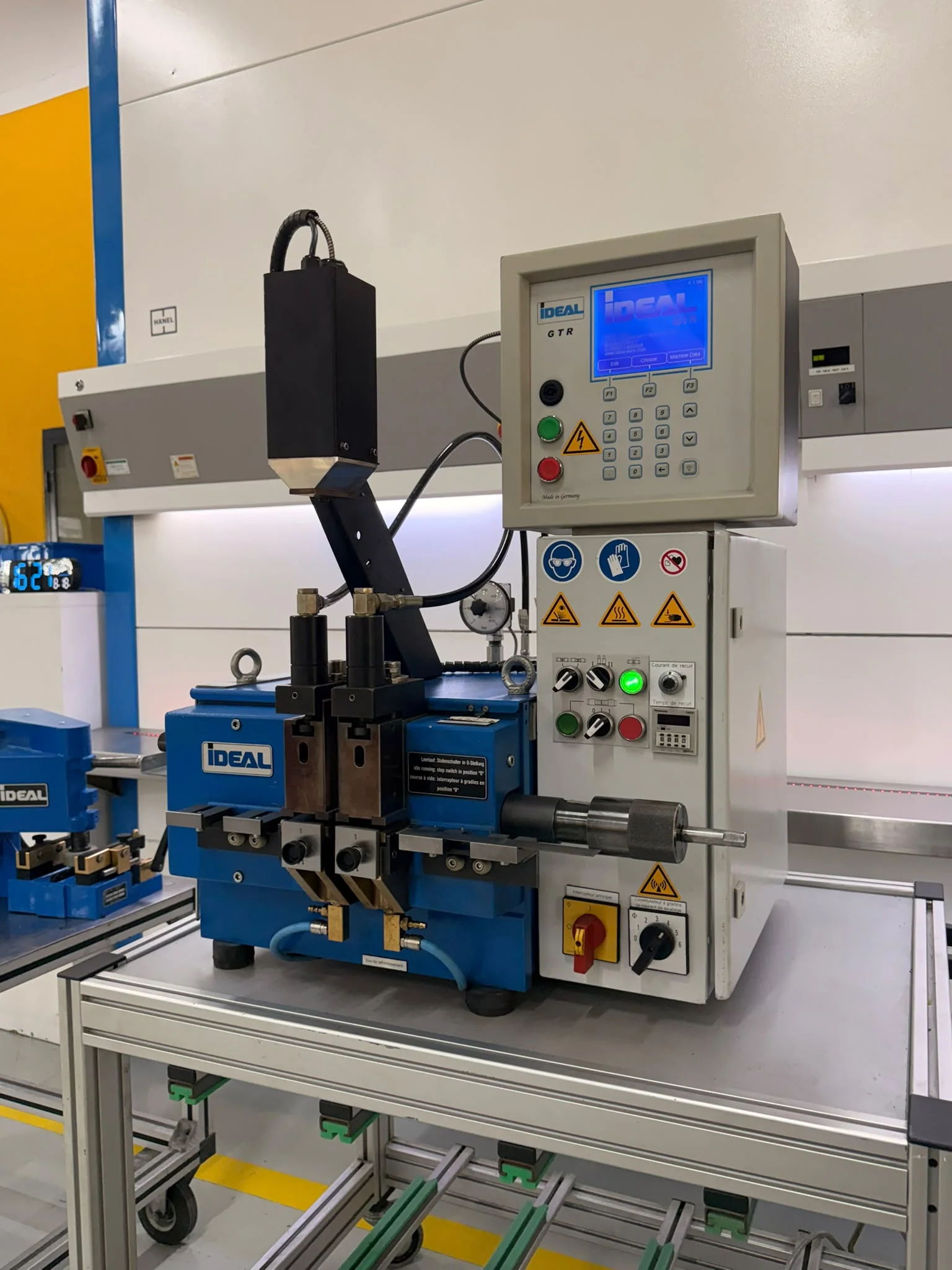

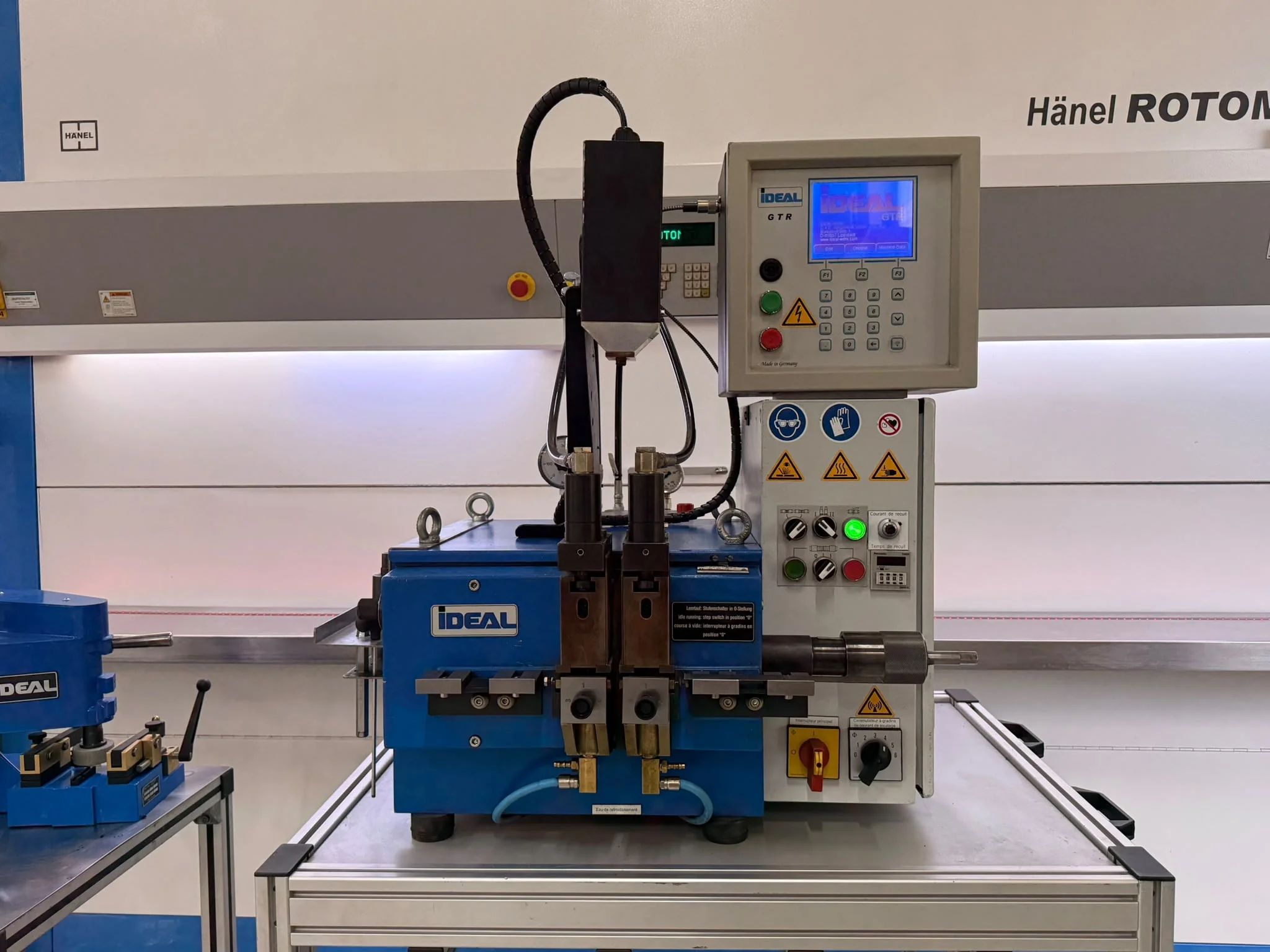

IDEAL BAS 050-11 GTR aparat za varenje testera Ref. 37126

Mašina za zavarivanje tračnih testera • 2019 • ID: 37126

IDEAL BAS050-11 je mašina za zavarivanje tračnih testera sa GTR upravljanjem. Radi na 380–419 V, 50/60 Hz, snage 4,5 kVA. Opremljena GTR pirometrom: temperatura žarenja se zadaje receptom i prati beskontaktno, a ciklus se završava automatski – za ponovljiv kvalitet vara nezavisan od operatera. Mašina je iz 2019, u vrlo dobrom stanju, hlađena vodom i spremna za trenutnu upotrebu u proizvodnji. Hidrauličko stezanje (specifično za BAS 050-11): obe stezne čeljusti se pokreću hidraulički preko nožnih prekidača, pa su obe ruke slobodne za nameštanje testere. Automatski sled posle zavarivanja prebacuje mašinu u položaj za žarenje bez ručne intervencije.

Pozovi

Tehničke specifikacije

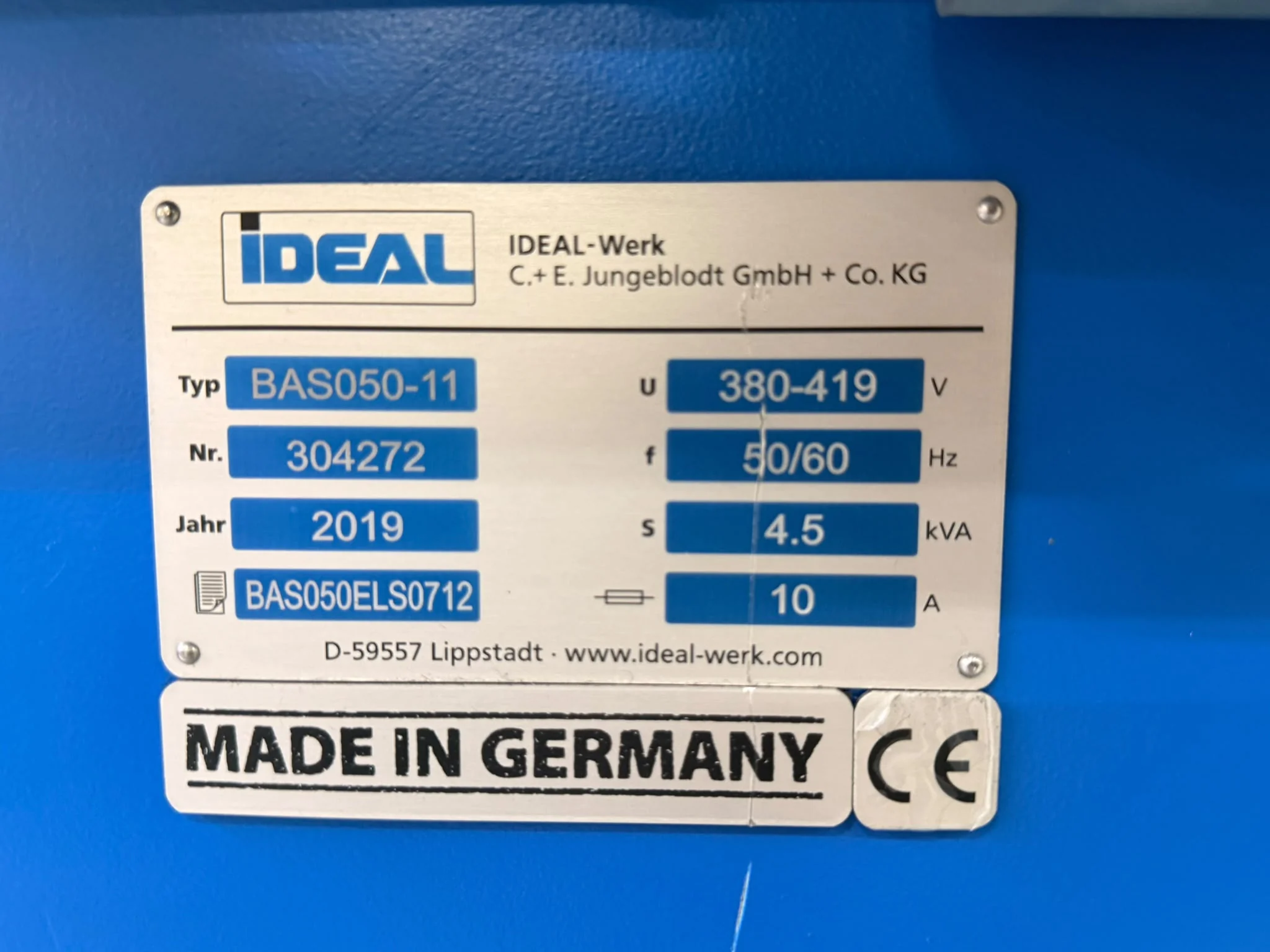

Make and Model:iDEAL BAS 050-11

Year of manufacture:2019

Serial no.:304272

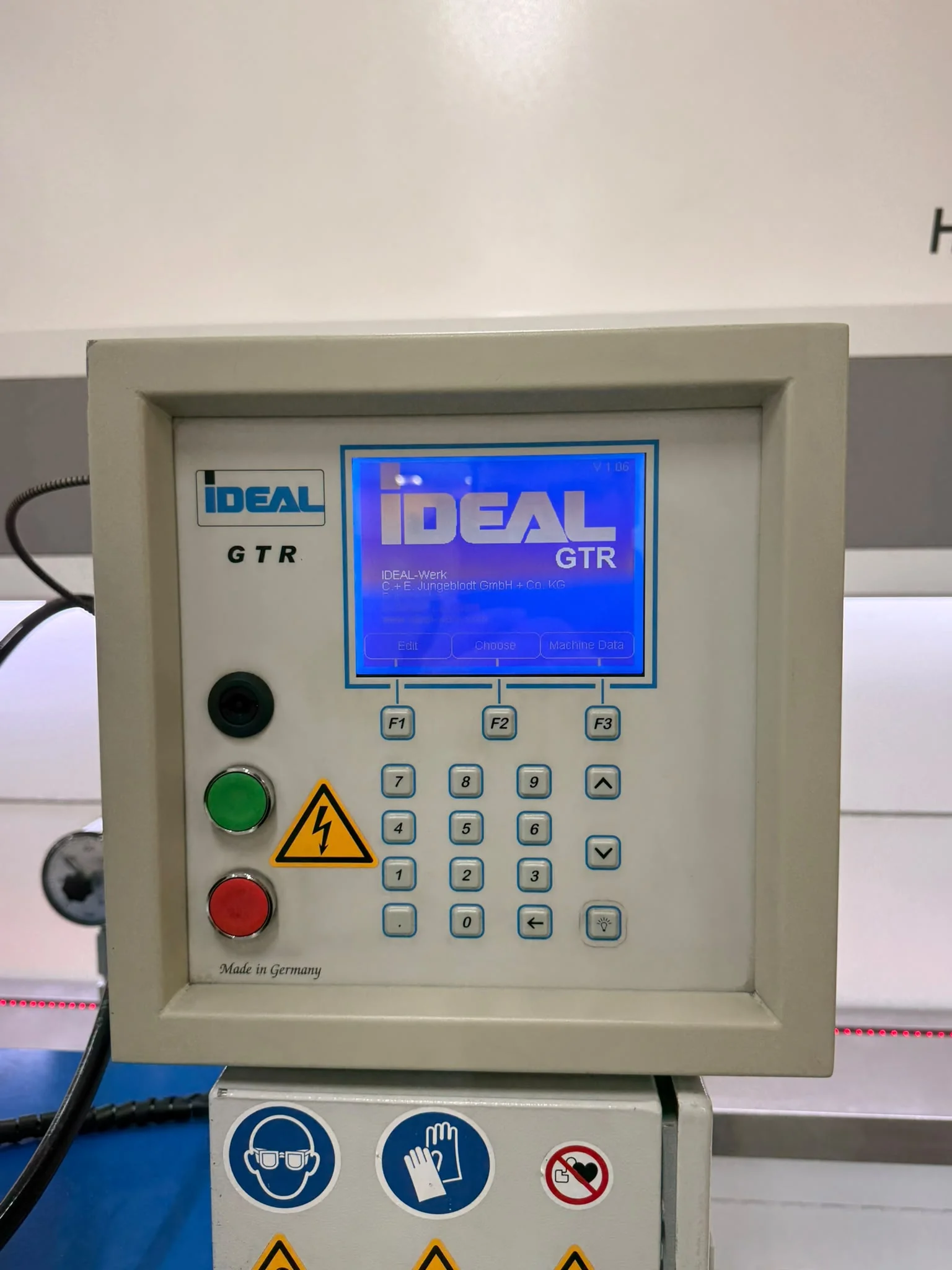

Pyrometer (GTR)yes (temperature display on touch panel)

Clamping hydraulic,foot switch operation

Clamping force10 kN (hydraulic)

Upsetting forcemax. 2.2 kN

Secondary voltage2.6 – 4.4 V (6 stages)

Voltage:380-419 V

Frequency:50/60 Hz

Power:4.5 kVA

Wood saw blades6×0.4 – 50×1.0 mm

Bi-metal / carbide bandsaws 6×0.6 – 34×1.1 mm

Stainless steel saw blades6×0.4 – 25×0.5 mm

Strip steel S235JRmax. cross-section 75 mm²

Machine weight approx. 180 kg

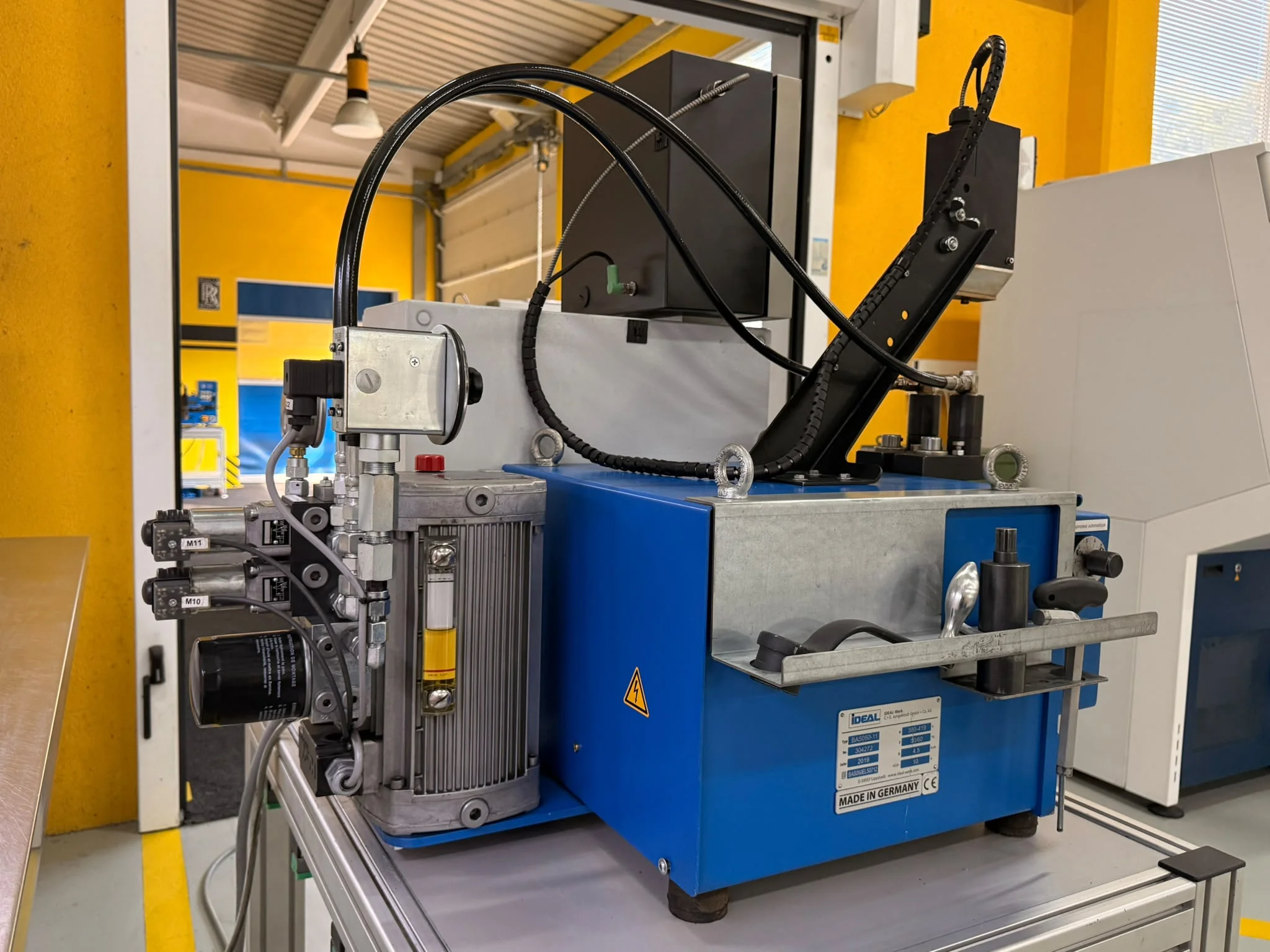

Hydraulic clamping (BAS 050-11 specific): Both clamping jaws are operated hydraulically via foot switches, freeing both hands for blade positioning. The automatic sequence moves the machine to the annealing position after welding without manual intervention.

Pyrometer / GTR option: Integrated pyrometer (GTR) enables contactless temperature measurement during the annealing process. Target temperature is stored in the recipe and displayed on the touch panel — the annealing cycle ends automatically when the set temperature is reached, eliminating operator-dependent variables and ensuring repeatable weld quality.

Included: Machine, operating tools, operating instructions.
