    iDEAL BAS 050-11 Ref. 35726

    Mašina za sučeono zavarivanje tračnih testera • 2021 • ID: 35726

    Radi sa bimetalnim trakama, trakama sa tvrdim metalom, za drvo i od nerđajućeg čelika do 50 mm širine, sa 6-stepenim podešavanjem struje zavarivanja za širok raspon dimenzija i materijala. Obostrano hidrauličko stezanje – na nožne prekidače – ostavlja obe ruke slobodne za nameštanje trake i obezbeđuje ujednačen kontakt elektroda silom do 10 kN. Opremljena GTR pirometrom: temperatura žarenja se zadaje receptom i prati beskontaktno, a ciklus se završava automatski – za ponovljiv kvalitet vara nezavisan od operatera. Mašina je iz 2021, u vrlo dobrom stanju, hlađena vodom i spremna za trenutnu proizvodnju.

    Pozovi

    Tehničke specifikacije

    Make and Model:iDEAL BAS 050-11
    Nominal power (50% DC)4.5 kVA
    Secondary voltage2.6 – 4.4 V (6 stages)
    Clamping force10 kN (hydraulic)
    Upsetting force max.2.2 kN
    Machine weightapprox. 180 kg

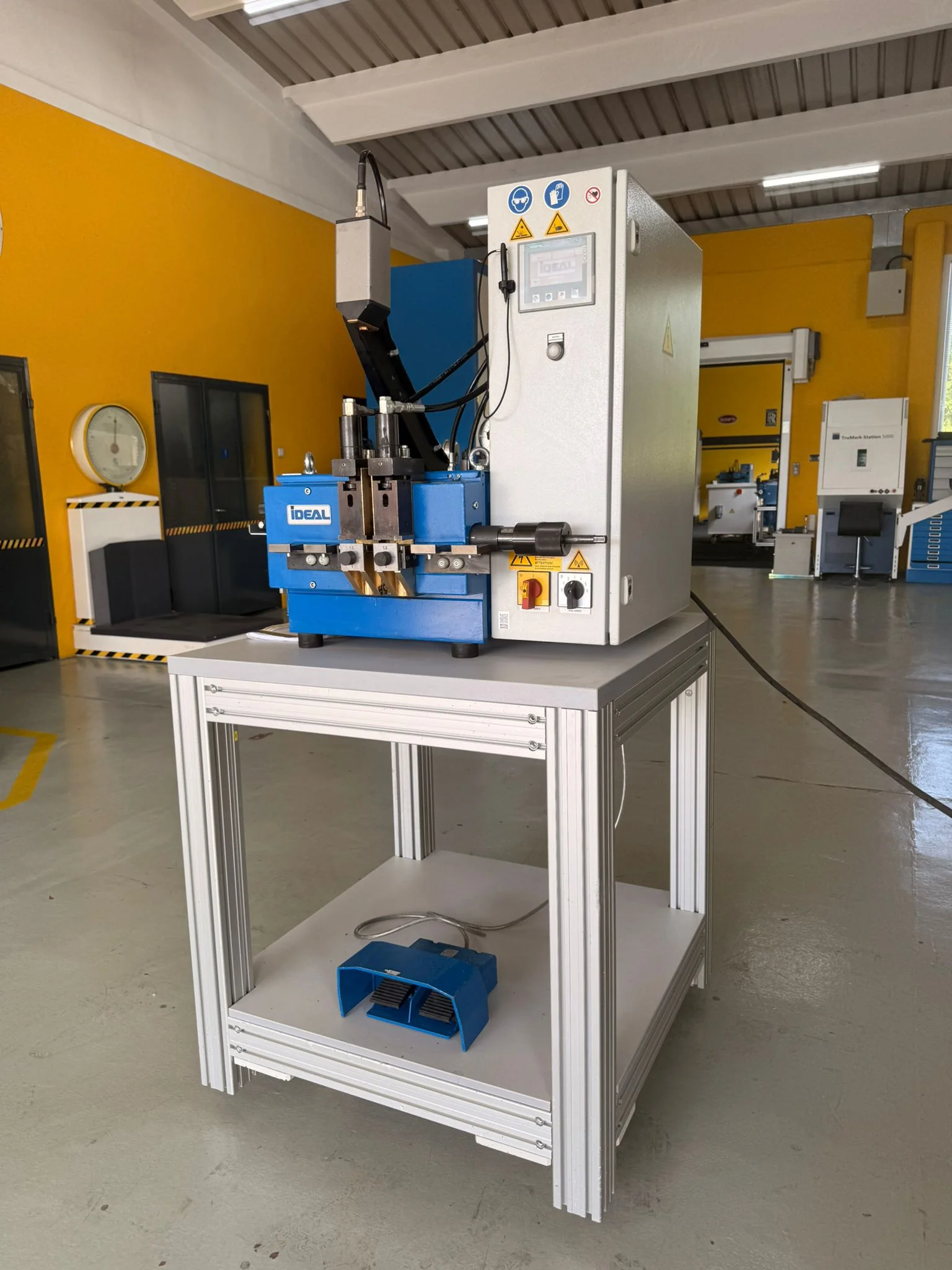

    Clampinghydraulic, foot switch operation

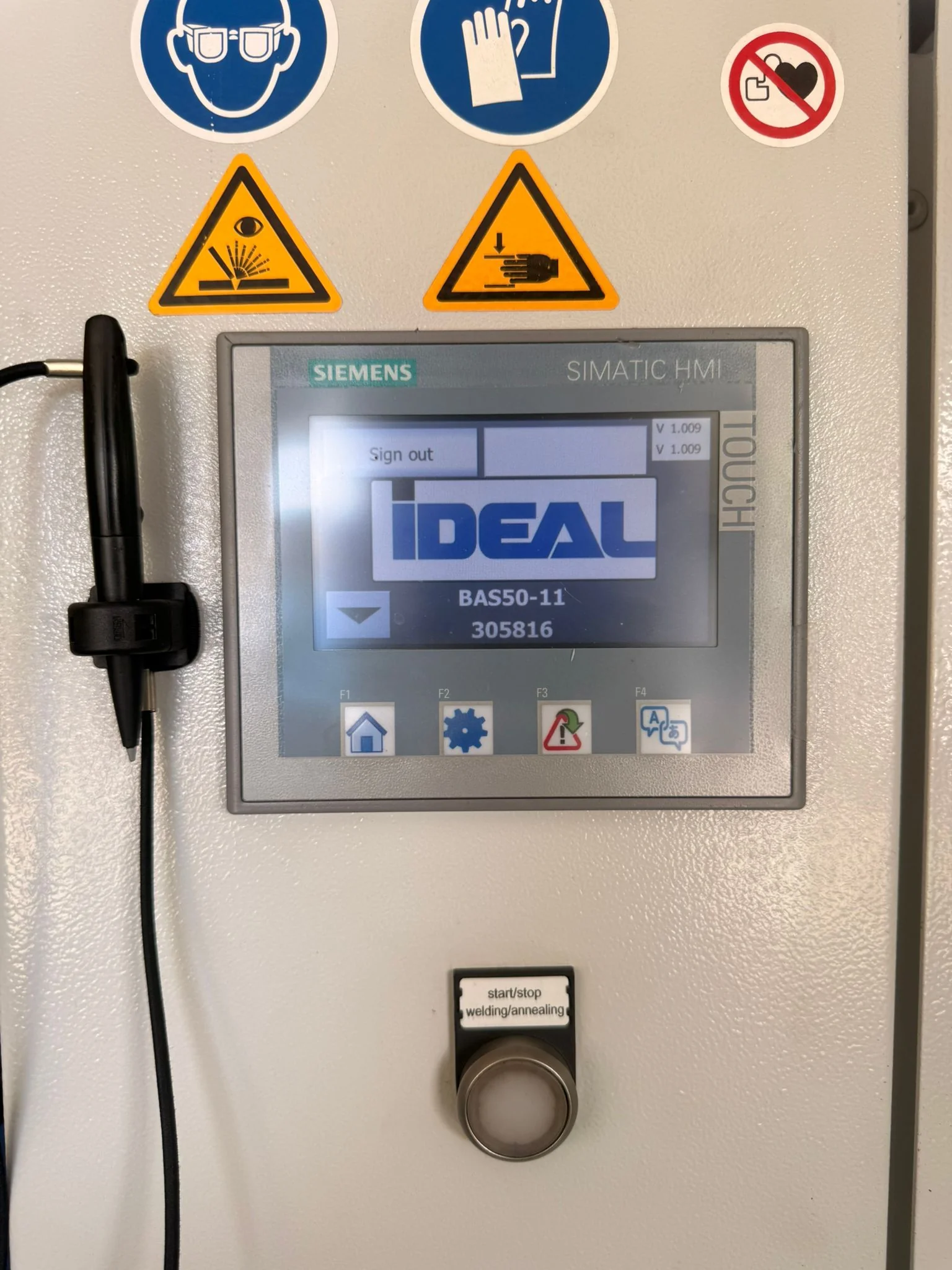

    Pyrometer (GTR)yes (temperature display on touch panel)
    Connection voltage380 - 419 V
    Bi-metal / carbide bandsaws6×0.6 – 34×1.1 mm
    Wood saw blades6×0.4 – 50×1.0 mm
    Stainless steel saw blades6×0.4 – 25×0.5 mm
    Strip blades6×0.4 – 30×0.6 mm
    Strip steel S235JRmax. cross-section 75 mm²
    Strip steel X5CrNi18-10max. cross-section 40 mm²

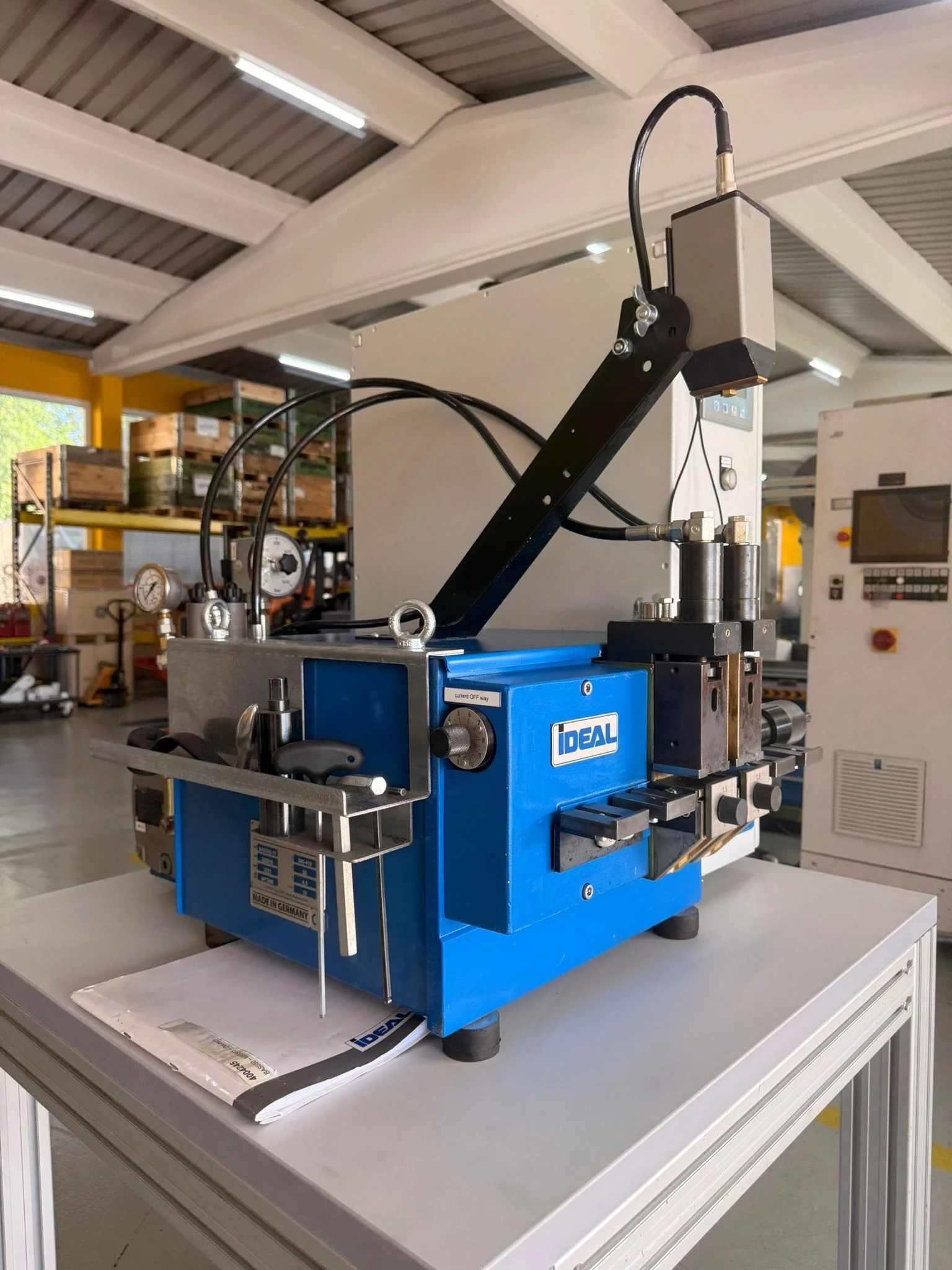

    Pyrometer / GTR option: Integrated pyrometer (GTR) enables contactless temperature measurement during the annealing process. Target temperature is stored in the recipe and displayed on the touch panel — the annealing cycle ends automatically when the set temperature is reached, eliminating operator-dependent variables and ensuring repeatable weld quality.

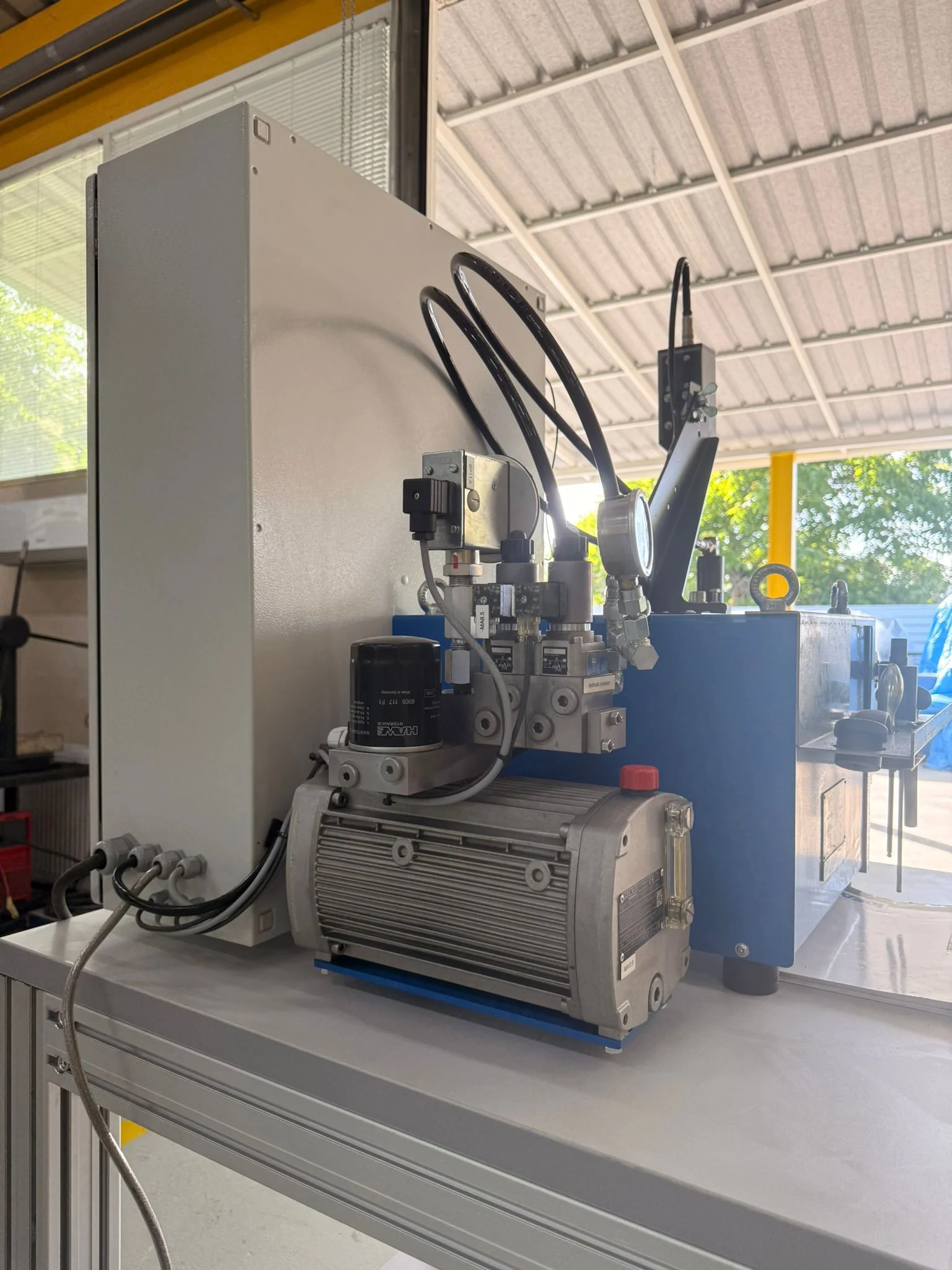

    Hydraulic clamping (BAS 050-11 specific): Both clamping jaws are operated hydraulically via foot switches, freeing both hands for blade positioning. The automatic sequence moves the machine to the annealing position after welding without manual intervention.
    Included: Machine, operating tools, operating instructions.
