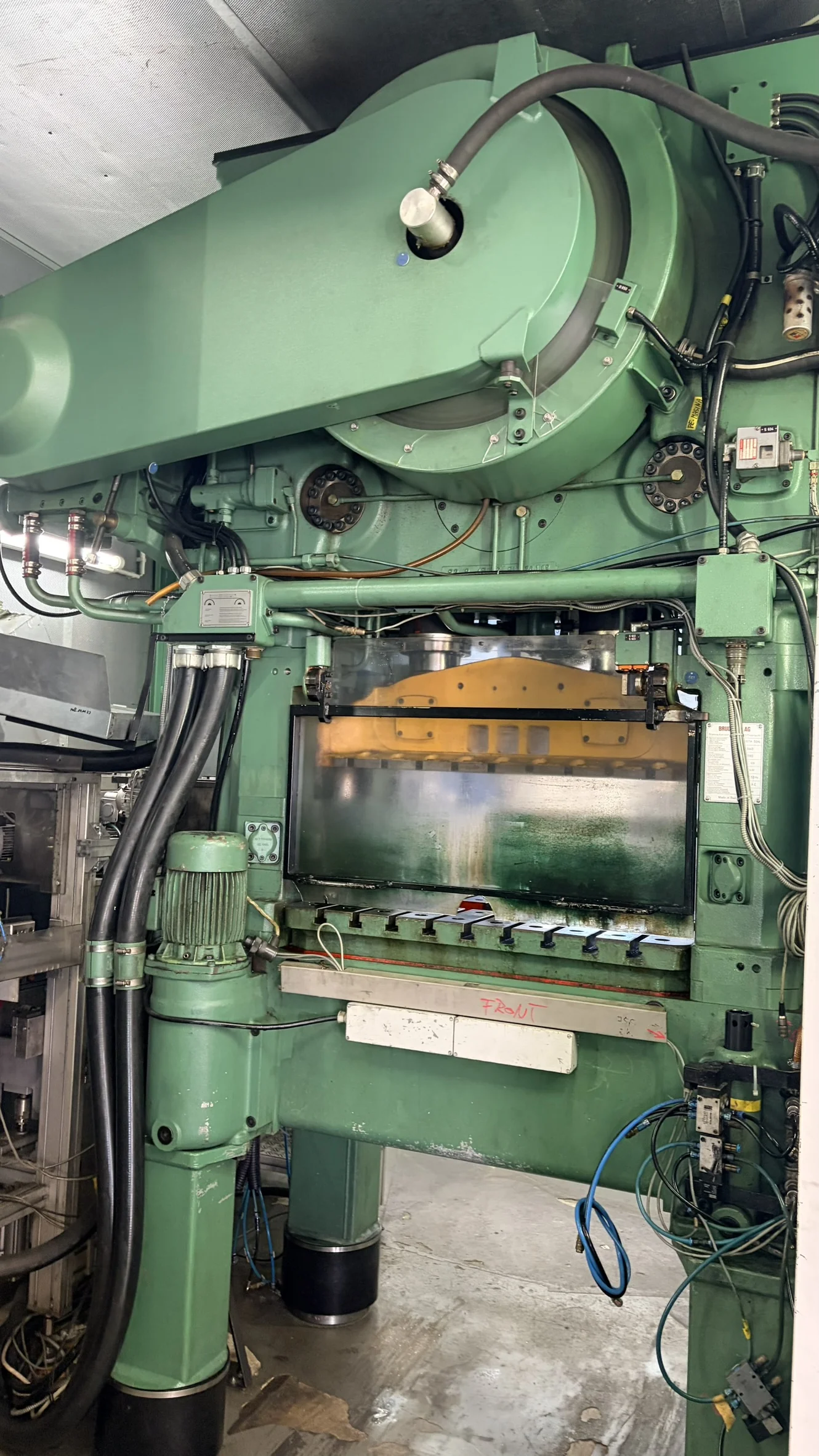

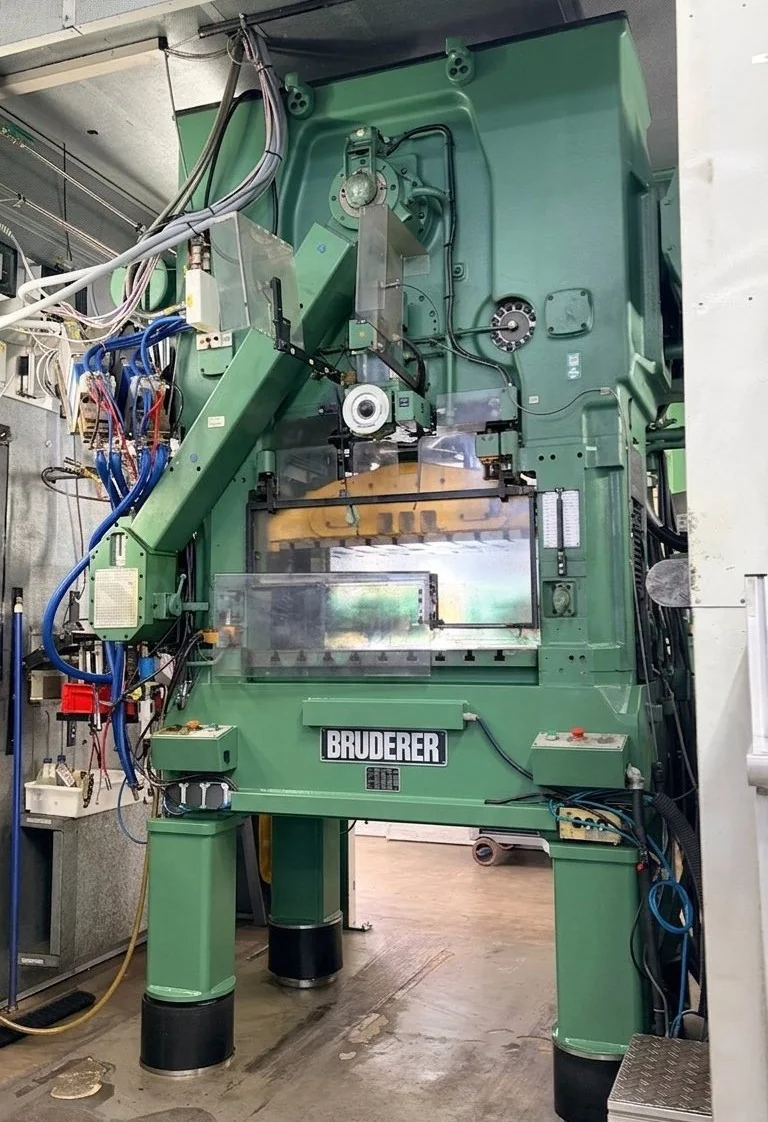

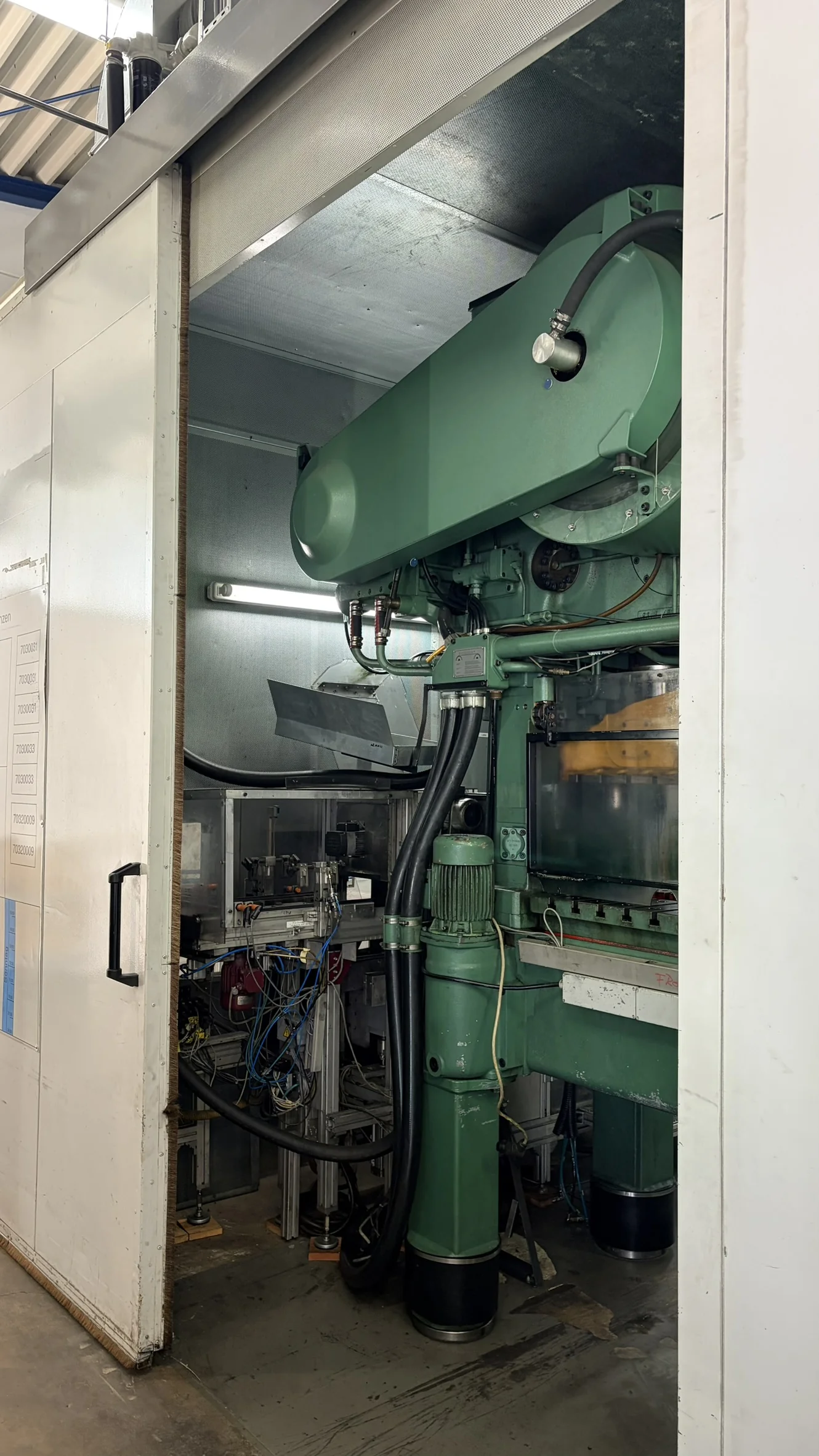

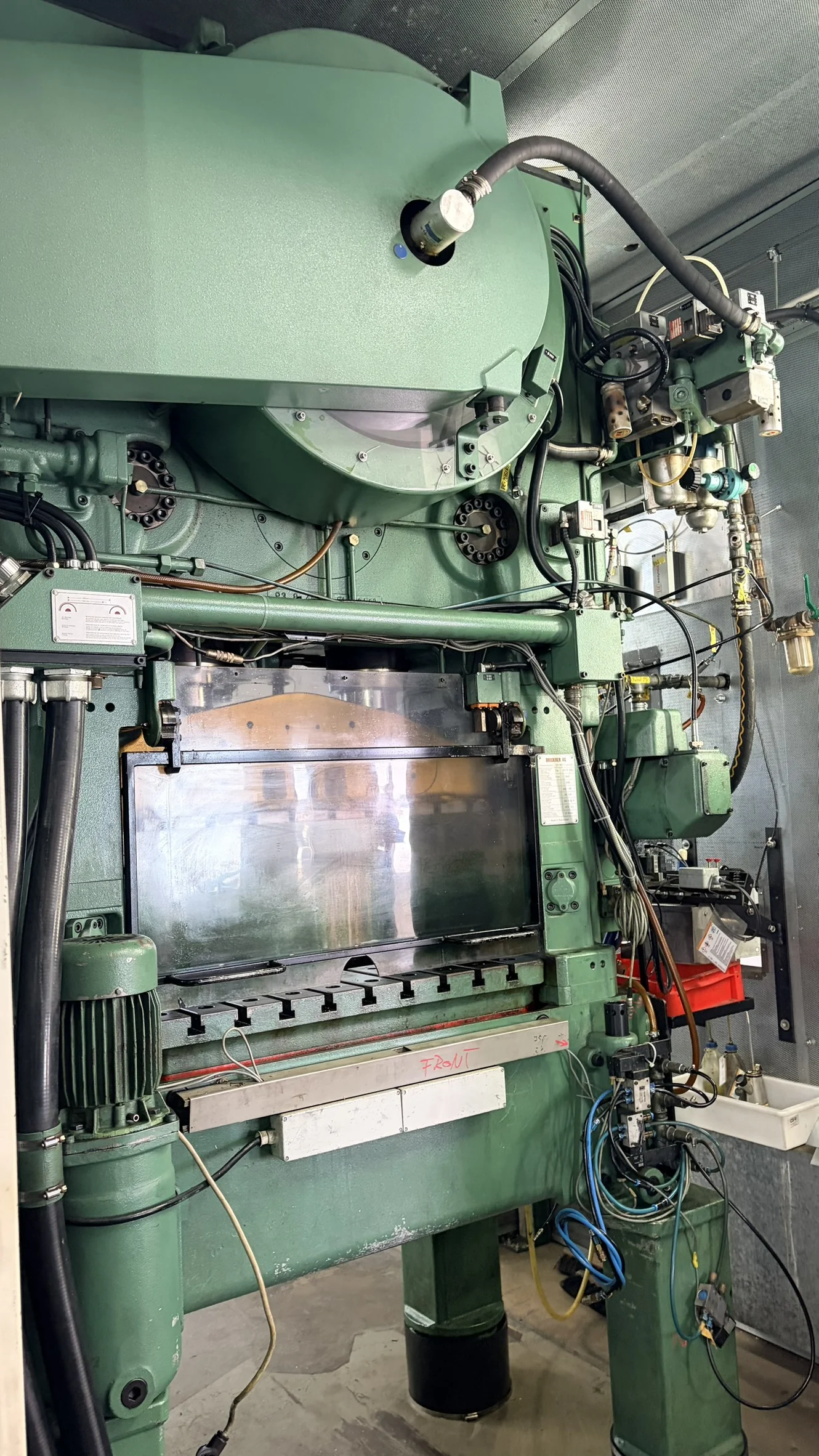

BRUDERER BSTA 50HL
High Speed Stamping Press • 1990 • ID: 35626
Tehničke specifikacije
Press ManufacturerBRUDERER AG, Frasnacht, Switzerland
Machine ModelBSTA 50 HL
Serial / Commission No.Kom. 9443
Year of Manufacture1990

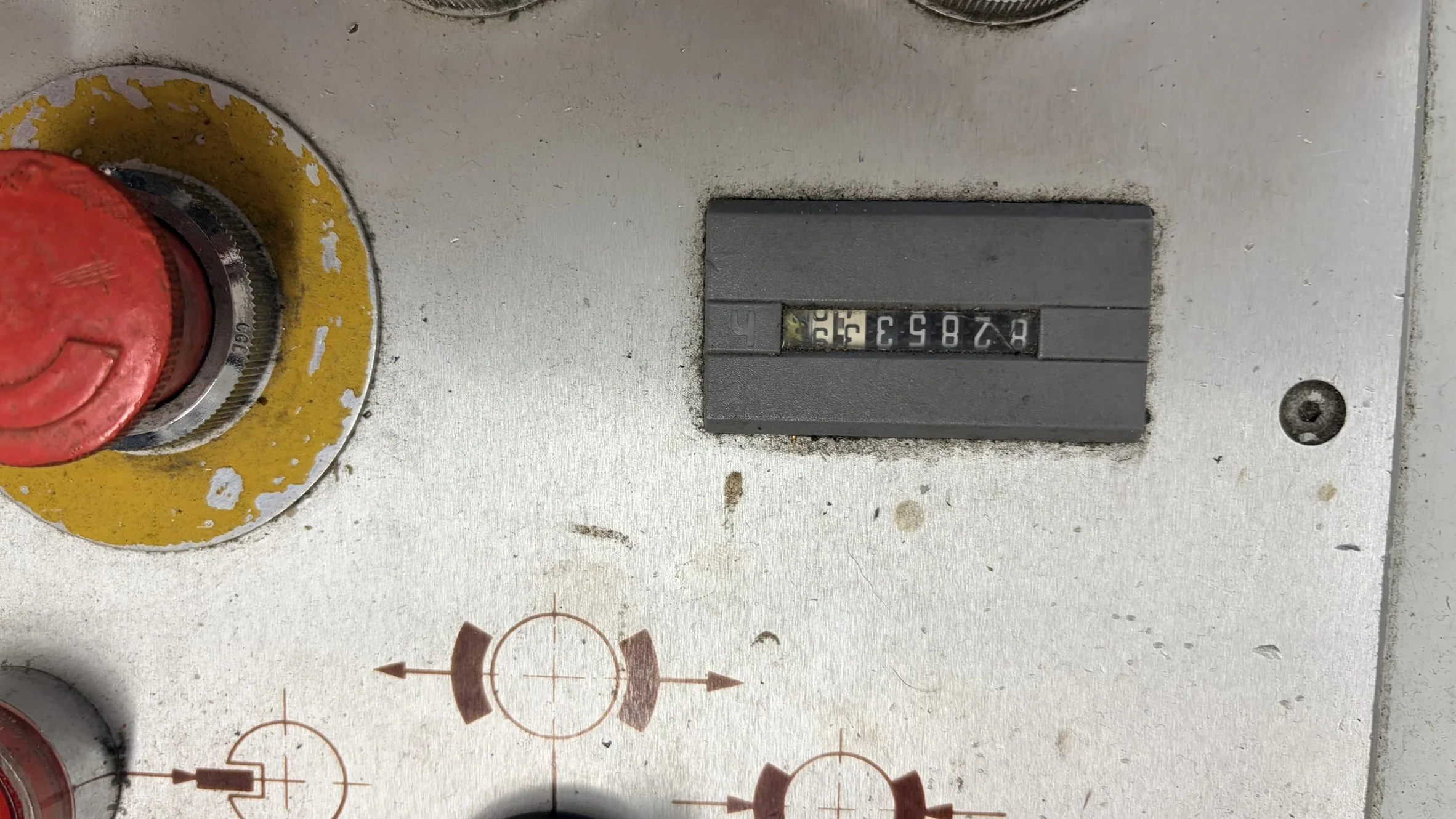

Operating Hours82,600.0 h (as shown on press control)
Total Weight approx.8,700 kg
Stroke range (adjustable)16 / 19 / 25 / 32 / 38 / 44 / 51 mm
Ram adjustment range64 mm
Tool opening width (max.)950 mm
Bolster plate — Width × Depth940× 650 mm
Baseplate opening W × D900 × 200 mm
Strip feed height (adjustable)60 – 140 mm
Max. strip pass-through width250 mm

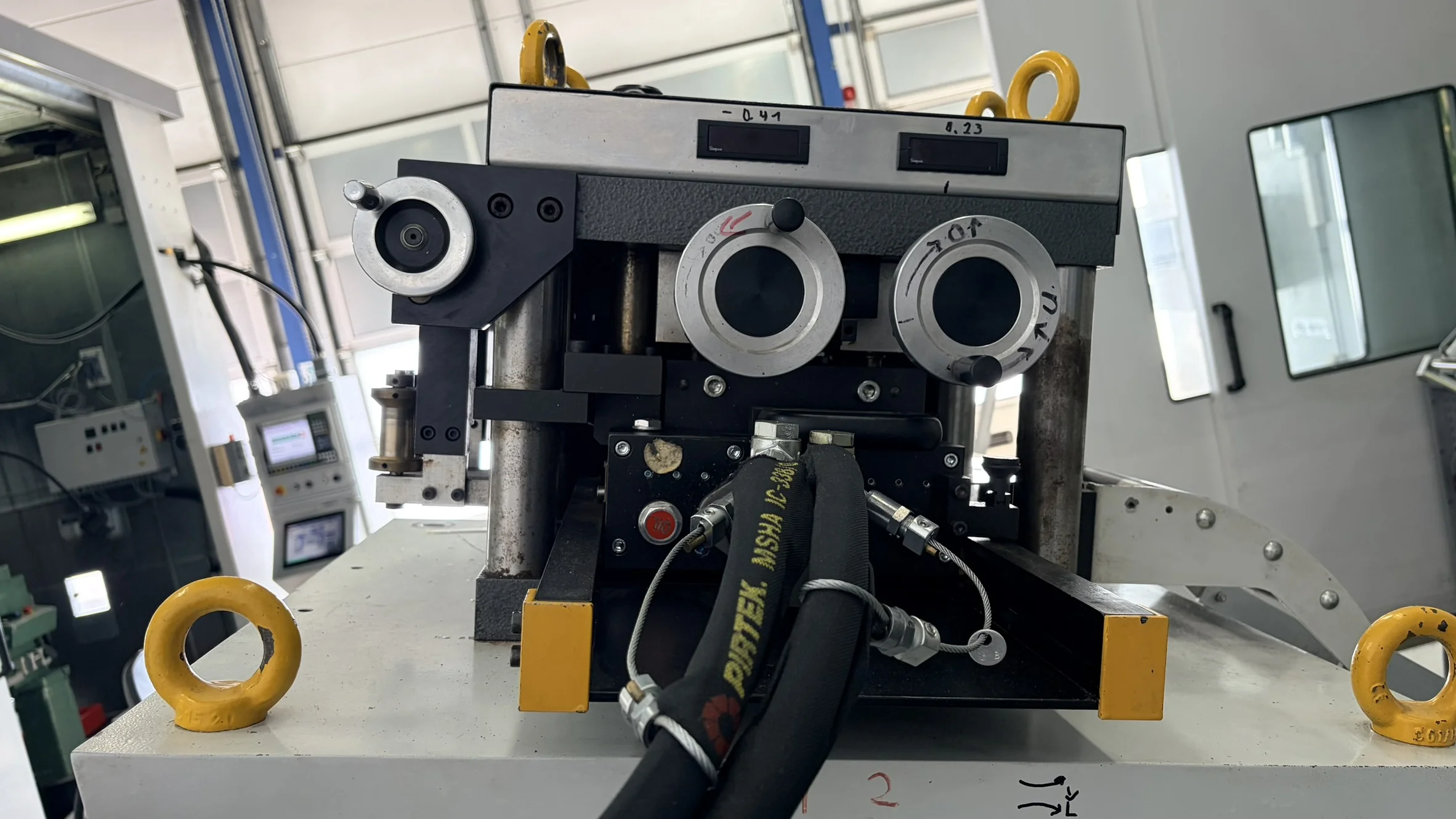

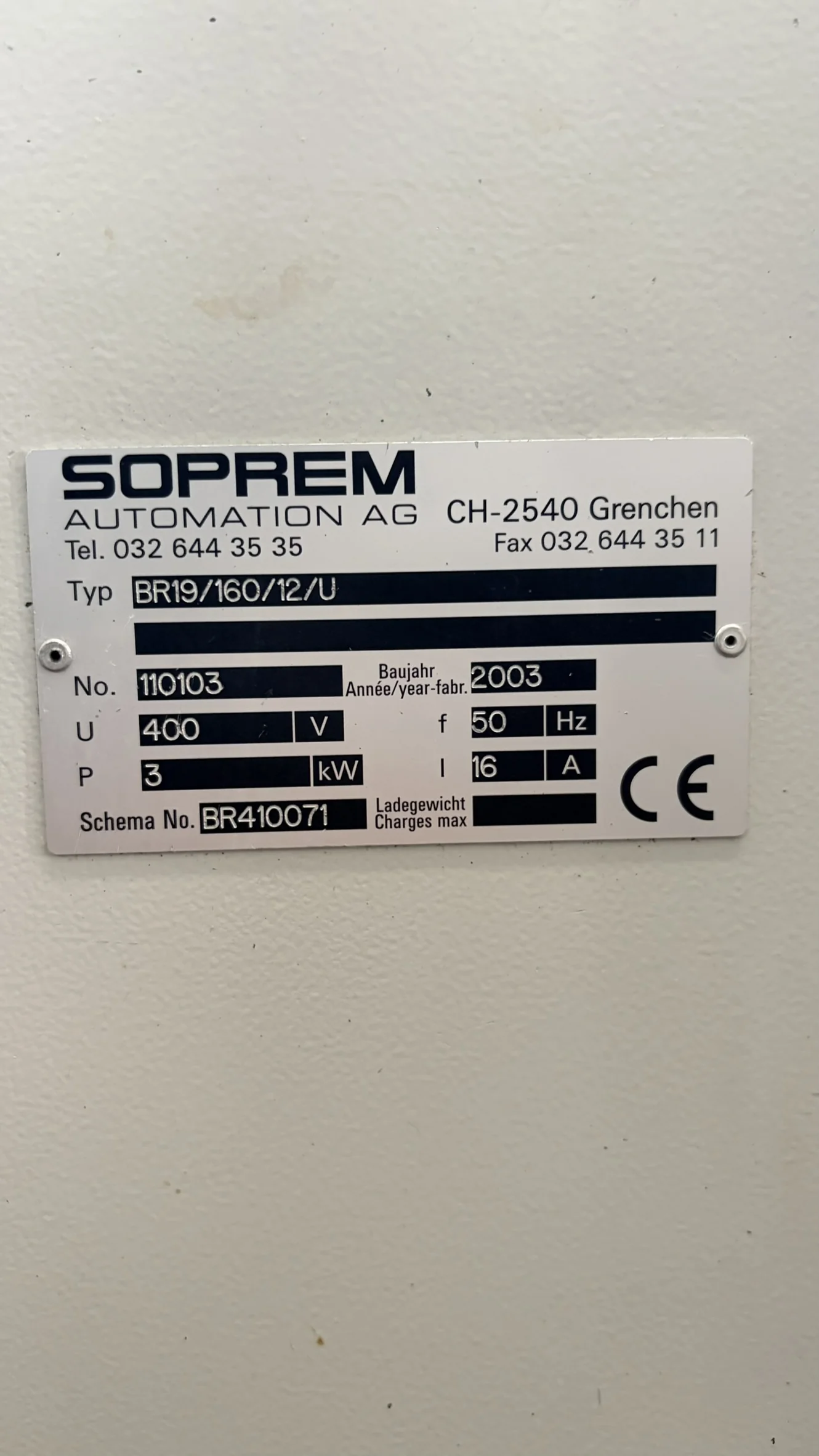

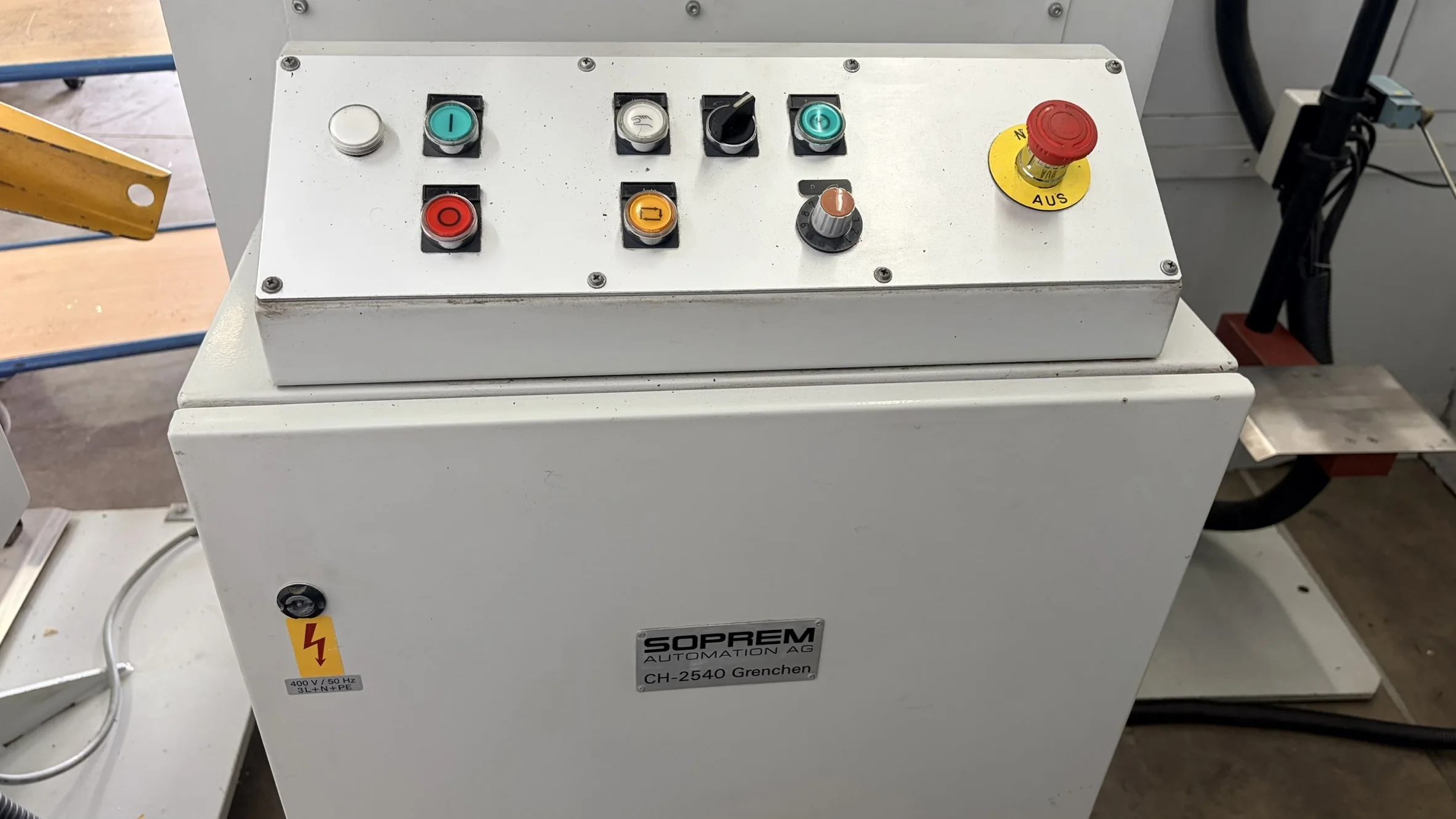

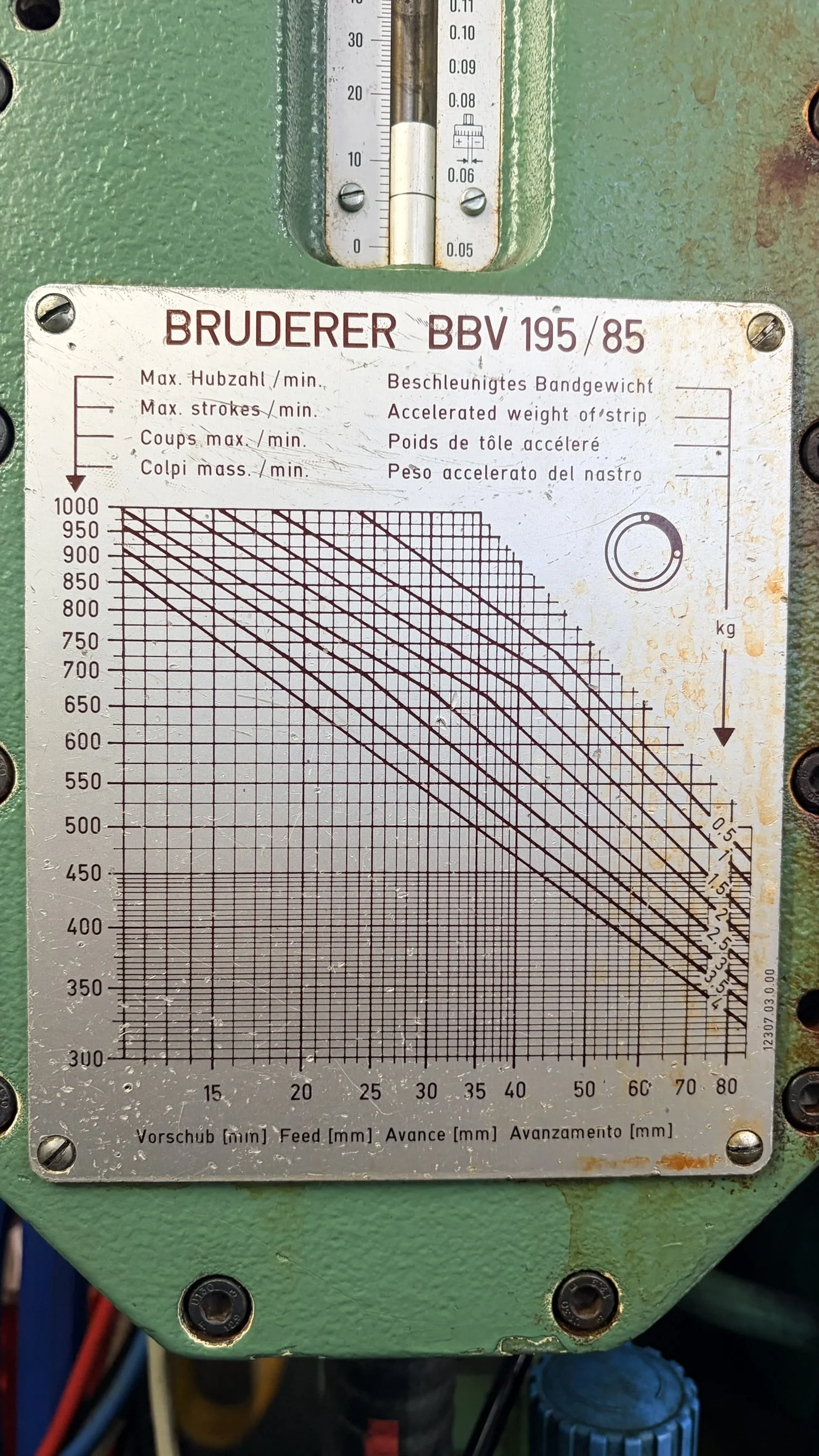

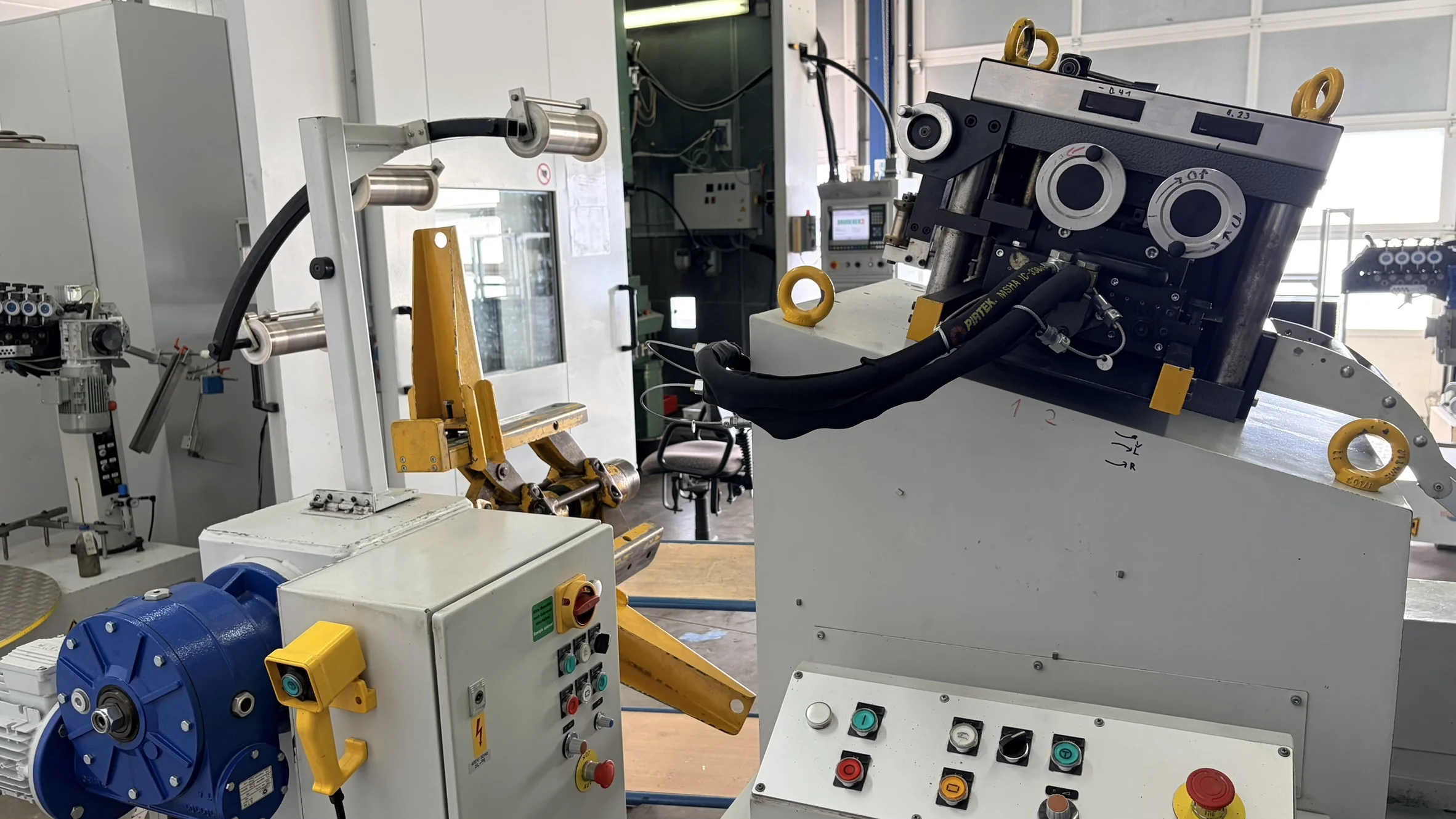

Feeding device:BBV 195 - 85
Feeding angle:90 degrees
Max. Strip thickness:4 mm
Max. Strip width:160 mm
Feed length:0 – 85 mm
Supply voltage3 × 400 V / 50 Hz
Main motor power28 kW
Control voltage (DC)24 V DC
Pneumatic supply6 – 10 bar (R ½" connection)
Press width (with feeder) approx. 2,471 mm
Press depth approx. 1,302 mm
Press height approx. 3,165 mm

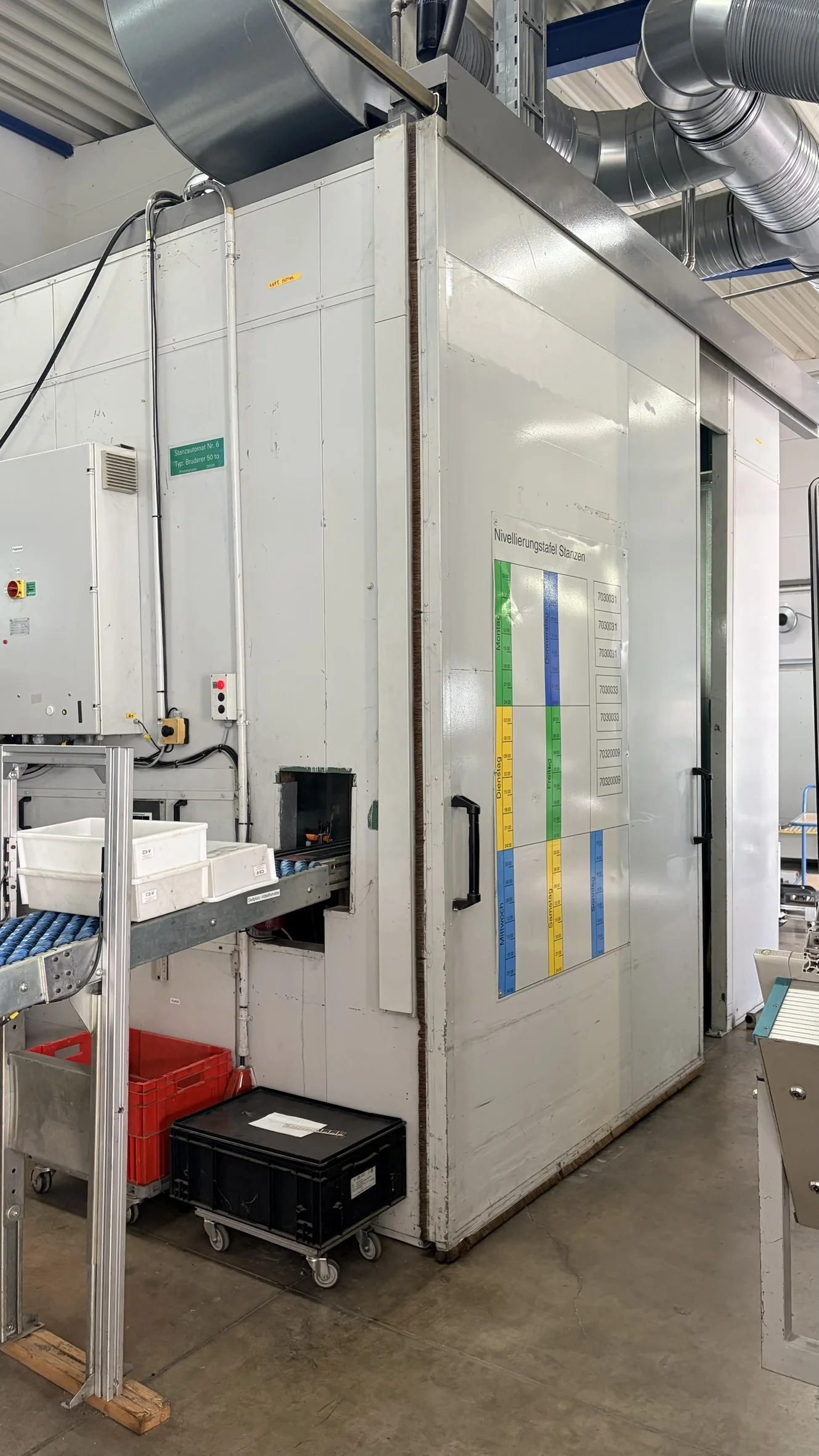

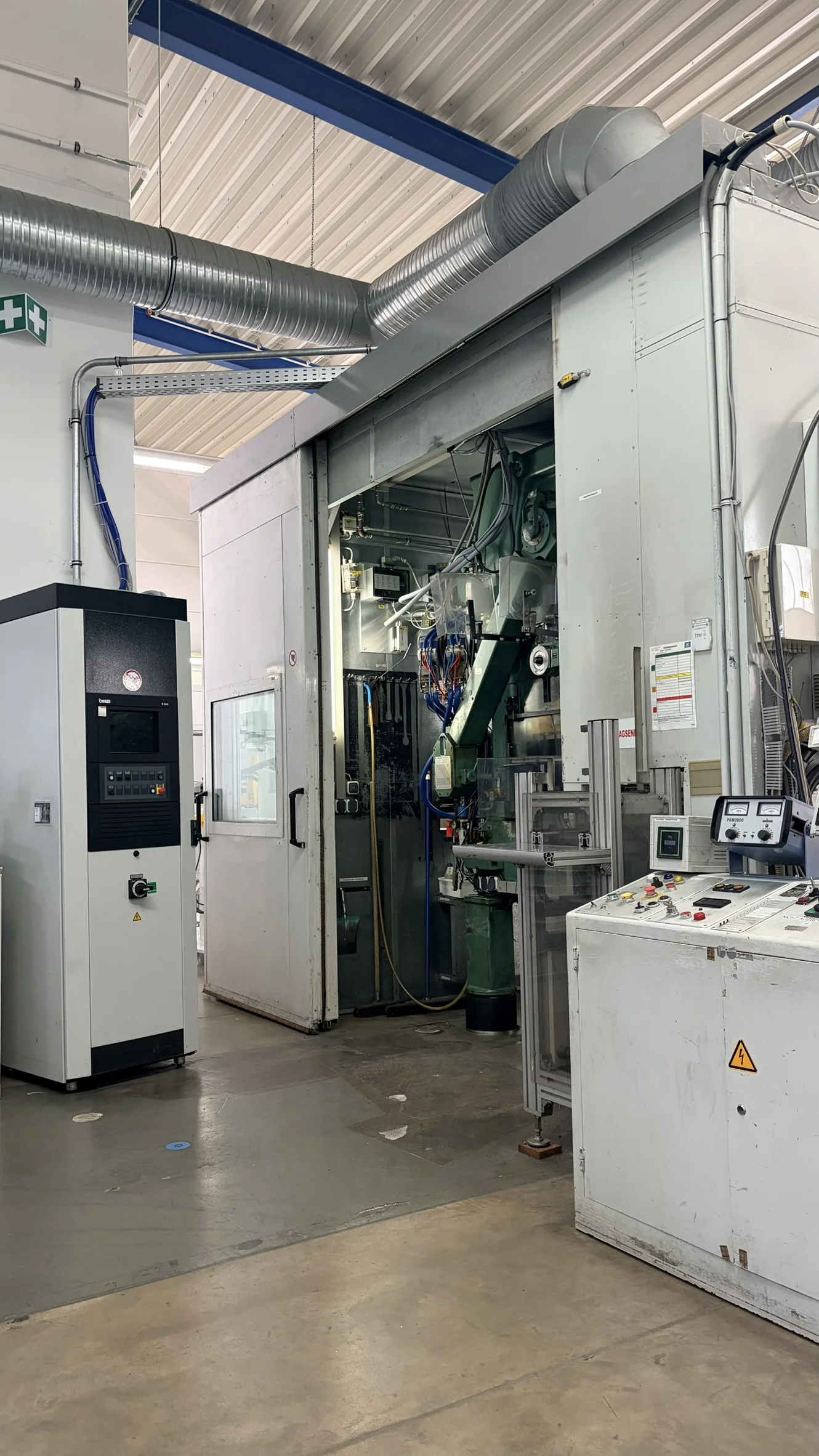

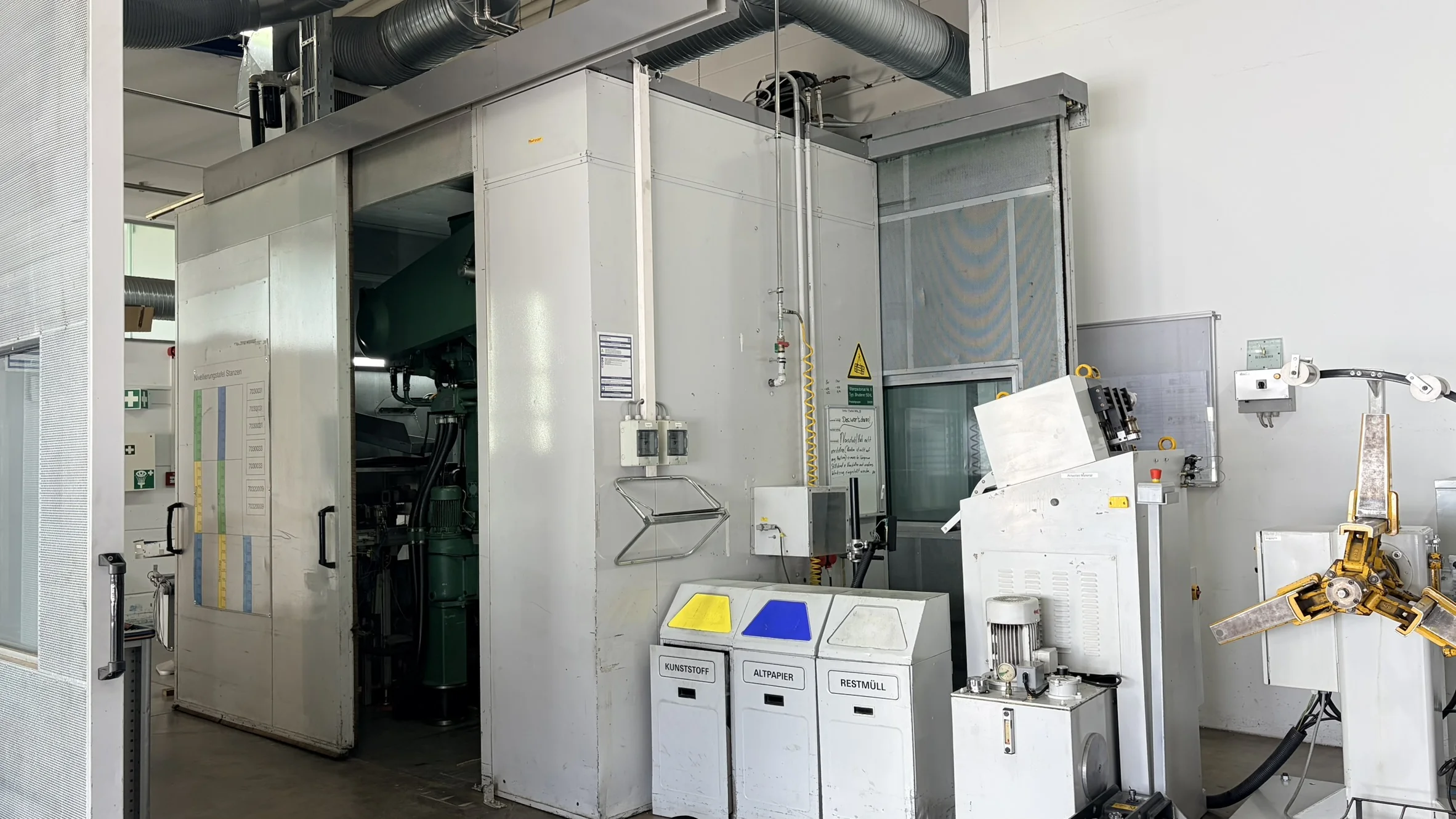

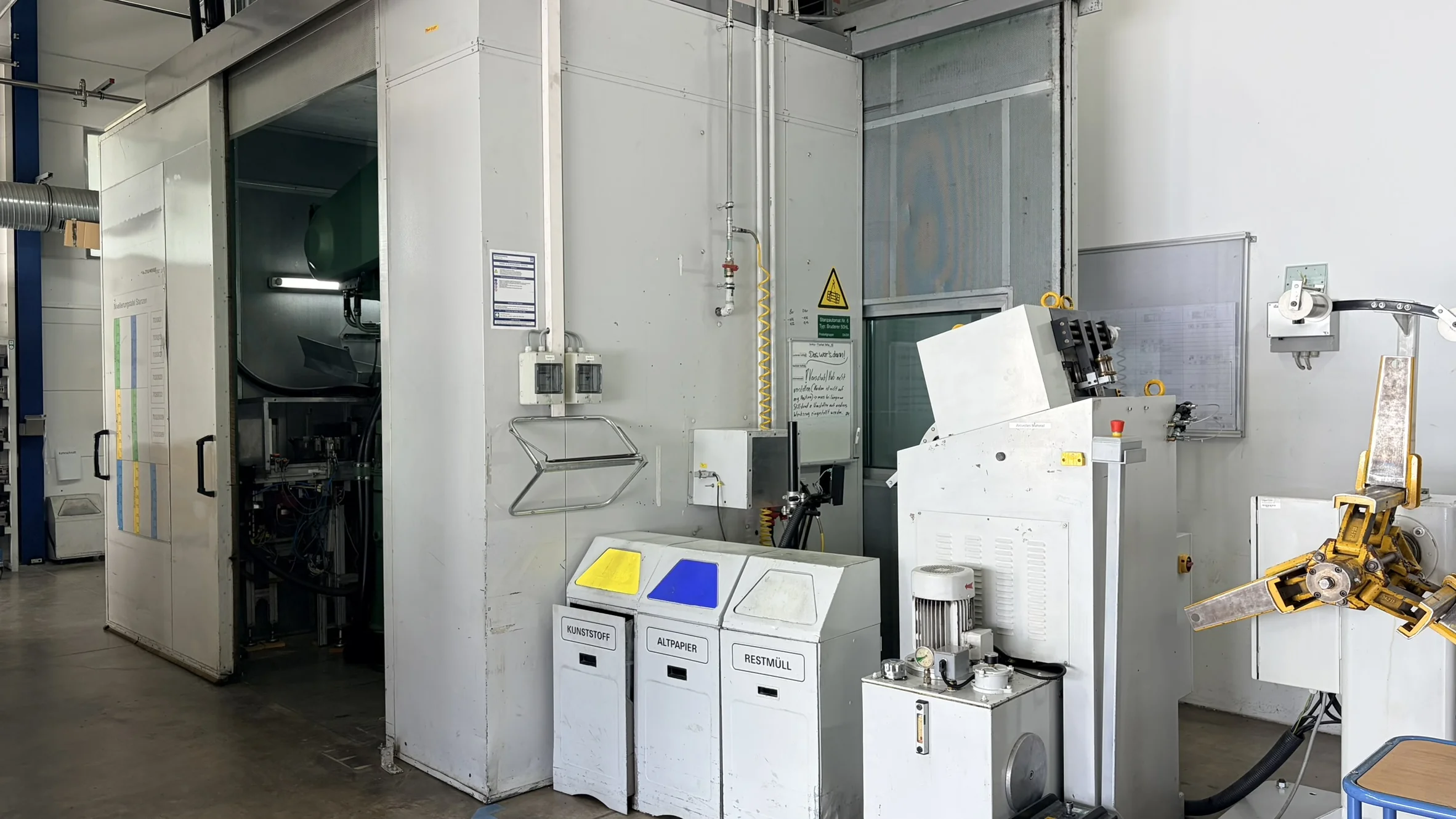

Optional: Sound-insulating safety cabin / enclosure
Original technical documentation and schematics
