    Bruderer BSTA 200 Ref. 24824

    1988 • ID: 24824

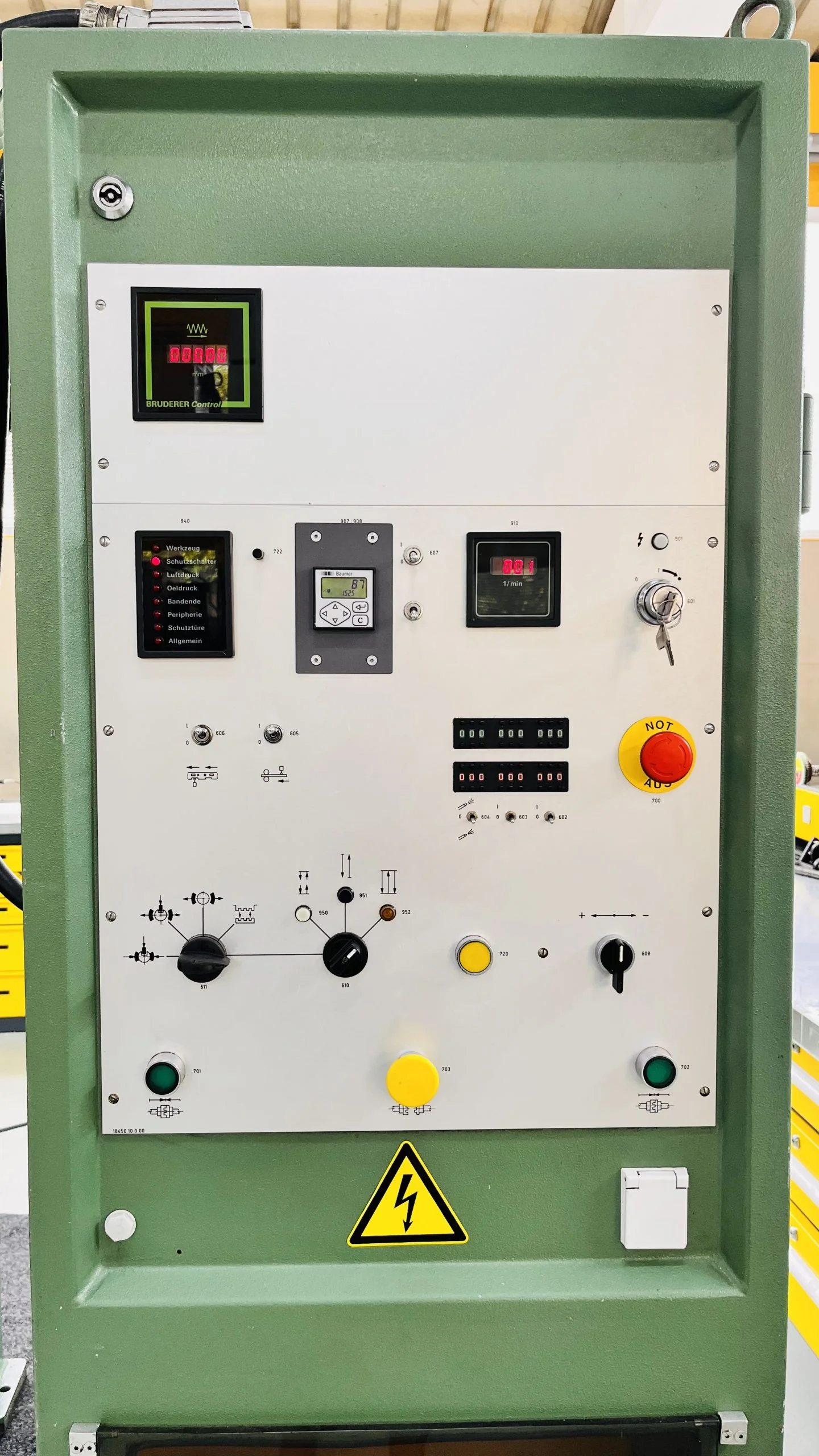

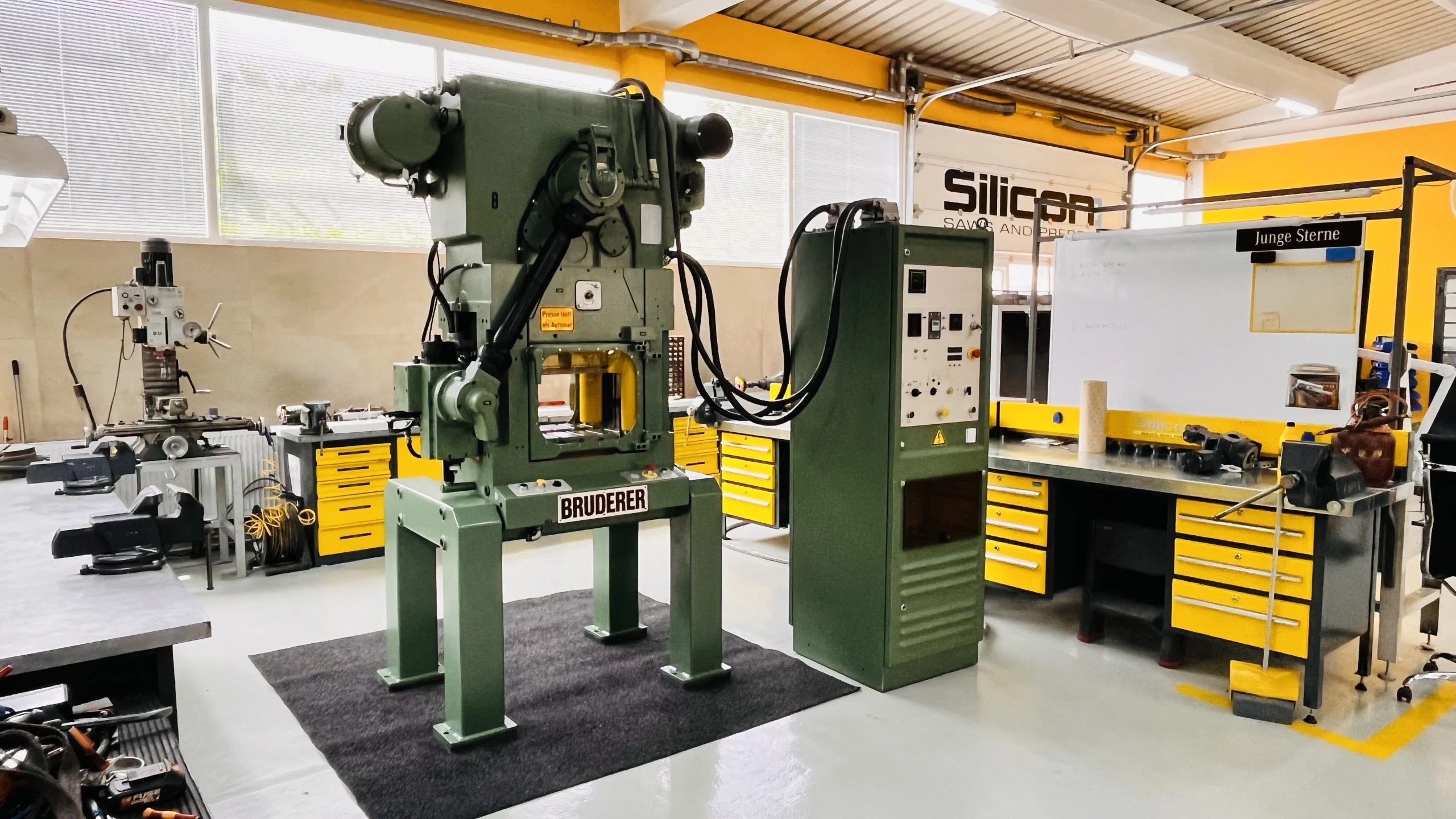

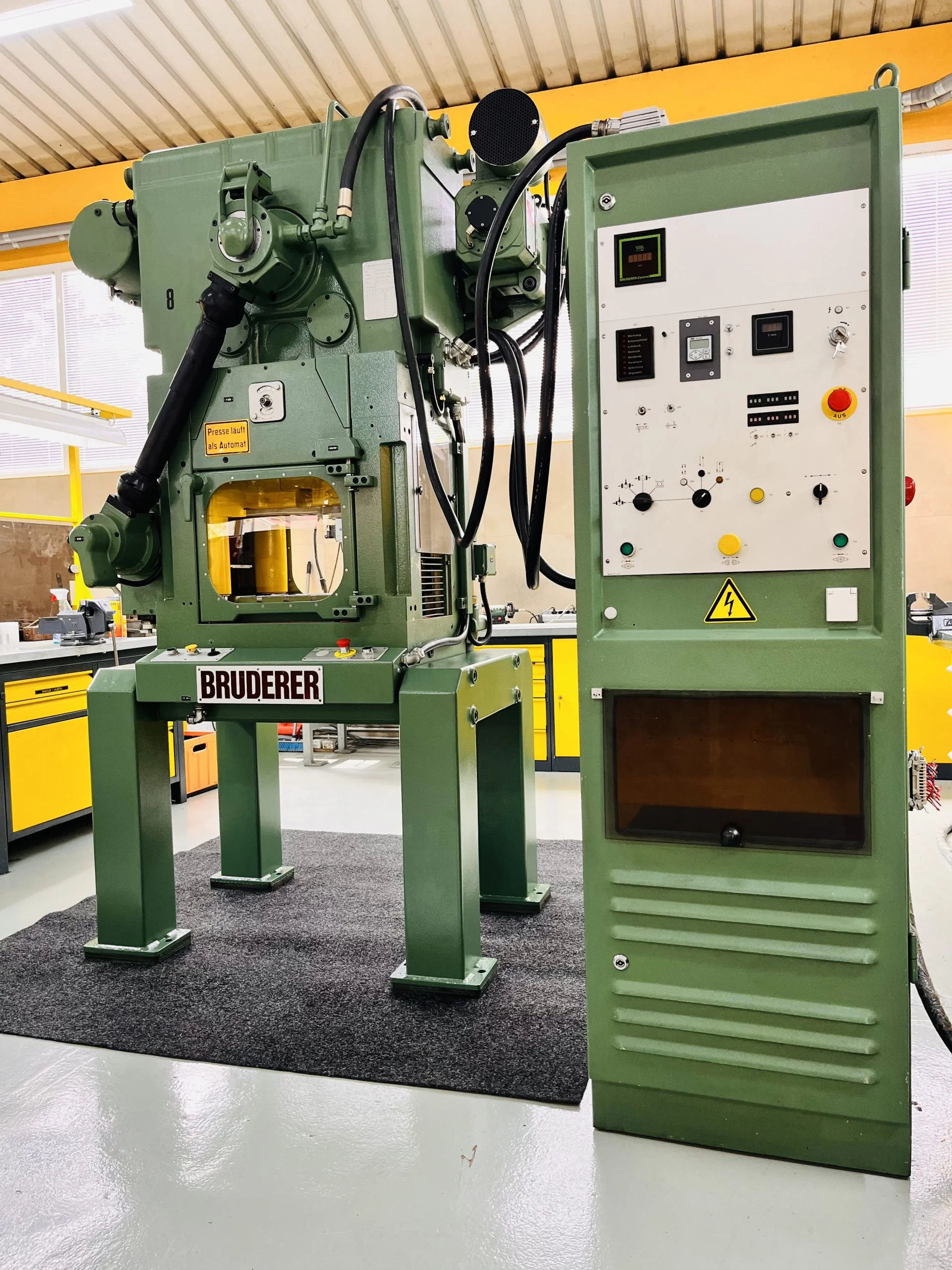

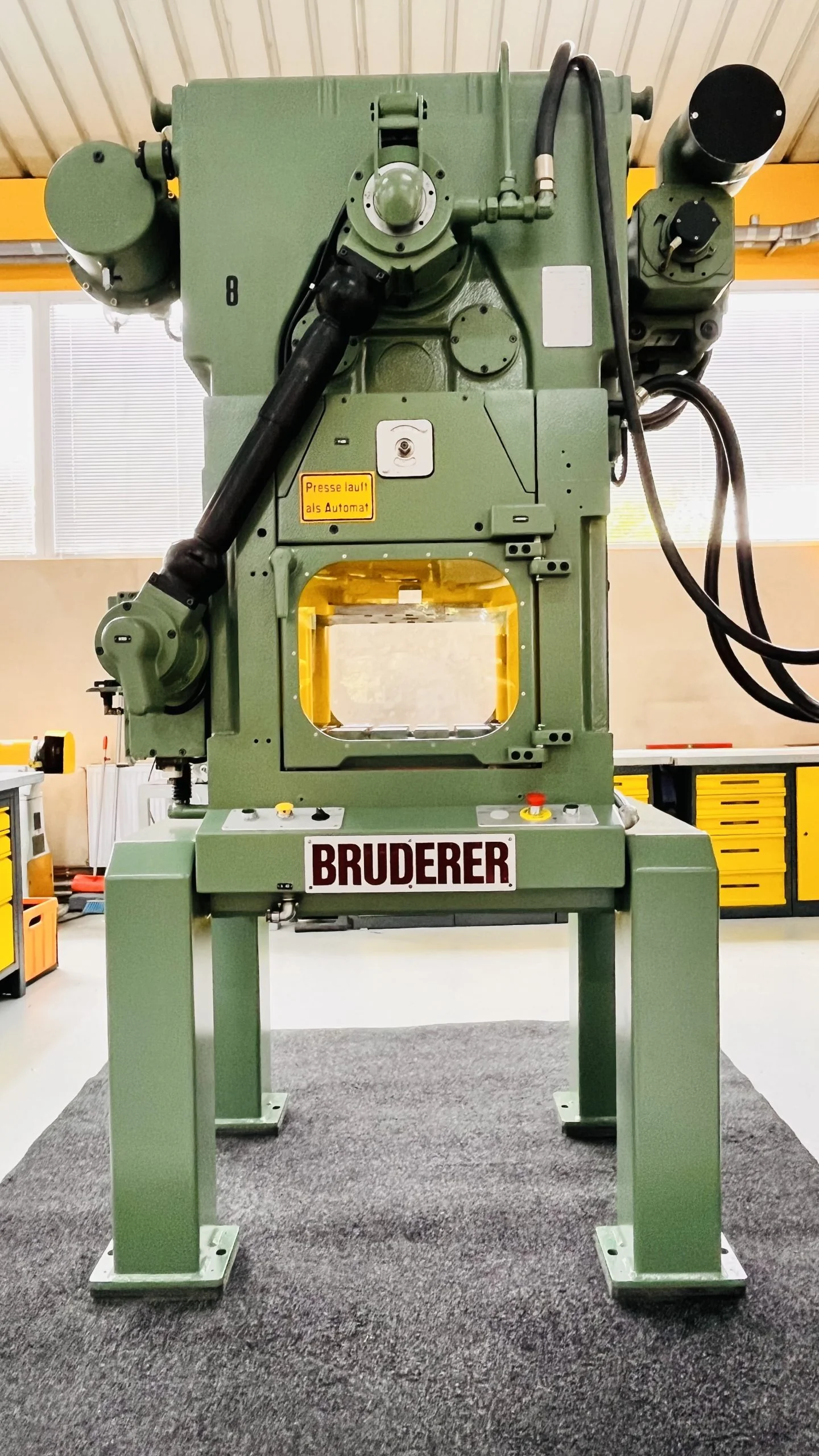

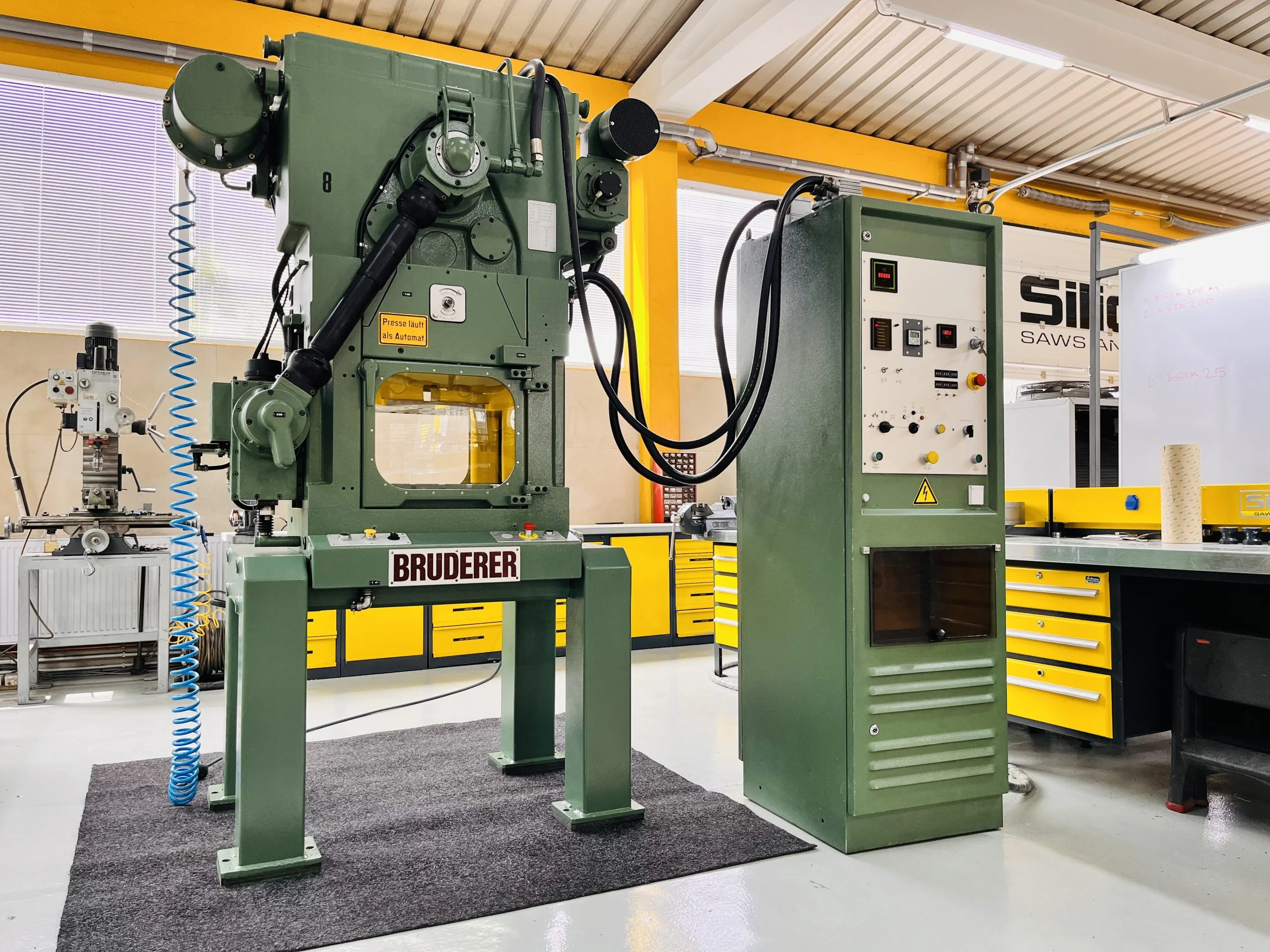

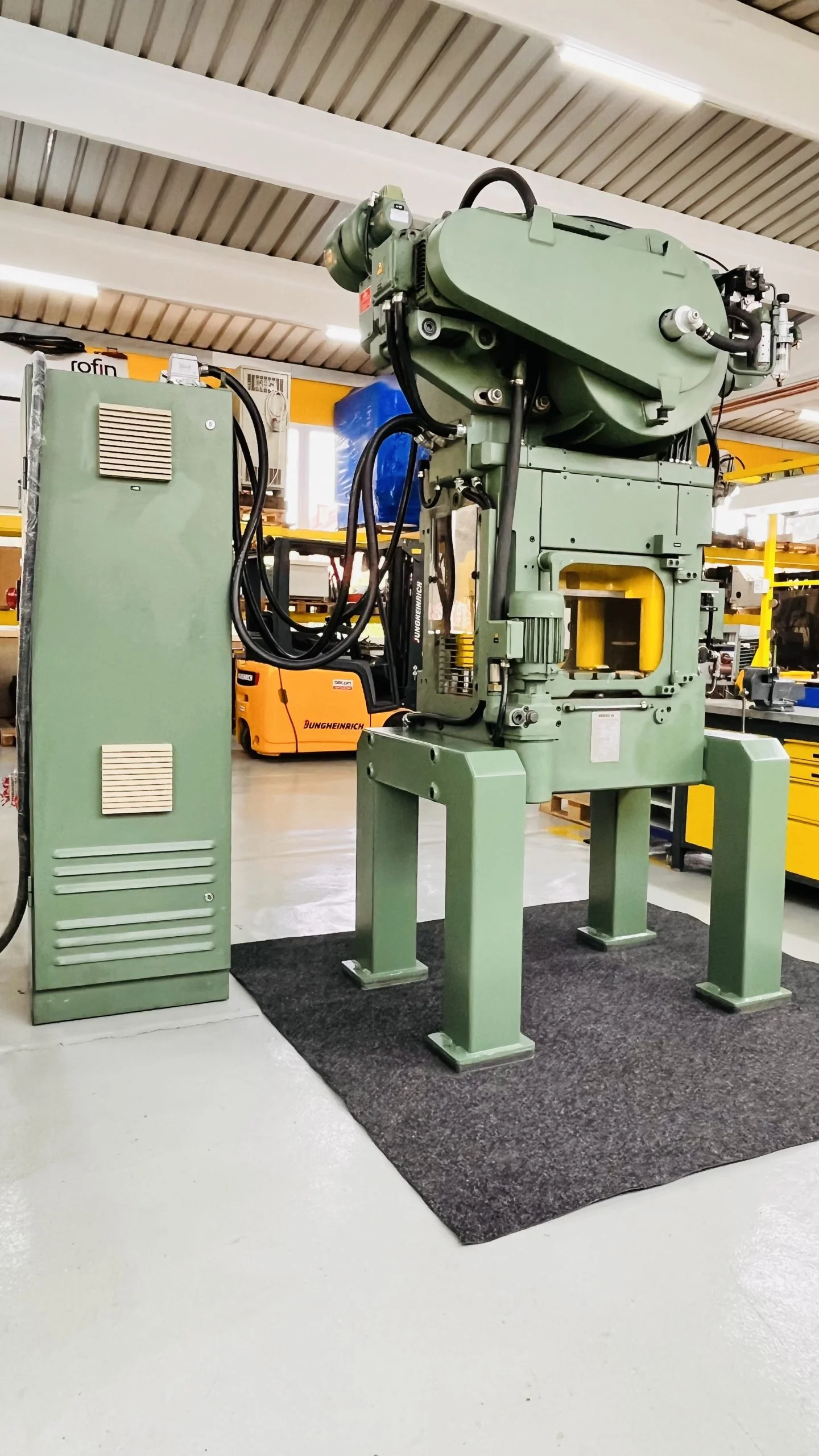

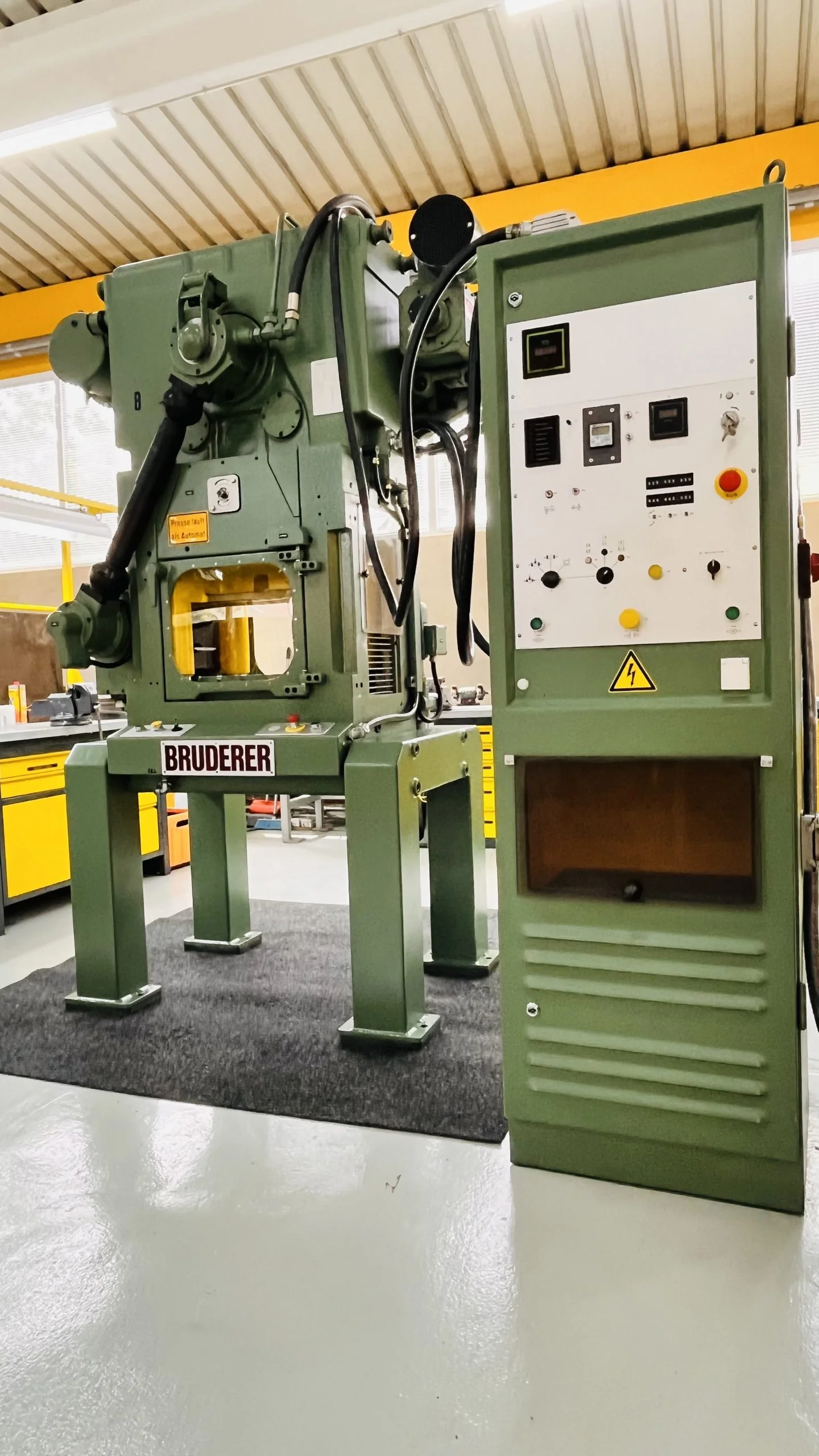

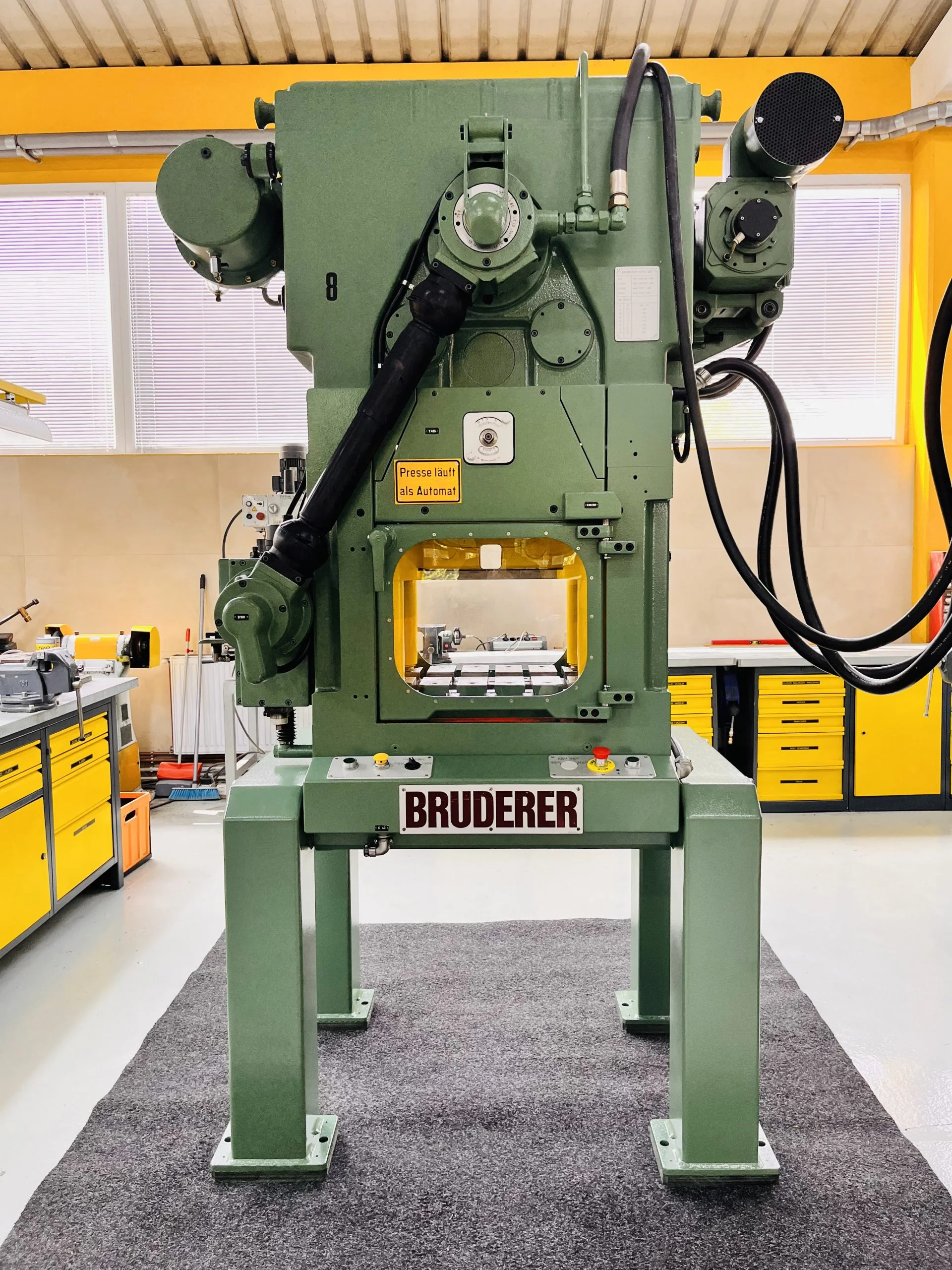

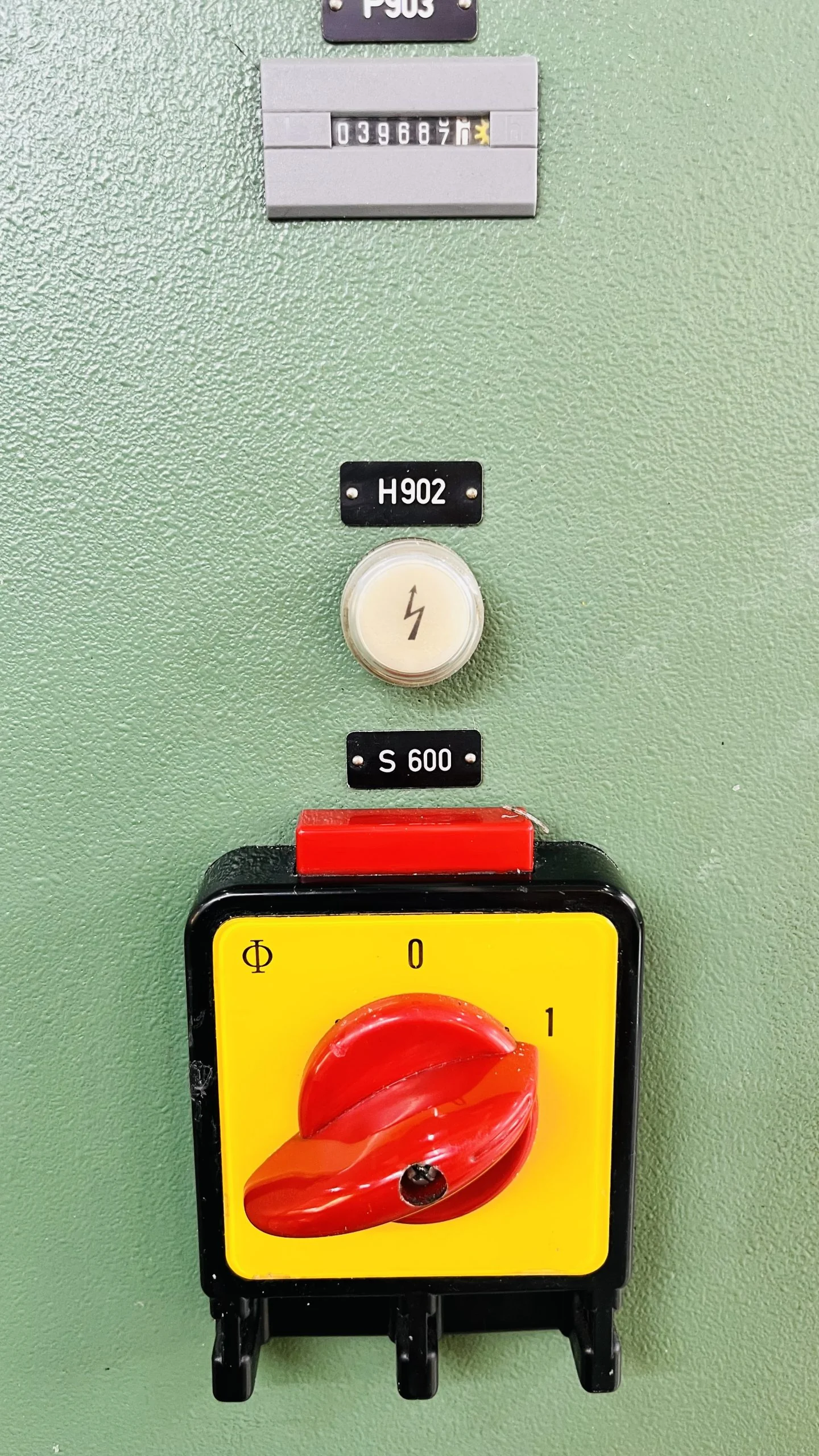

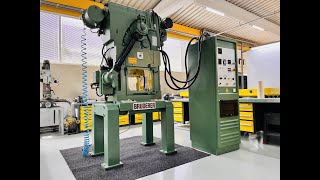

    Bruderer BSTA 200 Automatska presa za štancanje visokih performansi. Dodavač BBV 100/75 sa leve strane. Elektro orman i upravljanje. Uključena sva originalna tehnička dokumentacija na nemačkom.

    Pozovi

    Tehničke specifikacije

    Max. pressure:200 kN 20 T
    Speed range:100 – 600 spm
    Year of manufacture:1990
    Adjustable stroke: 8; 13; 19; 25; 32; 38; 44; 51 mm
    Ram height adjustment:51 mm
    Table size:510 x 400 mm
    Bed opening: 400 x 160 mm
    Max. distance of the tool width between the columns: 410 mm
    Connected load: 36 kVA
    Power: 400 V 50 Hz
    Control voltage: 24 V
    Machine dimensions:H 2540 x W 1661 x D 855 mm
    Machine weight: approx. 3100 kg
