    In Stock
    Presses
    Used

    Bihler GRM 100

    2010 • ID: 22523

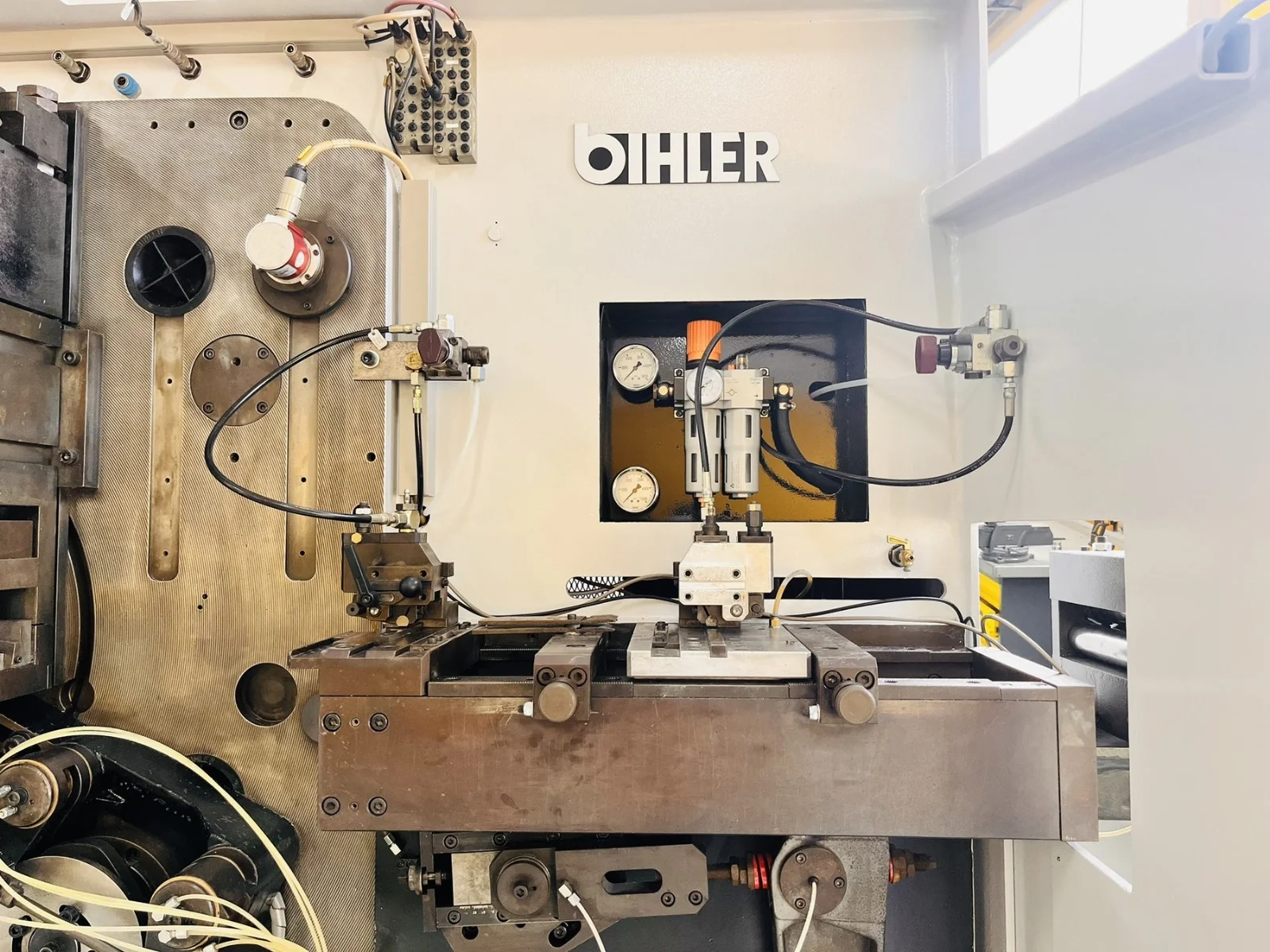

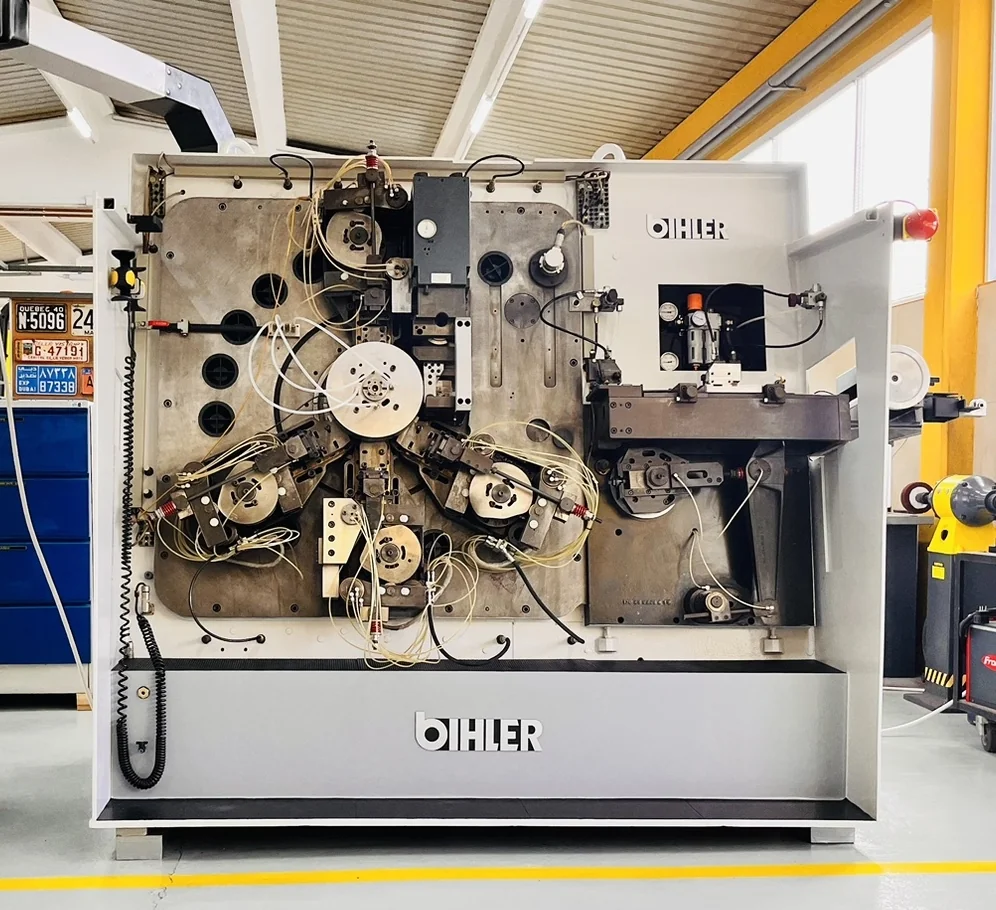

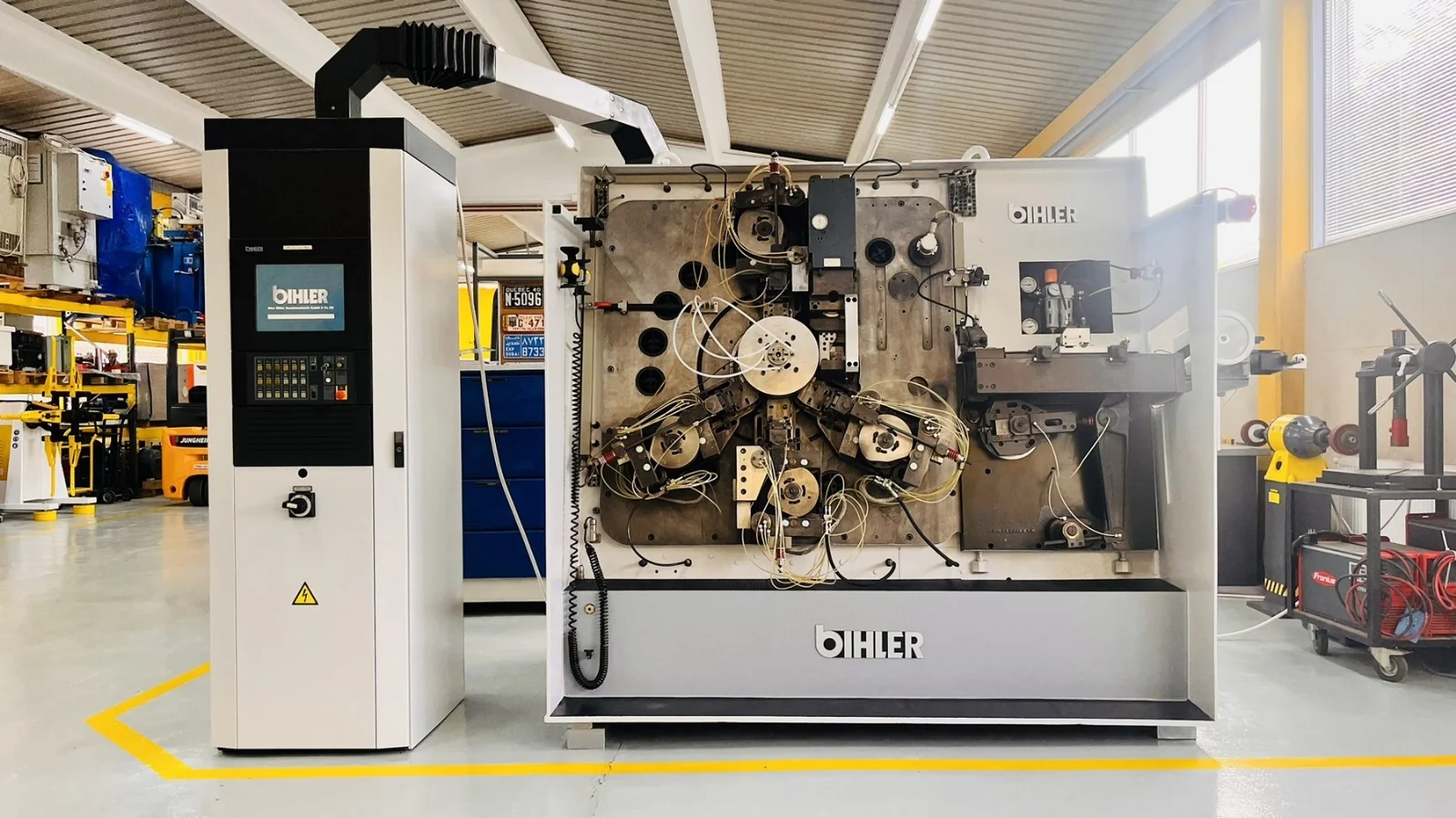

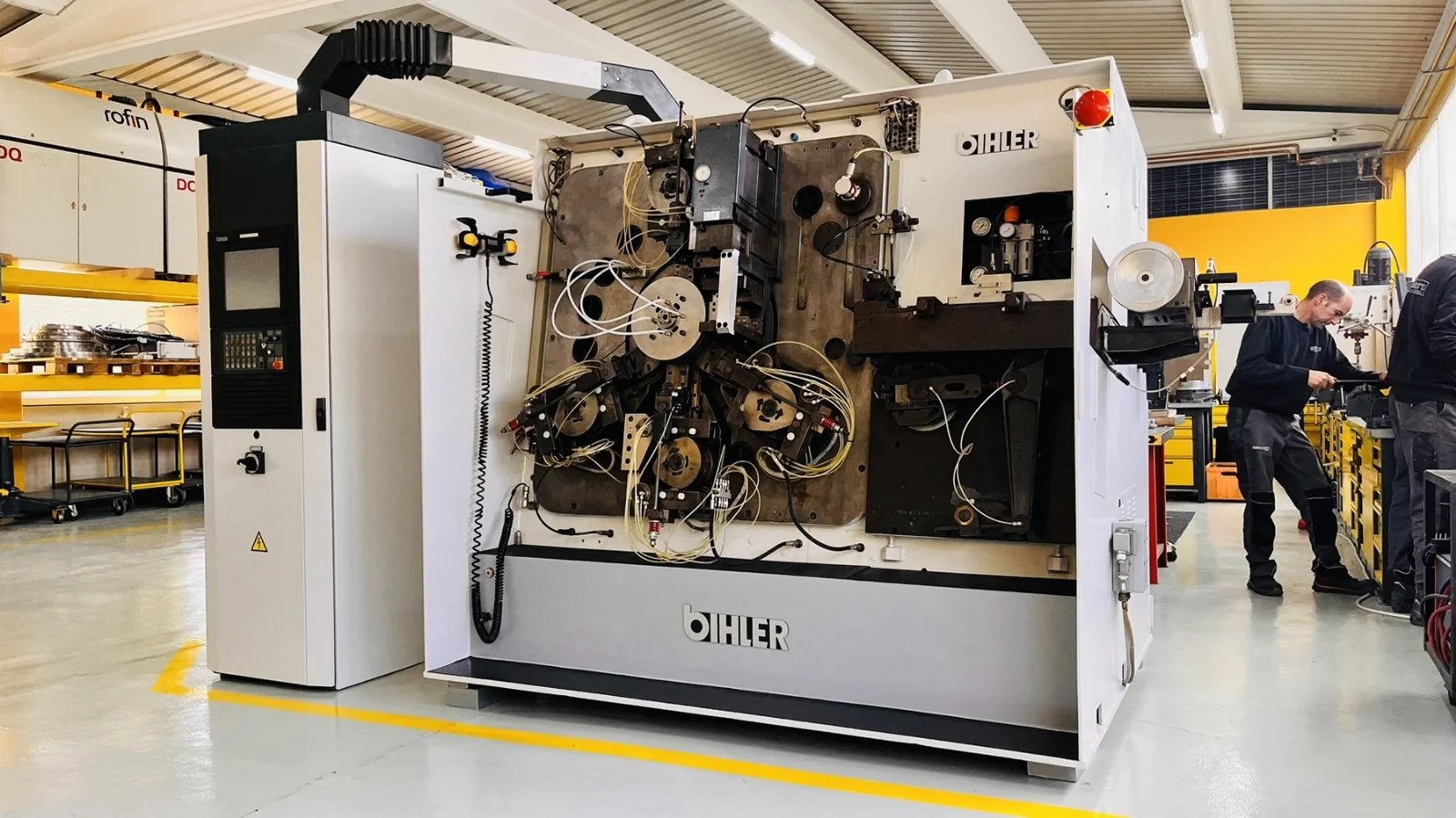

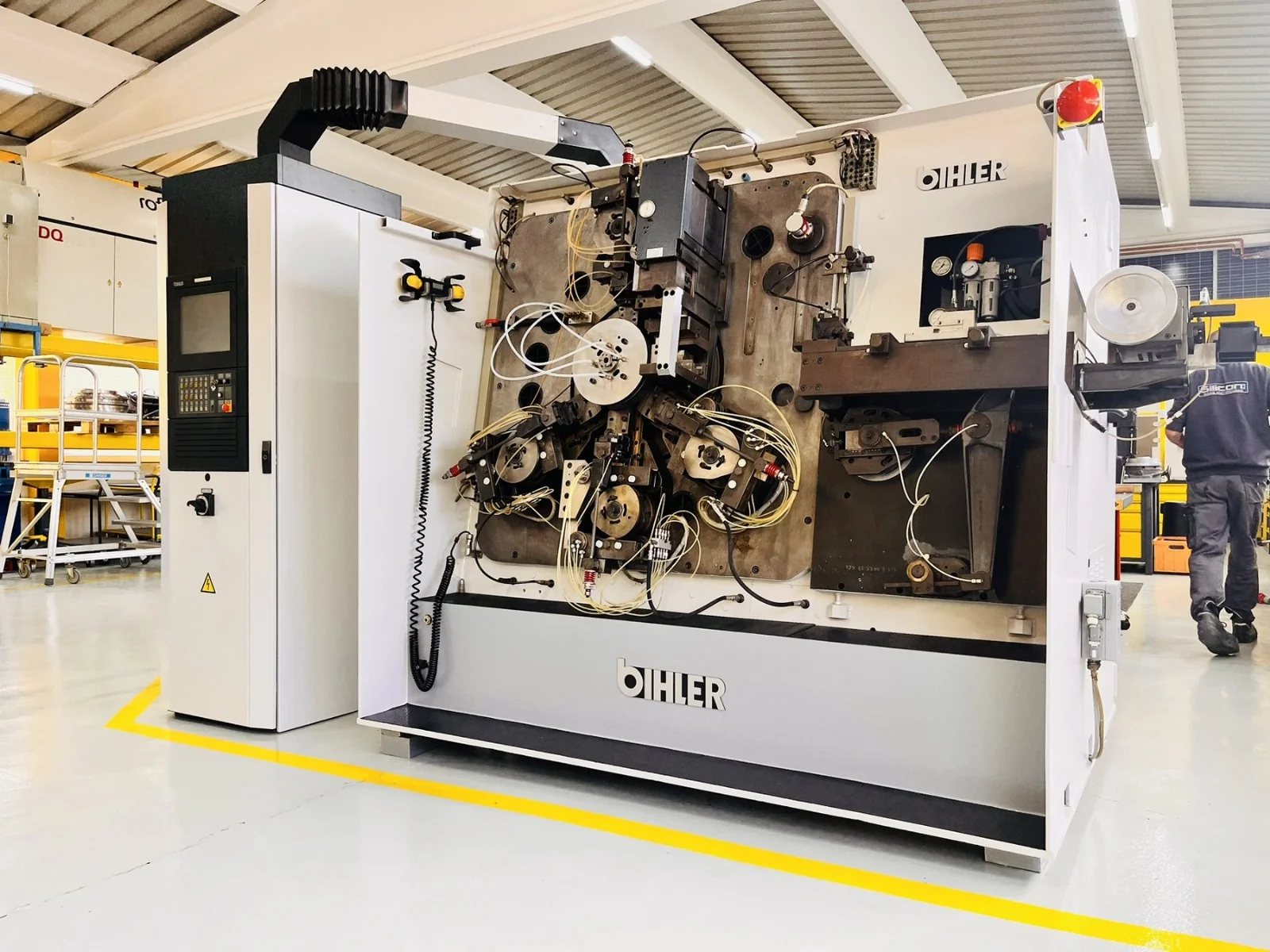

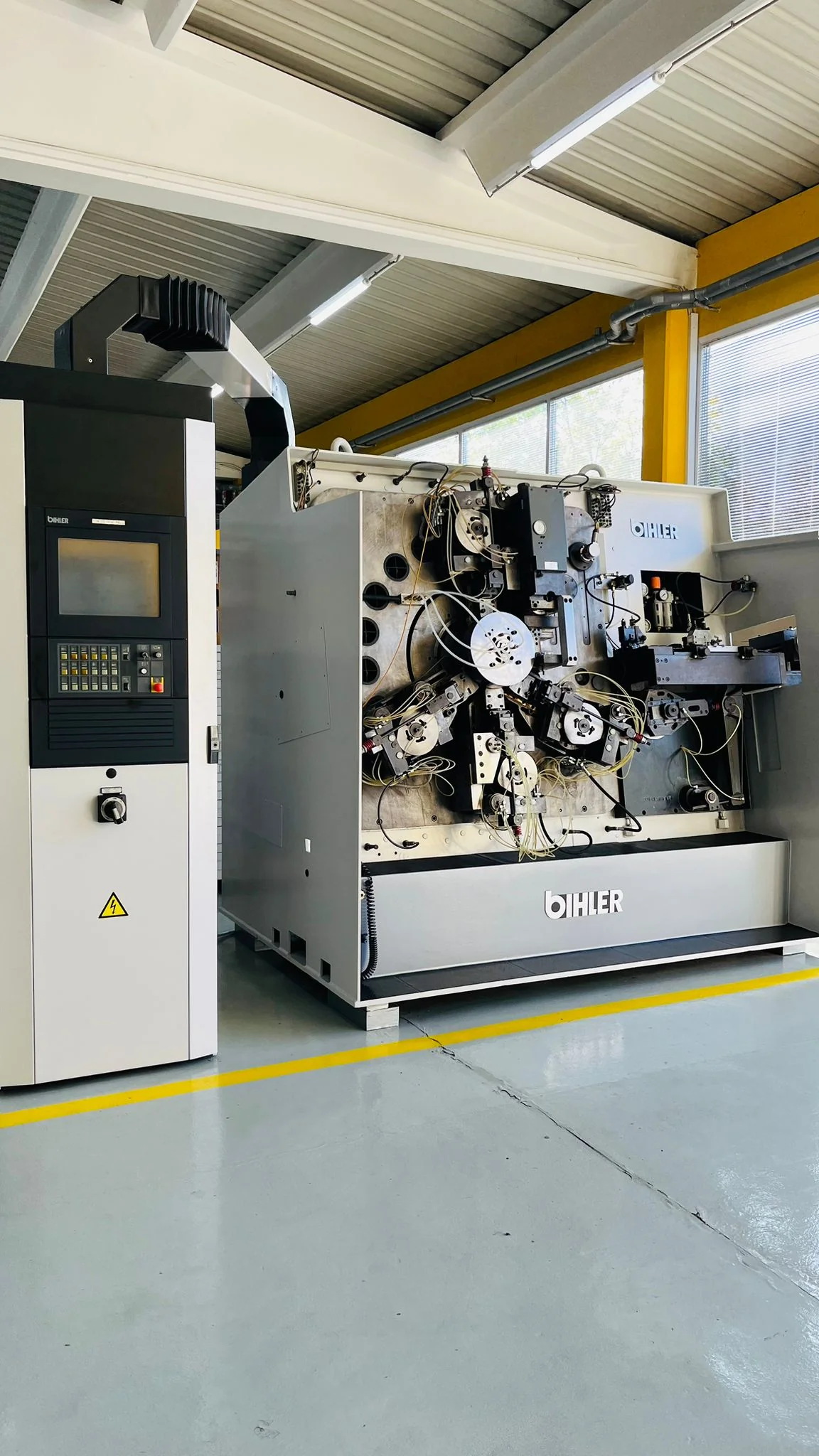

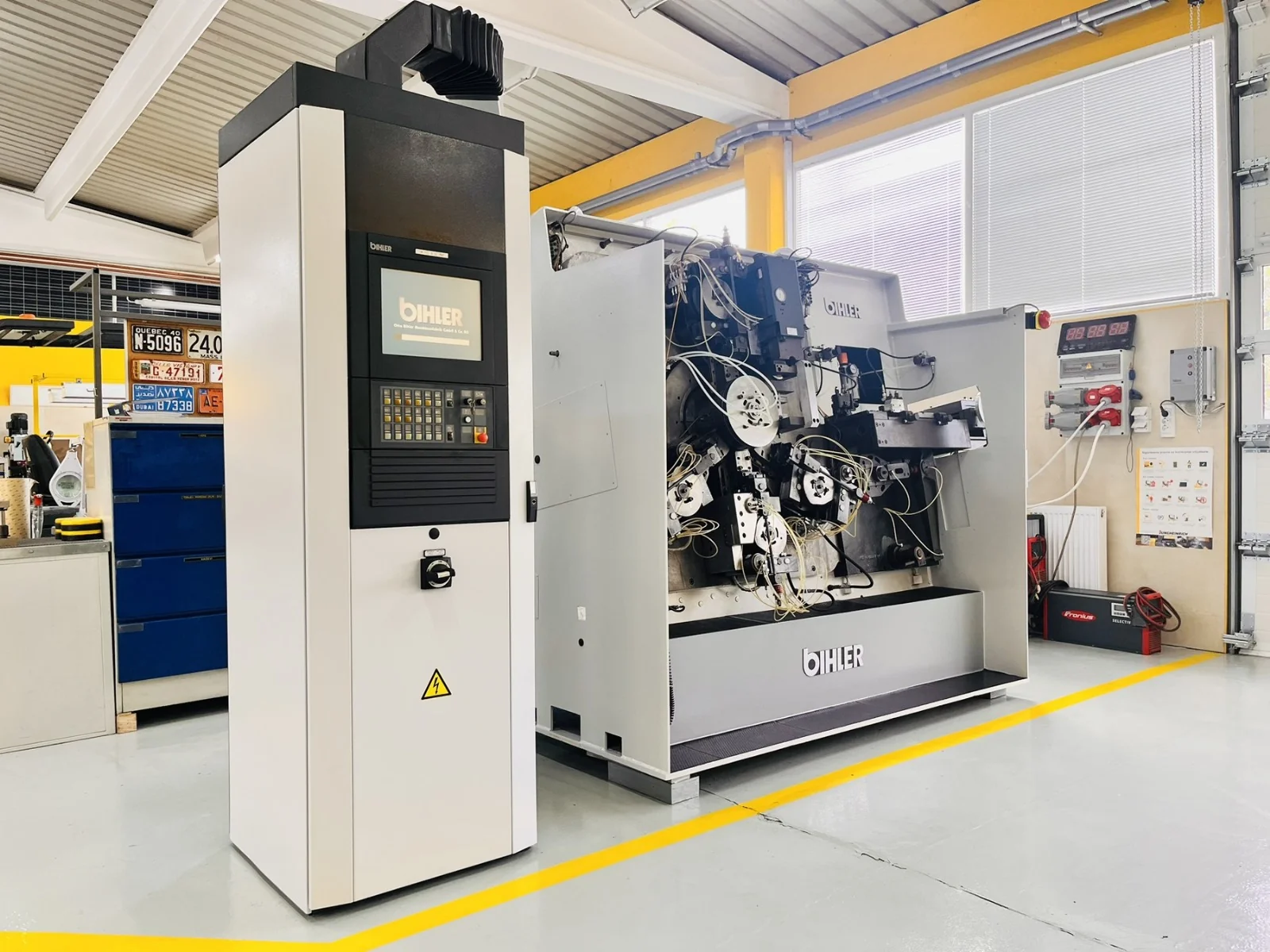

    BIHLER GRM100 multislide punching and forming machine, Made in Germany. Machine re-engineered in year 2010 originally by Bihler, updated with servo motor, pump, rewired, new control, etc. Equipped with 4x forming slides and 18 ton press station. Additionally can be expanded with two more press stations. Gripper feed on right-hand side with straightener. Max width of strip 100 mm. Max wire diameter 10 mm. Standard feed length 250 mm max. Max operating speed 135 strokes per minute. Servo motor. Touch screen control. Air clutch. Weight cca. 6000 kg. Power supply 400/480V, 50 Hz.

    Pozovi

    Tehničke specifikacije

    Make and Model:BIHLER GRM 100
    Machine type:Multislide punching and forming machine
    Made in Germany.
    Machine re-engineered in year 2010 originally by Bihler

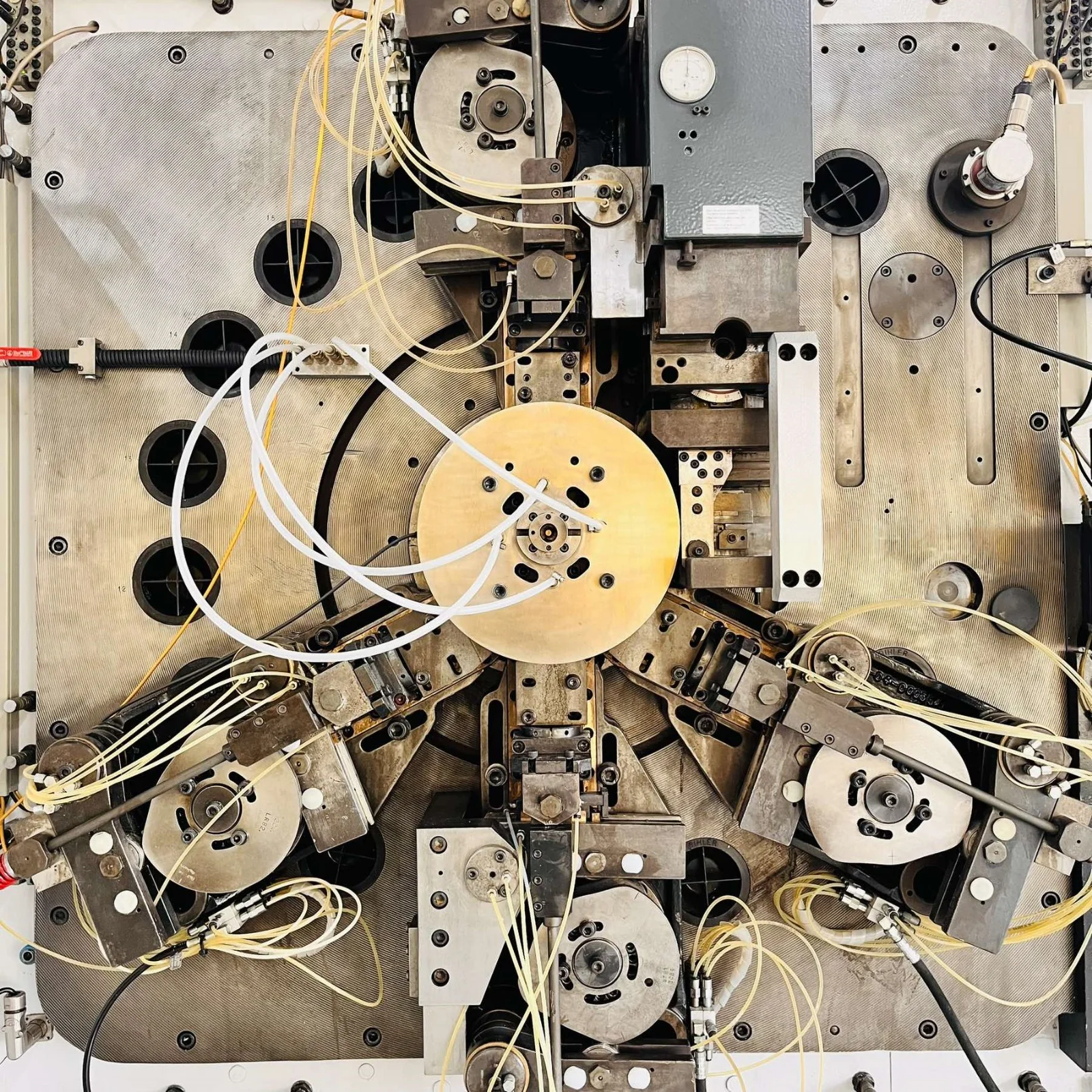

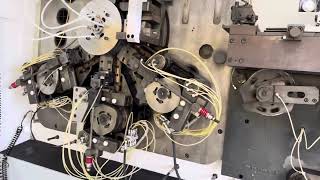

    Equipped with 4x forming slides and 18 ton press station
    Additionally can be expanded with two more press stations.
    Gripper feed on right-hand side with straightener.
    Max width of strip:100 mm
    Max wire diameter:10 mm
    Standard feed length:250 mm max
    Max operating speed:135 strokes per minute

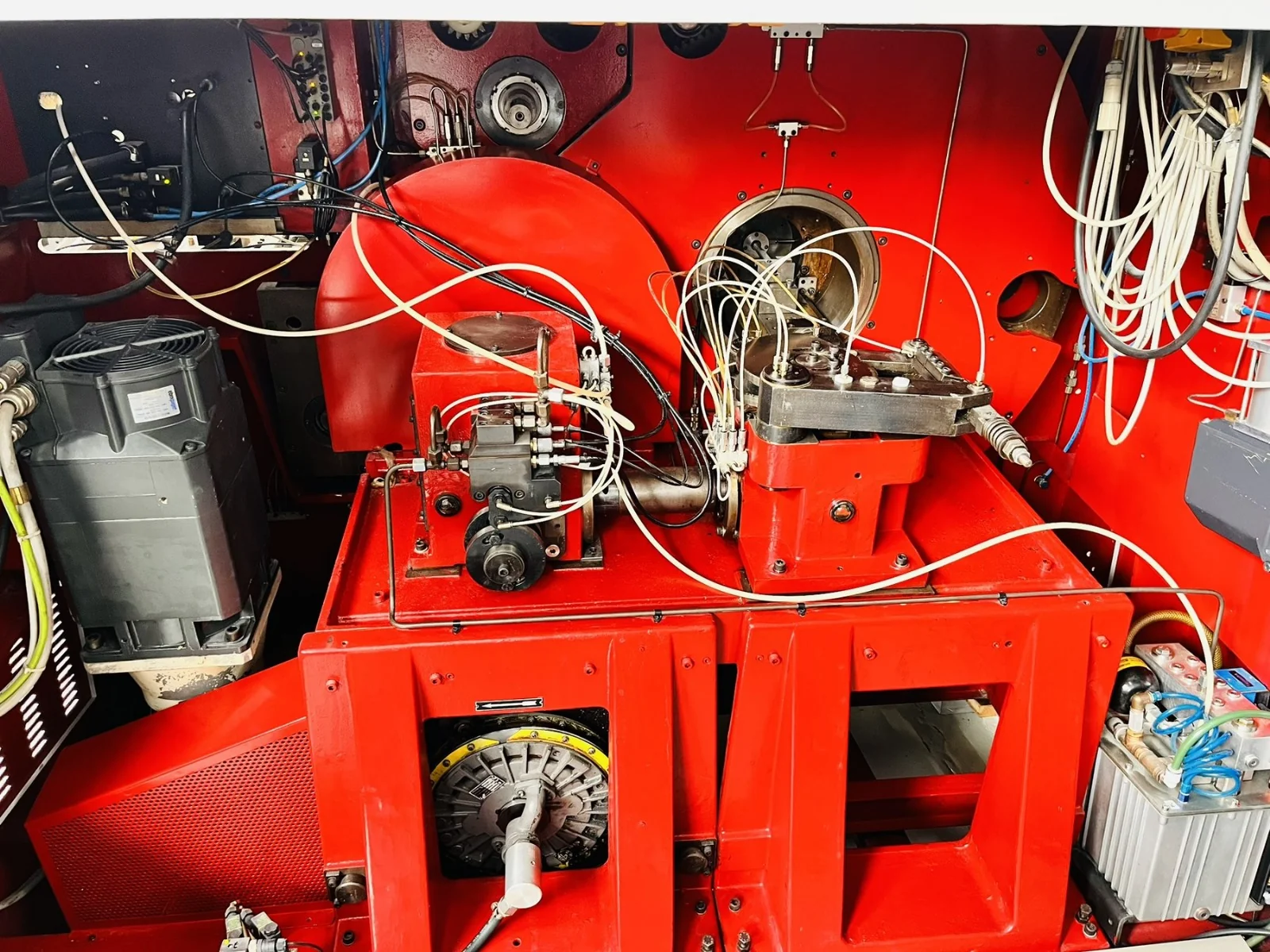

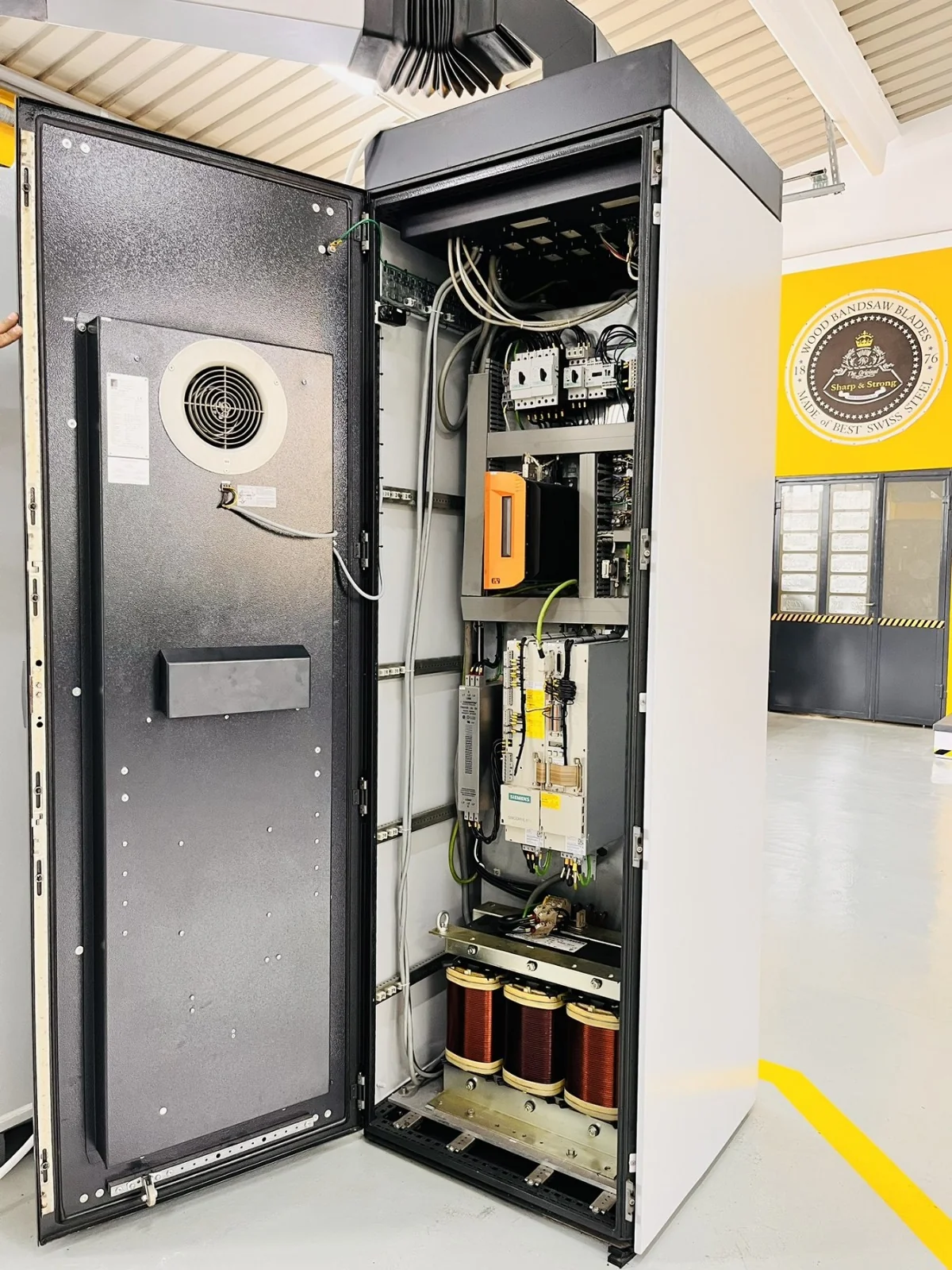

    Servo motor.

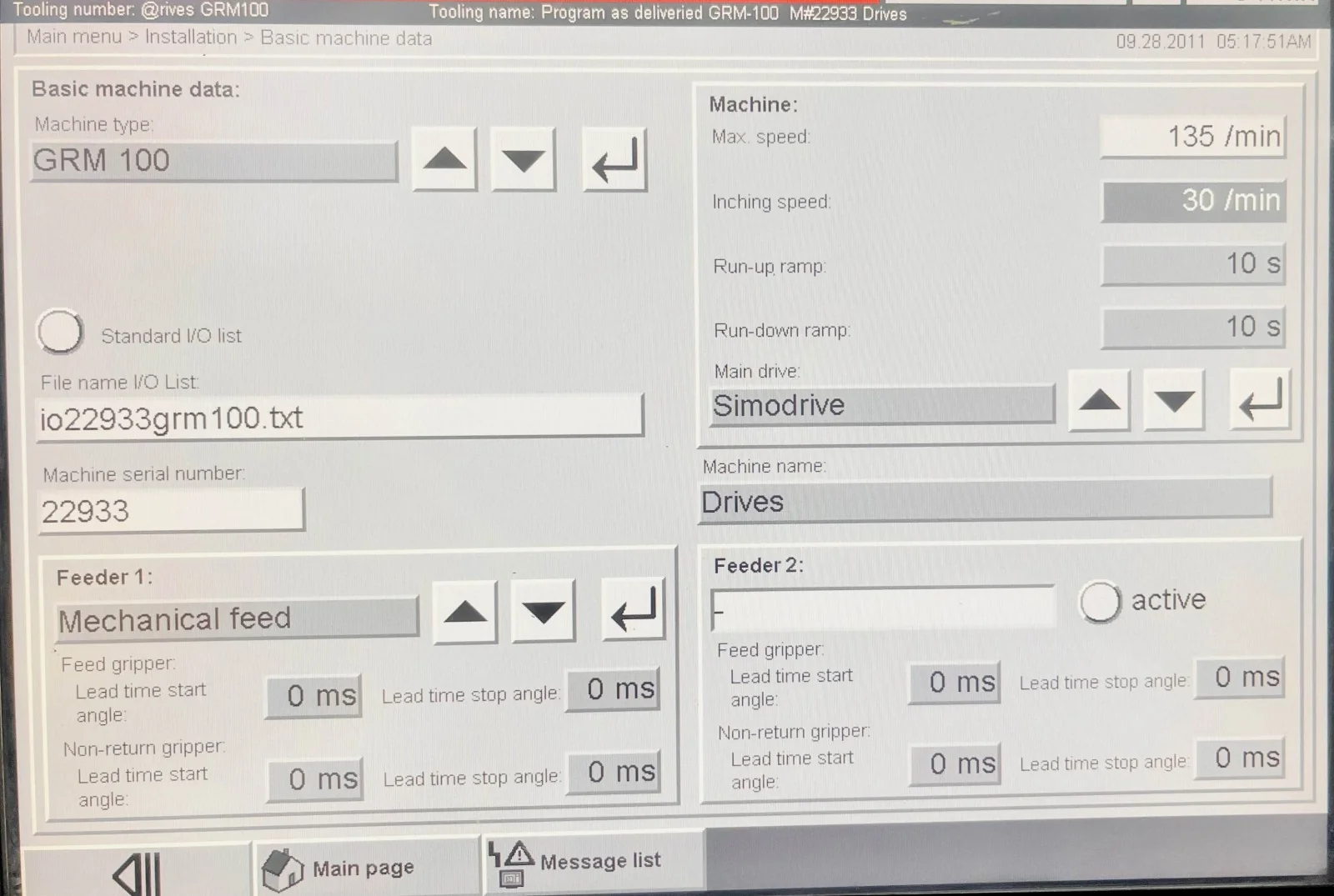

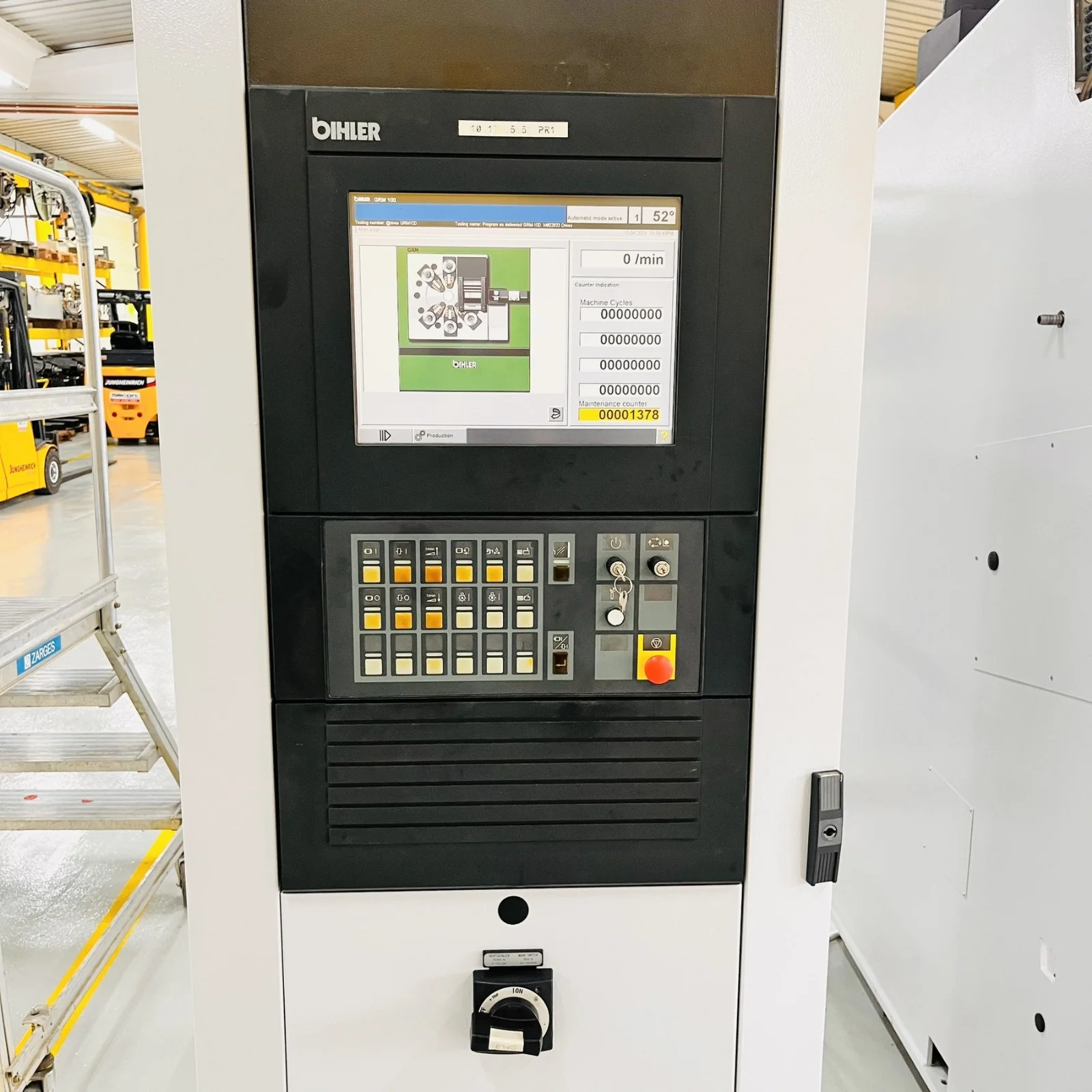

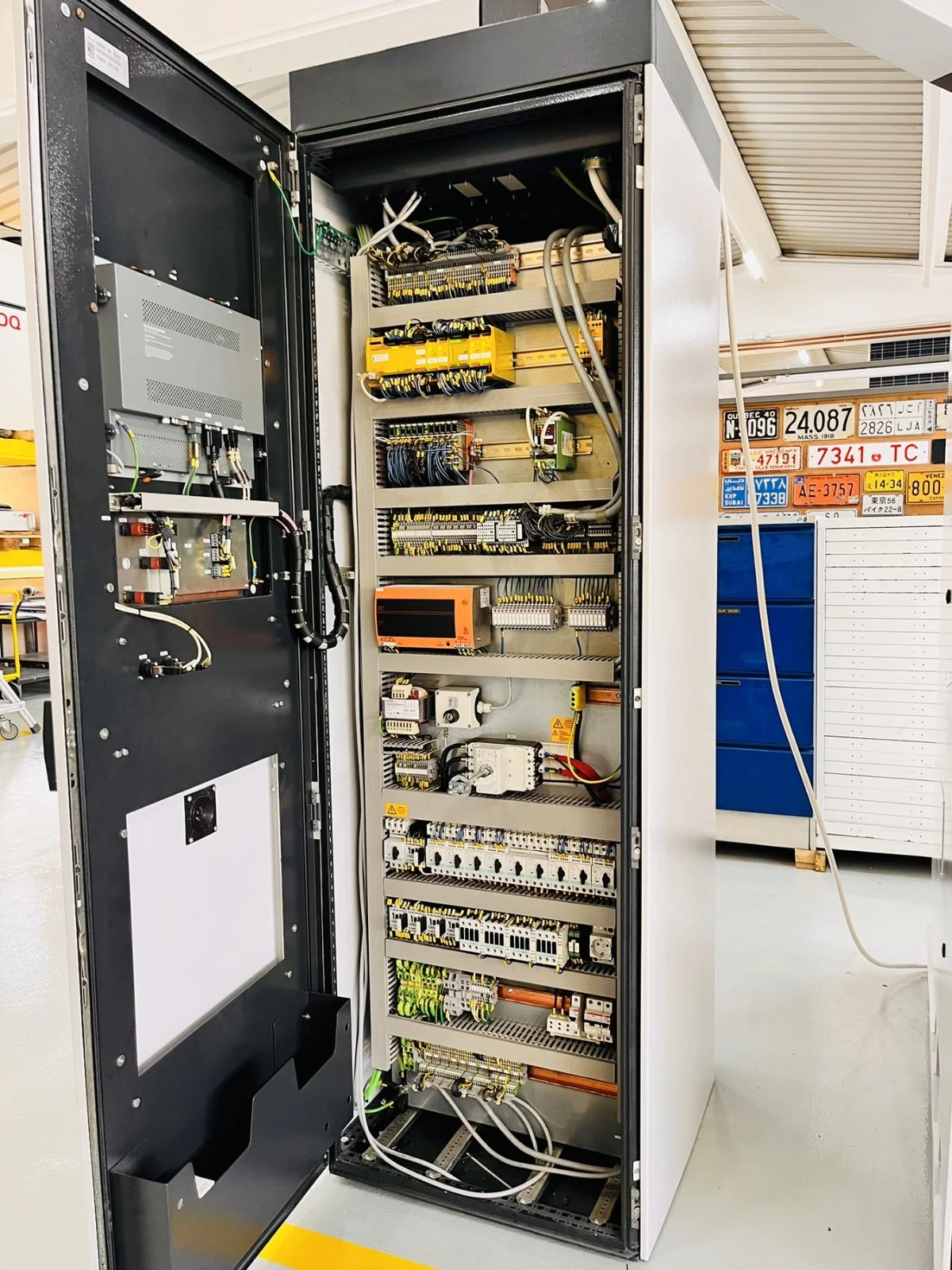

    Touch screen control.
    Air clutch.
    Weight cca. 6000 kg.
    Power supply 400/480V, 50 Hz.
