    Bihler B 5000

    Medium-Frequency Resistance Welding System • 2016 • ID: 36026

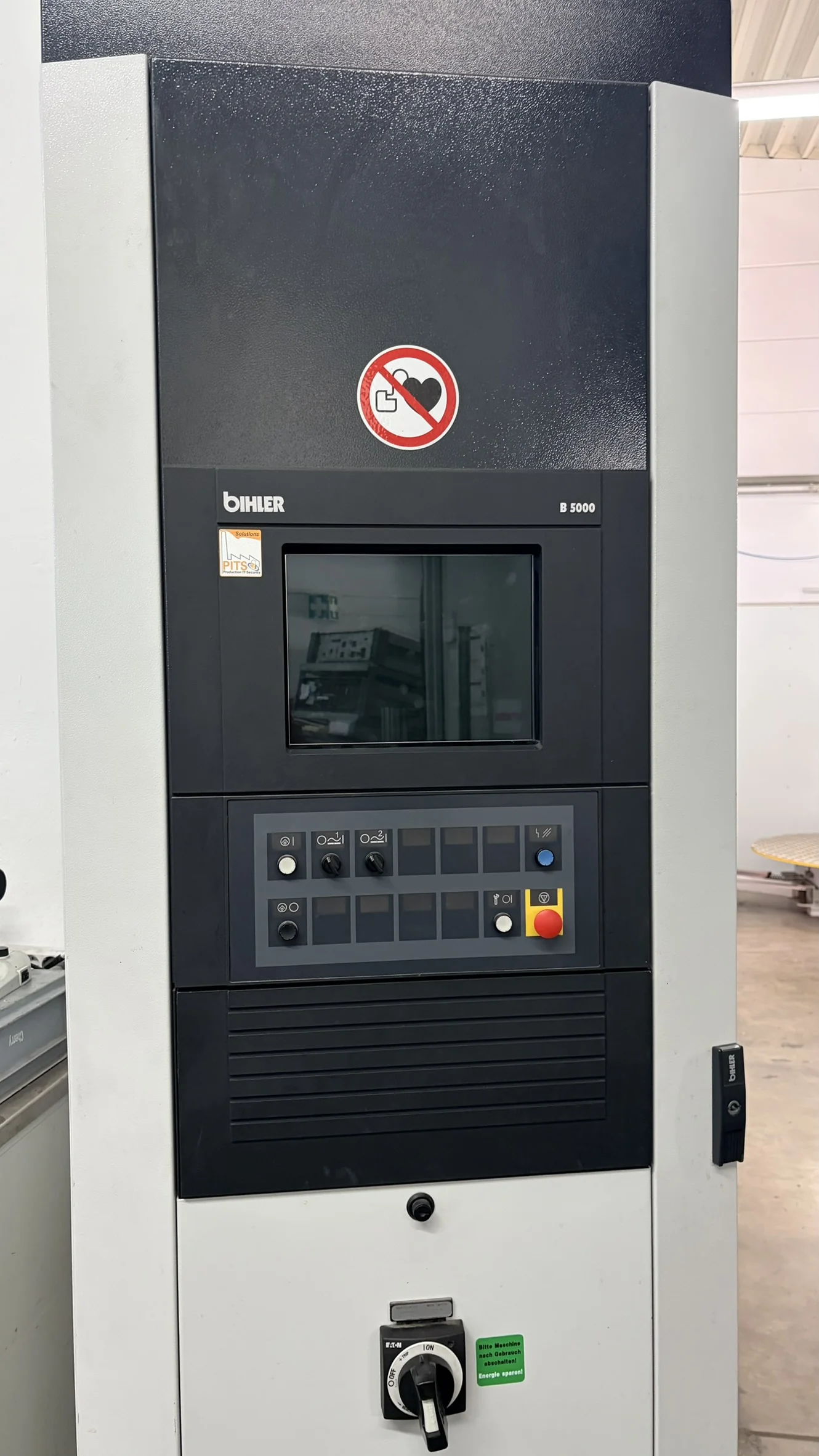

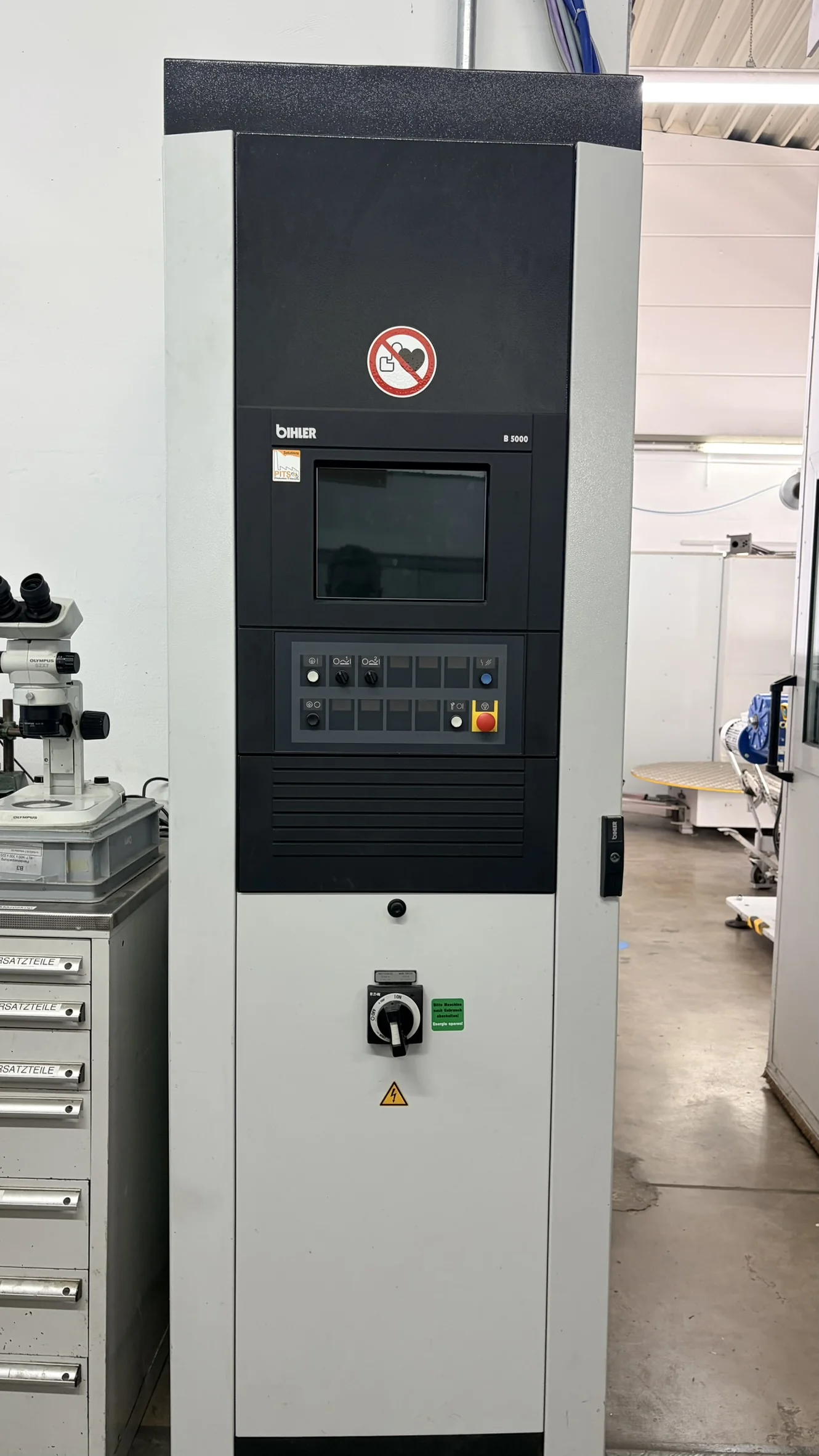

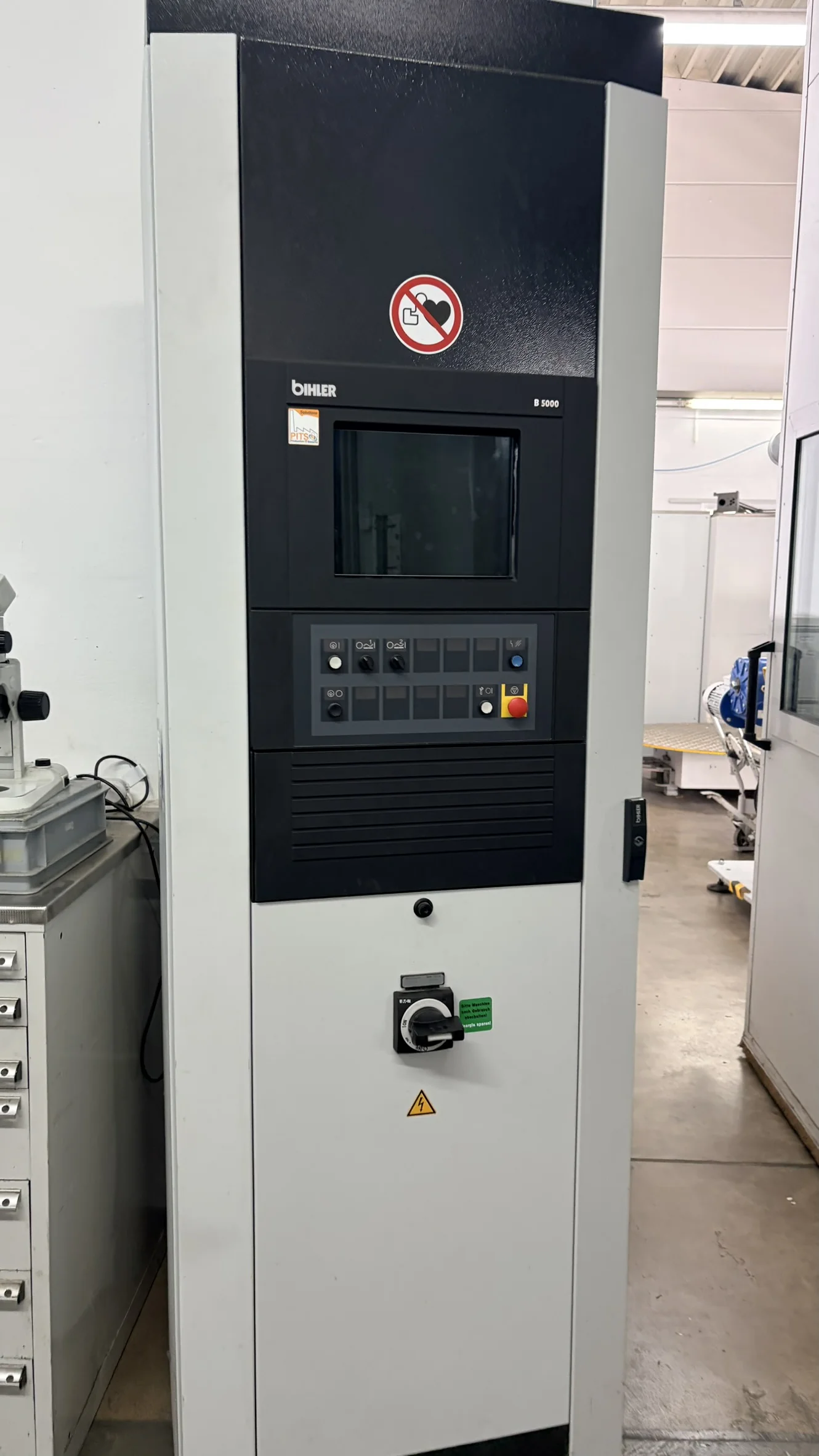

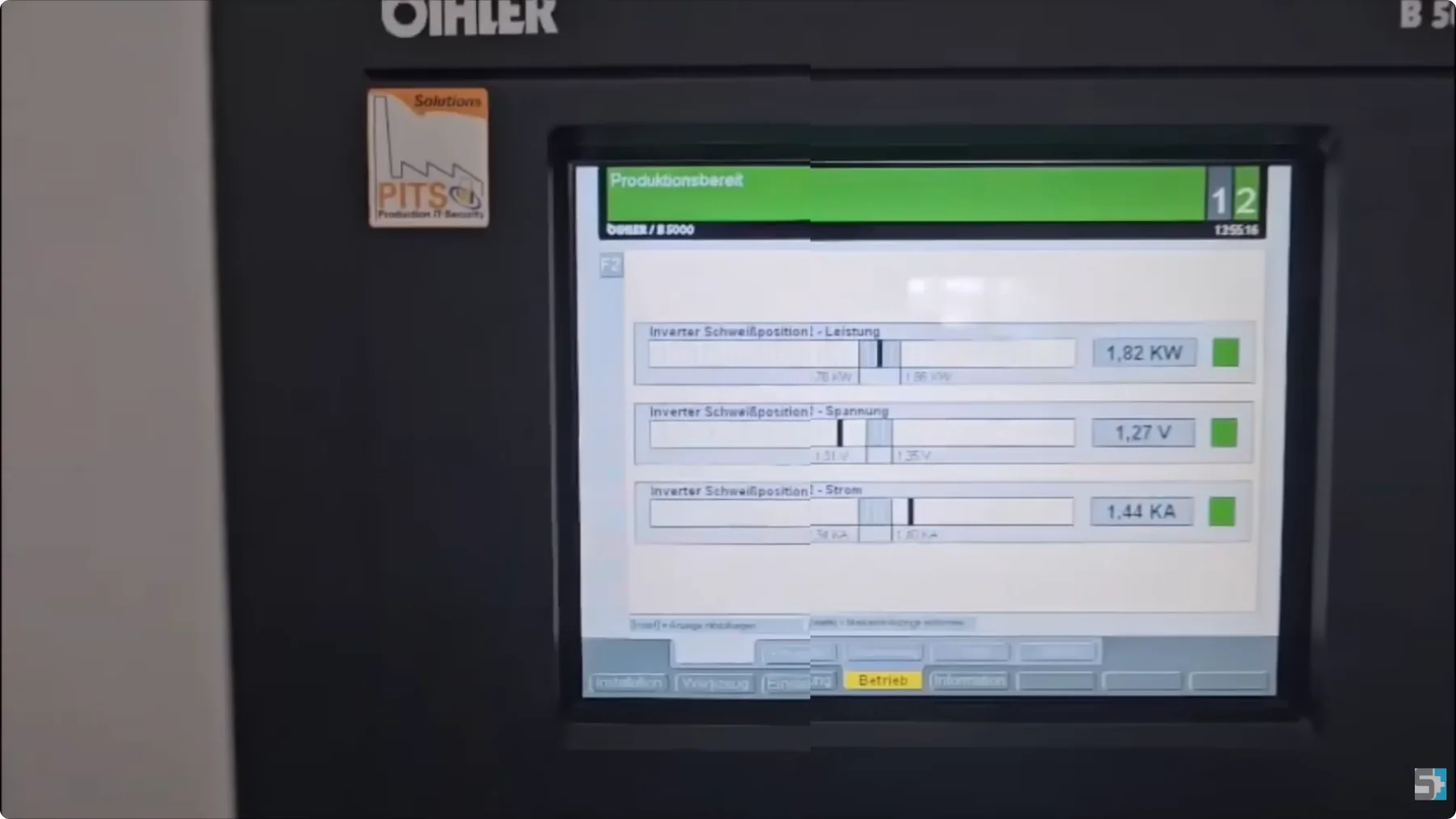

    Complete medium-frequency resistance welding system, manufactured 2016, consisting of the B 5000 inverter control cabinet (S/N 29636) paired with the Bihler ET 70 welding transformer (70 kVA, S/N 82641). Both units are year-matched and original to each other. MF 5000 digital welding controller with 14" color display, closed-loop current/power/energy regulation, tool management, production data logging (PDE/MDA), and NC axis interface. Frequency adjustable 1,000–5,000 Hz. Original operating manual included.

    Pozovi

    Tehničke specifikacije

    Manufacturer:Otto Bihler Maschinenfabrik GmbH & Co. KG,
    Type:B 5000
    Serial No.:82641
    Year:2016
    Power supply:400 V, 3-phase, 50 Hz
    Control voltage:24 VDC
    Total connected load:50 kVA (standard); max. fuse 125 A
    Inverter frequency:adjustable 1,000–5,000 Hz in steps
    Short-circuit switching capacity:6 kA
    CE marked

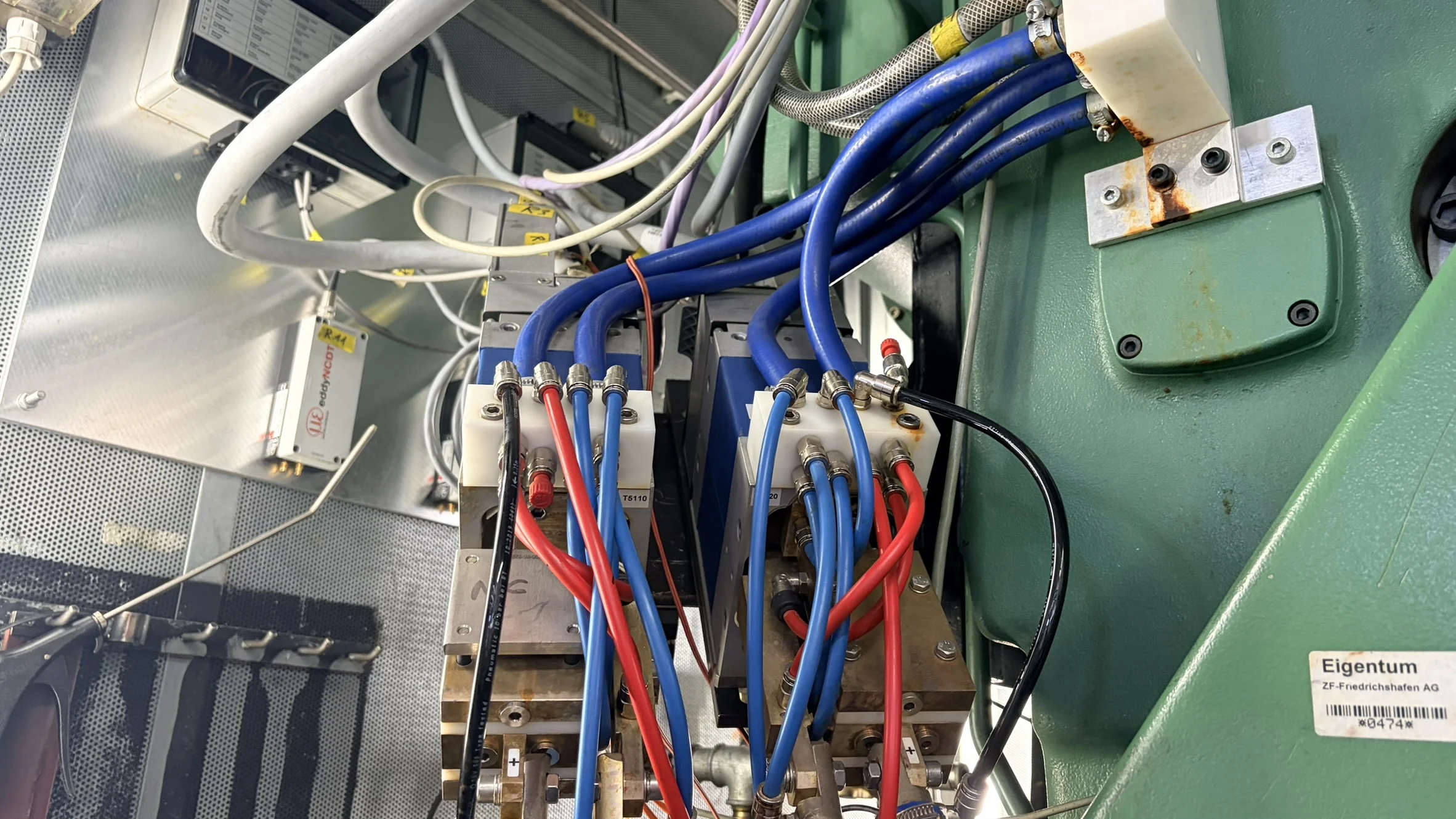

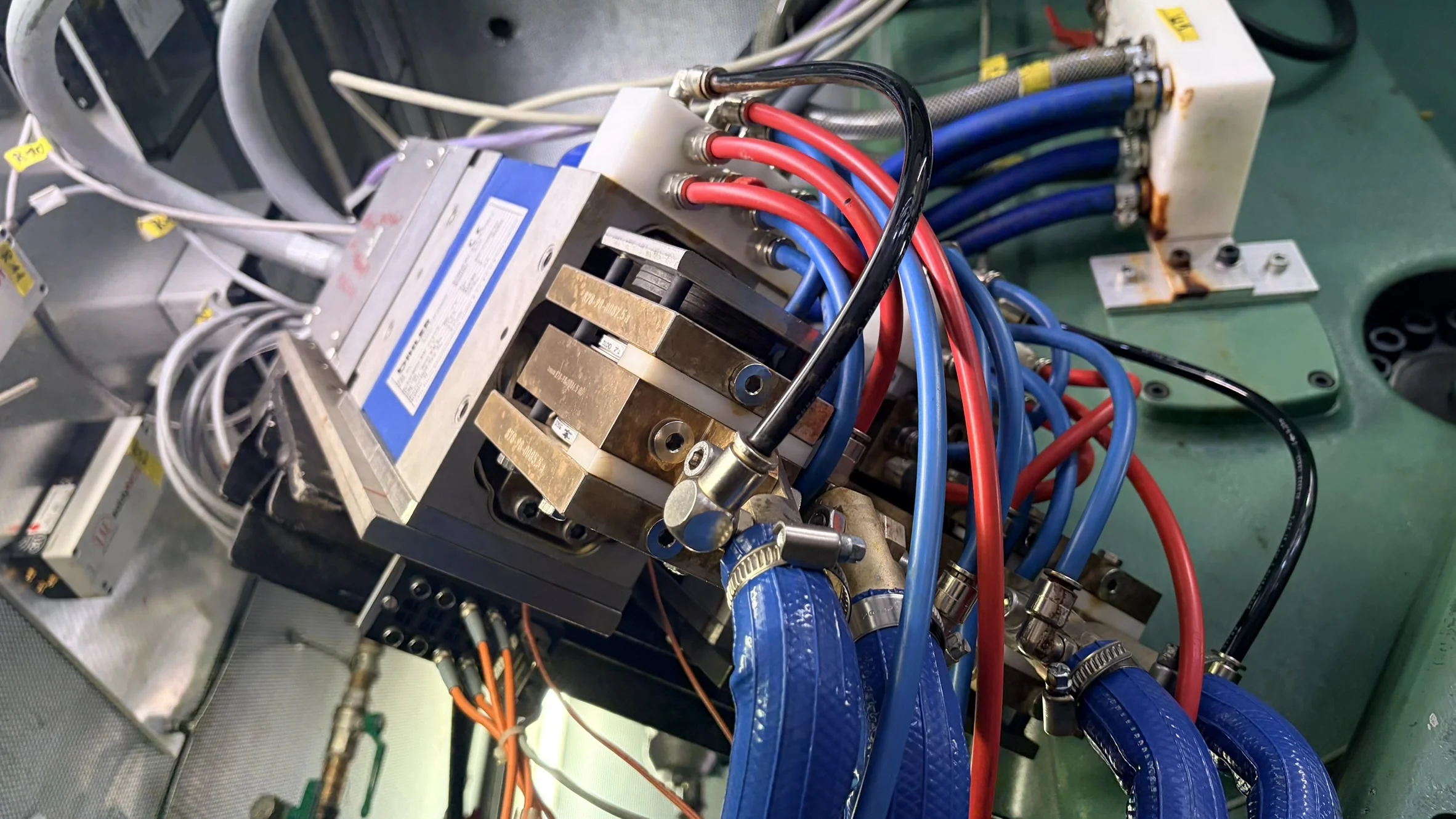

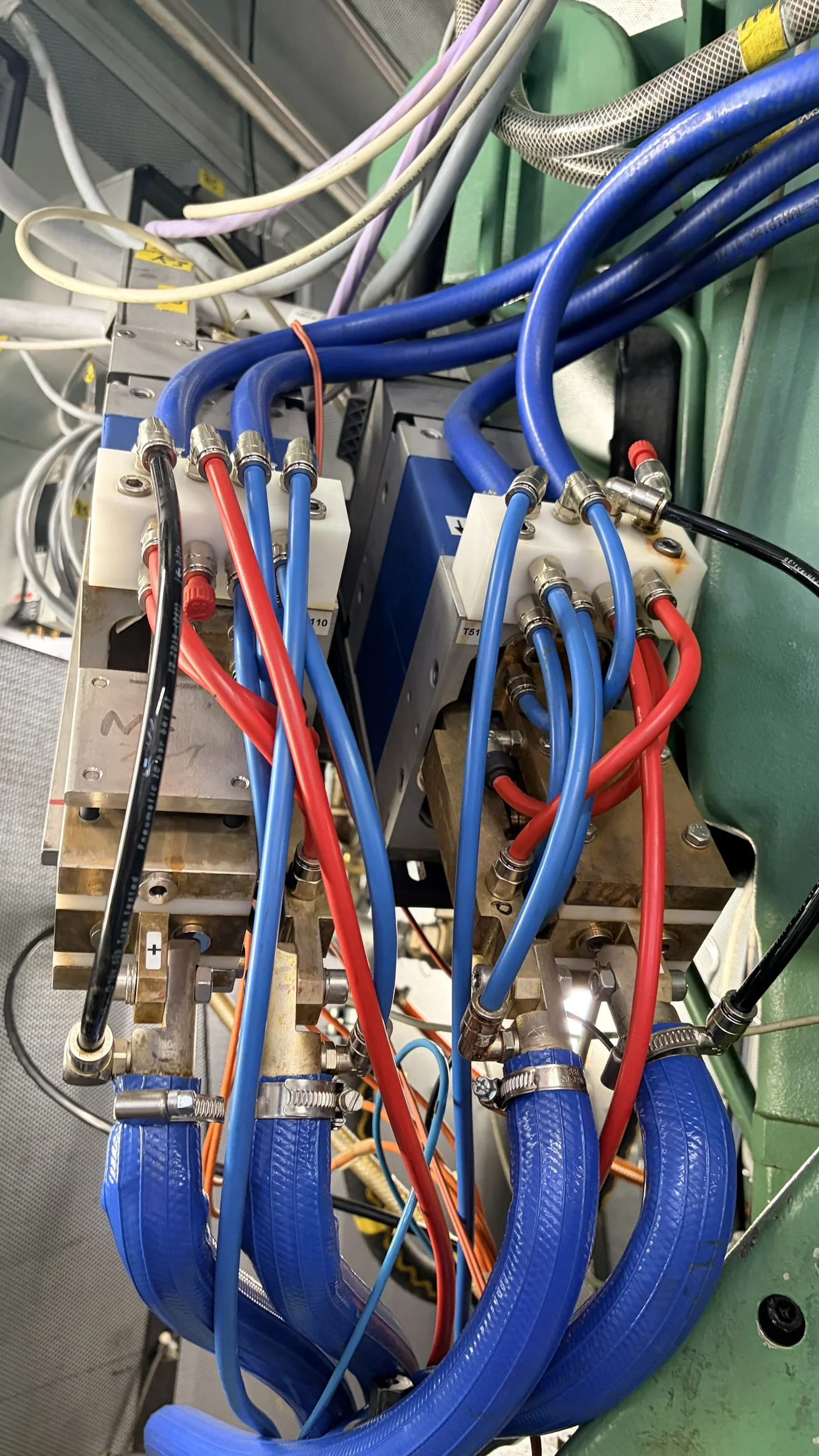

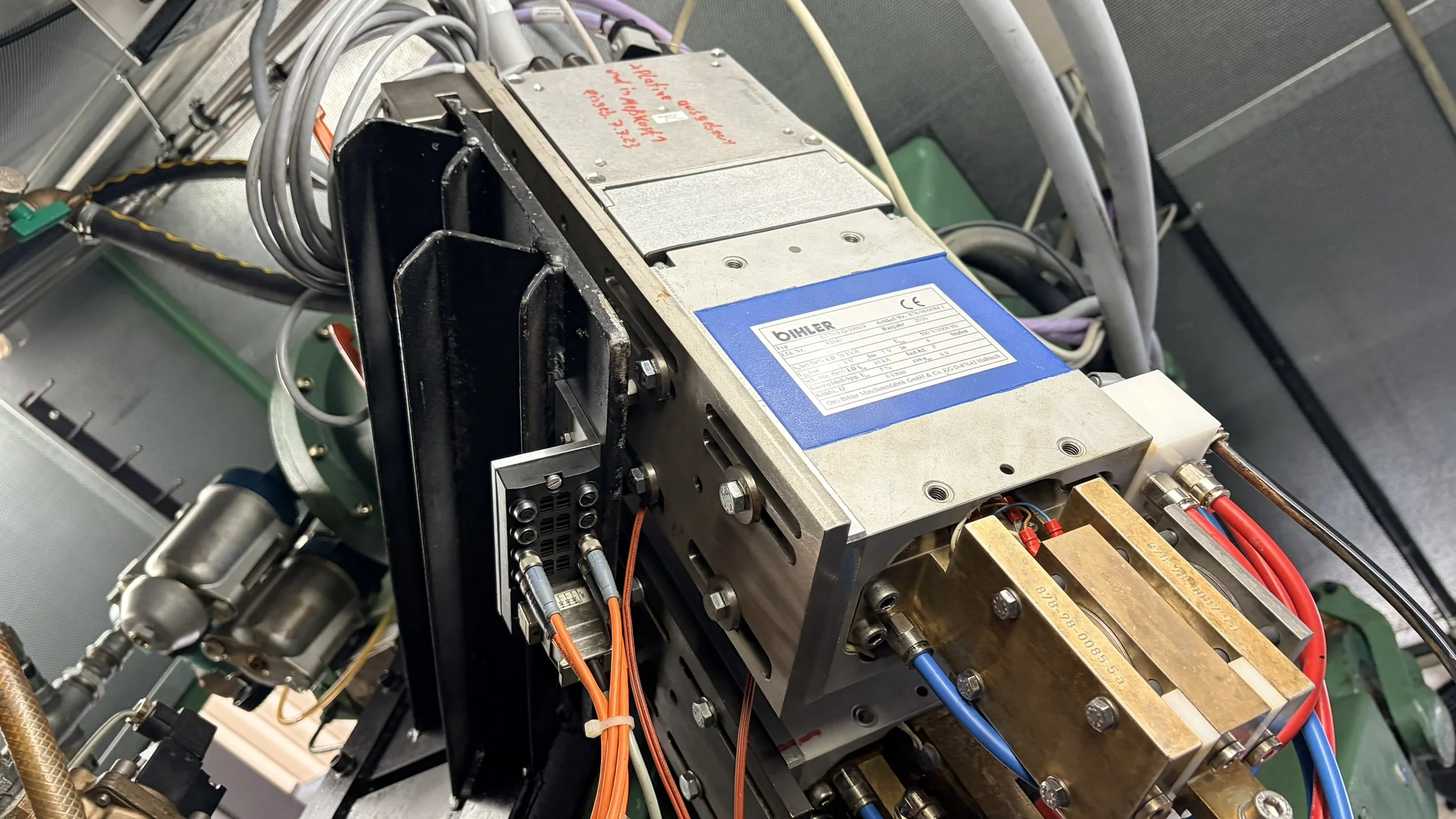

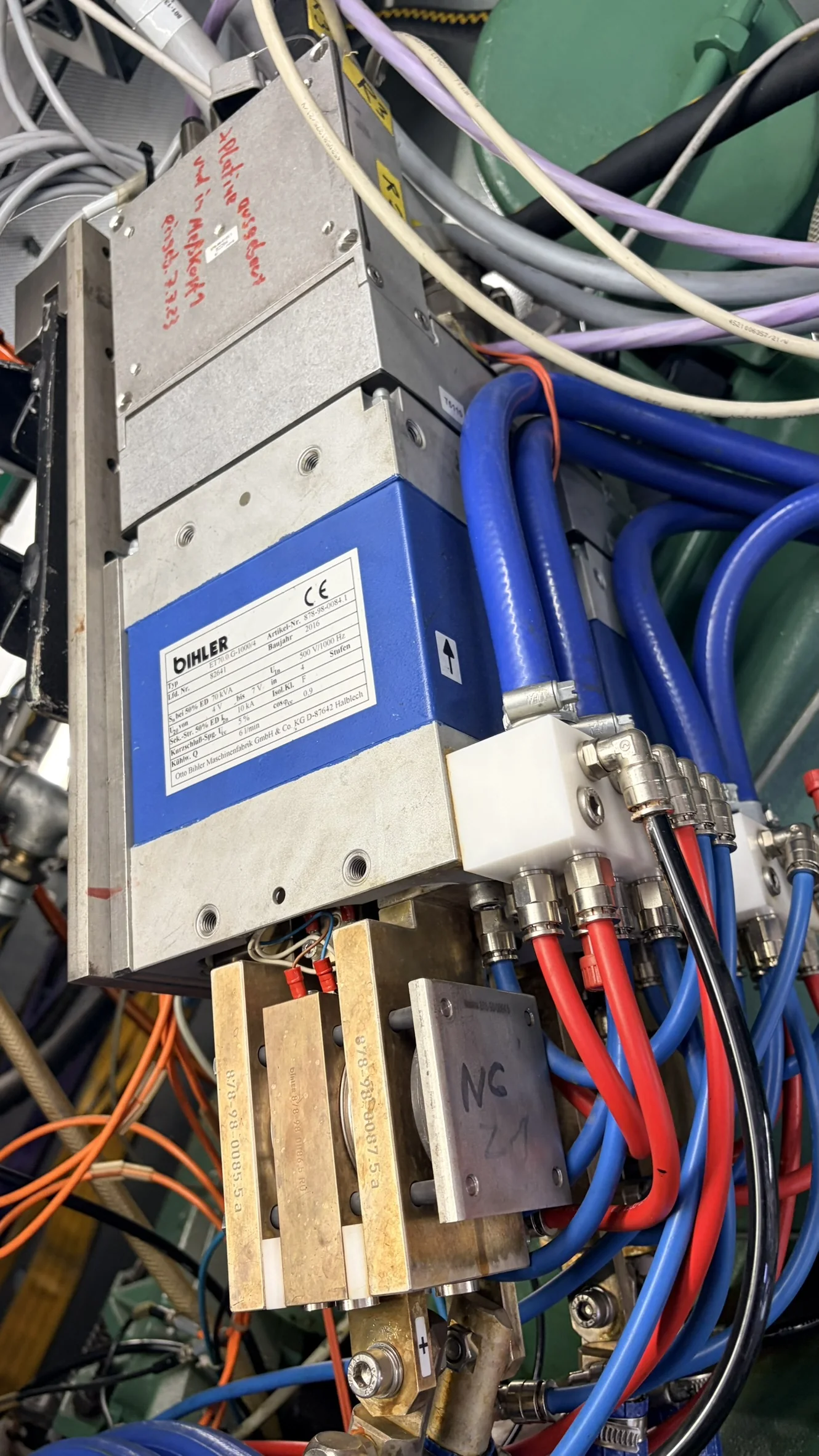

    Welding Transformer — Nameplate Data Type:ET 70.0.G-10000/4
    Rated power at 50% duty cycle:70 kVA
    Secondary voltage (U₂₀):4 V, up to 3 V (U₂ₙ), stepped (4 tap positions)
    Input voltage:500 V / 1000 Hz
    Secondary current at 50% ED (Iₙ):10 kA (rated), cos φ: 0.9
    Short-circuit voltage (Uₖ):5%
    Short-circuit current (Iₖ):10 kA

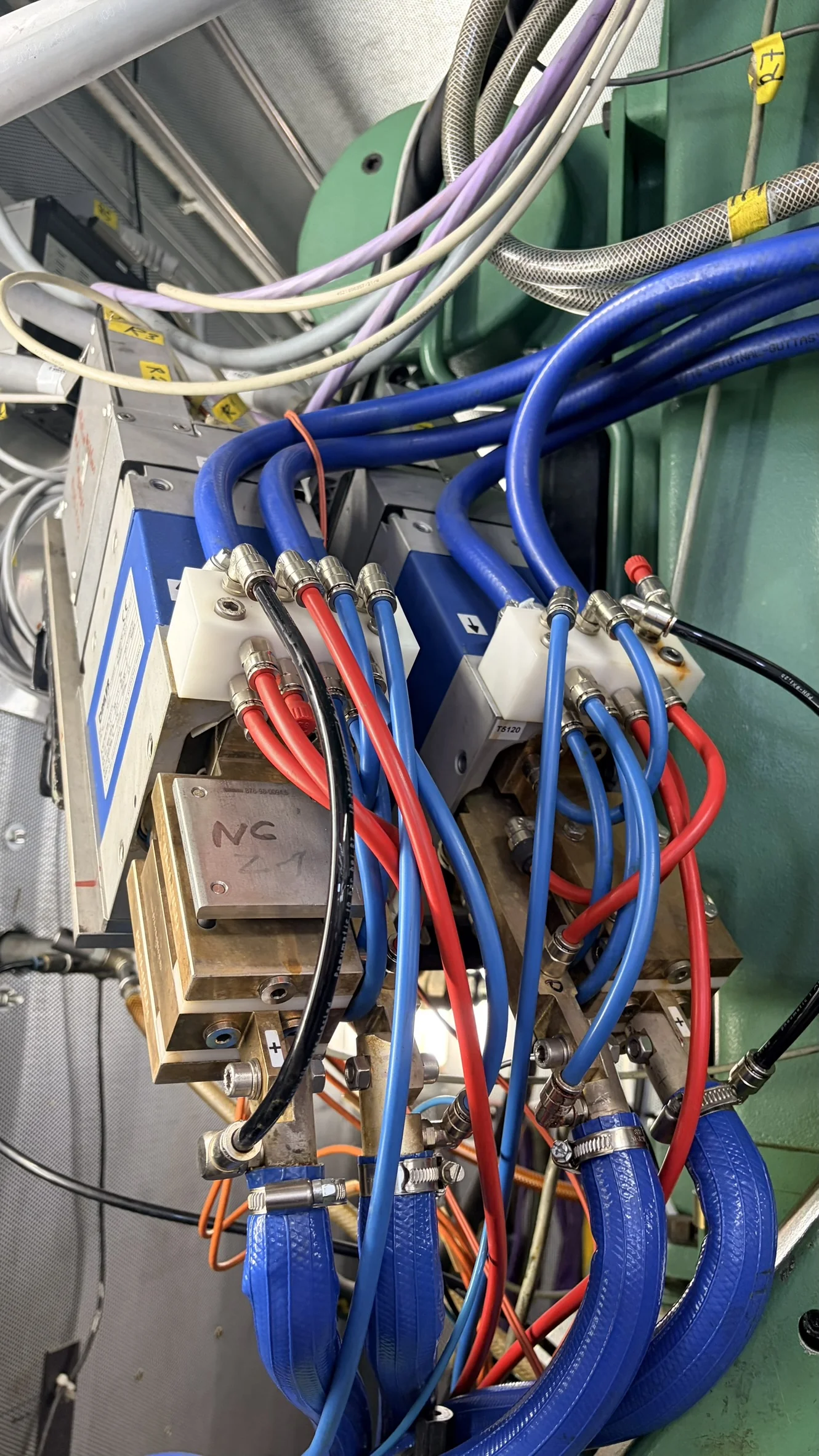

    Cooling flow:6 l/min
    Insulation class:F
